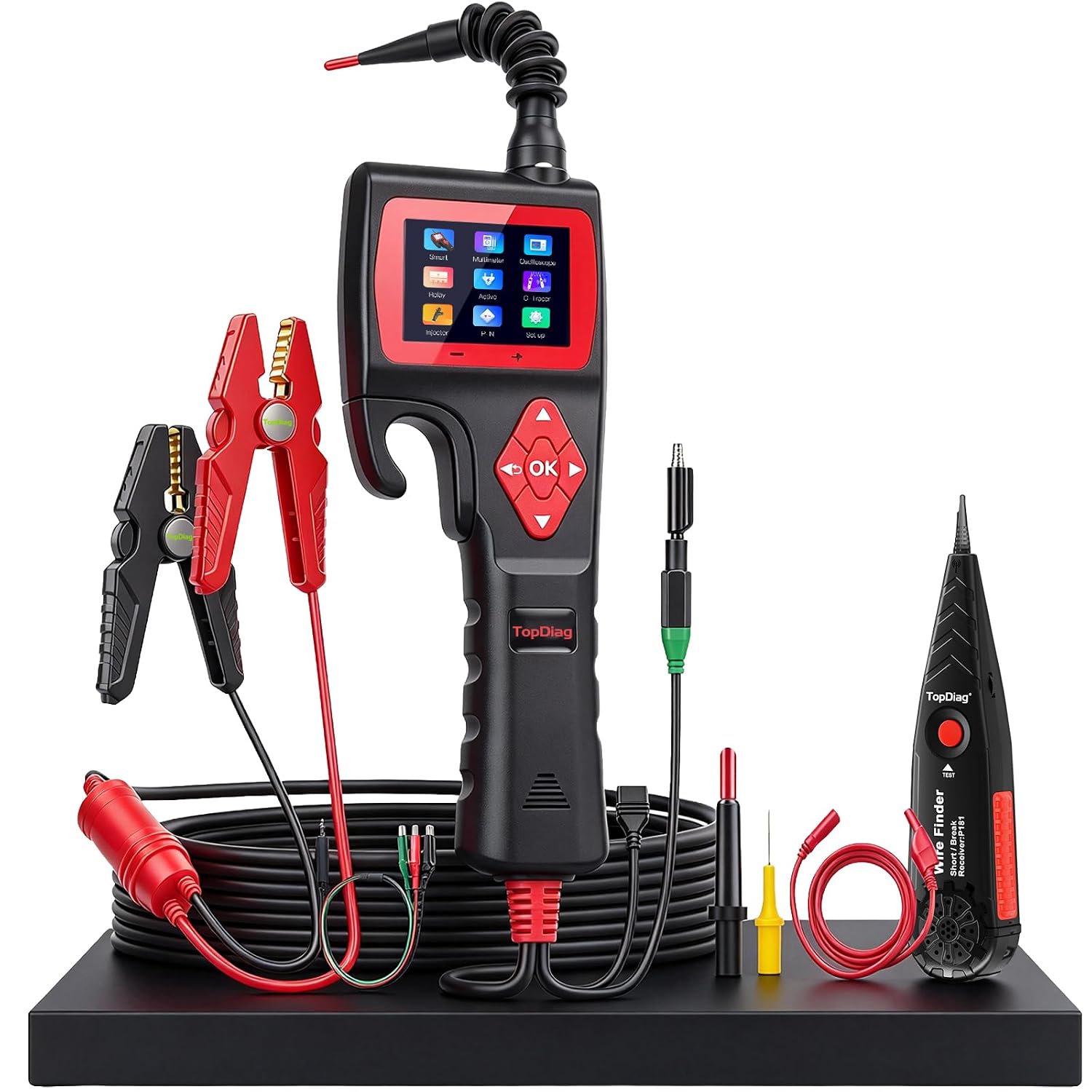

TopDiag P200 circuit probe kit for cars

Power circuit testing gets easier when you have one compact automotive circuit tester that can switch between multiple diagnostics. The TopDiag P200 Power Circuit Probe Kit combines multimeter-style checks with oscilloscope mode, so you can investigate voltage, resistance, polarity, continuity, and more without changing tools every few minutes. Whether you are a professional mechanic working through intermittent electrical faults or a DIY enthusiast doing routine checks, this kit is built around fast circuit diagnosis and practical on-vehicle testing. ⚙️

What stands out is the mix of measurement and action. You can not only test components, but also apply battery power or ground to the probe tip to help activate certain electrical parts and dynamically verify behavior. That workflow matters when you are troubleshooting lighting, motors, solenoids, relays, trailer lights, and signal circuits, especially when you want to avoid opening wiring whenever possible. 🔧

Key points

The P200 power circuit probe kit brings together multiple automotive diagnostic tasks in one handheld tool. It supports multimeter functions like DC voltage measurement, resistance checks, diode on off testing, current testing, and frequency testing, along with an oscilloscope function and buzzer feedback. With that combination, you can evaluate circuit behavior in more than one way, then use the displayed results to guide your next step.

You also get continuity testing and polarity awareness, which helps you confirm whether a circuit path is behaving as expected and whether you are reading positive and negative conditions correctly. The kit is described as supporting open and short testing, power and ground detecting, and bad ground contact checking. In real-world repairs, ground issues and connector problems are common causes of confusing symptoms, so the ability to verify them quickly can reduce troubleshooting time.

Another differentiator is activation testing. The kit is designed to let you apply battery power or ground directly to the probe tip so you can activate electrical components like lights, motors, and solenoids, then observe how they respond. If a component does not behave under controlled activation, it can help you narrow down whether the fault is inside the component or in the surrounding circuit.

There is also a fuel injector cleaning approach included in the capabilities. The product description states that the P200 provides pulse signals and can be used with car cleaner to achieve a maximum cleaning effect, which is useful when you want to address injector performance during maintenance. 🚗

Tech specs

• Name: TopDiag P200 Power Circuit Probe Kit - Automotive Circuit Tester with 2024 Online Update, 9~30V Voltage Range, Multimeter, Relay Test, Fuel Injector Tester, Activating Component, Oscilloscope Mode
• Type: Automotive power circuit probe kit
• Voltage range: 9 to 30V
• Functions: Multimeter and oscilloscope mode testing
• Testing features: Continuity testing, relay test, activating electrical components
• Fuel injector support: Pulse signals for injector cleaning approach
• Included accessory: 20FT extension cable and LED light

What stands out

If you prioritize getting answers quickly, this kit is built around an auto-range experience. The description notes an instant auto-range and intelligent judgment on the HD LCD screen when you connect the probe for voltage, resistance, and positive or negative polarity measurements. That can help reduce manual selection steps while you are moving from one point in the vehicle to another.

You can also work without opening the wiring in many cases. With a 20ft cable, the kit is intended to help you reach and test circuit conditions from a more convenient position, which can be especially helpful during roadside diagnostics, garage troubleshooting, or long-bay repair sessions. The included LED light is there to support visibility, so you can keep checking even in darker areas or at night.

For relay-related symptoms, the included relay test capability can support quick checks that help explain issues like lighting failures or missing functions. If a relay is stuck, failed, or not switching correctly, troubleshooting often depends on whether the command and power feed reach the right points. The tool description emphasizes fixing lights on the fly and reducing disruption when a small part stops a project.

There is a clear focus on circuit confidence beyond basic readings. The kit description includes signal circuit testing, checking bad ground contacts, and trailer lights testing, which makes it useful when you need to confirm multiple electrical pathways. It also mentions power supply and ground detecting, and open and short testing, so you can narrow down the type of problem you are facing rather than guessing.

It’s not for you if you only want a simple single-purpose tester, because the value here is the broader workflow across multimeter checks, oscilloscope mode, and activation and component testing. It makes sense if you want one tool that can cover a wide range of automotive electrical diagnostics like relays, injectors, ground checks, and waveform-related troubleshooting using oscilloscope mode. ✅

Who it’s for

The TopDiag P200 suits mechanics and advanced DIY users who handle automotive electrical systems and need flexibility during diagnostics. If you frequently troubleshoot complex vehicle issues, test relays, and verify circuit behavior using both measurement and oscilloscope mode, this kit can fit into your existing workflow with less tool switching.

You may want to consider it if you do routine maintenance and want the ability to check continuity, diode on off behavior, resistance, voltage, and polarity as part of a structured electrical inspection. It is also a strong match if your work includes injector-related tasks, since the kit is described as supporting pulse signals as part of a fuel injector cleaning approach. 🛠️
