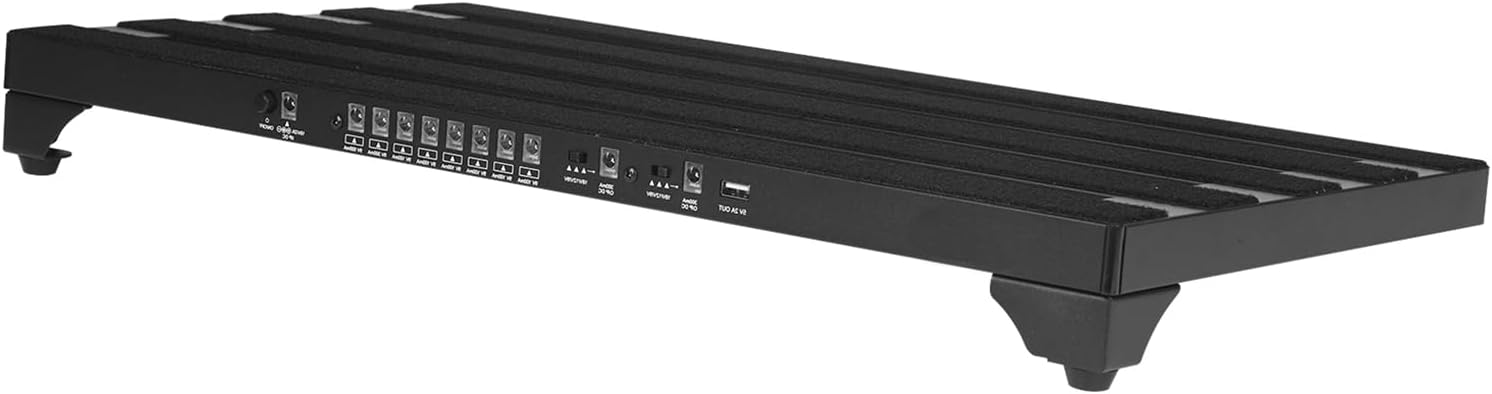

SOYAN PPB-22D Guitar Pedal Board, 10 DC Outputs, 22 x 12.5 Inches

If your setup needs room for multiple pedals and power on the board, the SOYAN PPB-22D brings both together. Its 22 x 12.5-inch surface is typically sized for 10–12 pedals. A built-in supply provides 10 DC outputs, with two offering selectable voltage. The board weighs 3 pounds, and a carry bag is included.

Key specifications

• Model: PPB-22D
• Size: 22 x 12.5 x 2.6 inches
• Material: Aluminum alloy
• Weight: 3 pounds

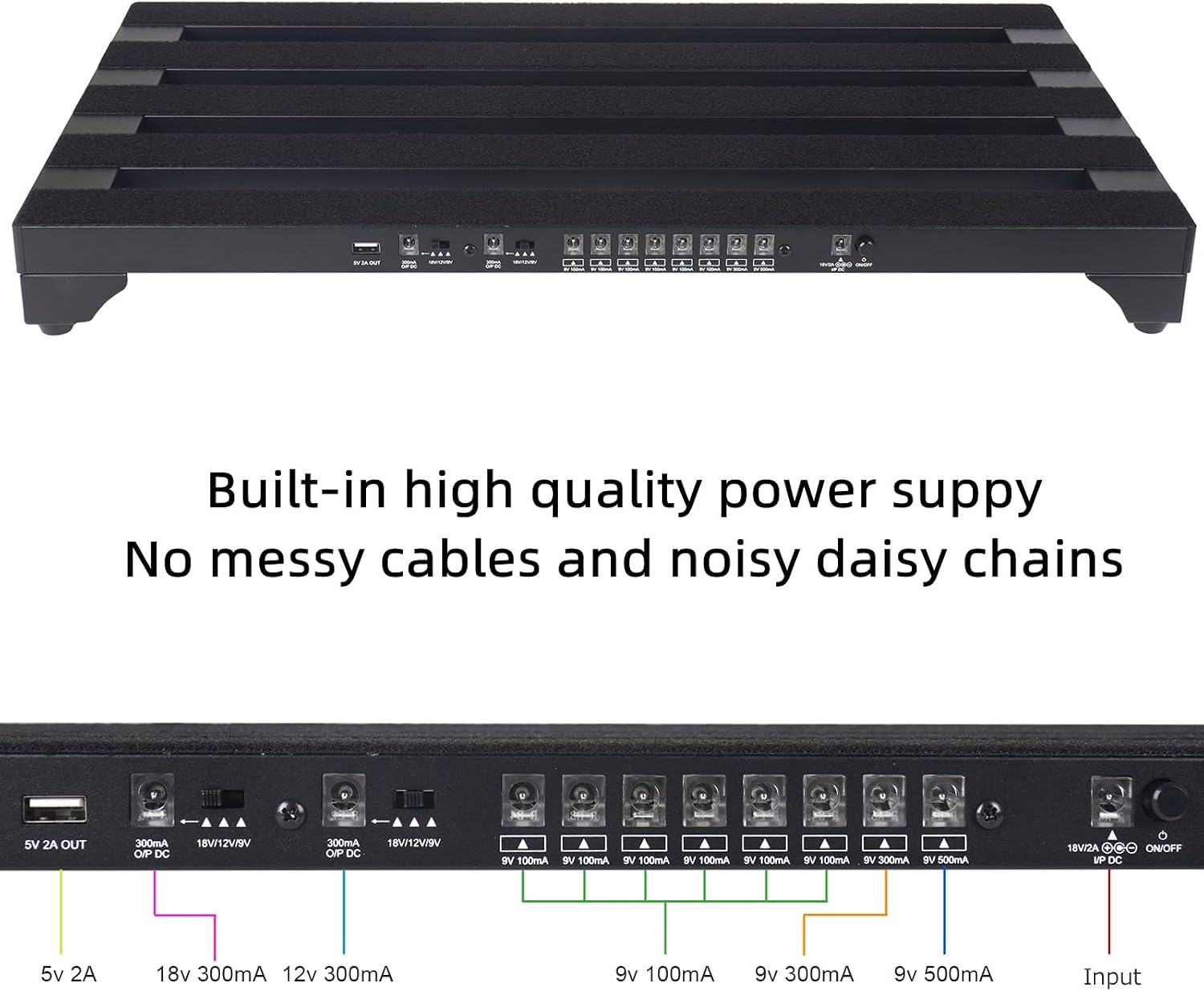

• Power: 10 DC outputs, each supplies 9V DC, with two outputs selectable for 12V or 18V DC
• What’s included: Pedal board with built-in power supply, AC adapter, DC cables, Velcro tapes, and carry bag

The integrated power supply keeps power connections within the board rather than relying on a separate supply arrangement. That can make the setup easier to organize when several pedals share the same surface. The voltage detail matters when planning a layout: eight outputs are described as 9V, while two have a selector for 12V or 18V. Match each pedal’s power needs to the available output before connecting it.

Best use cases

This board is aimed at guitarists who want a dedicated surface for a multi-pedal rig, with the power supply built in instead of added as a separate board component. The stated typical capacity of 10–12 pedals gives a useful starting point for planning, but the actual fit depends on pedal sizes and how their cables are routed. Larger pedals or wider spacing can reduce how many fit comfortably.

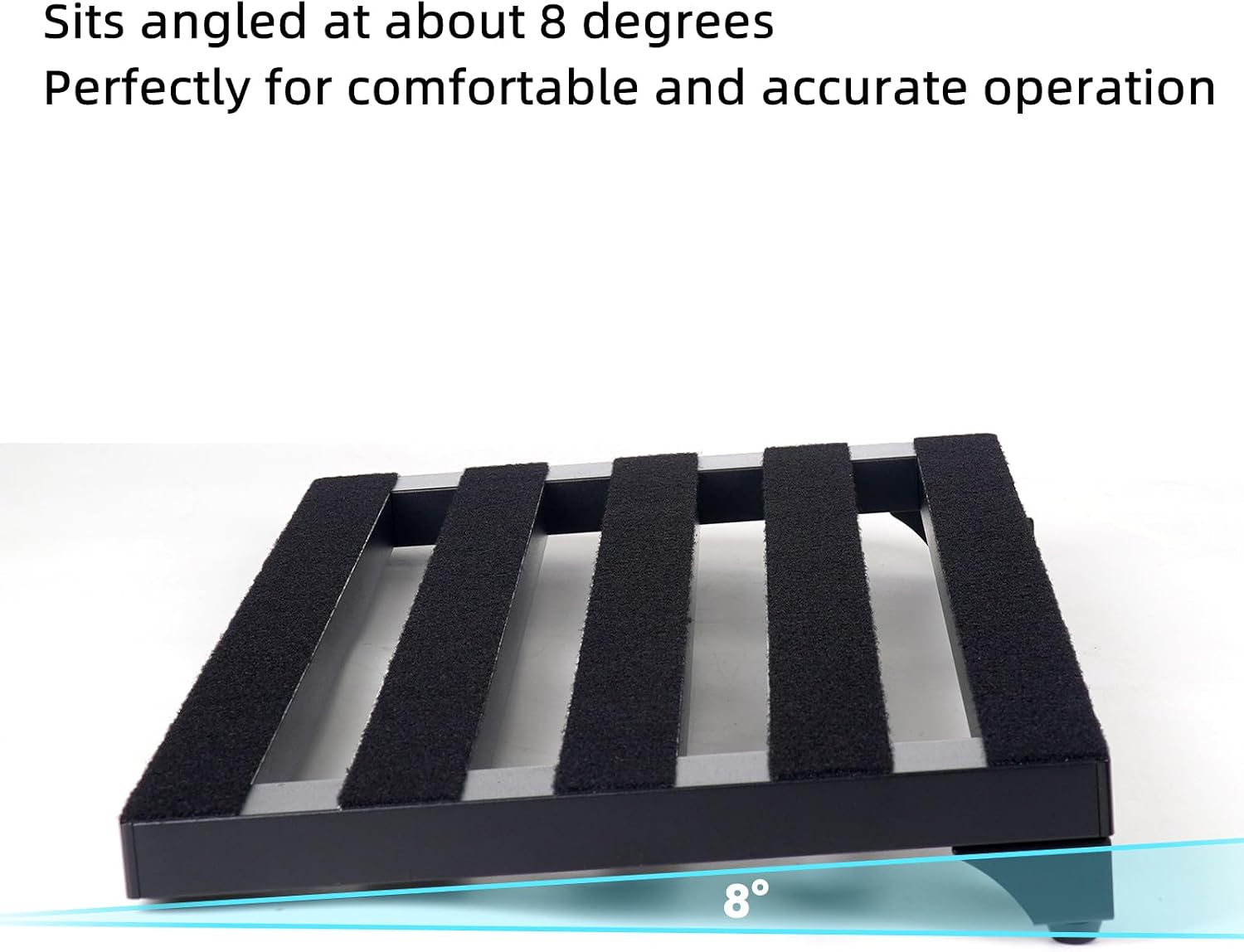

The board sits at about an 8-degree angle, which positions the pedals for foot operation. Its aluminum-alloy construction provides the frame, while the included bag is intended for carrying the board and pedals between locations. You’ll appreciate it if you want a single board-and-power setup for rehearsals or gigs, rather than assembling a more basic board and power supply separately. It’s not for you if your pedal collection calls for a smaller footprint than 22 x 12.5 inches.

Practical tips

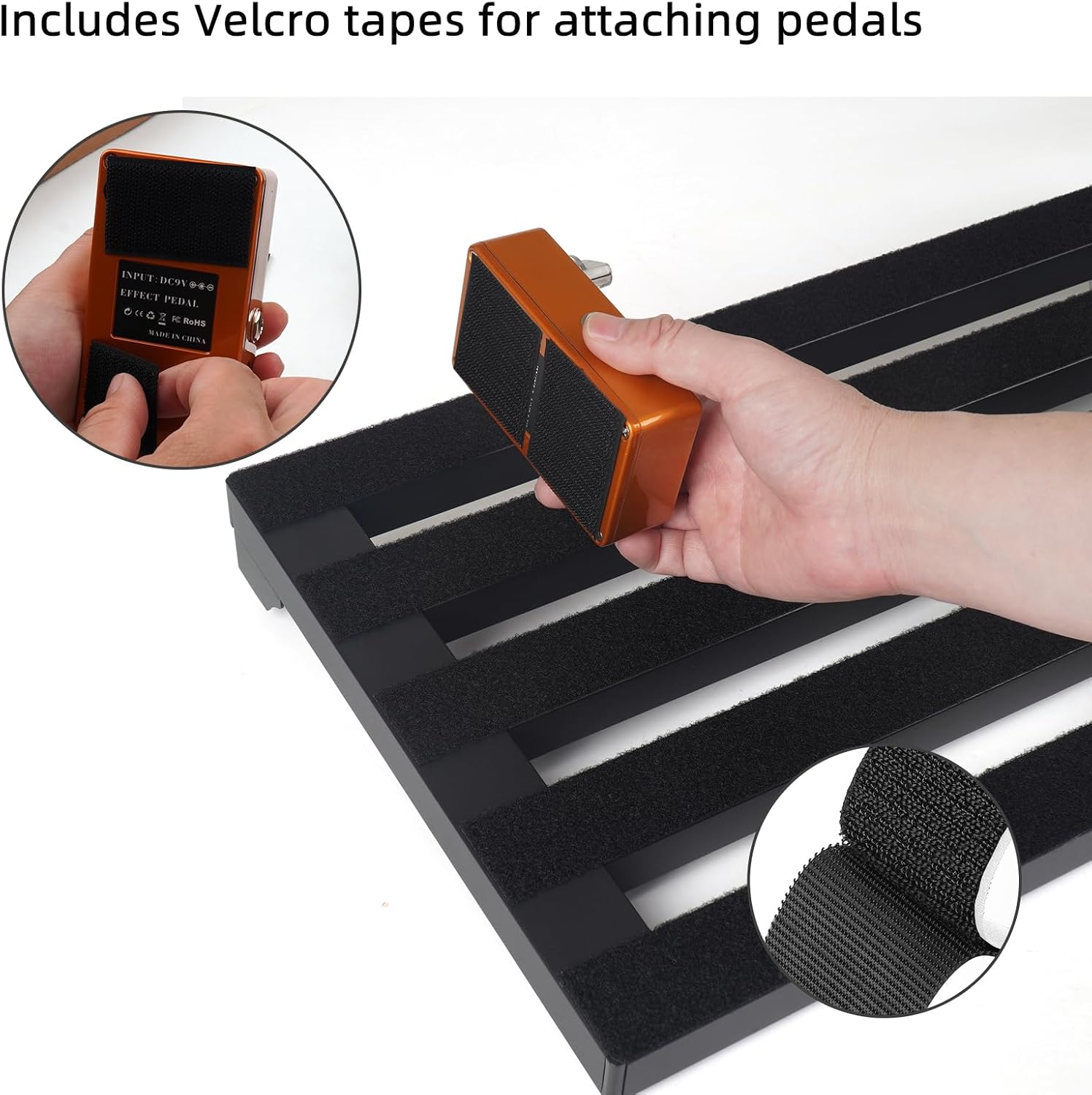

Plan the pedal layout before attaching the included Velcro tapes. Leave room for plugs and DC cables as well as the pedal enclosures, the listed capacity is typical, not a guarantee that every combination of 10–12 pedals will fit. Check the voltage each pedal requires and assign the two selectable outputs only where 12V or 18V is appropriate. The product details don’t specify output current, so don’t assume a particular current capacity for your pedals from the voltage information alone.

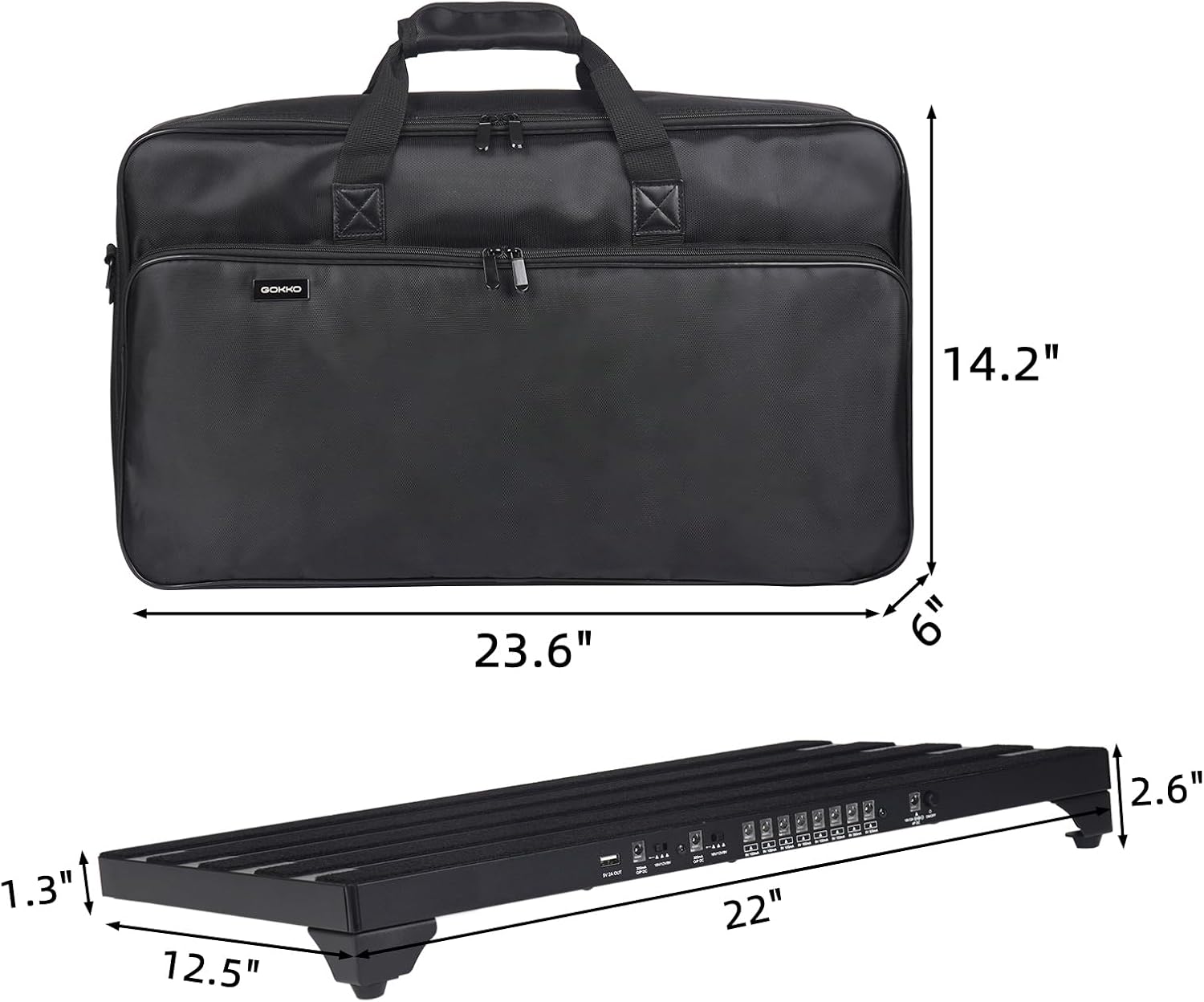

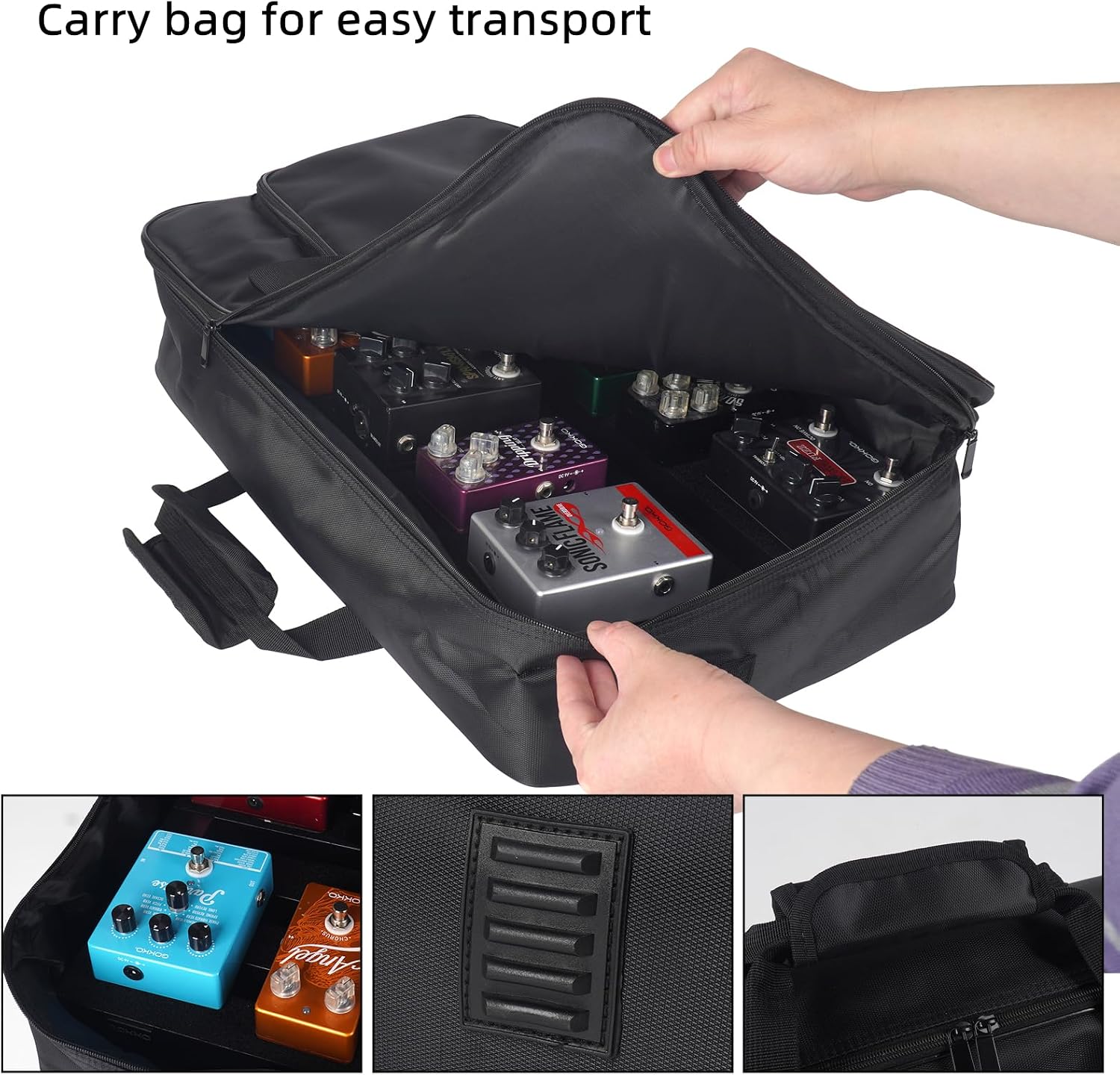

For transport, the listed board dimensions are 22 x 12.5 x 2.6 inches and its weight is 3 pounds. The carry bag measures 23.6 x 14.2 x 6 inches and weighs 2.3 pounds. That gives you a concrete way to judge whether the packed setup suits your storage or travel needs.

Before you decide

How many pedals can it hold? The board is described as typically fitting 10–12 pedals. Their dimensions and cable placement will affect the final layout.

Can all 10 outputs switch voltage? No. All 10 are listed as 9V DC outputs, but only two have selectors for 12V or 18V DC.

What comes in the box? The listed contents are the board with built-in supply, an AC adapter, DC cables, Velcro tapes, and a carry bag.

Is it worth it?

The PPB-22D makes sense if you want a relatively large pedal surface with power integrated into the board and enough outputs for a multi-pedal setup. Its clearest planning constraint is the output mix: only two outputs have selectable voltage, and the product information doesn’t state current capacity. If those details suit your pedals, the included cables, mounting tapes, and bag make this a more consolidated approach than sourcing those board accessories separately.
