SaniteModar Linear Shower Drain 28-Inch

Some shower layouts call for a compact point drain, others benefit from a longer channel that gathers water along more of the floor. The SaniteModar linear shower drain takes the channel-style approach, with a 28-inch length and a matte black finish.

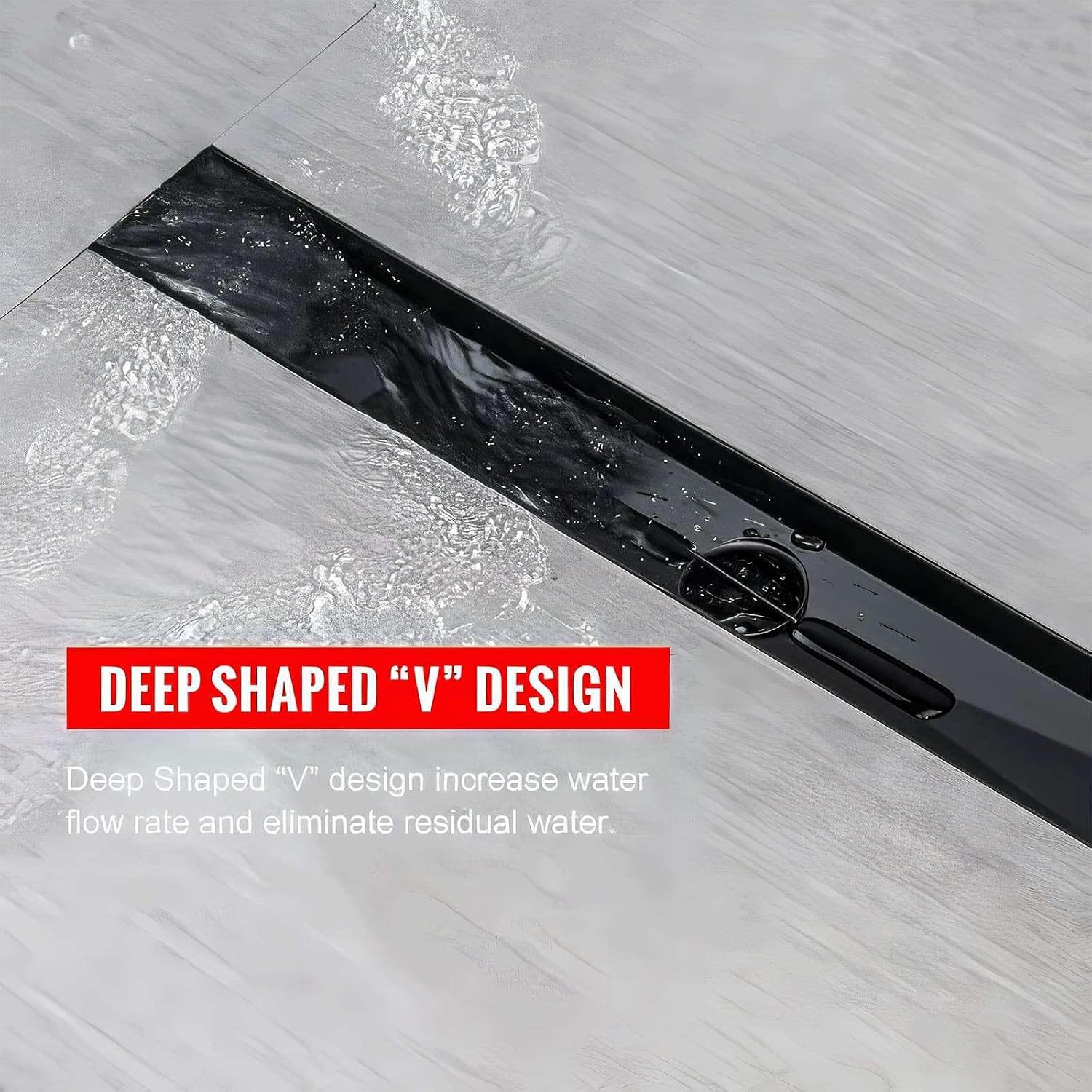

Its interior X-shaped design guides water toward the central outlet. A removable filter mesh is included to catch hair.

That combination makes it relevant for a shower remodel where the drain style, outlet size, and finish all need to fit the plan. The listing also names kitchens and other areas as possible uses.

Technical details

The drain measures 28 x 2.8 x 2.5 inches and has a 2-inch outlet. The listed average displacement is 60 l/min without the filter mesh, the flow rate with the mesh in place isn’t specified, so don’t treat that figure as a guaranteed installed rate.

The body is AISI 304 stainless steel, with a black finish and a square-hole panel. The product description says the material and production process are intended to help prevent corrosion and rust. Two adjustable feet are included to address uneven ground, which may help during placement, but the listing doesn’t provide detailed installation instructions or flooring requirements.

Getting the most from it

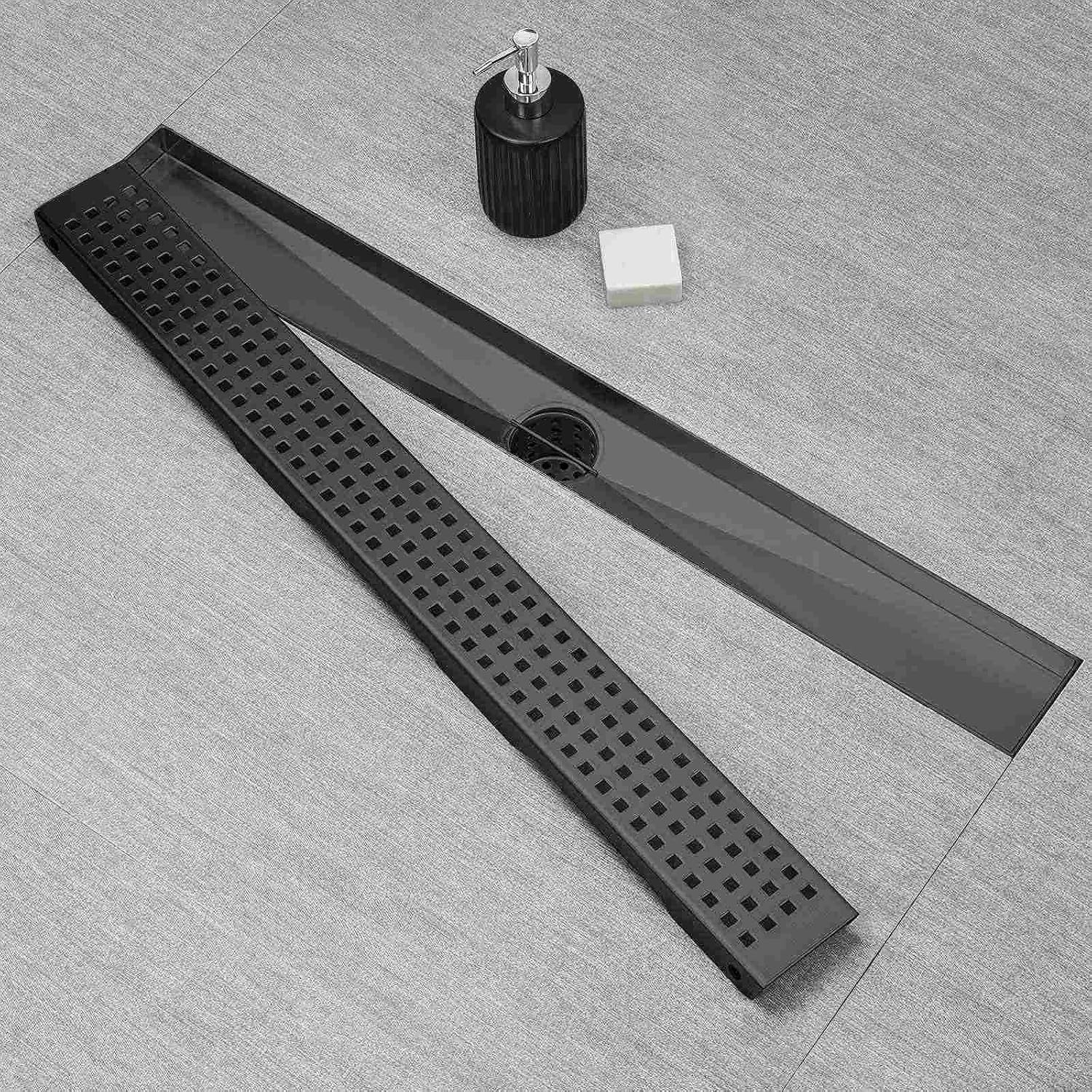

This is a linear drain rather than a small central floor drain, so it suits plans built around a longer channel. Picture water moving across a shower floor toward the drain while the X-shaped interior directs it to the outlet. The hair strainer is removable: lift the panel, take out the mesh, and rinse it with water when it needs cleaning.

The stated 2-inch outlet is an important fit detail. The listing doesn’t identify a specific plumbing system or give connection instructions, so match the outlet and drain position to your project before choosing it. It makes sense if you want a black, channel-style drain and can confirm those dimensions against the planned installation. It might not be a great match if your layout requires a different outlet size or a drain configuration not described here. The listing gives the outlet diameter, but without that measurement for your existing connection, compatibility can’t be assumed.

Usage tips

Check the full 28 x 2.8 x 2.5-inch footprint against the space planned for the drain, not just the visible channel length. The adjustable feet may help compensate for uneven ground, but they don’t establish that the surrounding floor or plumbing will work with this unit. Confirm those project details before installation.

For routine upkeep, remove the panel and rinse the filter mesh. Since the 60 l/min figure is specified without the mesh, the product details don’t establish the flow rate during normal use with the strainer installed. That distinction matters if drainage capacity is a key reason for choosing it.

Questions before you buy

What is the outlet diameter? The listed outlet diameter is 2 inches. The listing doesn’t specify which existing plumbing connections it fits.

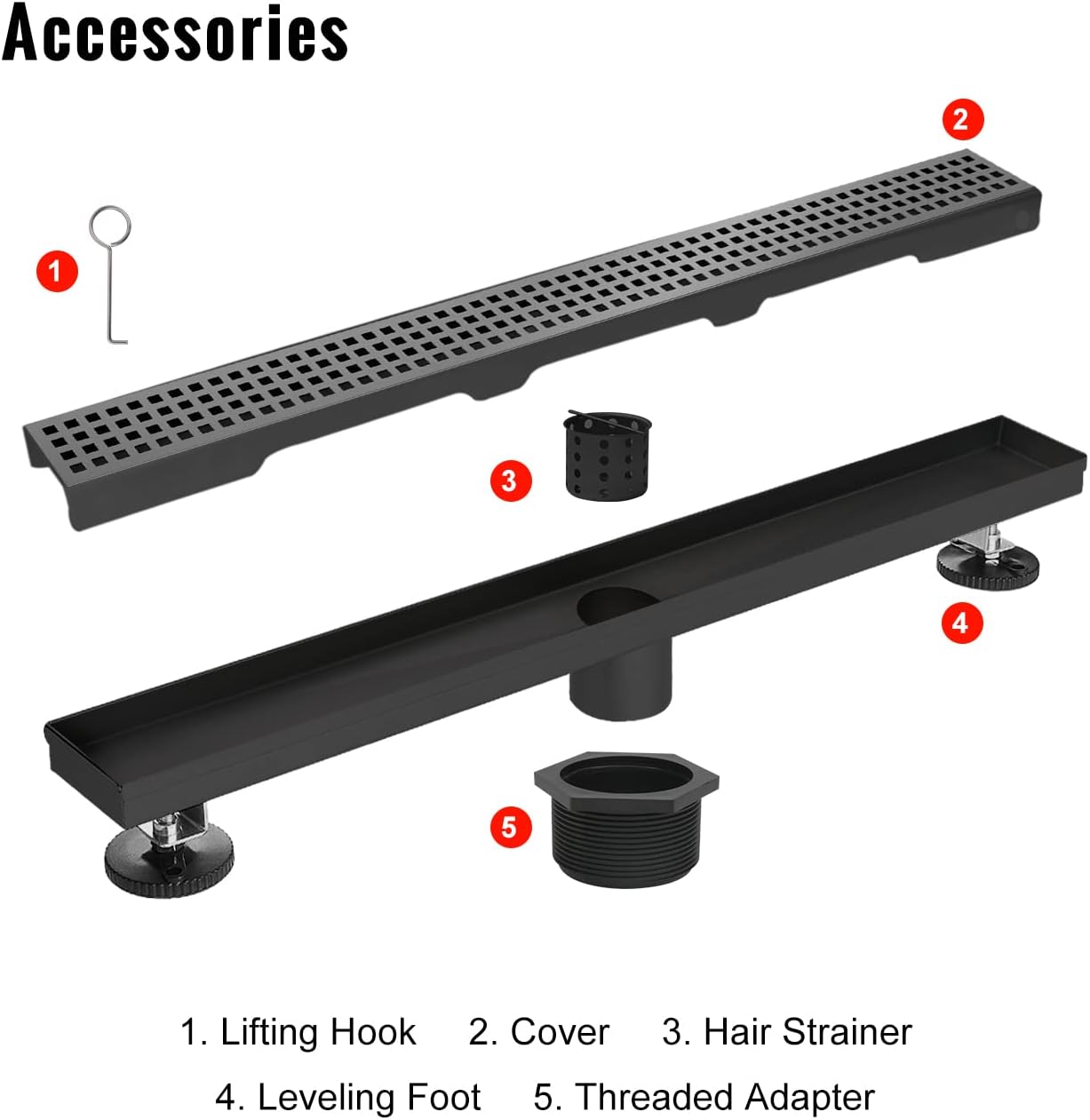

Does it include adjustable feet? Yes. Two adjustable feet are listed to help address uneven ground during installation.

How do you clean the hair strainer? Remove the panel, take out the filter mesh, and rinse it with water. The product description doesn’t state how often it should be cleaned.

Should you buy it?

Choose this SaniteModar drain if your project calls for a 28-inch linear channel, a black finish, a removable hair strainer, and a 2-inch outlet that matches your planned connection. Its adjustable feet and cleanable mesh are practical details for an installation that needs some leveling flexibility and routine hair removal. Skip it if the channel dimensions or outlet don’t suit your layout, or if you need installation and compatibility details that the listing doesn’t provide.
