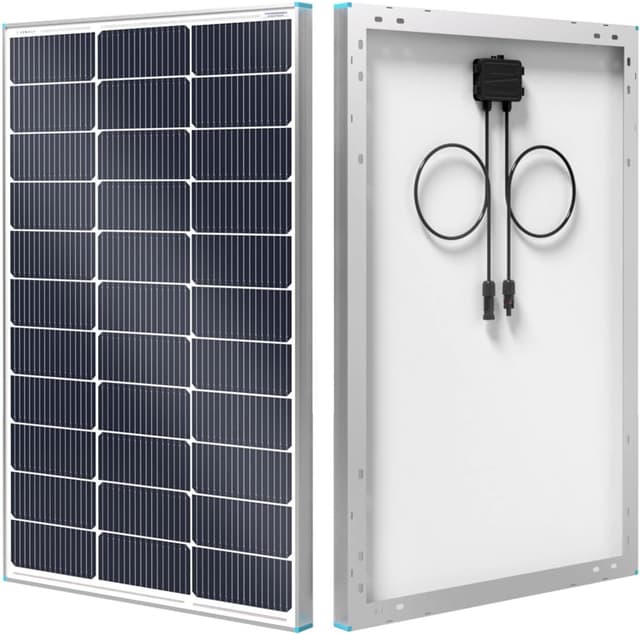

Renogy 100W N-Type Solar Panel

This Renogy 100W N-Type solar panel delivers high-performance energy conversion with a 25% efficiency rate, making it ideal for off-grid systems and remote locations that rely on consistent solar power. Designed for outdoor use in varied climates, it provides reliable output even in hot weather conditions.

Key Points

The Renogy 100W N-Type panel features A+ grade cells that boost power output by up to 20 watts compared to standard P-PERC panels of the same size. It uses 16BB cell technology to reduce hot spots and hidden cracks, improving both performance and long-term durability. With a low temperature coefficient of -0.29% per degree Celsius, it maintains efficiency even in high-heat environments. The panel includes IP65-rated protection, ensuring resistance to rain, snow, and dust. It’s built with tempered glass and corrosion-resistant aluminum frames for lasting exposure to outdoor elements.

Technical Specifications

Brand + Model: Renogy 100W N-Type
Voltage: 12 V
Power Output: 100 W
Efficiency: 25%
Temperature Coefficient: -0.29% /°C
IP Rating: IP65
Panel Type: N-Type with 16BB cells
Frame Material: Aluminum

Benefits

This solar panel performs consistently under extreme temperatures, which is critical for installations in desert or tropical zones. The improved cell structure reduces internal stress and thermal degradation, helping extend the panel’s lifespan. Its high efficiency means fewer panels are needed to meet energy demands, which simplifies system design. The IP65 rating makes it suitable for harsh weather, where exposure to moisture and debris is common.

Usage Recommendations

Install the panel in a location with maximum sun exposure, ideally facing south in the northern hemisphere or north in the southern hemisphere. Avoid shaded areas or direct contact with surfaces that may obstruct sunlight. Clean the surface regularly to maintain optimal performance. For best results, position it at a tilt angle matching your geographic latitude. In hot climates, ensure adequate airflow around the panel to reduce overheating.
