Orion Motor Tech Wheel Hub Removal Kit 5‑8 Lug 🛠️

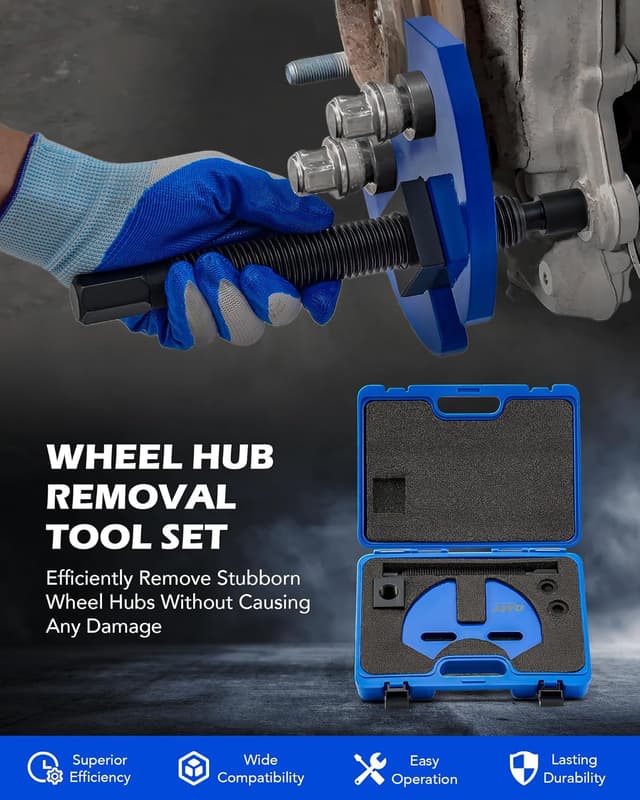

This wheel hub removal tool kit helps you remove stubborn wheel hubs on cars and trucks with 5, 6, or 8 lug assemblies, making wheel bearing and hub replacement tasks faster and cleaner. It is aimed at DIY mechanics and professional technicians who need a compact, durable puller that reduces risk of damage to the axle during removal.

Key Points

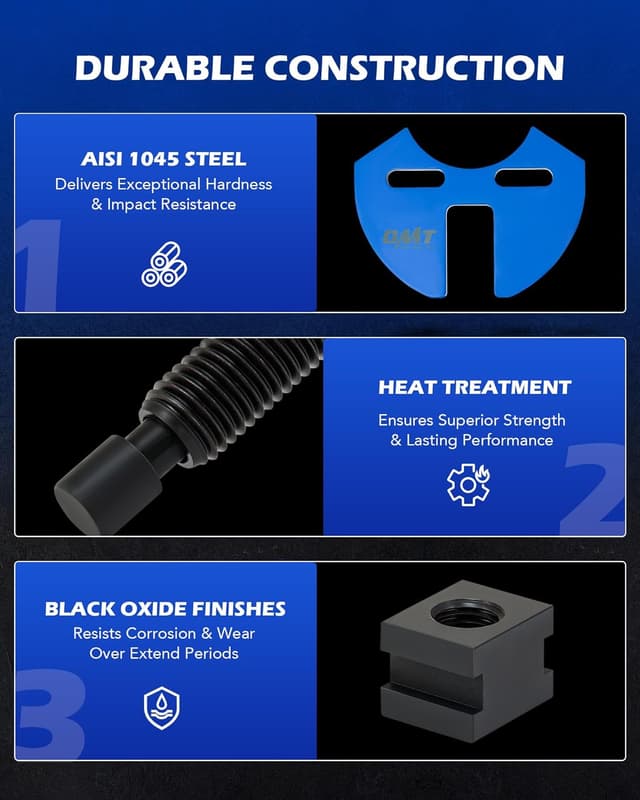

The kit includes an extraction plate, a forced screw, a screw mount, and two washers to tackle tight hubs with more control and less hammering. AISI 1045 and 40Cr construction gives the tools higher tensile strength, and the pieces have a black oxide finish that helps resist corrosion and wear. 🔧

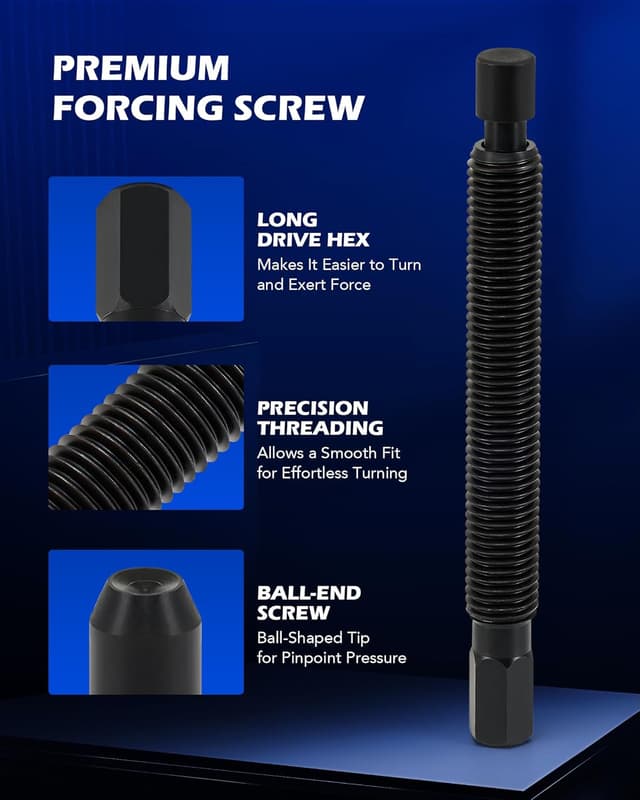

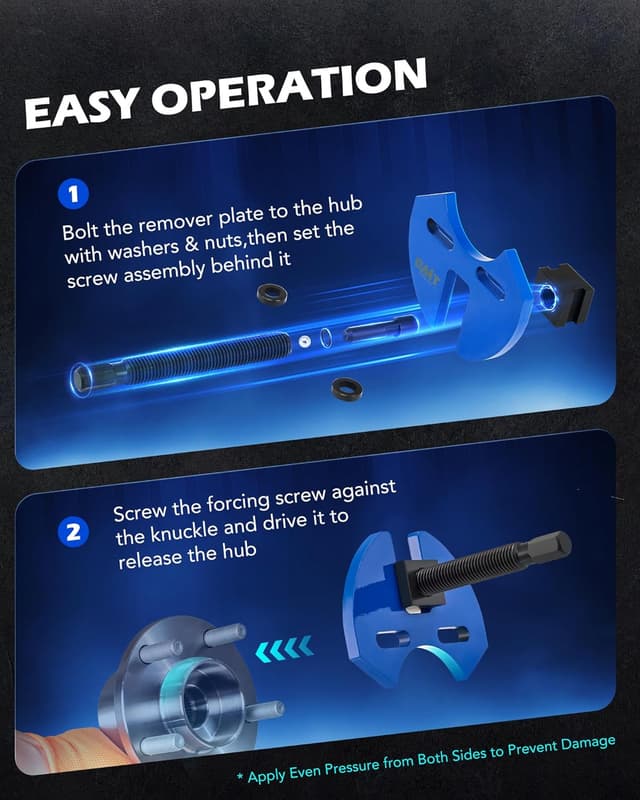

Operation is straightforward, with a clear sequence for attaching the extraction plate, fitting the screw mount, and tightening the forced screw to pull the hub free. The screw and mount receive heat treatment for added durability, which can matter when working on hubs that have been seized by rust or road grime. 🧰

Consider that very corroded or heavily damaged hubs may still require penetrating oil or additional rust removal before the puller can work without excessive force, according to the manufacturer.

Usage Recommendations

Start by cleaning the hub area and removing any clips or dust caps that could obstruct the extraction plate. Fit the plate to the lug pattern and align the screw assembly squarely to avoid uneven pressure on the hub. Tighten the forced screw steadily rather than quickly, as slower turns help control the extraction and limit shock to surrounding components.

Store each piece in the molded carrying case after use to keep threads and contact surfaces free from dirt. The compact case is useful for moving the kit between garage bays or carrying it to roadside jobs.

Technical Specifications

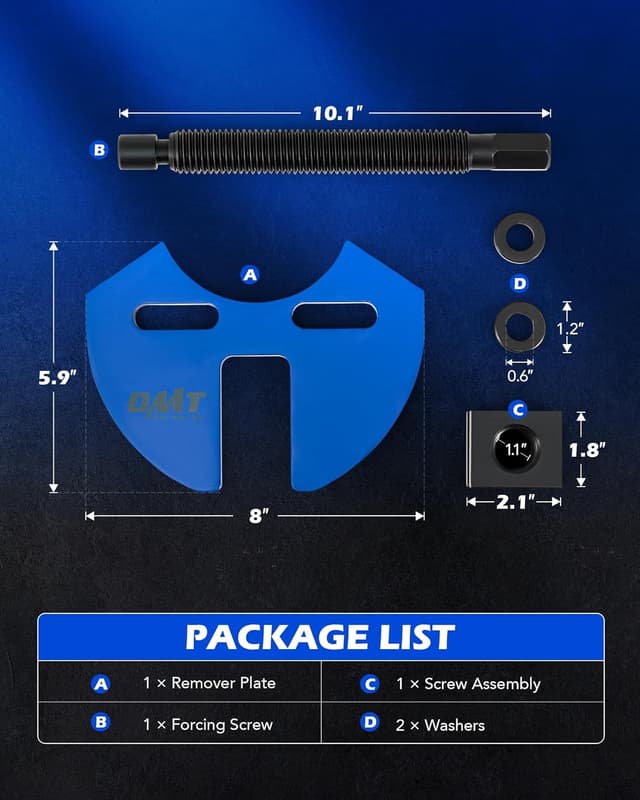

• Name: Orion Motor Tech Wheel Hub Removal Tool Kit
• Compatible lug patterns: 5, 6, 8 lug hub assemblies
• Materials: AISI 1045 steel and 40Cr steel
• Finish: Black oxide corrosion-resistant surface

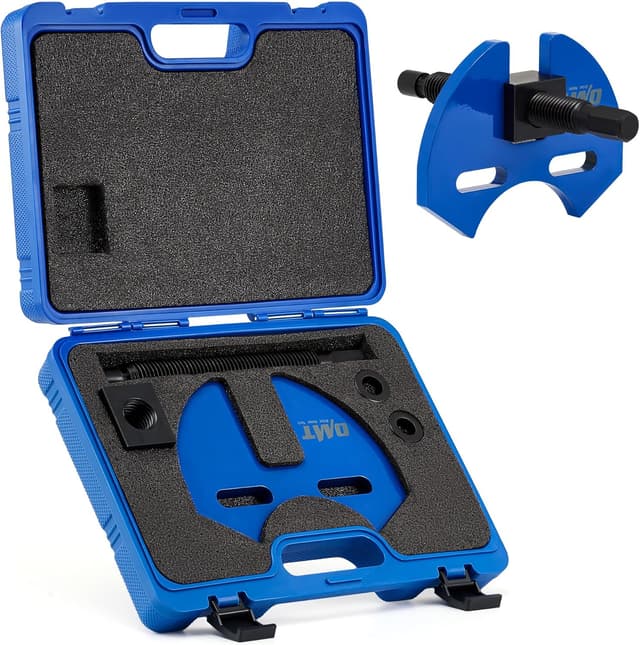

• Contents: Extraction plate, forced screw, screw mount, two washers, molded carrying case.
