Nilight Y Splitter Adapter 30A 🔌
Product description

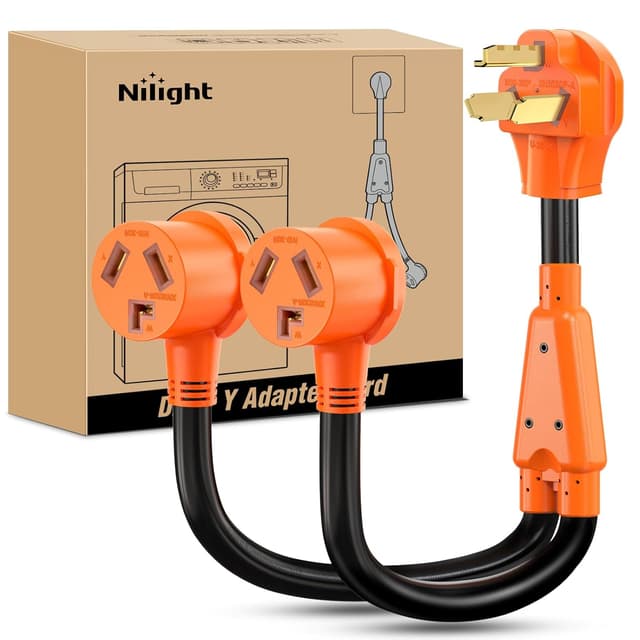

This heavy duty Y splitter adapter lets you convert a single dryer outlet into two usable 30 amp receptacles, useful for home EV charging or dryer power extension. It suits garages and utility spaces where a NEMA 10-30R outlet is available, and the NEMA 10-30 Y splitter mention helps set expectations for compatibility and safe use.
Key takeaways

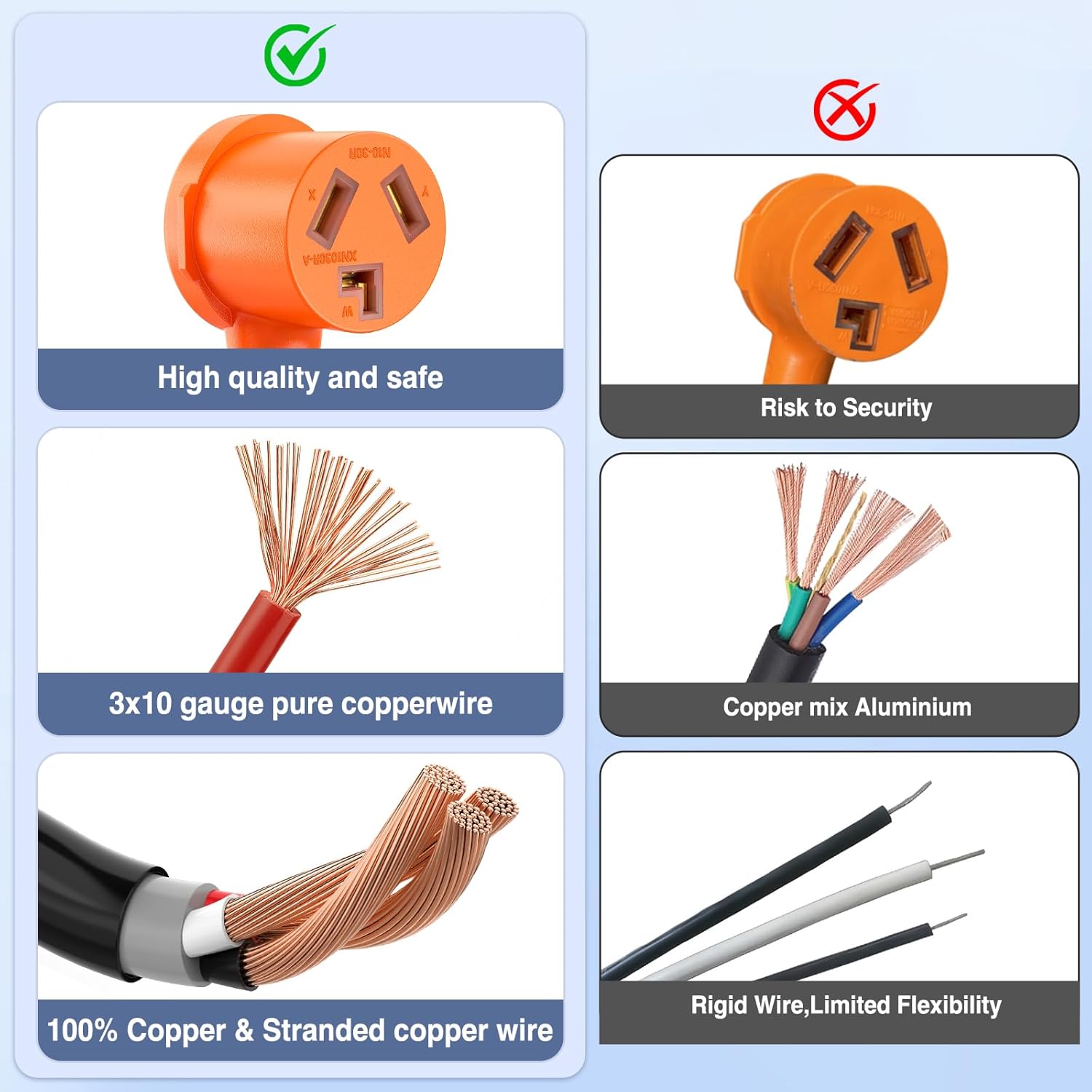

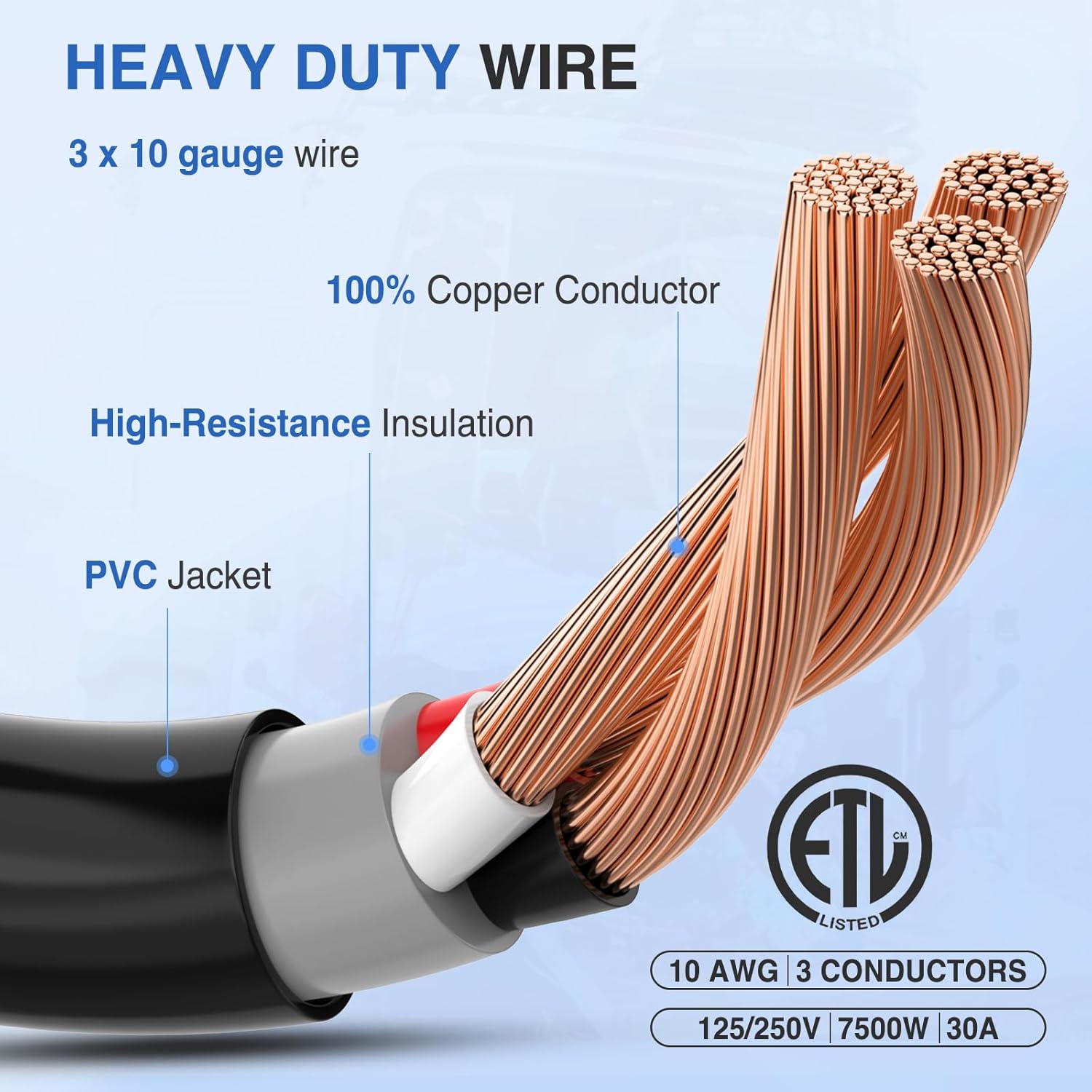

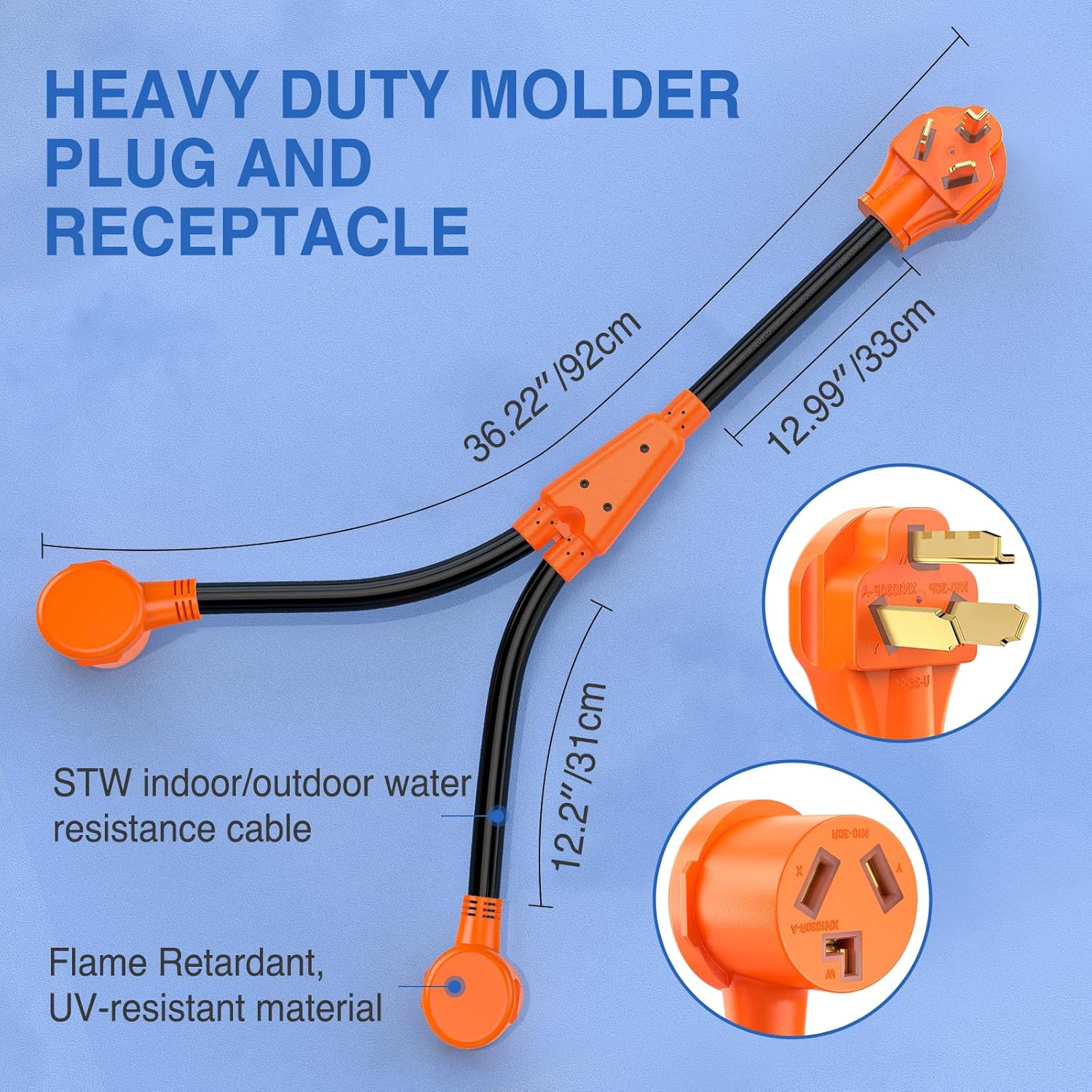

Built for straightforward conversions, this adapter provides two 30 Amp 10-30R female outlets from one 10-30P male plug. The cable measures about 36.22 inches and carries a 7500 watt rating at 125/250V according to the product details. The cord uses stranded 10 AWG wires wrapped in a flame retardant STW jacket, so it stays flexible and protected outdoors. Keep in mind that it is not compatible with TT-30P or TT-30R connectors, so double check your receptacle before buying.
Tech specs
- Name: Nilight EV Dryer Y Splitter Adapter
- Capacity: 30 Amp
- Compatibility: 10-30P to 10-30R
- Size: 36.22 Inch
- Material: 100% pure copper
Usage tips
This adapter works well when you need an extra 30A outlet in a garage or workshop to charge an EV using a level 2 capable cable or to extend dryer power for equipment. It handles outdoor conditions better than basic cords thanks to the weather resistant PVC jacket, but avoid leaving connections exposed to direct water for long periods. When using the cord, plug and receptacle connections should be secure and visibly intact, and note that it is not meant for RV TT-30 use.

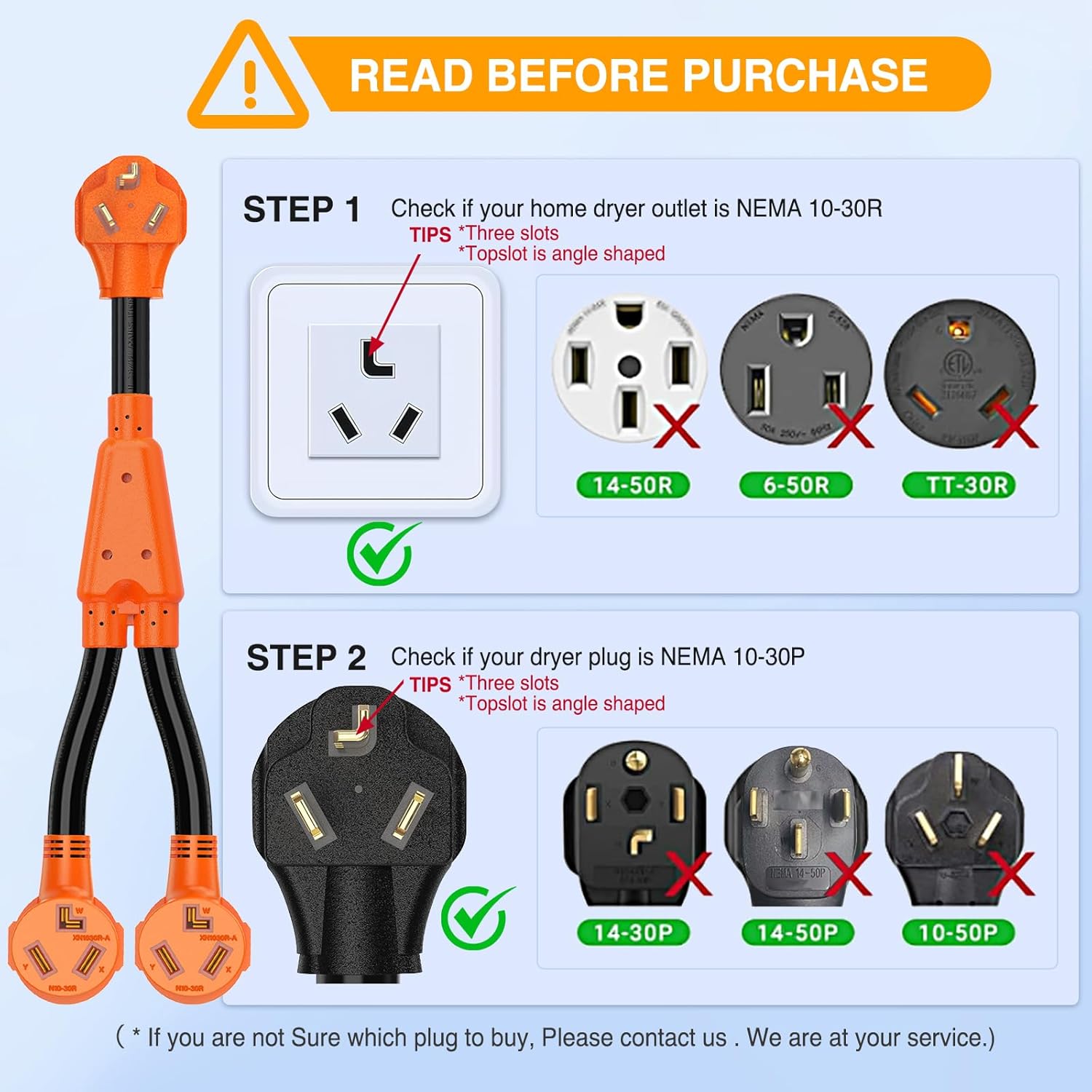

Compatibility

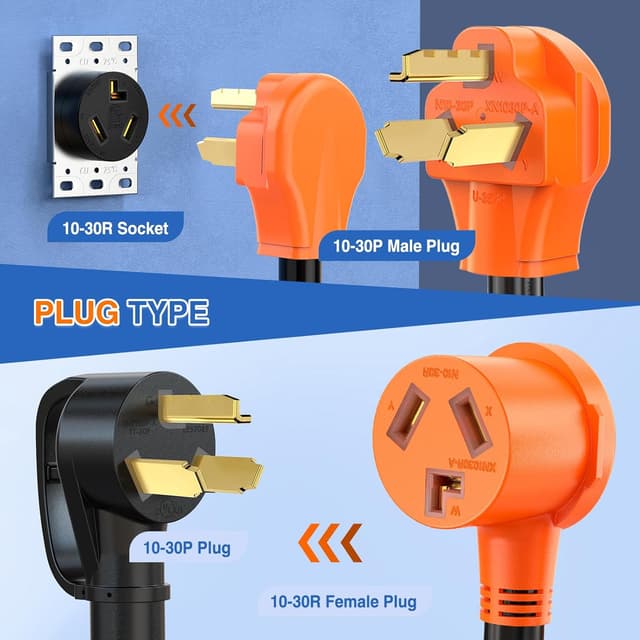

The Nilight EV Dryer Y Splitter Adapter is made specifically for NEMA 10-30P male plugs and matching 10-30R female receptacles, rated for 125/250V. It is a practical option if you have a dryer style outlet and need two 30 amp points without rewiring. Ten en cuenta que it will not fit TT-30 connectors and is not suitable for RV shore power.
