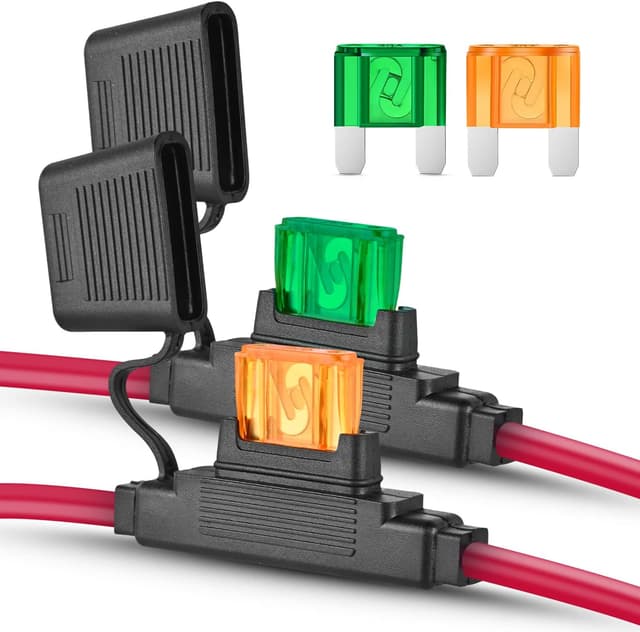

Nilight Inline Maxi Fuse Holder 60A
Product description
This inline maxi fuse holder set brings waterproof protection and heavy-duty wiring for automotive and marine electrical circuits, helping prevent overloads and short circuits while keeping installations compact and accessible. The two 10 AWG tin-plated copper leads and included 30A and 40A Maxi APX fuses make it practical for adding fused power to accessories like lights, pumps, or stereo systems.
Key Points

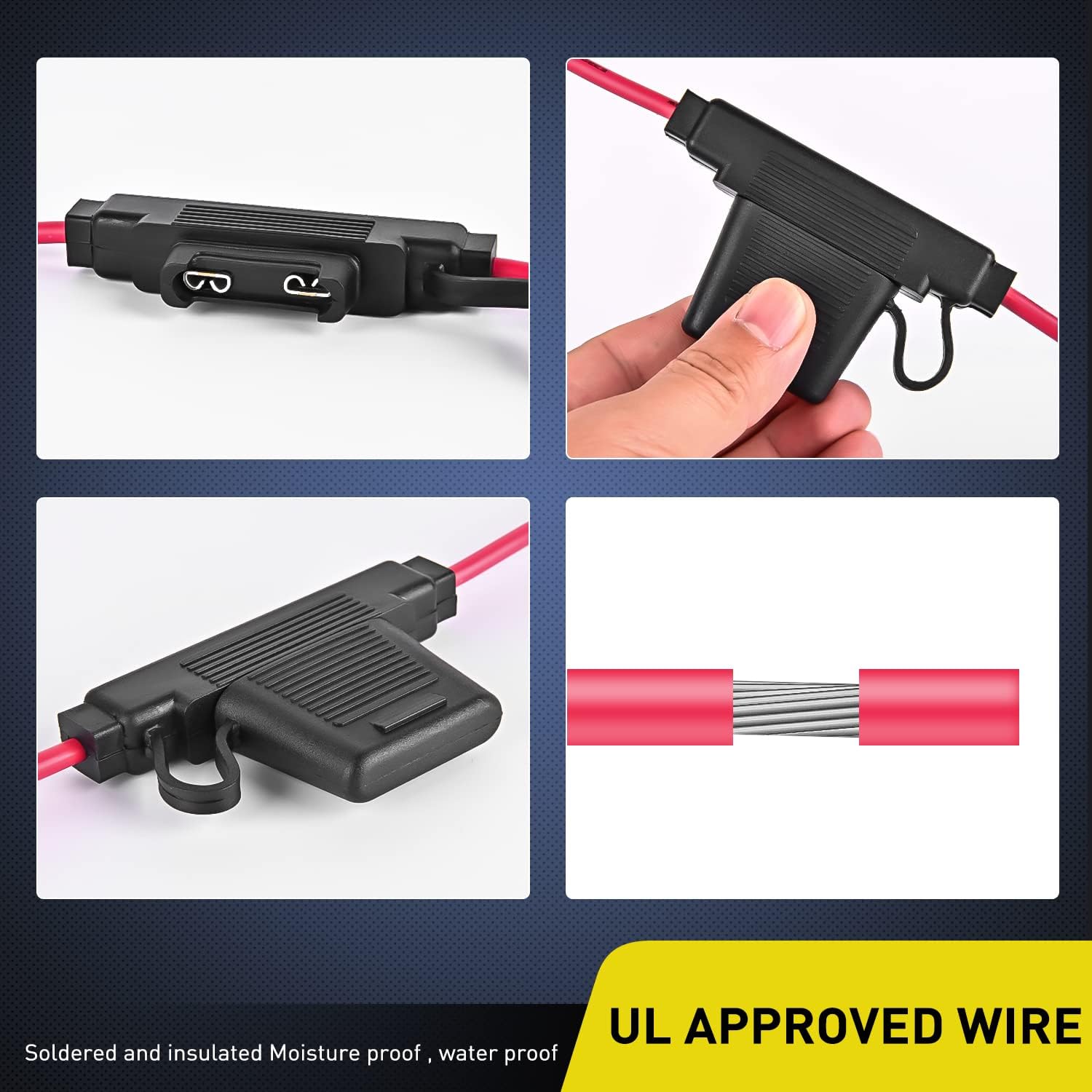

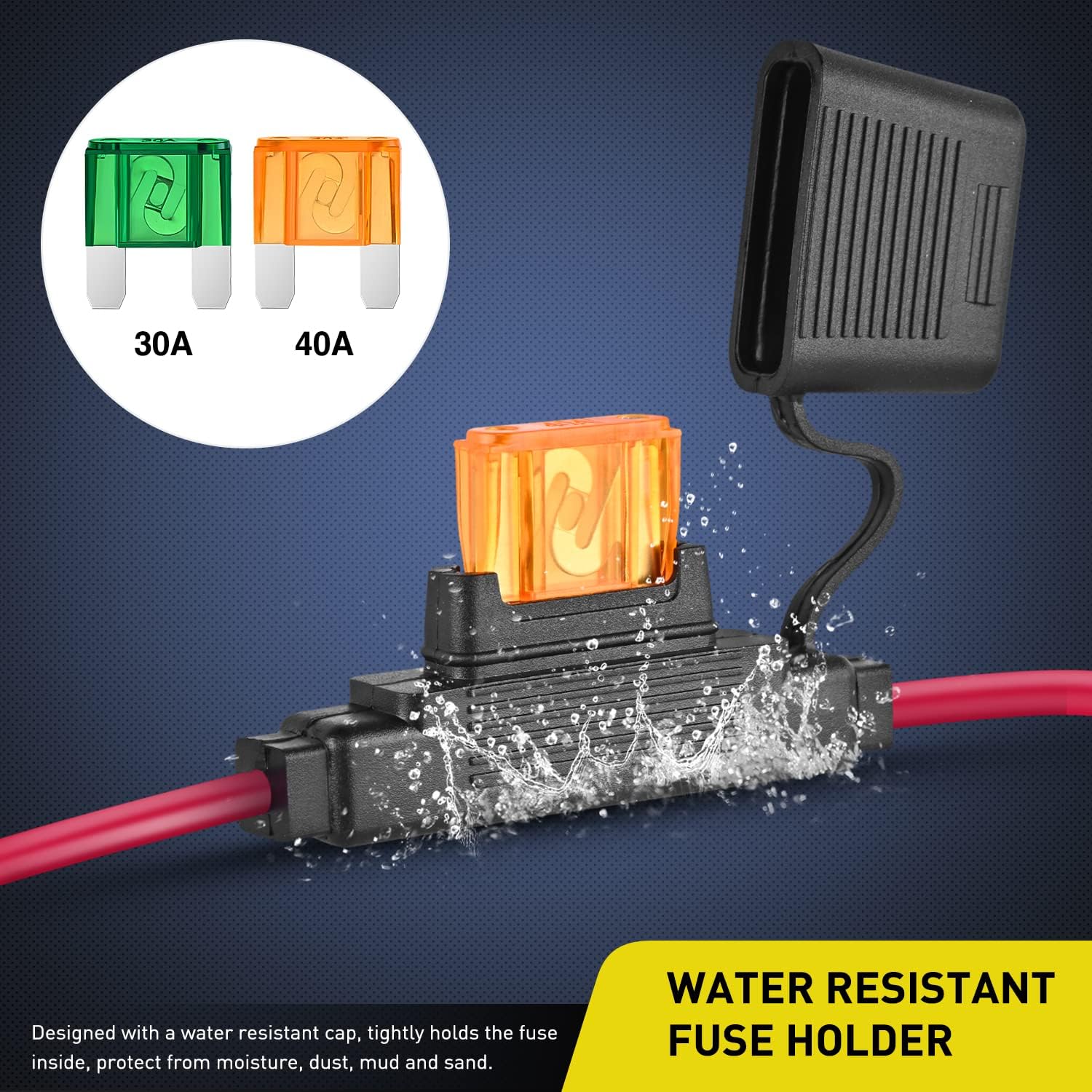

The kit includes two in-line fuse holders with 10 gauge tin-plated copper wire for improved conductivity and resistance to corrosion. Each holder arrives pre-wired with about a 12 inch loop length, ready to connect between a battery source and the device you want to protect. A tight-fitting rubber cap and waterproof nylon hot-melt seal help the assembly achieve water resistance suitable for automotive and marine use, according to the manufacturer. Note that the package contains two 30A and two 40A Maxi fuses so you can choose the fuse that matches your circuit current.

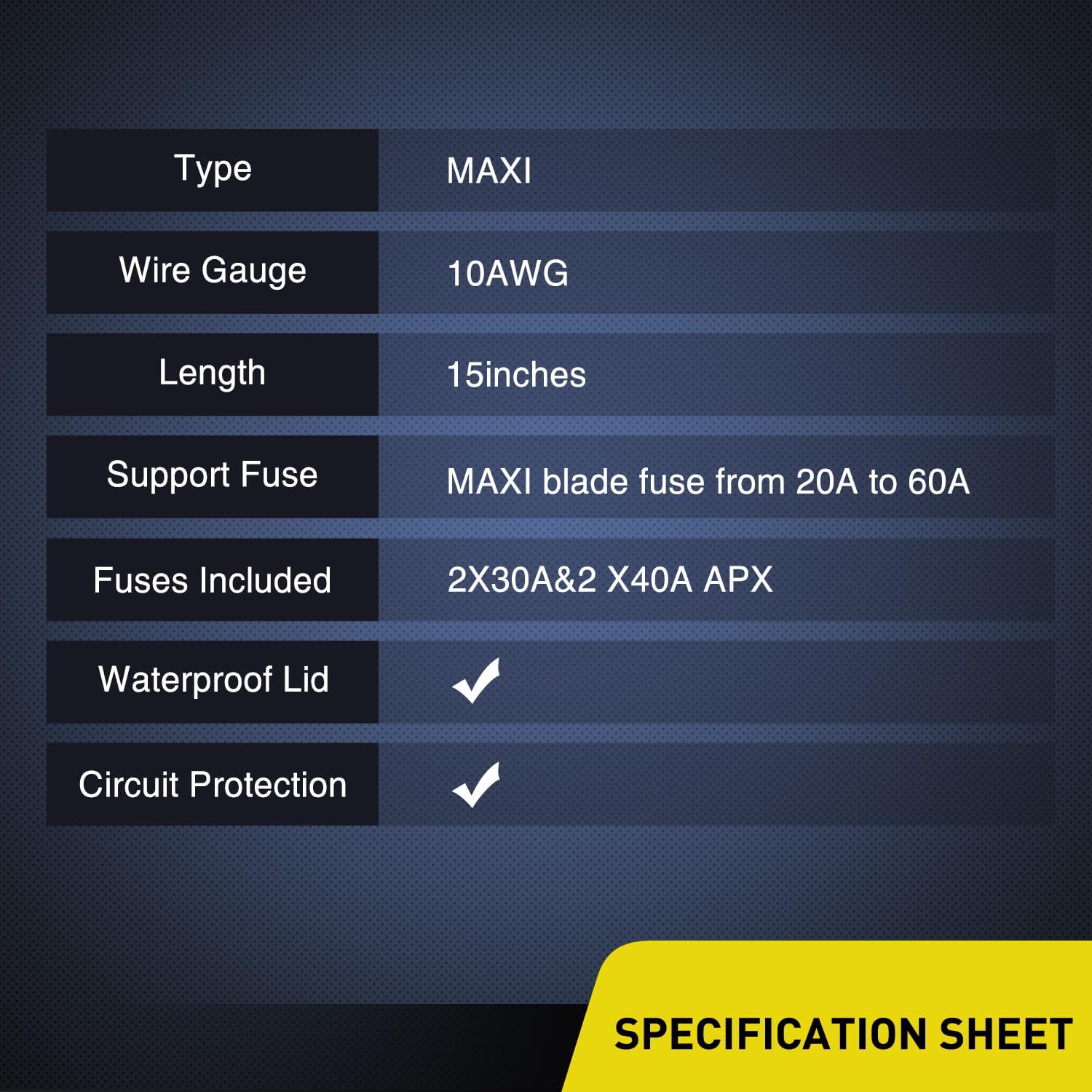

Technical Specifications
- Name: Nilight 2PCS Inline Maxi Fuse Holder 10 Gauge AWG
- Wire gauge: 10 AWG, tin-plated copper
- Fuse type: Maxi APX blade fuse
- Included fuses: - 2 x 30A, - 2 x 40A

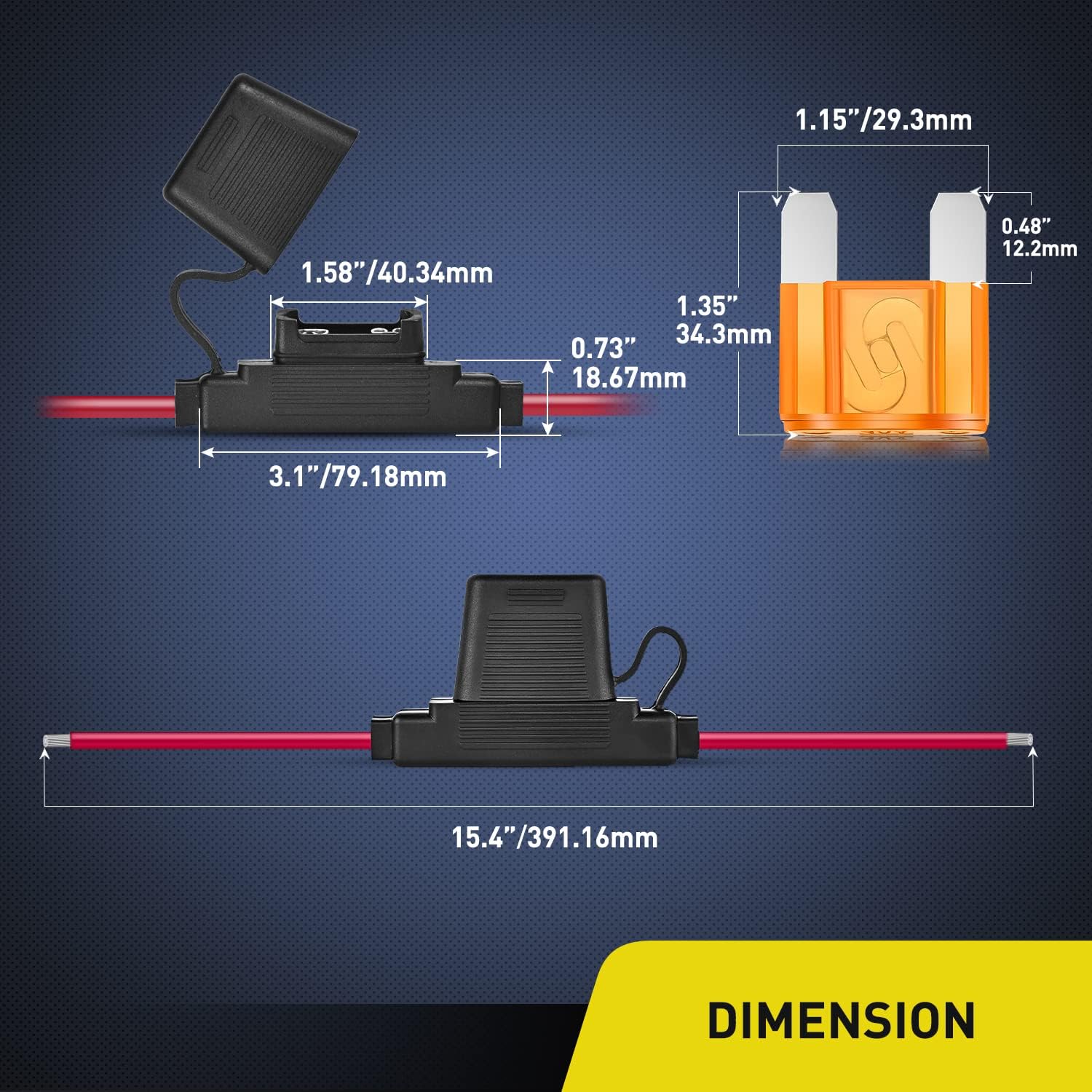

- Fuse fit dimension: - 1.35 x 1.15 x 0.48 inch
- Loop length: - 12 inches
- Waterproof rating detail: - IP67 per product description, with rubber cap and sealed nylon hot-melt adhesive
Usage Recommendations

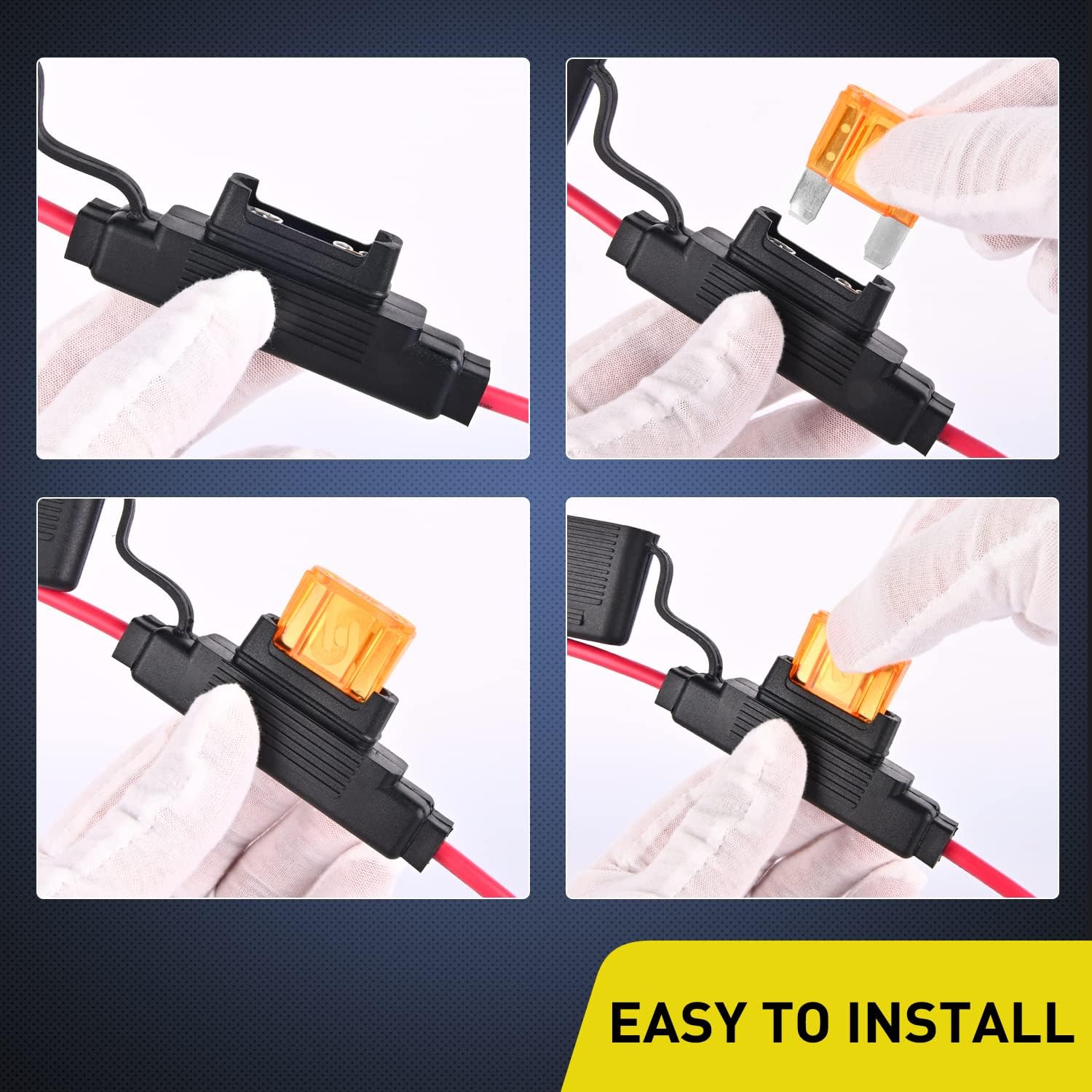

Install the holder inline between power and the accessory, connecting one end to the battery positive lead and the other to the accessory input. Make sure the selected fuse amperage corresponds to the accessory’s current draw to avoid nuisance blows or underprotection. For exposed or marine installations, orient the rubber cap downward when possible and check seals periodically for wear.
Practical Tips

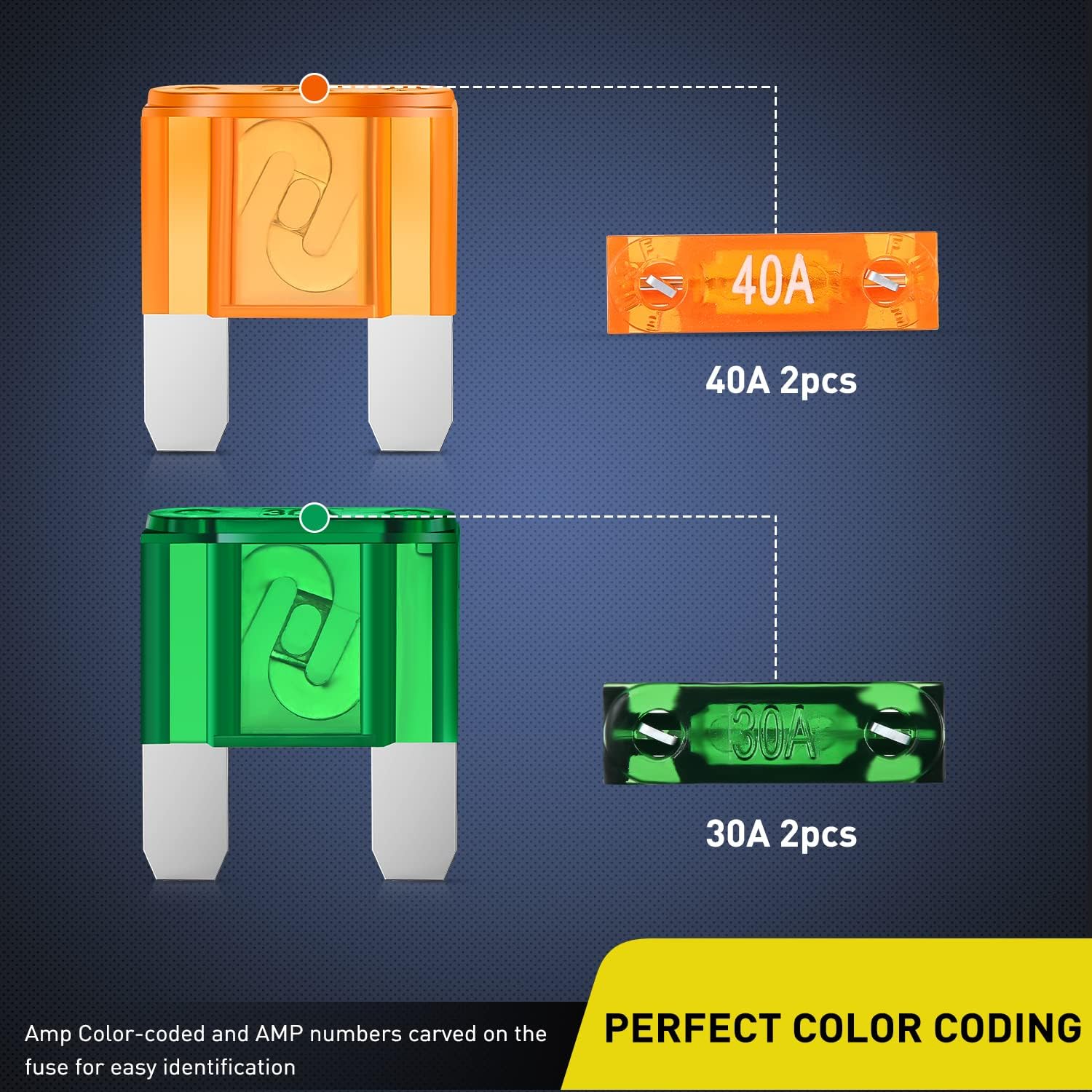

The zinc alloy terminals in the fuse housing improve conductivity and resist corrosion, which is helpful in humid or salty environments. The fuses are color-coded and have amp ratings molded on top to simplify identification when replacing them. Consider that this holder is made for Maxi APX blade fuses only, and verify the physical fuse dimensions against your application before fitting.
