ECO-WORTHY Z Bracket Solar Mounts 8 Units ⚡
Product description
This set of Z brackets lets you mount solar panels on RVs, trailers, boats, yachts, walls and other off-grid roofs with a lightweight, corrosion-resistant solution that raises the panel slightly for drainage. It simplifies routine maintenance and allows cable routing behind the panel, making it practical for mobile or marine installations.
Key Points

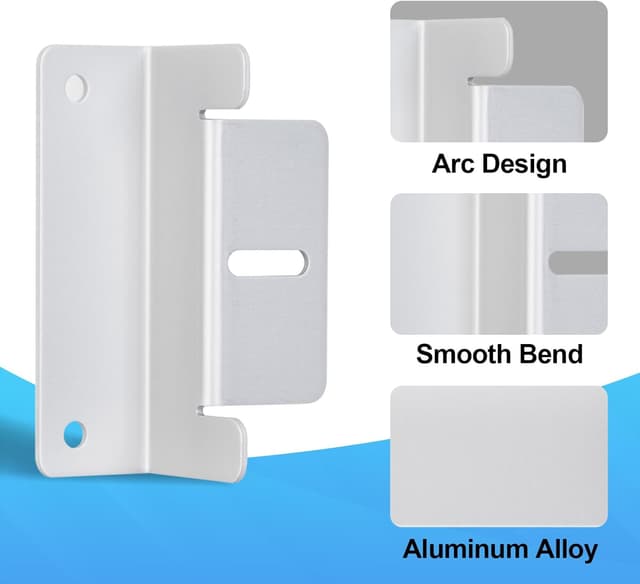

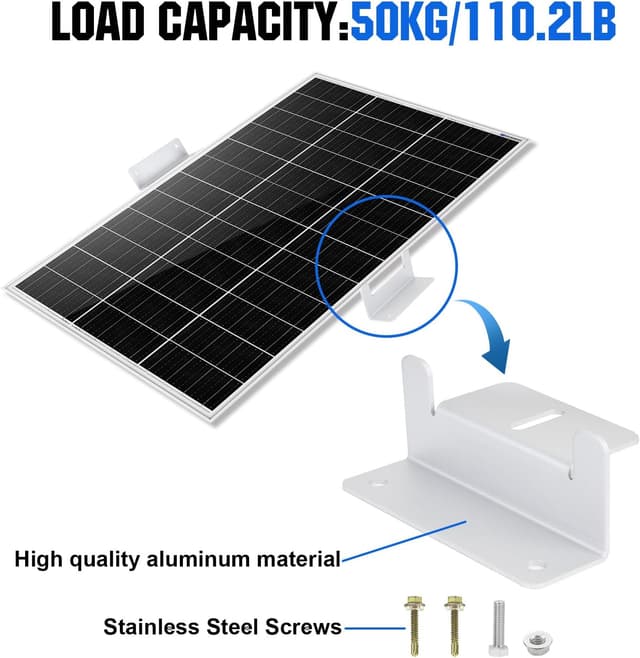

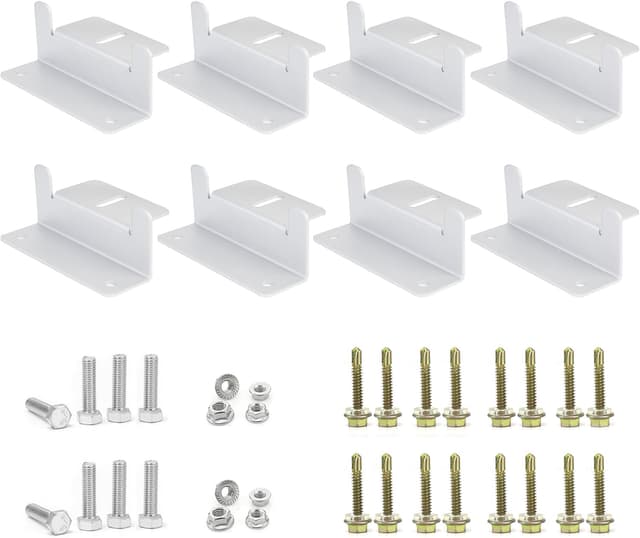

The mount kit includes eight aluminum Z brackets in two sets of four and stainless steel M6 screws, designed to be strong enough to support common panel sizes while remaining light for vehicle or boat use. The brackets lift the panel about 20 mm from the roof surface to help prevent water ingress during rain, and they can accommodate slightly uneven mounting surfaces. Installation is maintenance-free according to the manufacturer, and panels can be removed quickly by loosening the fasteners, which helps when panels need service or repositioning. Consider that extreme marine environments may require additional corrosion protection over time, depending on exposure.
Technical Specifications
- Name: ECO-WORTHY 8 Units Z Bracket Set
- Material: Aluminum alloy brackets and stainless steel M6 screws
- Quantity: 8 units (2 sets of 4)
- Clearance: Raises panel approximately 20 mm from mounting surface
- Compatibility: Flat roofs, RVs, trailers, boat decks, yachts, walls
Usage Recommendations
Position the brackets so load is distributed evenly across the panel frame and the vehicle or roof structure. When routing solar cables, feed them behind the panels and check that fasteners remain snug after the first few weeks of use. For marine or coastal installations, inspect fittings periodically and apply suitable anti-corrosion treatments if necessary. If your panel frame or mounting surface is unusually thick or thin, measure before fitting to confirm the M6 screws and bracket profile will provide the required hold.
