Nilight 8 Gang Switch Panel 12V for Trucks

This compact 8-switch control panel centralizes lighting and accessory management for vehicles that use 12 V or 24 V systems, simplifying a messy wiring harness and giving one place to operate up to eight loads. It is useful for trucks, SUVs, campers and boats where multiple auxiliary lights or devices need organized switching and protection.

Key Points

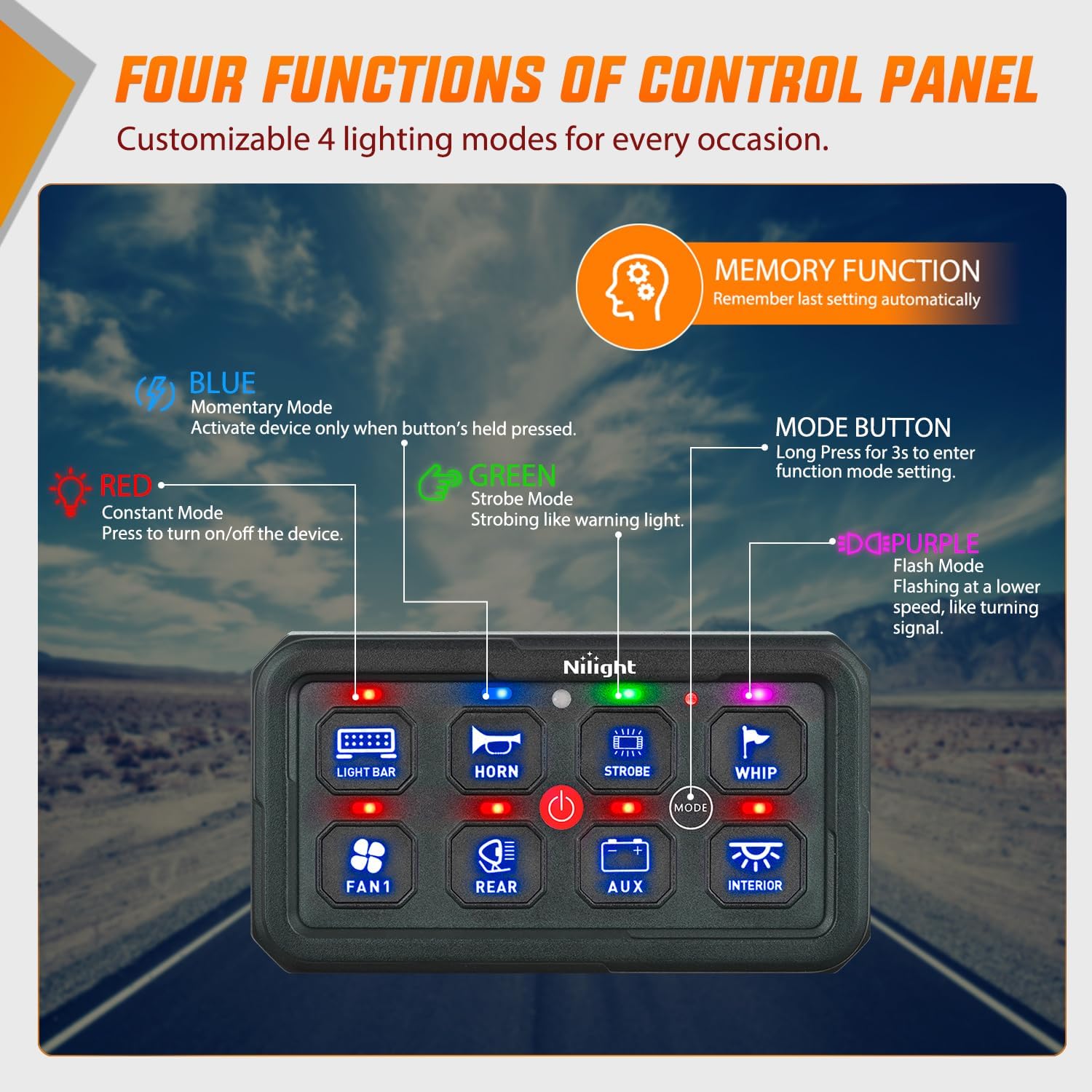

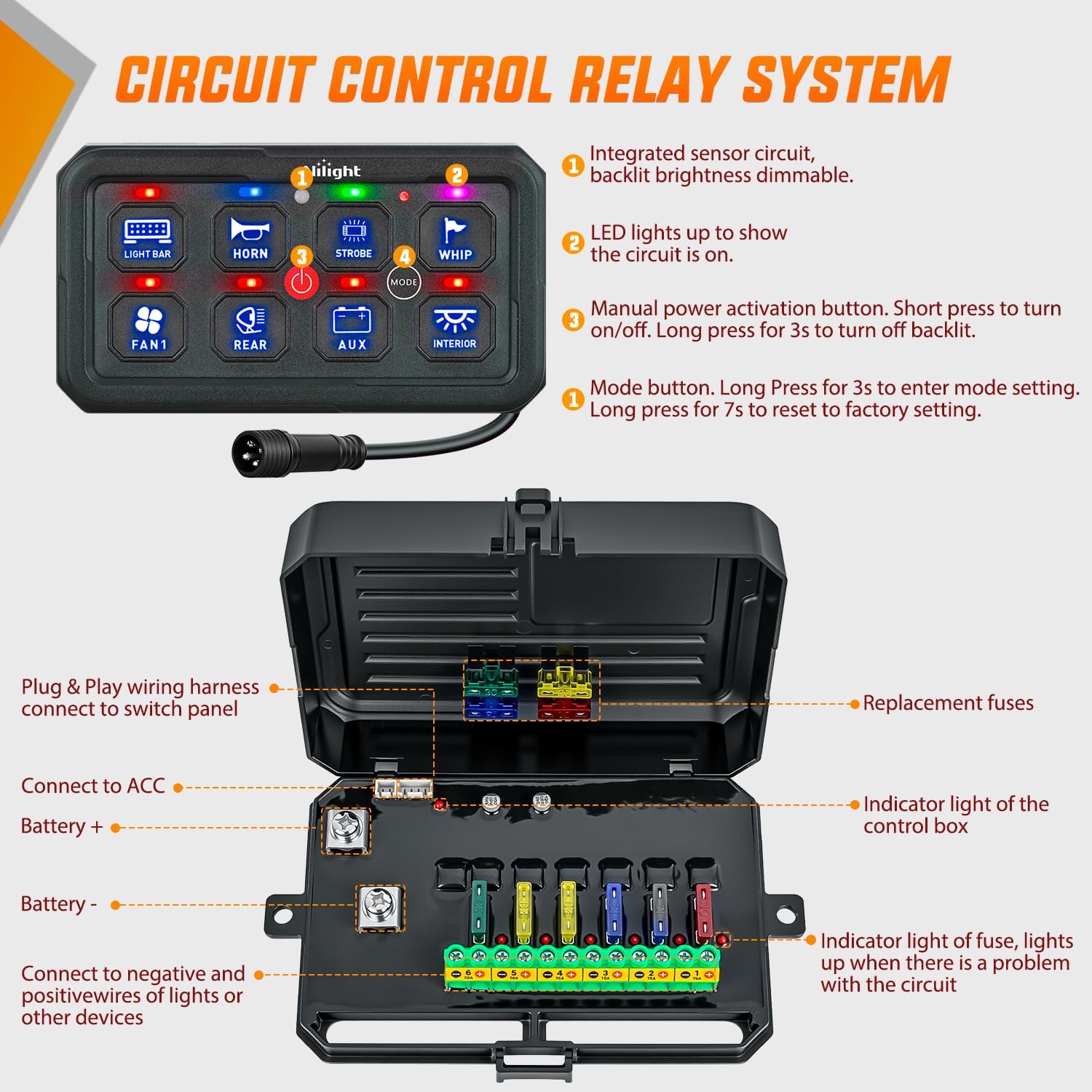

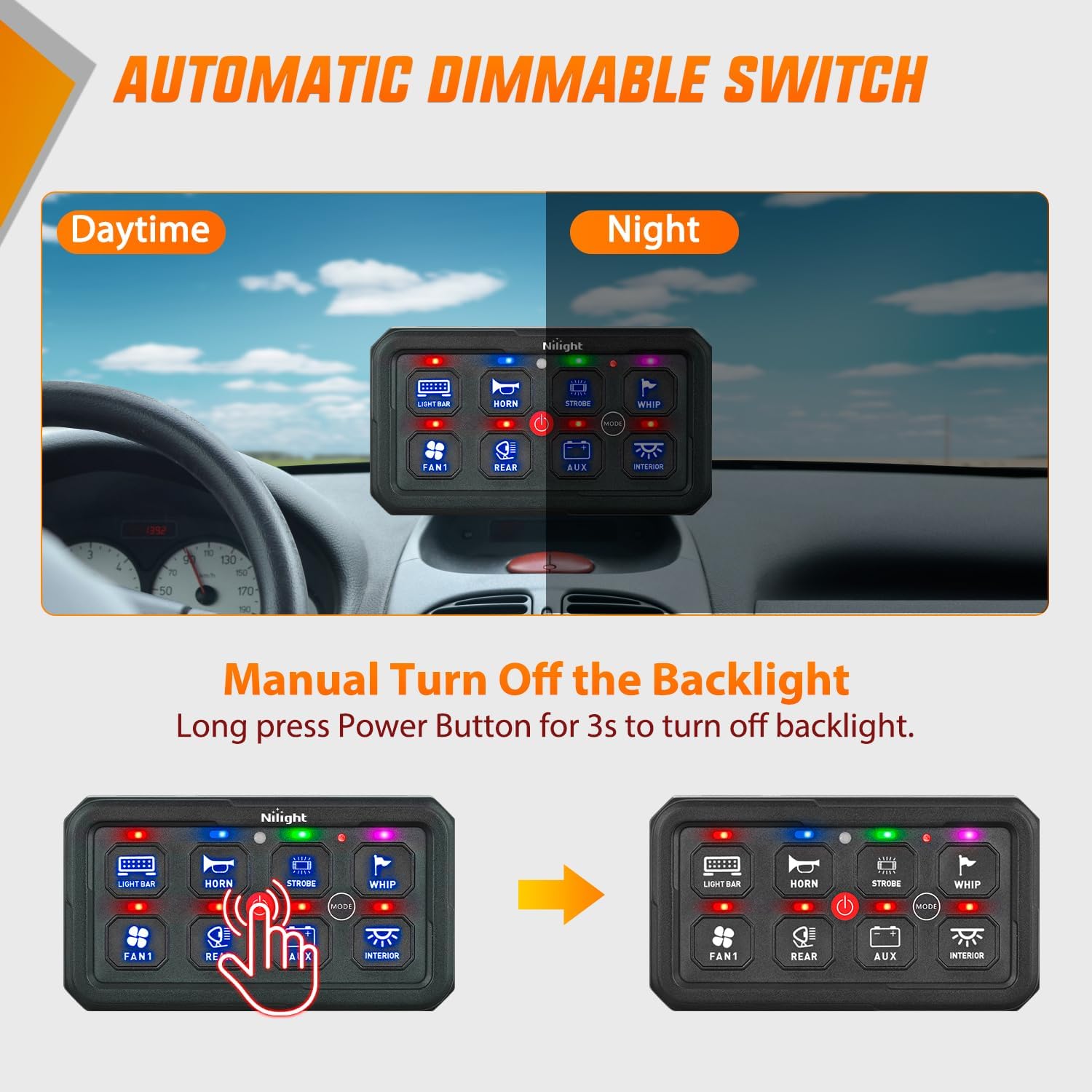

The unit integrates a sealed control box with built-in relays, a 60 A circuit breaker and blade fuses to reduce exposed wiring and improve thermal and overload protection. Each of the eight channels supports four selectable modes: toggle, momentary, strobe and flash, with distinct indicator colors to help identify modes at a glance. The panel includes an automatic dimming backlight that adjusts to ambient light, and a memory function that restores the last setting after power cycles. 🚗💡

Technical Specifications

• Name: Nilight 8 Gang Switch Panel
• Operating voltage: 12-24 V DC
• Maximum output power: 720 W at 12 V, 1440 W at 24 V

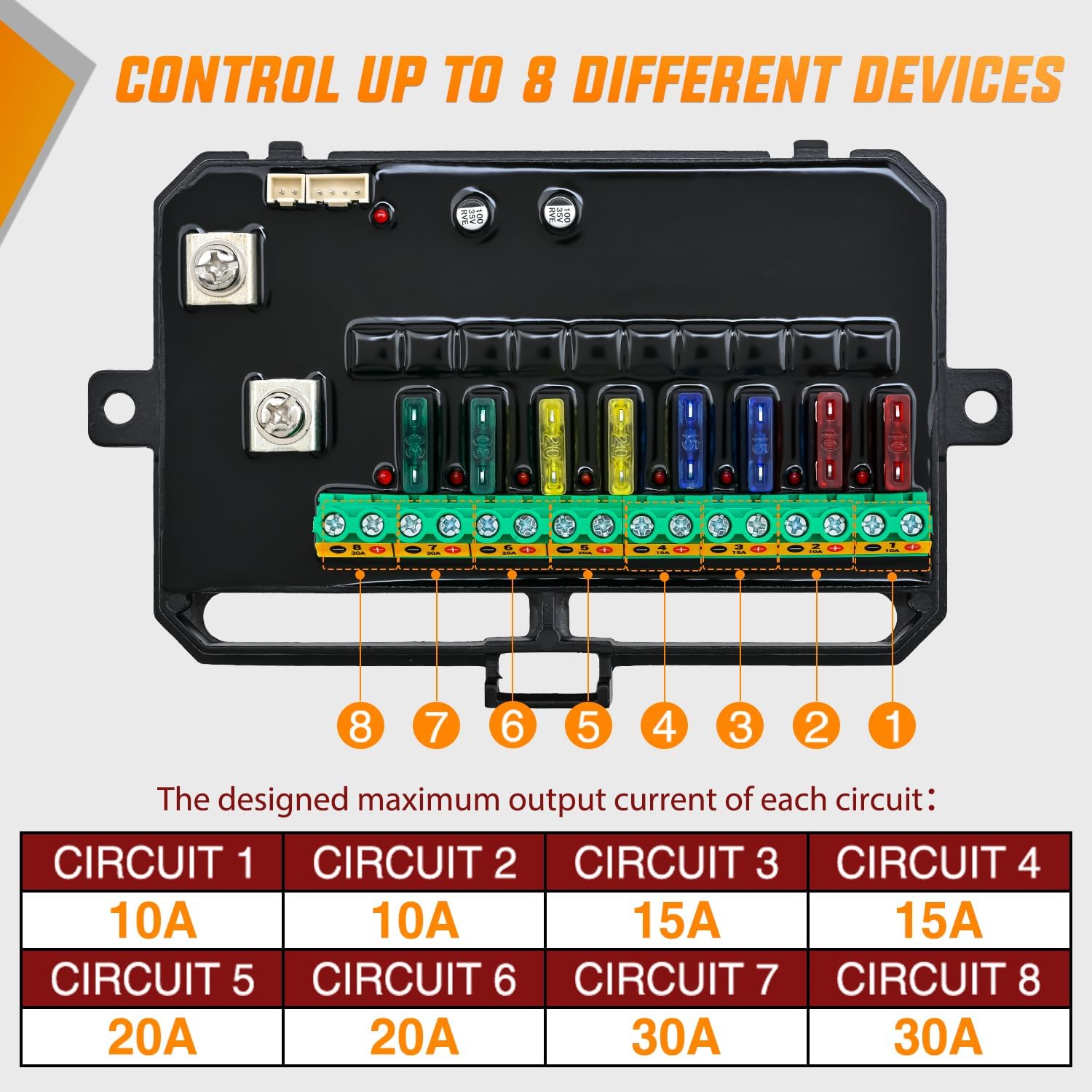

• Protection: 60 A circuit breaker, blade fuses, integrated solid state relays

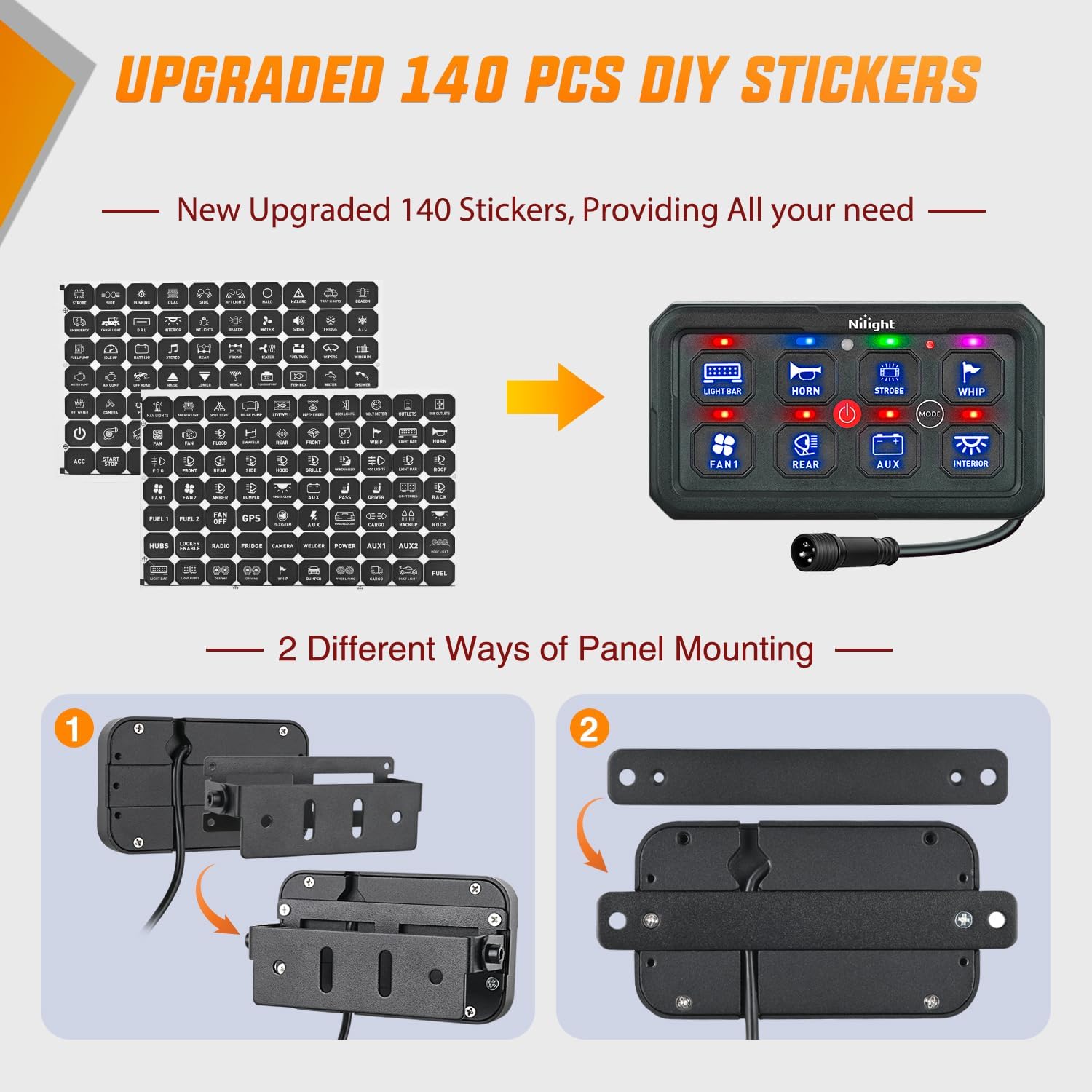

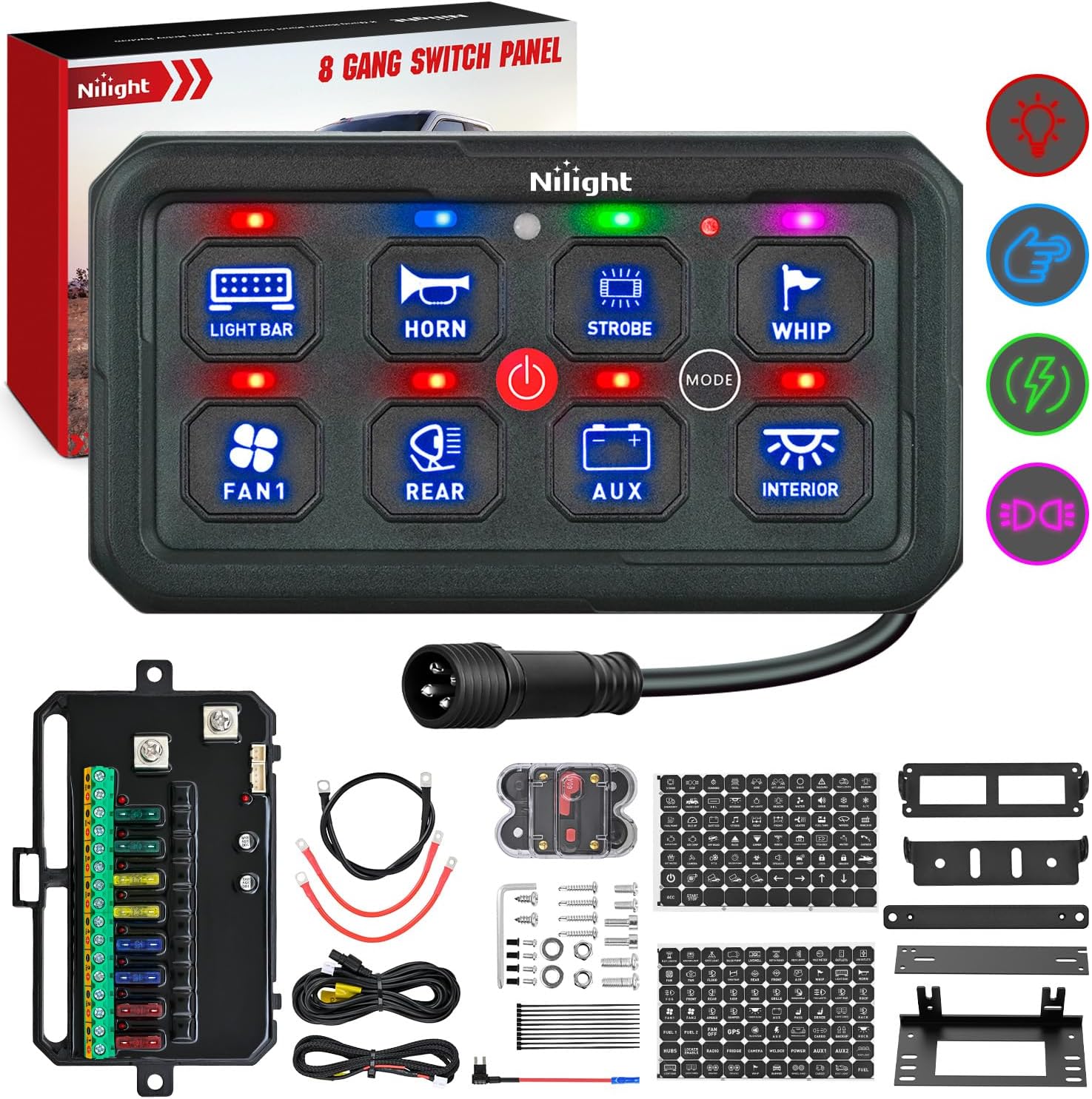

• Package contents: switch panel, control box, wiring harness, power cables, breaker, 140 reusable labels, mounting hardware

Usage Recommendations

Install the panel where you can reach it easily from the driver seat, such as the dashboard or center console, to keep switches accessible while driving. The included wiring harness and labeled fuses make routing and identification simpler, however plan cable runs to avoid sharp edges and heat sources and secure all connections. If you need to control high-current accessories continuously, confirm the combined draw remains within the stated maximum output and fuse ratings. 🔧

Benefits

Having the switching and relay electronics enclosed reduces exposed components and saves dash space compared to separate relays and switches. The selectable modes let you assign momentary or strobe functions to auxiliary lights for signaling or emergency use, while the automatic backlight keeps visibility comfortable during night driving. Note that while the panel is designed to be compact and water resistant, extreme marine salt exposure may require additional protective measures according to the manufacturer. ⚙️
