Nilight 90101E 5-Gang Switch Panel with Voltmeter 🔌
Product description
This 5-gang rocker switch panel combines power distribution and monitoring for vehicles and boats, offering dual USB charging, a digital voltmeter and a 12V outlet in a single pre-wired module for convenient on-board use. It is built for 12V-24V systems and aims to keep accessories powered and monitored while on the road, on the water, or at the campsite.
Key Points
The panel integrates five on/off rocker switches with a dual USB charger, an LED voltmeter and a 12V socket, which helps centralize control of lights and devices. Pre-wired connections and included mounting screws make installation quicker for DIY projects in cars, RVs, trucks, trailers and marine craft. The LED voltmeter provides real-time voltage readings, so you can monitor battery status while running accessories. According to the manufacturer, the unit includes a 15A fuse for basic overload and short-circuit protection. The splash-proof front and water resistant caps add resistance to moisture in wet environments, though it is recommended to avoid direct prolonged exposure to salt spray.
Technical Specifications
- Name: Nilight 90101E 5Gang Multi-Function Switch Panel
- Voltage compatibility: 12V-24V
- Protection: 15A fuse pre-wired, provides overload and short-circuit protection
- Outputs: Dual USB ports, one 12V outlet, five rocker switch circuits
- Ingress resistance: IP65 splash-proof front with water resistant caps
Usage Recommendations

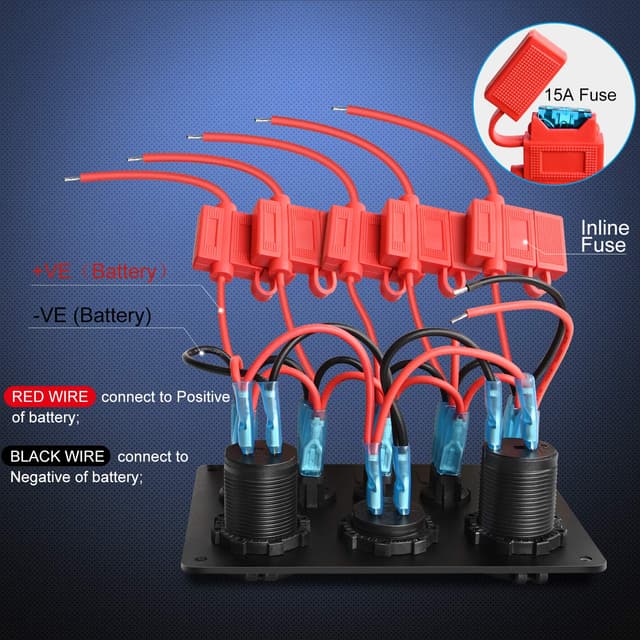

Install the pre-wired panel on a flat surface with the supplied screws and route wiring to the vehicle battery or distribution bus. Use the voltmeter to check system voltage before engaging heavy loads, especially after long idle periods or when running high-draw accessories. For marine installations, place the panel where it is sheltered from continuous direct spray and rinse any exposed terminals after use in saltwater to reduce corrosion. Consider the 15A fuse rating when planning loads for individual switches, as devices with higher draw may require separate dedicated protection or wiring.
Advantages
Centralized switching and on-board charging reduce the need for multiple separate modules and free up space on dashboards. The combination of a digital voltmeter and USB charging allows simultaneous monitoring and fast recharging of phones or accessories while driving or boating. The splash-proof design and included pre-wiring speed up installation and improve durability compared to bare switch assemblies. Note that heavy-duty applications may need additional fusing or heavier gauge cabling depending on total current demand, according to the manufacturer.
