King&Charles Cabinet Hardware Jig, 16-Inch

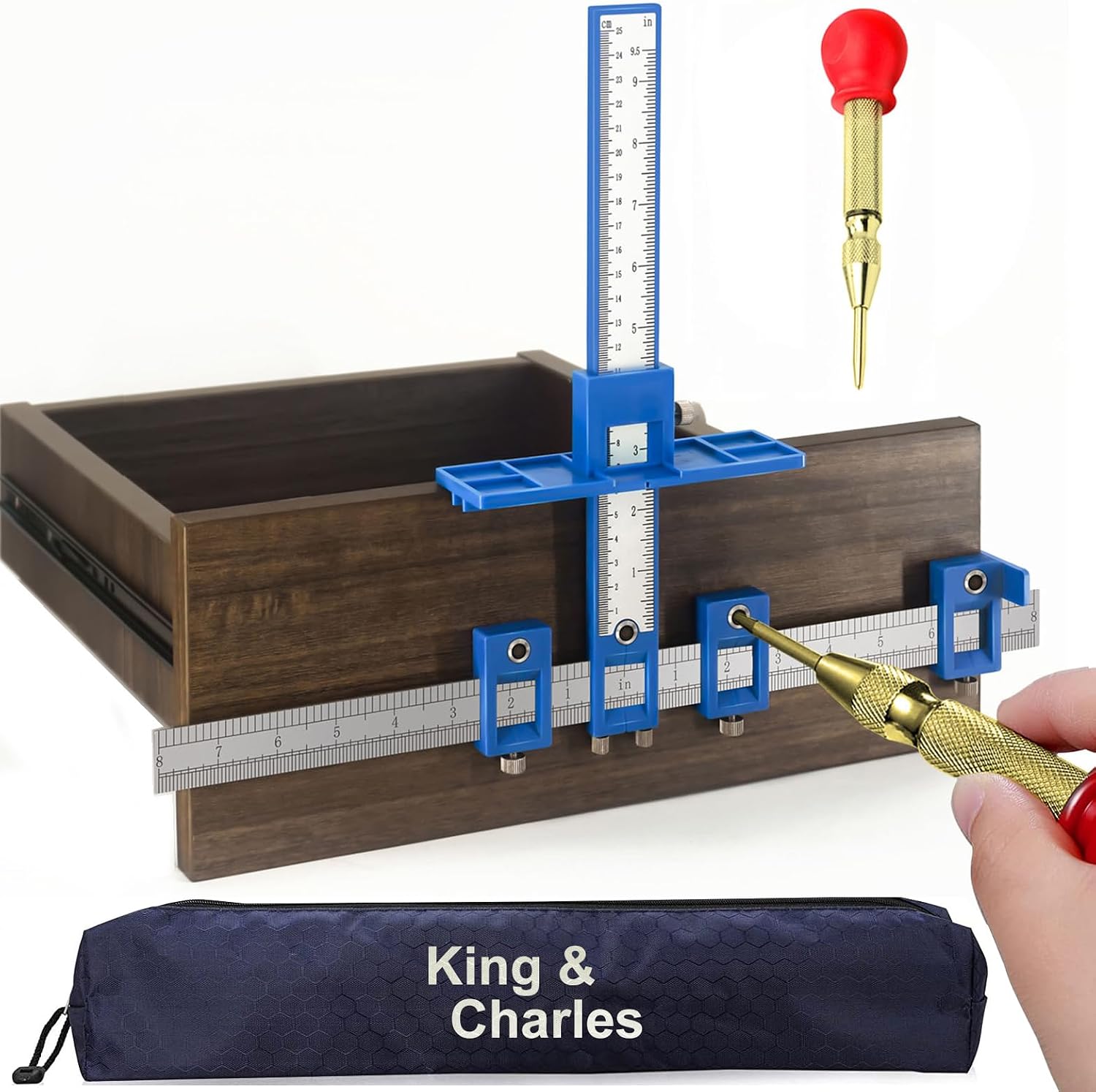

For a row of drawer pulls that needs to line up cleanly, accurate placement matters before the drill comes out. The King&Charles cabinet hardware jig is designed to help mark handle and knob locations on cabinet doors and drawers.

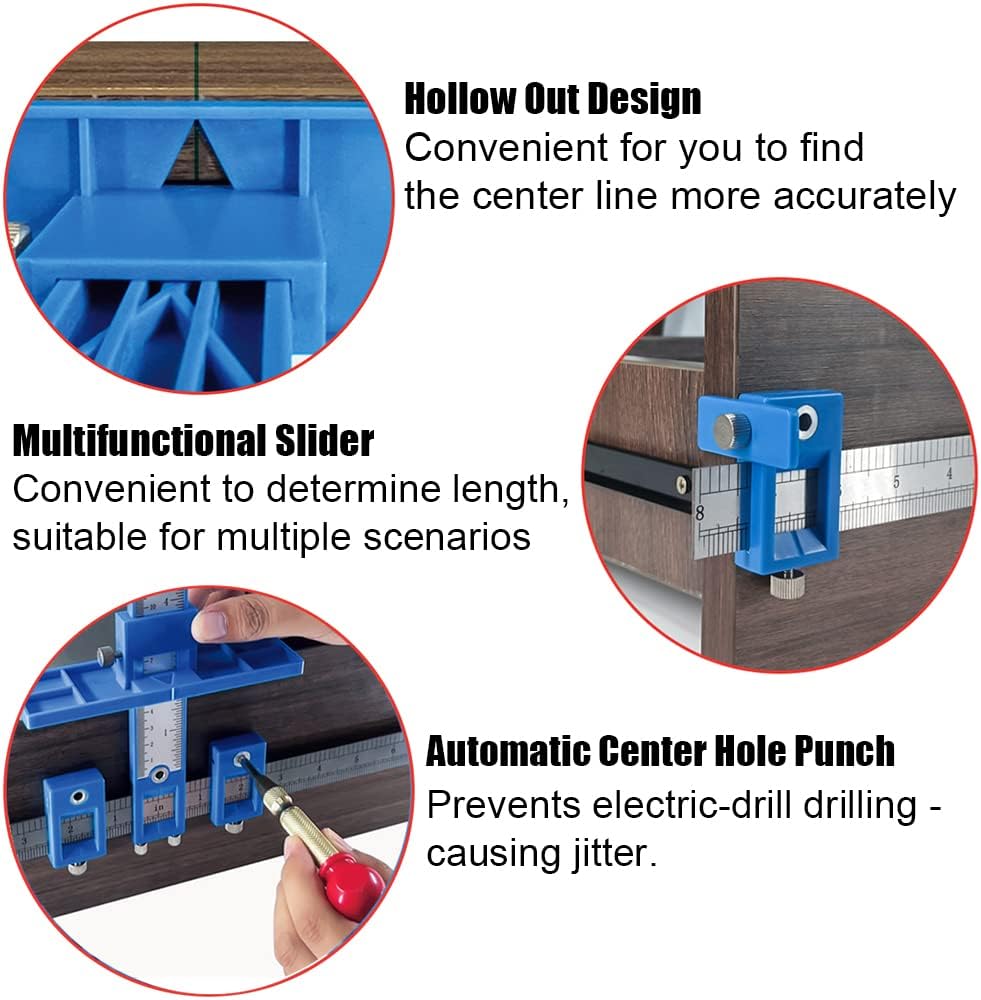

Its automatic center punch adds a small starting mark before drilling, helping reduce jig movement during the next step.

The jig also has metric and imperial scales, so you can work with either measurement system without switching tools.

Technical details

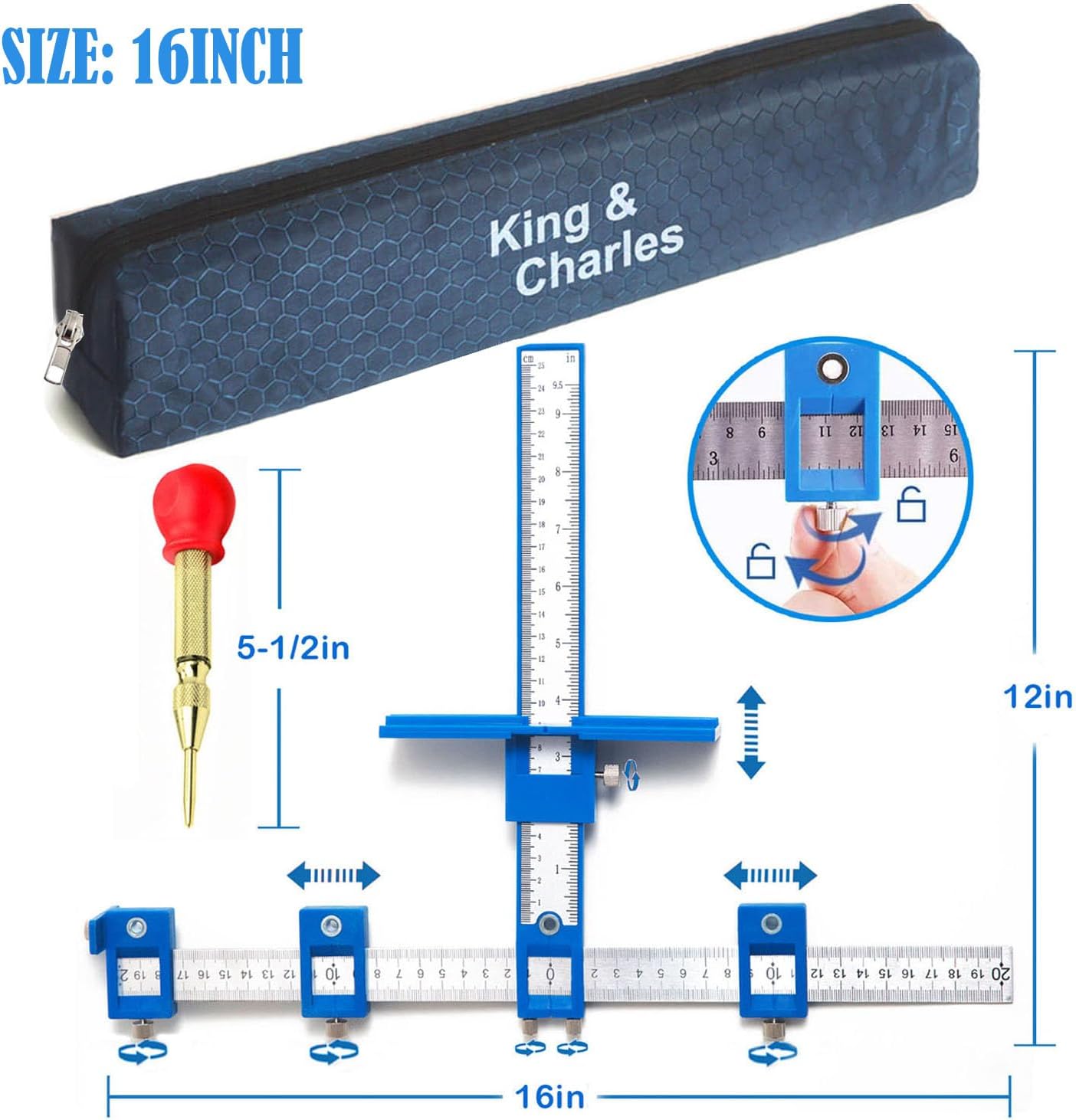

The jig measures 16 inches and uses ABS for its marked board and stainless steel for its ruler. The ruler is described as corrosion-resistant, while the sliding drill guides detach for storage and transport. A storage bag is included, and the set comes with an automatic center punch for making the initial marks.

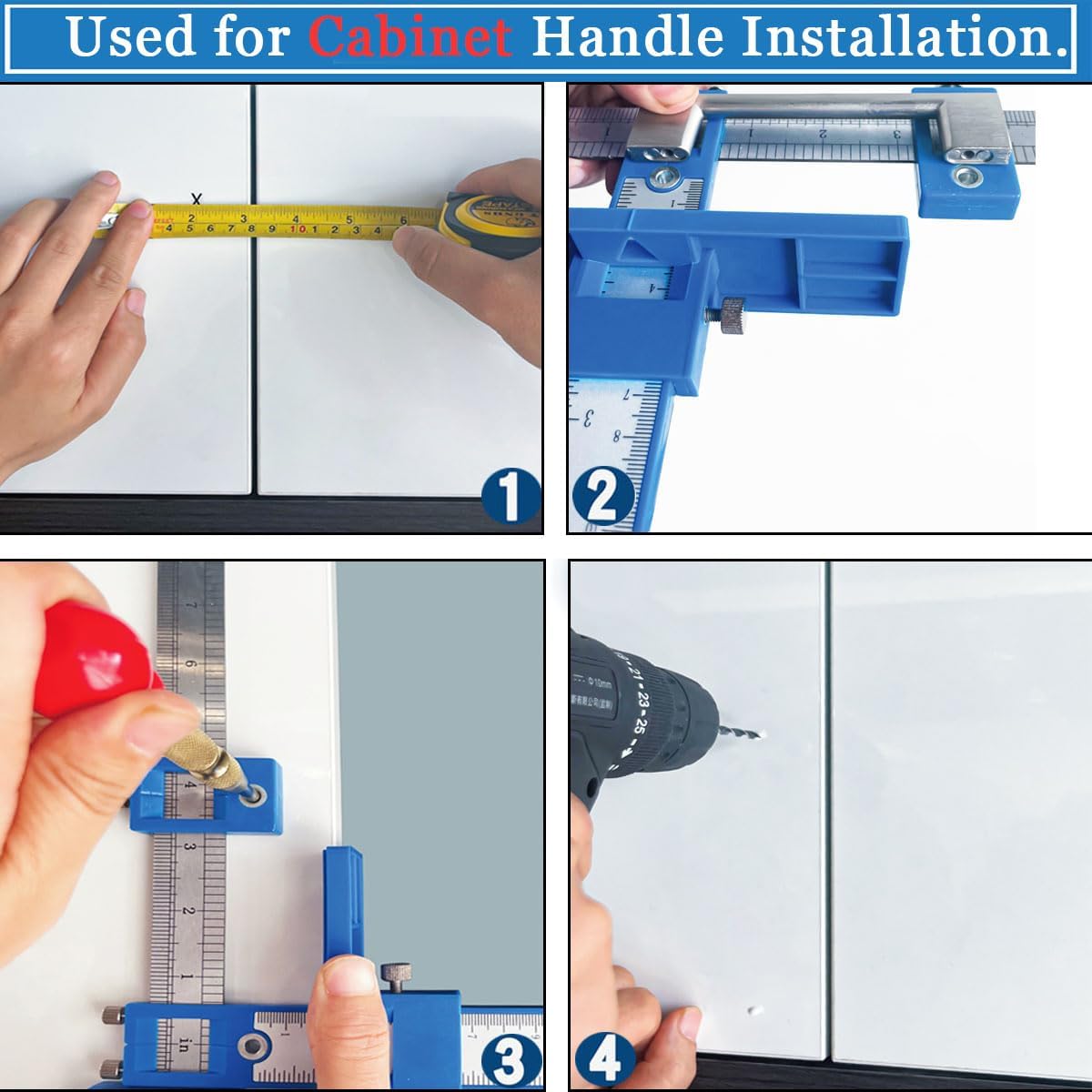

The intended workflow is straightforward: position the jig, mark the hole locations with the punch, then use an electric drill to make the larger holes. That small pilot mark is the useful distinction from simply drilling through the guide right away, which the product description says can cause the jig to shake. The listing does not give a specific hole-spacing range, so make sure its scale and 16-inch size suit the hardware and surface you plan to work on.

What it works with

The jig is intended for installing handles, pulls, and knobs on drawers, cabinets, and doors. The description also names shaker doors and recessed drawer fronts, as well as cabinet stiles and rails. That makes it relevant for a small kitchen update or a furniture project where several fronts need matching hardware placement.

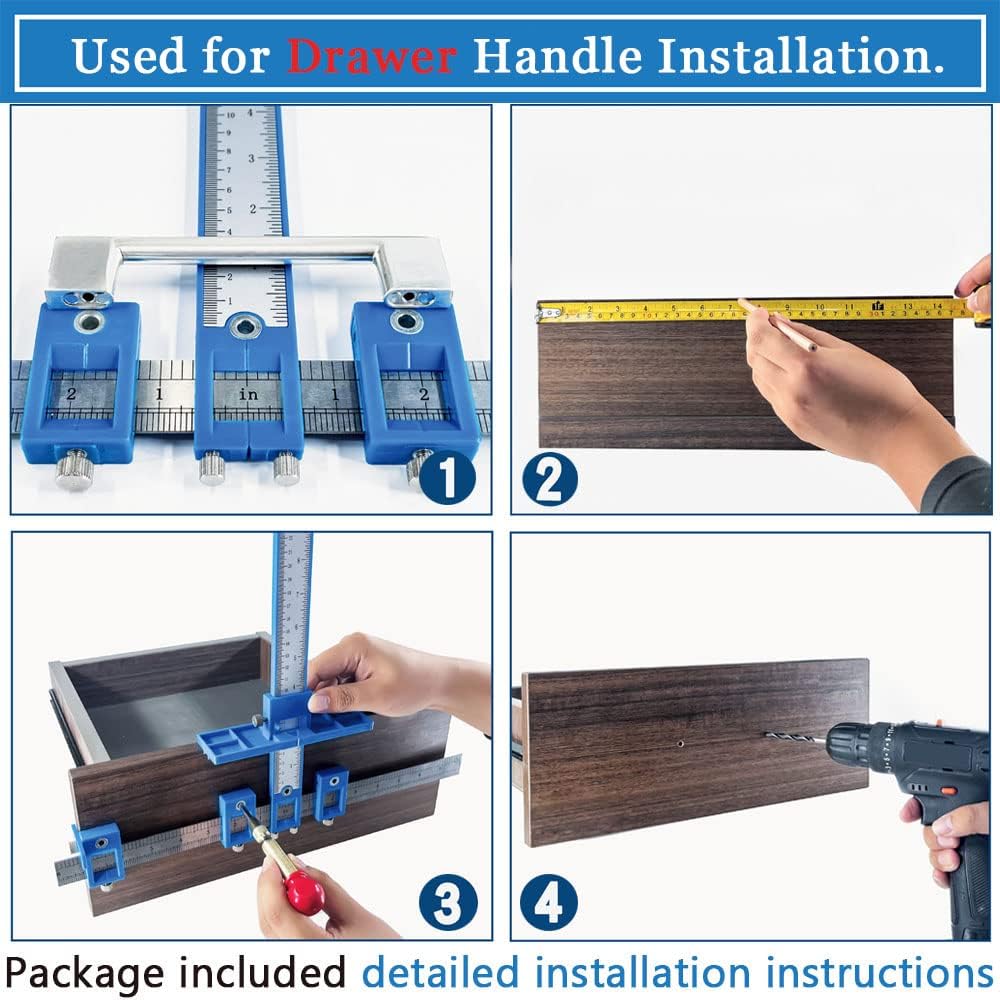

For example, when adding pulls to a set of drawer fronts, you can use the jig to locate each position, punch a small starting point, and then drill. It is a more guided approach than measuring each front separately, though accurate alignment still depends on positioning the template consistently each time.

Usage tips

Choose the measurement system you plan to use, set the jig against the surface, and check its position before marking. Use the center punch for the small starting point, then drill into that mark. From the way it is set up, the punch is there to help stabilize the drilling process, it does not remove the need to measure and position the jig carefully.

The sliding guides can be taken apart for carrying or storage. Keep the parts together in the supplied bag so they are ready for the next project. Before starting, compare the jig’s size and available markings with your cabinet or door dimensions, especially if the hardware layout needs a particular spacing.

Practical doubts

Does it work with both metric and imperial measurements? The jig is described as having both metric and imperial scales, giving you a choice when laying out hardware.

What is the center punch for? It makes a small mark at the selected drilling point before you use an electric drill for the larger hole.

Can it be used on shaker doors and recessed drawer fronts? Those surfaces are specifically listed as compatible applications, along with drawers, cabinets, and doors.

When it makes sense

A solid pick if you are fitting similar pulls or knobs across multiple cabinet or drawer fronts and want a repeatable way to mark their positions. The detachable guides and included bag also suit DIYers who want to pack the jig away between projects.

It might not be a great match if your project depends on a precise hole-spacing range that is not stated in the product information, or if the 16-inch jig does not suit your cabinet dimensions. For a one-off installation, a basic ruler and careful marking may be enough, this jig makes more sense when repeat placement is the main task.
