JOLGOO jg-20241120012 1/4-Inch TS to XLR Male Cable, 10 Feet
Product description
For musicians connecting a guitar or another 1/4-inch mono output to an XLR input, the JOLGOO jg-20241120012 provides a direct cable path with a right-angle TS plug and a 3-pin XLR male connector. Its 10-foot length offers room to position instruments and audio gear in a studio, onstage, or in a DJ setup.
Silver-plated copper conductors and dual shielding are designed to support clear audio transmission by reducing signal loss and external interference.
Practical tips

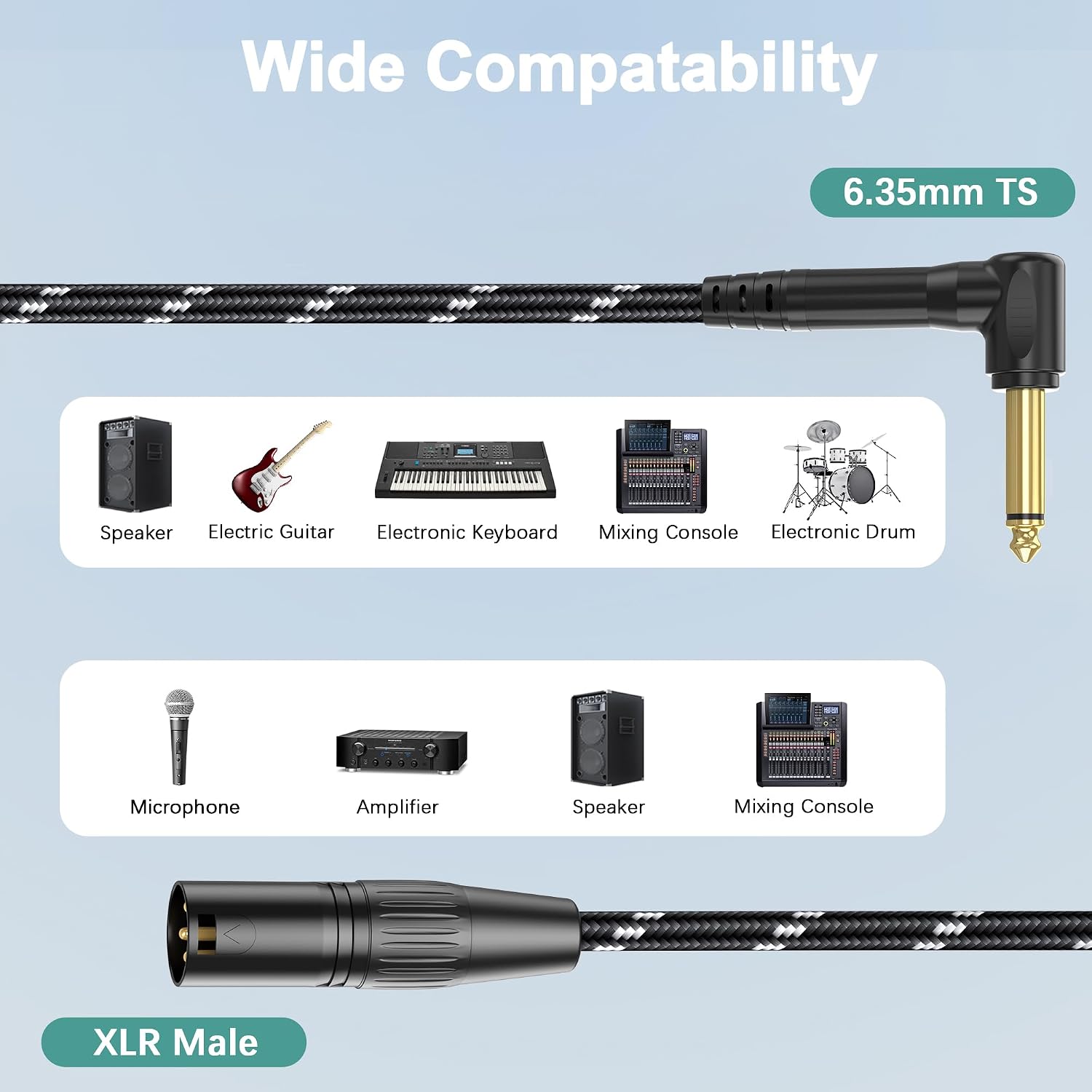

Connect the right-angle 1/4-inch TS end to an instrument or other mono source, then plug the XLR male end into an XLR female input. This is a useful arrangement for sending a guitar, bass, keyboard, or pedal output to compatible mixer, PA speaker, powered monitor, or audio interface inputs. The angled plug can help keep the connection close to the instrument, while the cable’s 10-foot reach gives you flexibility in arranging your setup.
The TS connection carries an unbalanced mono signal. For microphone use, note the connector direction: this cable’s XLR end is male, so it is not the direct match for a microphone with an XLR male output. For balanced connections, choose a cable with the appropriate TRS configuration instead.
Spec sheet
- Brand: JOLGOO
- Model: jg-20241120012
- Cable type: 1/4-inch TS to XLR

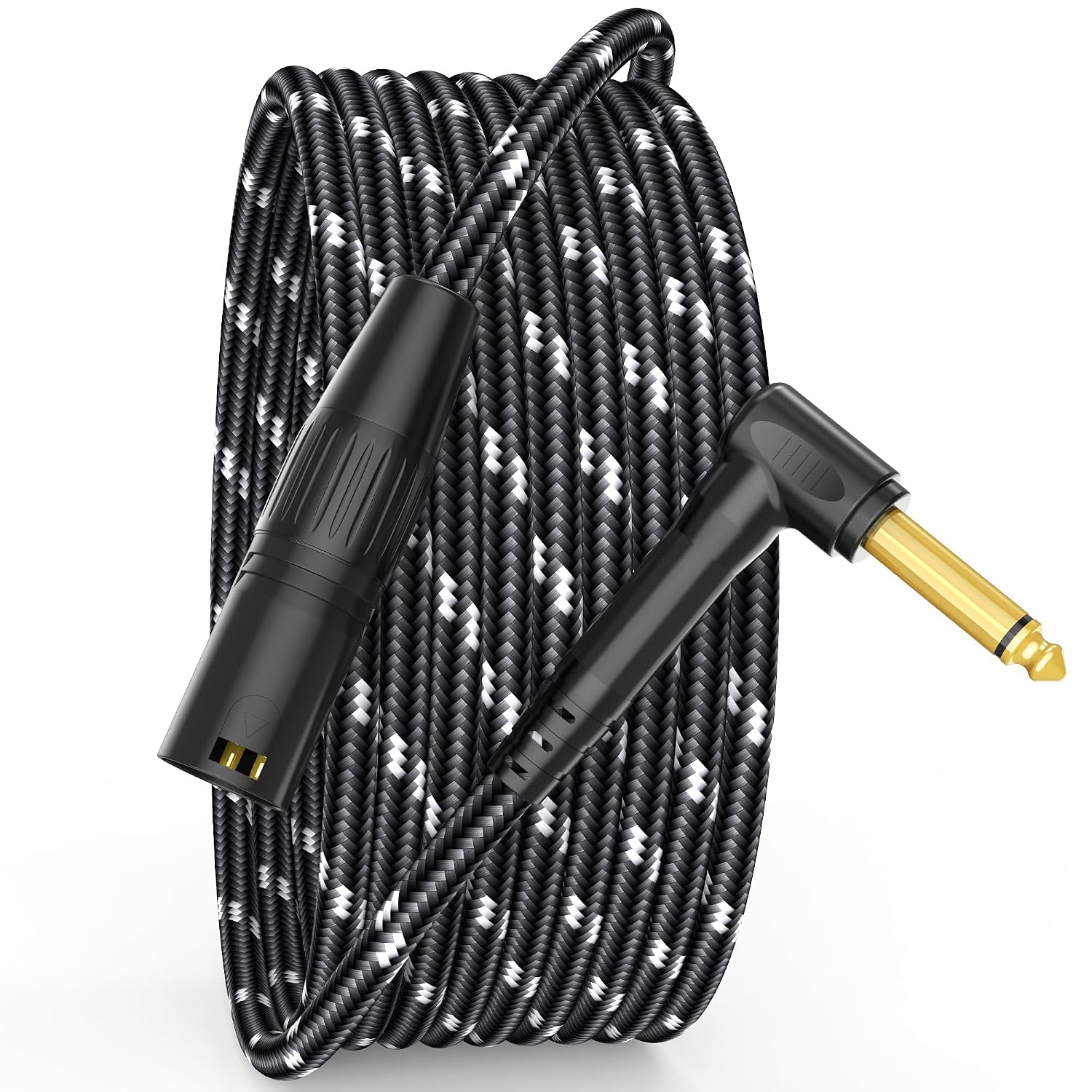

- Connectors: Right-angle 1/4-inch TS and 3-pin XLR male
- Length: 10 feet
- Conductors: Silver-plated copper
- Shielding: Aluminum foil and braided shielding
- Connector material: Gold-plated brass
- Included component: Cable
Why it’s worth it
This cable brings together practical details for instrument-to-XLR routing. The right-angle TS plug gives the instrument end a compact profile, while the XLR male connector fits an XLR female input on compatible audio equipment. That makes it a straightforward choice for connecting a guitar or bass to a mixer or PA input without assembling a cable from separate adapters.
Dual shielding—aluminum foil and braid—helps reduce interference from the surrounding setup, and the silver-plated copper conductors are intended to support stable signal transmission. Gold-plated brass connectors provide the contact points at both ends. For an unbalanced mono instrument signal, this TS-to-XLR format offers a different connection approach from a balanced TRS cable, select the connector type that matches the source and input you plan to use.
What to clarify
Can I connect an electric guitar to a mixer? Yes, when the guitar’s 1/4-inch mono output connects to the cable’s TS plug and the mixer provides an XLR female input. A DI box or a Hi-Z instrument input is another setup option for guitar connections.
Is this a balanced cable? No. The 1/4-inch TS plug carries an unbalanced mono signal. For gear that requires a balanced connection, use the appropriate TRS cable configuration.
Can I connect a microphone directly? Not when the microphone has an XLR male output. This cable also has an XLR male connector, so its ends do not match for that connection.
When it makes sense
Choose the JOLGOO jg-20241120012 when your setup needs a 10-foot connection from a 1/4-inch mono instrument output to an XLR female input. It suits home recording, music production, DJ arrangements, and live performance setups where a right-angle instrument plug and shielded signal path are useful parts of the cable choice.
