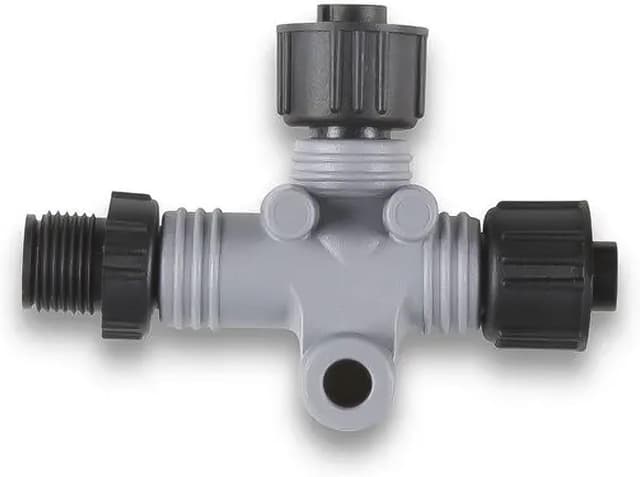

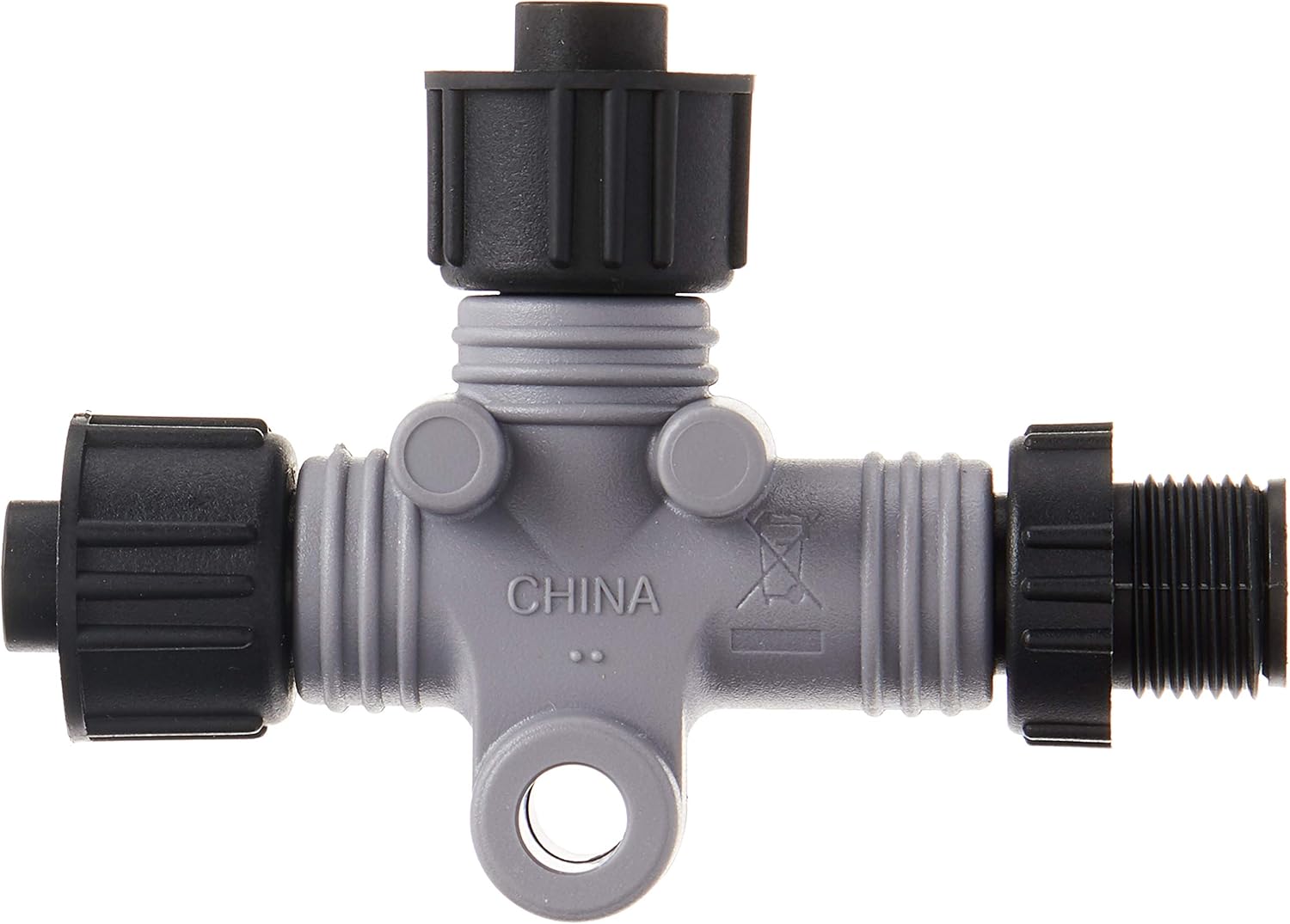

Garmin NMEA 2000 T-Connector marine cable

This compact T-connector is designed to extend an NMEA 2000 network and add instruments or sensors on board with minimal fuss. It makes installing extra components straightforward, offering a simple way to expand a marine electronics system for navigation or monitoring tasks.

Key Points

The connector is easy to use and meant to plug into an existing NMEA 2000 backbone to provide an extra drop for devices. Installation is quick and requires only basic cabling practices, which saves time during setup on a boat or when upgrading an instrument cluster. It is presented as a quality product from Garmin and works well in systems where adding one more device is necessary. ⚓

This accessory is small and unobtrusive, so it does not take up much space in wiring runs. Also, it avoids the need to reconfigure the main network when a single extra connection is required. For hobby sailors and professional installers alike, the simplicity of this component reduces installation complexity and potential wiring errors. 🔧

Technical Specifications

• Name: Garmin NMEA 2000 T-Connector
• Function: provides an additional drop connection to an NMEA 2000 network
• Compatibility: NMEA 2000 standard devices according to the manufacturer
• Use: adding components to a marine electronics network
• Characteristic: simple, easy to use design

Usage Recommendations

Place the T-connector between the backbone cable and the device drop to maintain proper network topology and signal integrity. Keep cable lengths within the limits recommended for NMEA 2000 installations to avoid communication issues, and ensure connectors are seated firmly to prevent intermittent contacts during vibration at sea. ⚓

When routing wiring, avoid sharp bends and areas prone to chafe. For systems exposed to harsh weather, consider routing and securing cables so that connectors are protected from direct spray and mechanical stress. Also, check that any connected devices are powered correctly by the network and that terminators remain in place at the ends of the backbone according to NMEA 2000 guidelines, because the overall network relies on correct termination to function reliably. 🔩

Note a few practical nuances. The product description highlights ease of use and quality, but specific material or environmental ratings are not provided in the available information, so if detailed IP or temperature specifications are required for a particular installation, consult Garmin documentation or technical support according to the manufacturer.
