FOXWELL Thermal Imaging Camera RT280

If you mainly need a quick visual check for temperature differences, a handheld thermal camera can be more useful than relying on a single spot reading. The FOXWELL RT280 combines a live thermal view with temperature markers and alarms, making it suited to checking HVAC equipment, electrical panels, and other areas where a hotspot or uneven pattern deserves a closer look. It also saves images for later review, though its analysis software is for Windows PCs, not Mac.

Best use cases

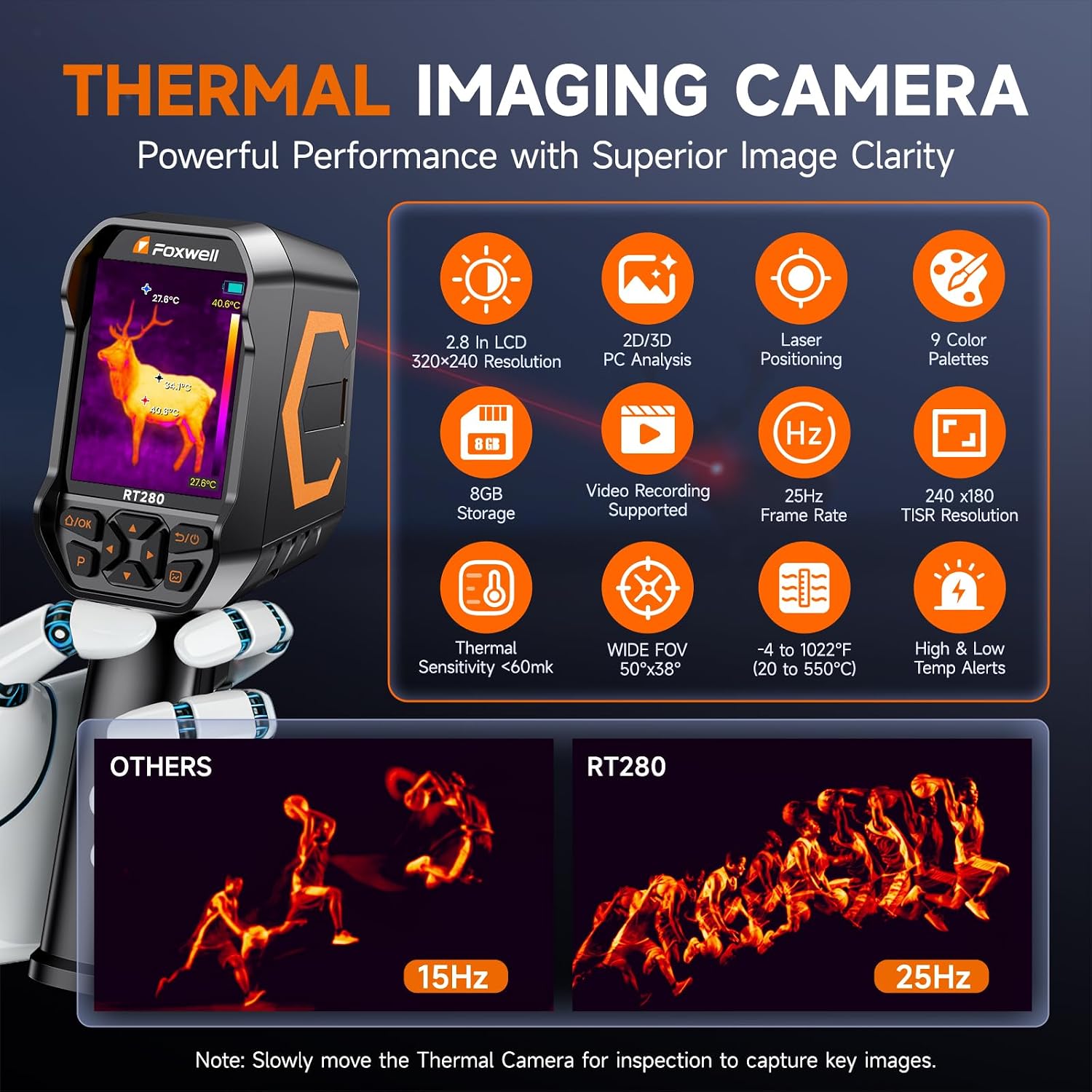

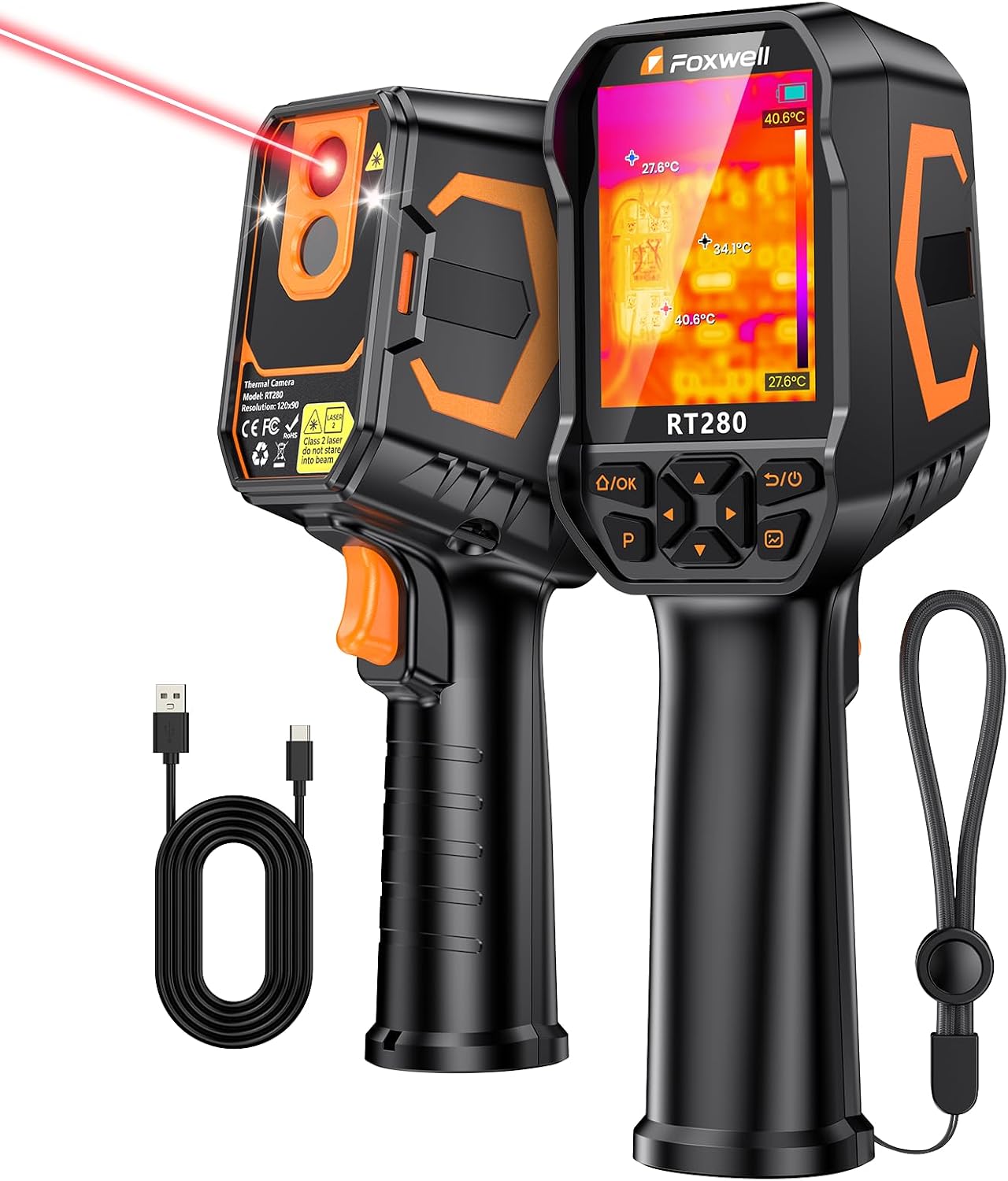

The RT280 is designed for inspection work where seeing a broader temperature pattern can help direct attention: checking an HVAC system, scanning an electrical panel, or looking over machinery for an unusual hot or cold area. Its 50° x 38° field of view and 25Hz frame rate are intended to make it easier to scan a scene on the camera’s 2.8-inch screen. A laser pointer helps with aiming, while the LED light can be useful in dim or confined spaces.

For example, you could scan across a panel, use the high-temperature alarm to flag an area, then save an image to examine on a computer later. That workflow is more suited to documenting and investigating a pattern than to replacing a hands-on inspection or other diagnostic steps. The camera also lists automotive engine checks among its uses, but the product details do not establish that it diagnoses faults on its own.

Product specs

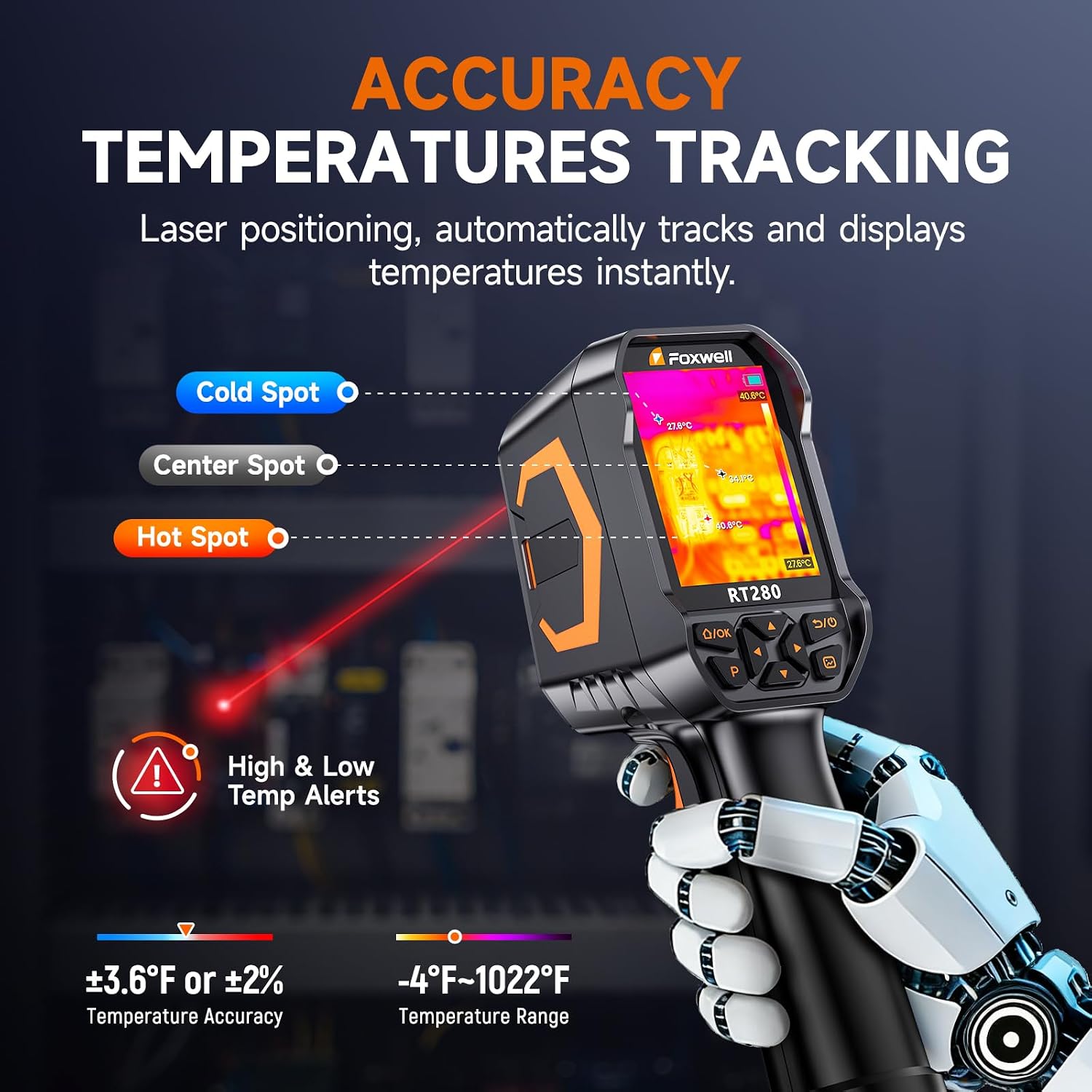

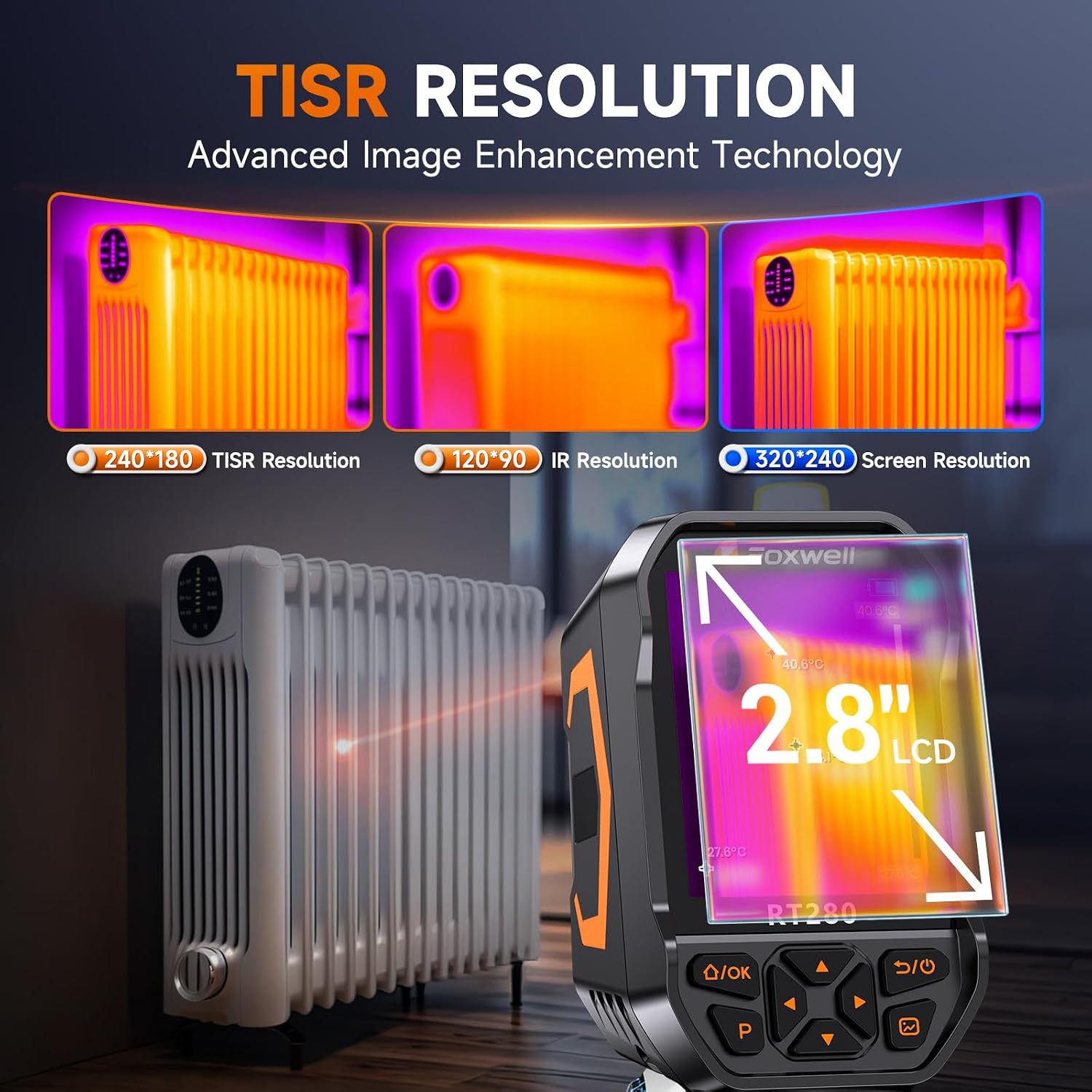

The display is 320 x 240, and TISR processing is described as increasing effective thermal image resolution from 120 x 90 to 240 x 180. It measures temperatures from -4°F to 1022°F, with stated accuracy of ±3.6°F / ±2%. The camera identifies the highest, lowest, and central temperature points, and offers high- and low-temperature alarms. Those readings can help narrow down where to investigate, but the stated accuracy is worth keeping in mind when a decision depends on a precise measurement.

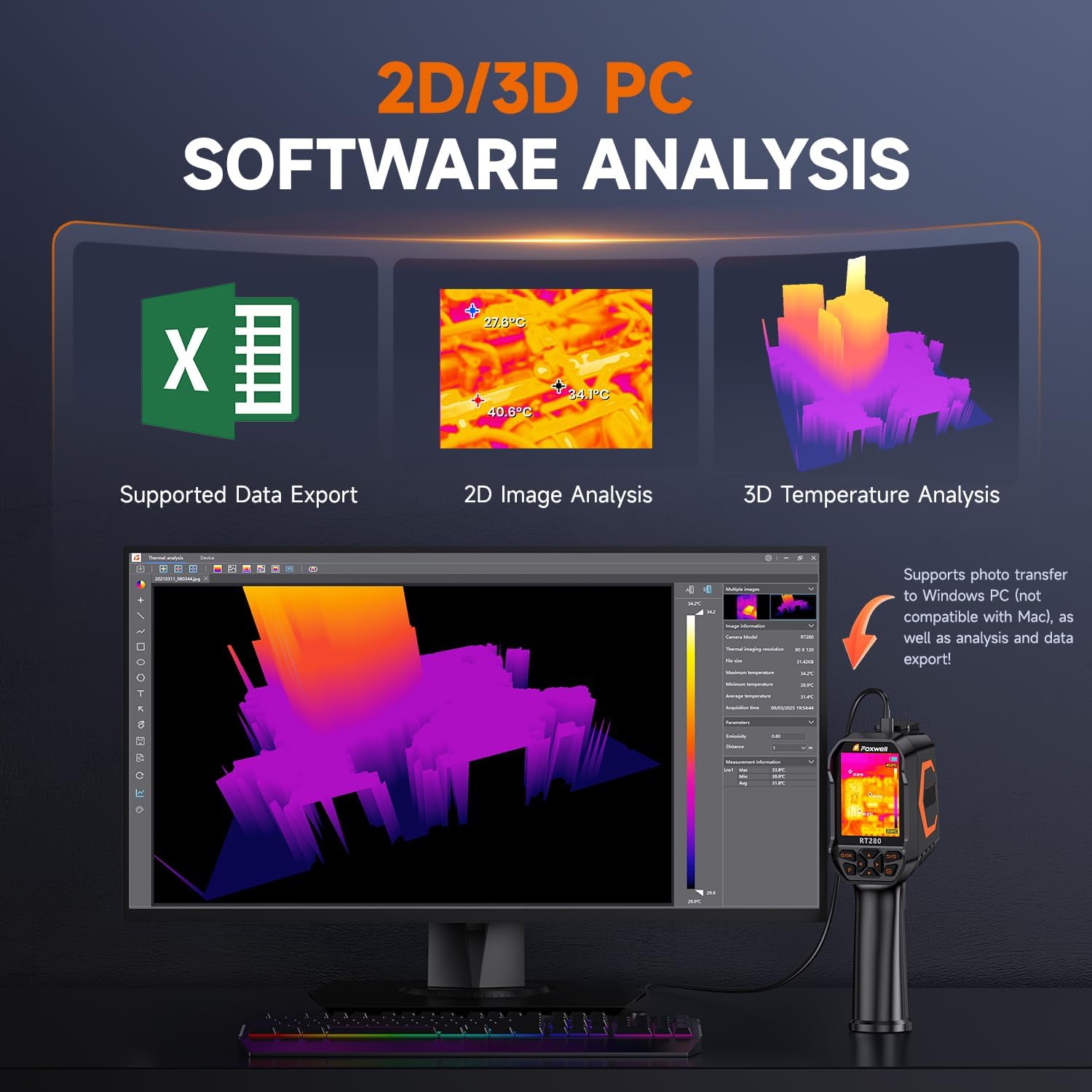

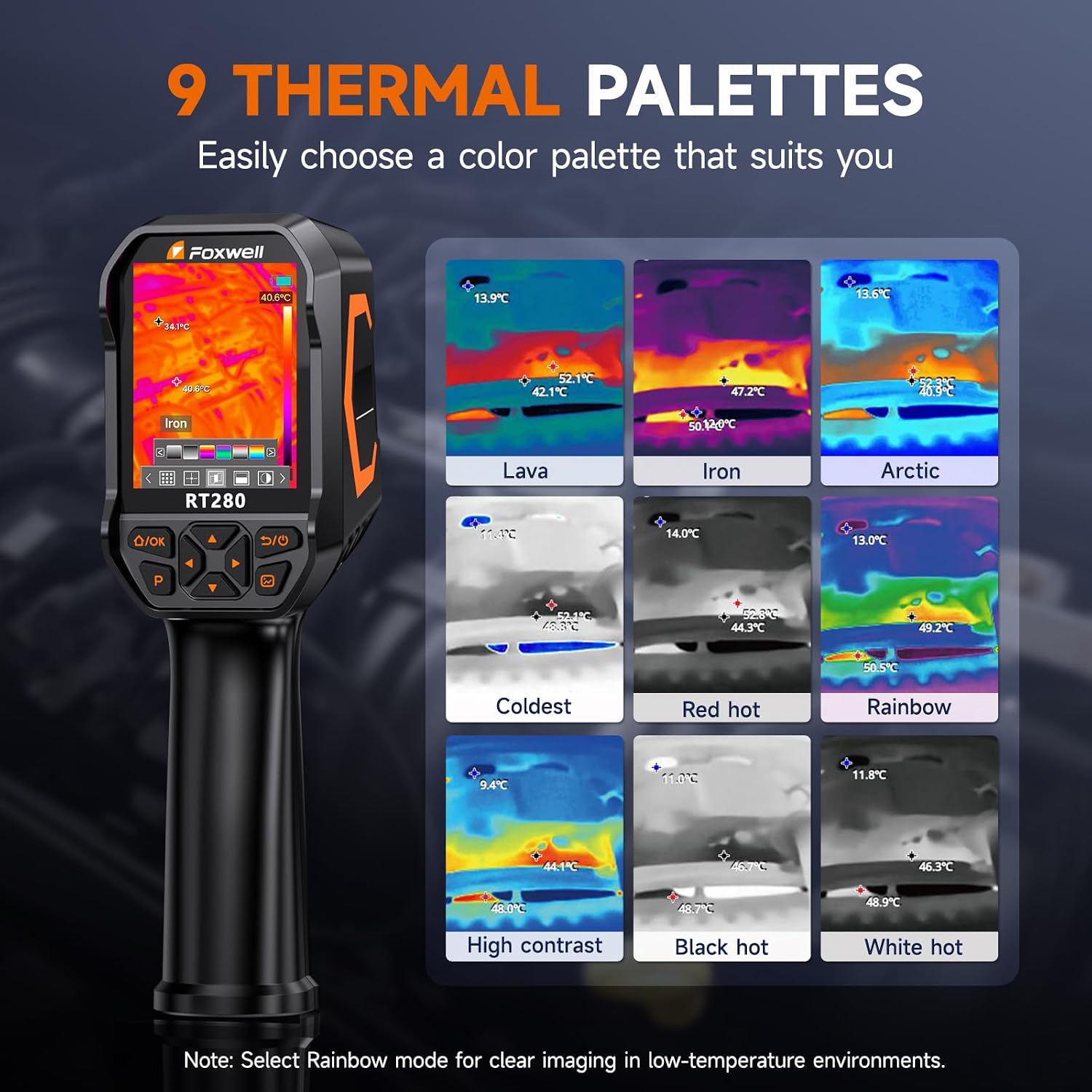

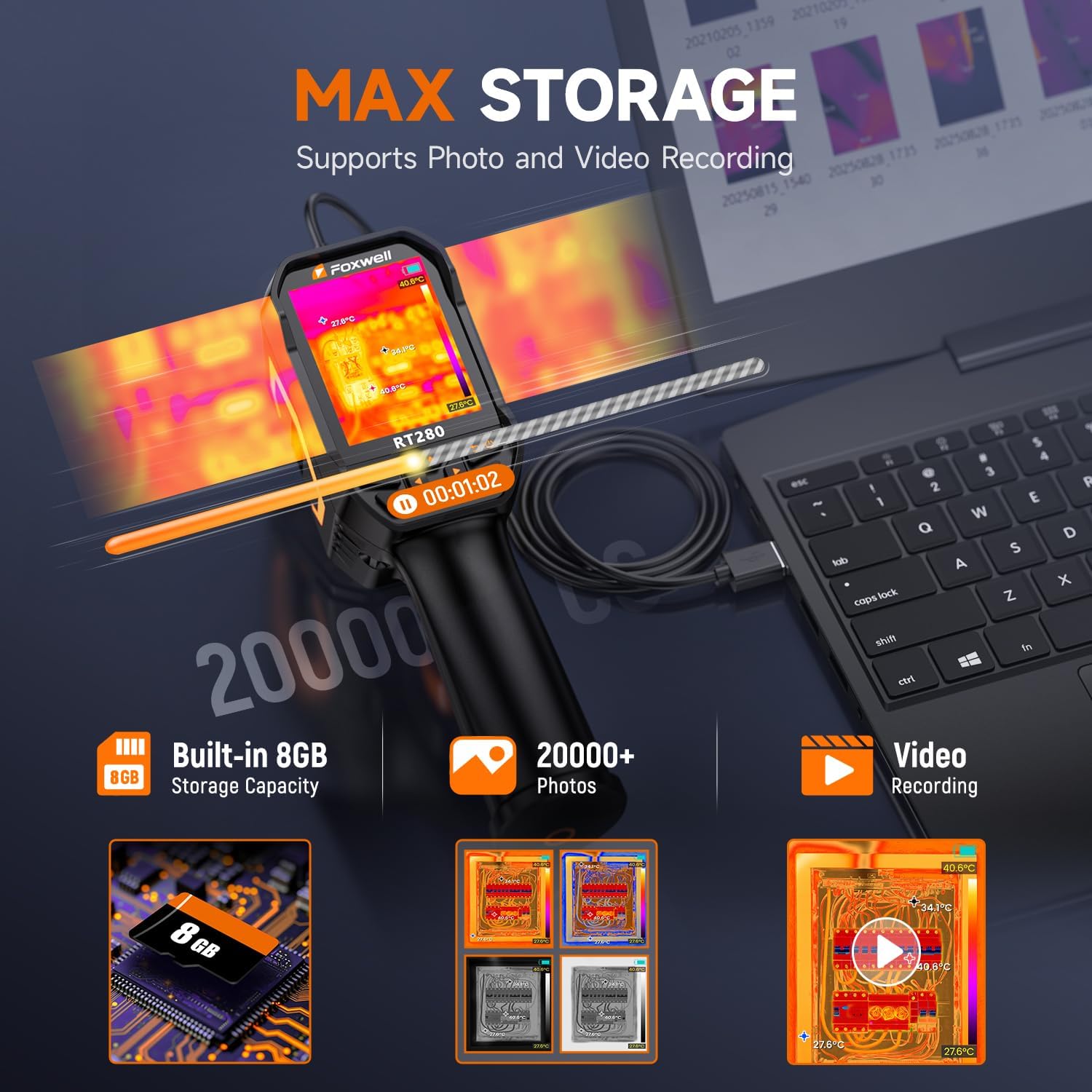

There are nine color palettes for viewing thermal patterns, plus 8GB of built-in eMMC storage for saving images and video. FOXWELL says the camera can store more than 20,000 images and videos, actual capacity can depend on what is saved. For deeper review, the included PC software supports point, line, and area analysis, 2D and 3D thermal views, and automatic report generation. That software workflow is a meaningful extra for people who need records, but it is not a fit for Mac-based analysis.

Where it shines

Its strongest practical angle is the combination of live inspection tools and follow-up documentation. You can scan a space, use the center and high/low temperature markers to spot areas worth attention, and retain an image instead of relying on memory. The laser and light add convenience when the target is hard to see, while the nine palettes let you change how temperature differences appear on screen.

The housing is rated IP54 and is described as able to withstand drops from 6.6 feet, which gives it a field-oriented design for everyday inspection environments. Those ratings are useful context, not a reason to treat it as indestructible or waterproof. Worth considering if you want a handheld thermal imager with alarms, onboard storage, and Windows-based analysis in one workflow. Would you rather have a simple viewer or a tool that can also organize findings for later review? The RT280 leans toward the latter.

Should you buy it?

It may not suit you if your analysis setup is a Mac, or if you need a device whose specifications establish tighter measurement accuracy than the stated ±3.6°F / ±2%. For HVAC, electrical, building, or mechanical checks where visual scanning and saved thermal images are useful, its feature set covers more than basic viewing. Choose it when alarms and PC reporting matter, look for a simpler approach if you only need occasional visual checks and will not use those extras.
