EVIL ENERGY 3.0 Inch Exhaust Clamp (2-Pack) — 304 Stainless Steel Lap Joint Band for Butt-Joint Connections
Reviews
Product description
If you’re piecing together an exhaust section and you don’t want the hassle of welding, a lap joint band clamp is one of those “get it done” parts. This EVIL ENERGY 3.0 inch exhaust clamp is designed to join two 3.0" OD pipe ends, and it uses a no-welding approach that’s meant to be easier to install (and remove later) than a fixed weld.
That said, it’s still a clamp system. Over time, exhaust components see heat cycles and vibration, so this is best viewed as a practical connection method—not magic. If your install needs ultimate rigidity above all else, you may want to think twice.
The essentials
This 3.0" lap joint clamp is built for butt-joint style connections between two 3.0" OD pipes. The strap width is listed as 3 inches, and the strap is a 304 stainless steel band. The package includes 2 pieces.
The “no-welding” design is the headline feature. On paper, that translates into fewer barriers during installation: you can line things up, tighten, and move on. It’s also the kind of setup that can make future adjustments or removal less of a whole project.
What it’s made of (and why that matters)

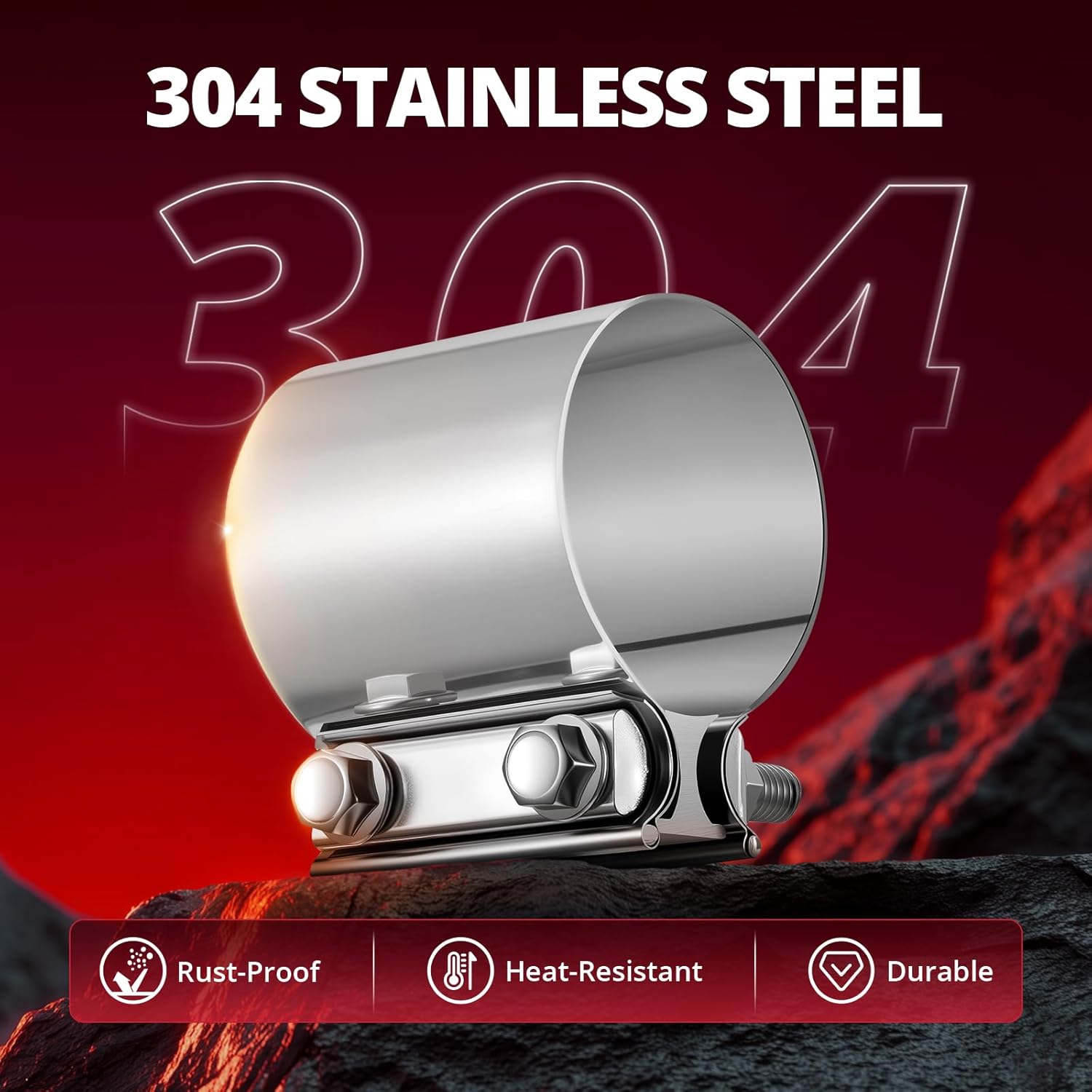

Materials here aren’t just fine-print. The clamp uses a 304 stainless steel band for the main strap, plus a zinc-plated M10 bolt and nut. There’s also a steel gasket and an aluminum alloy I-block included in the design.
In real-world exhaust work, heat and corrosion resistance matter because the connection sits in a harsh environment. Stainless for the band plus a gasket-focused design is a sensible combination when your goal is a sealed fit without deforming the mating parts.
How the clamp seals and installs
A key detail is the 360° force distribution: the band clamp is designed to distribute clamping force evenly around the joint. The idea is to support a secure seal while helping prevent material deformation at the connection point.
It also comes with a listed torque value of 63 N·m. That’s useful because it gives you a reference point for tightening rather than “tighten until it feels right.” The system is designed to be installed without welding, so you’re relying on alignment plus clamp compression to do the job.
A small example: imagine you’re replacing a muffler section and your pipes don’t line up perfectly with a one-shot weld. With a lap joint clamp like this, you can position the components, snug the clamp, verify the joint sits evenly, and then torque it down to spec. It’s a more adjustable workflow than welding—especially when you’re working in a driveway or garage.
Key points to keep in mind

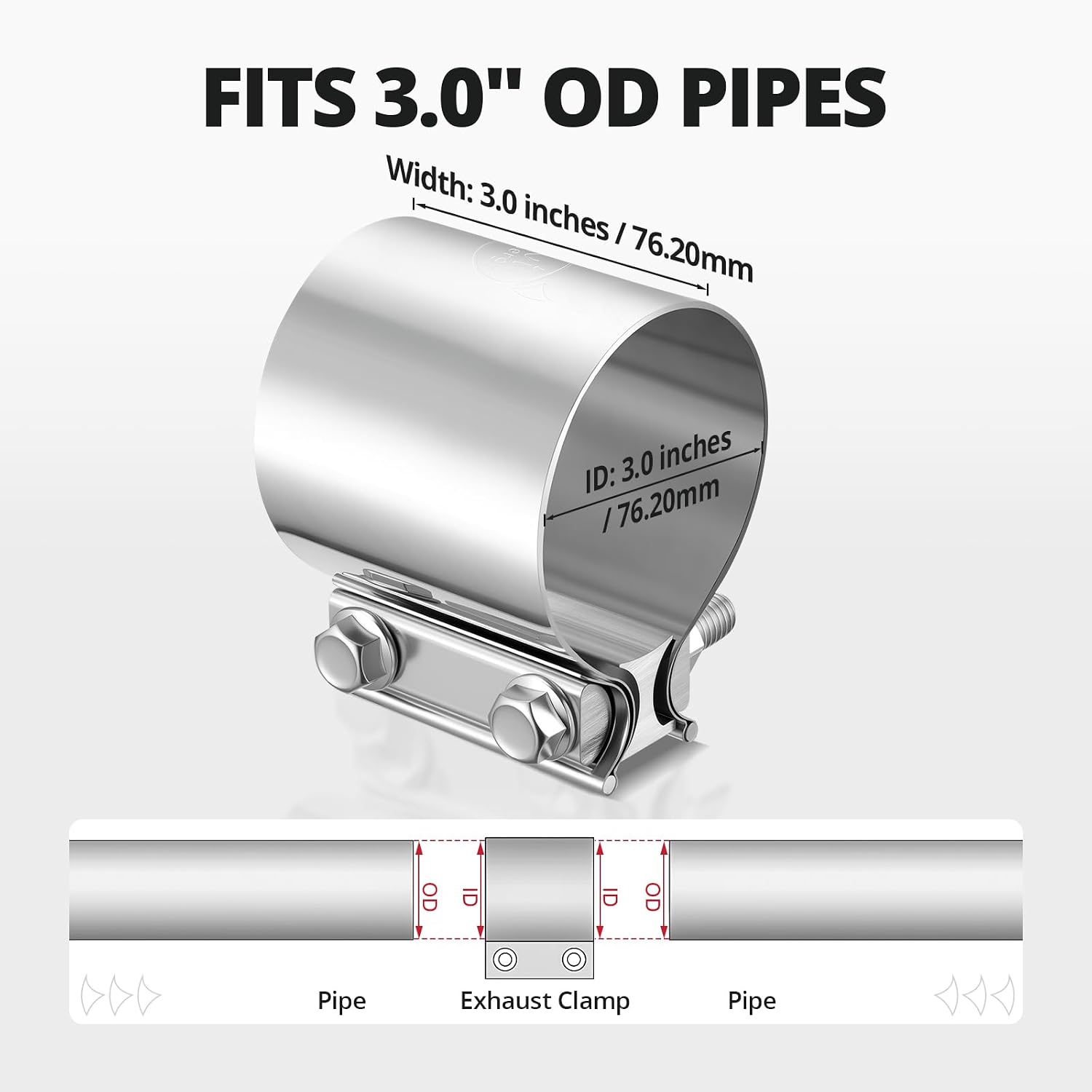

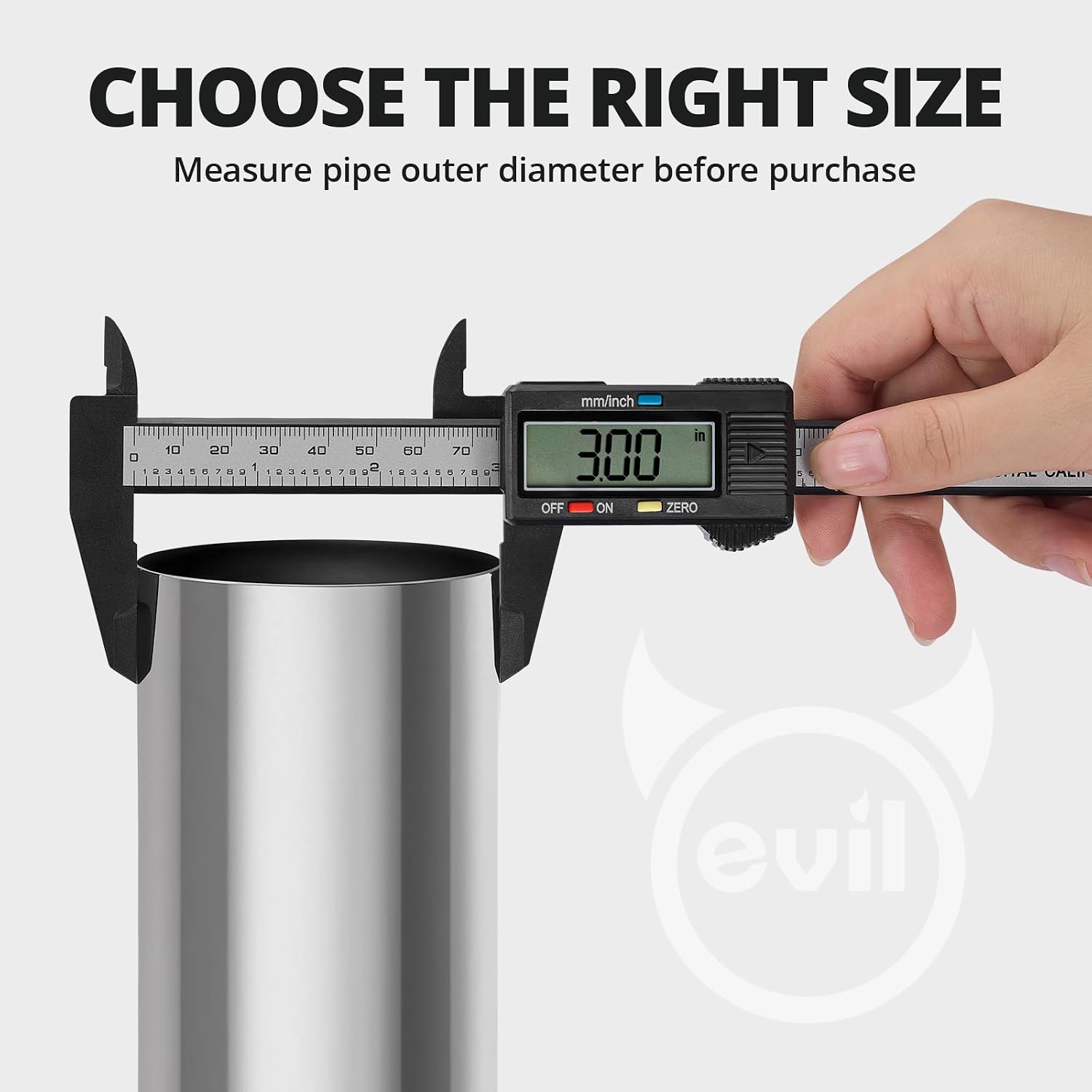

Before you buy, confirm fitment basics. This clamp is specifically for joining 3.0" OD pipe to 3.0" OD pipe, and the strap width is specified as 3 inches. If your exhaust setup uses a different diameter, this won’t match the core requirement.
Also, note the clamp’s “no-welding” nature: it’s convenient, but it means you’re counting on the clamp system to maintain the seal under thermal cycling. For high-stress builds where you want a permanent connection strategy, a weld-based approach might still make more sense.
Tech specs
- Name: EVIL ENERGY 3.0 Inch Exhaust Clamp
- Type: Lap joint band clamp (no-welding design)
- Size: Joins 3.0" OD pipe to 3.0" OD pipe
- Strap width: 3 inches (76.7 mm)
- Material: 304 stainless steel band
- Bolt & nut: Zinc-plated M10 bolt and nut
- Gasket: Steel gasket
- I-block: Aluminum alloy I-block
- Clamping coverage: 360° force distribution
- Torque: 63 N·m
- Quantity: 2 pcs
Should you buy it?
Worth considering if you’re building or repairing an exhaust section where you want a simple lap joint band clamp method, especially when you want the option to install or remove components without welding. It suits DIY-friendly work or situations where alignment and serviceability matter.
It might not be the best choice if your setup requires a more permanent, rigid connection strategy, or if your pipes aren’t 3.0" OD. In those cases, the clamp can feel more like a middle-of-the-road solution than a “do it once, never touch it again” approach.
If you prioritize a sealed joint using 304 stainless hardware, an included gasket, and even 360° force distribution, this 3.0" clamp is a practical pick. Just be sure the diameter match is right before you commit.
Quick answers
FAQ
Is it made to join pipes without welding?
Yes. The design is described as no-welding, intended to make installation or removal easier.
What size pipes does it connect?
It joins 3.0" OD pipe to 3.0" OD pipe.
What parts are included in the clamp assembly?
Based on the description: a 304 stainless steel band, a zinc-plated M10 bolt and nut, a steel gasket, and an aluminum alloy I-block. The listing includes 2 pieces.
What torque should I use?
The listed torque is 63 N·m, which you can use as a reference point during tightening.
