Brileine Hydraulic Crimping Tool, 10-Ton

Quick overview

When you’re making battery cables, welding leads, or cable-railing connections, a reliable crimp and a clean cut can matter more than having a large collection of separate tools. The Brileine kit pairs a hydraulic crimper with a dedicated cable cutter.

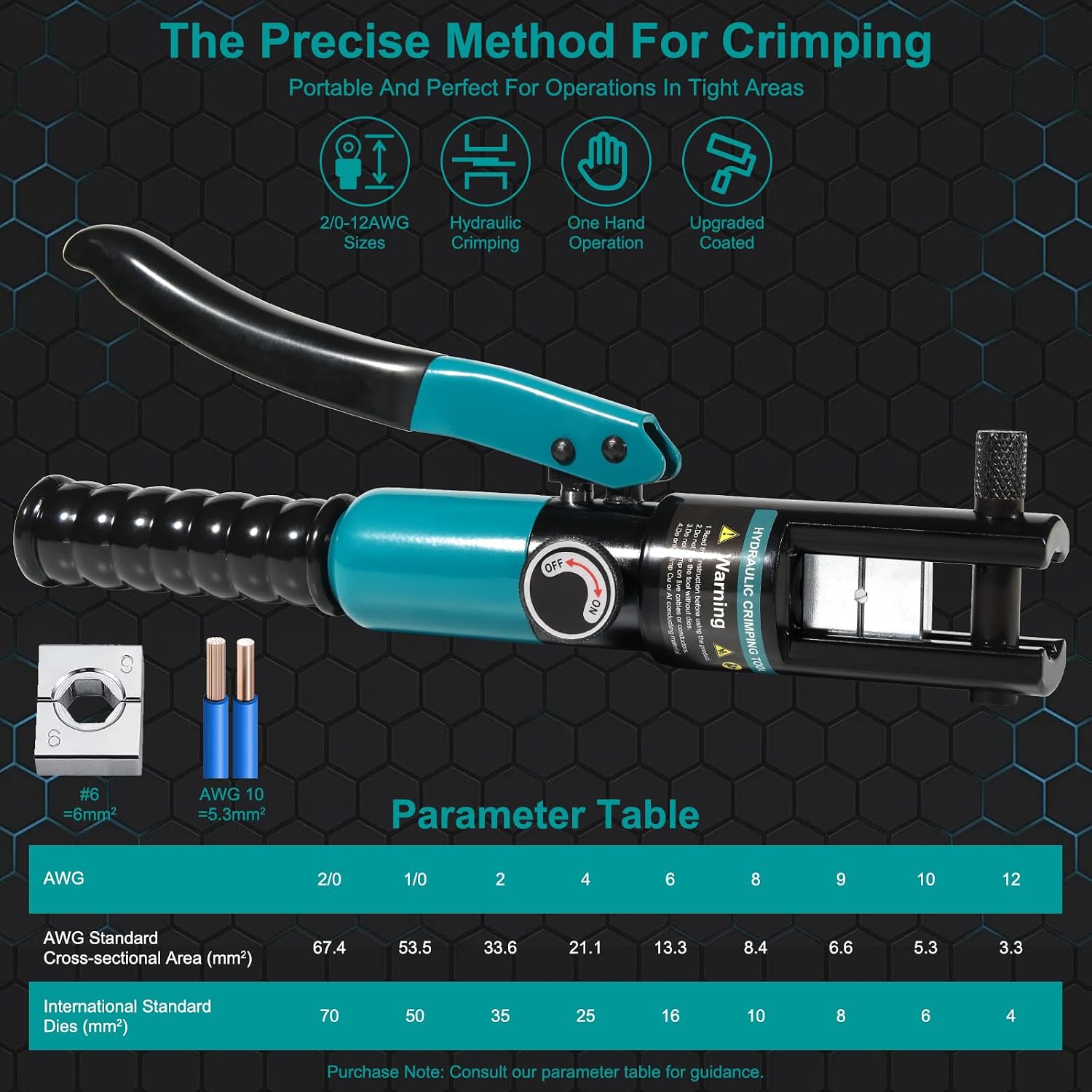

The crimper is rated for 10 tons of force and is designed for hexagonal crimps on copper and aluminum lugs from 12 AWG to 2/0 AWG. Nine dies are included, along with seal rings and a carrying case.

A 180-degree rotating head is intended to help in tighter work areas, such as an engine bay. The cutter is specified for battery cable in the same gauge range, but not wire rope.

Best use cases

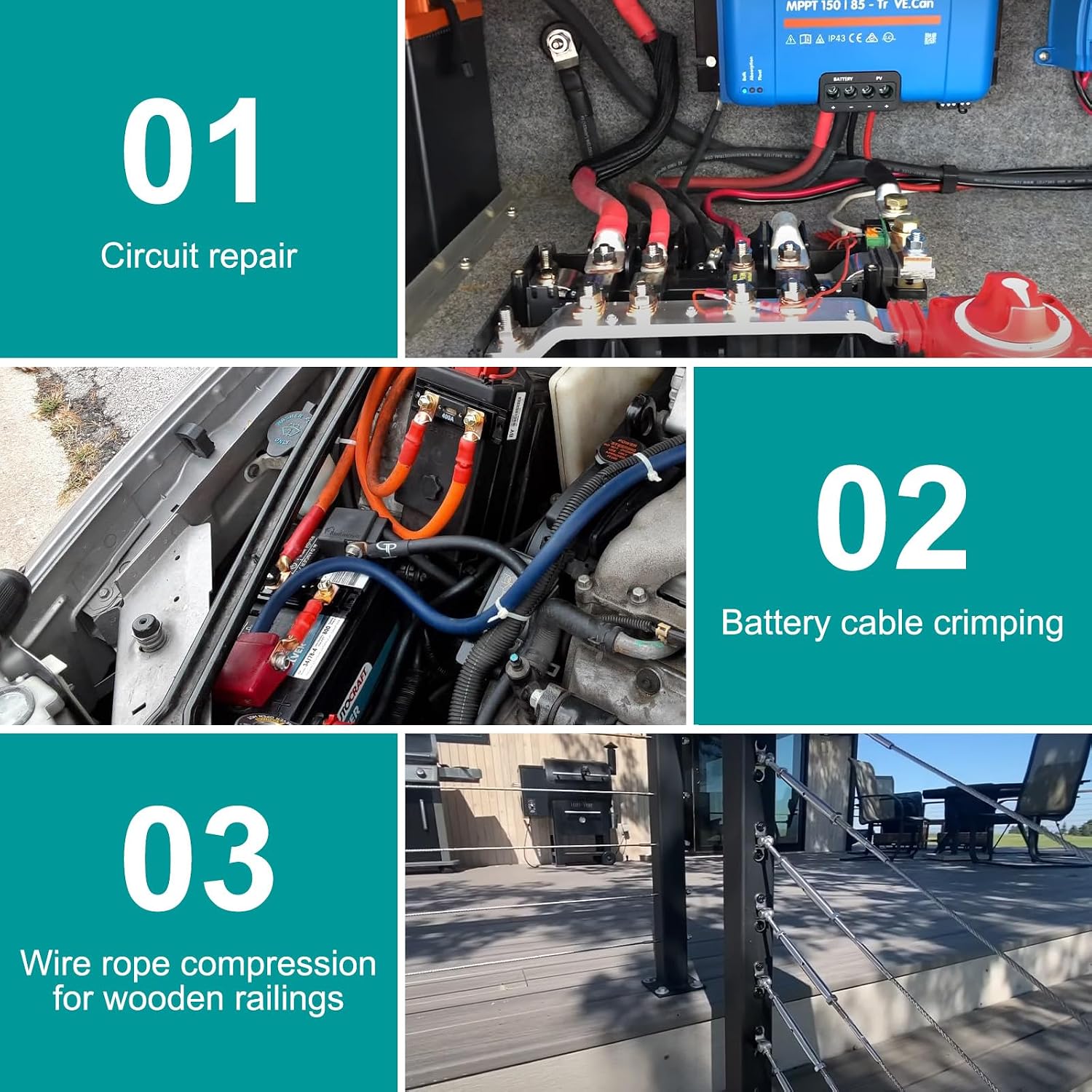

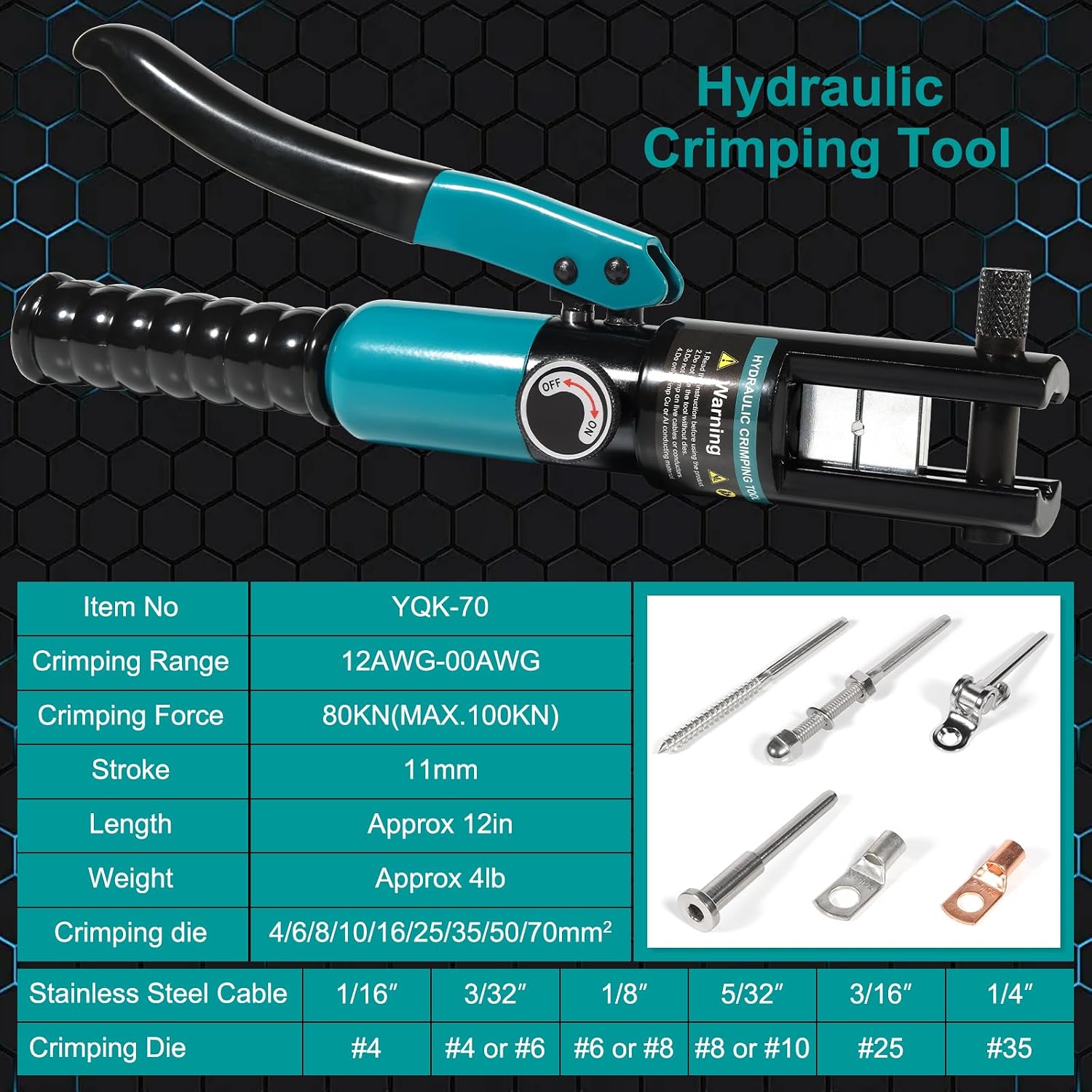

This setup is aimed at people assembling or repairing battery cables, welding cables, and cable-railing hardware. The listed die range covers common battery-lug sizes from 12 AWG through 2/0 AWG, while the included 1/8-inch and 3/16-inch dies are intended for cable-railing hardware. That gives the kit a broader role than a crimper bought only for one battery-terminal size.

For example, when replacing a vehicle battery lead, you could use the cutter to trim the cable, then select a matching die to crimp the lug. The rotating head may be useful when the connection is awkward to reach, although access still depends on the space around the job.

Keep in mind that the cutter is not designed for wire rope. If wire-rope cutting is part of your project, this kit does not cover that task, and a dedicated cutter would be needed.

Tips for day-to-day use

Match the die to the cable and lug before applying pressure, the included range is broad, but that does not mean every connector or cable type is covered. The listed compatibility is for copper and aluminum lugs, so check that your particular terminal falls within the stated range rather than assuming the tool suits every fitting.

The 180-degree head can help when positioning the crimper in a cramped area. A practical approach is to arrange the cable and lug first, then orient the head for the available working space. Keep the dies together in the case after a job so the size needed for the next connection is easier to find.

Compared with a basic hand crimper, this hydraulic format is geared toward applying substantial crimping force across larger battery-cable sizes. It is a more specialized kit, though: if you only make occasional small-gauge connections, the included cutter, hydraulic mechanism, and multiple dies may be more tool than your work requires.

Practical doubts

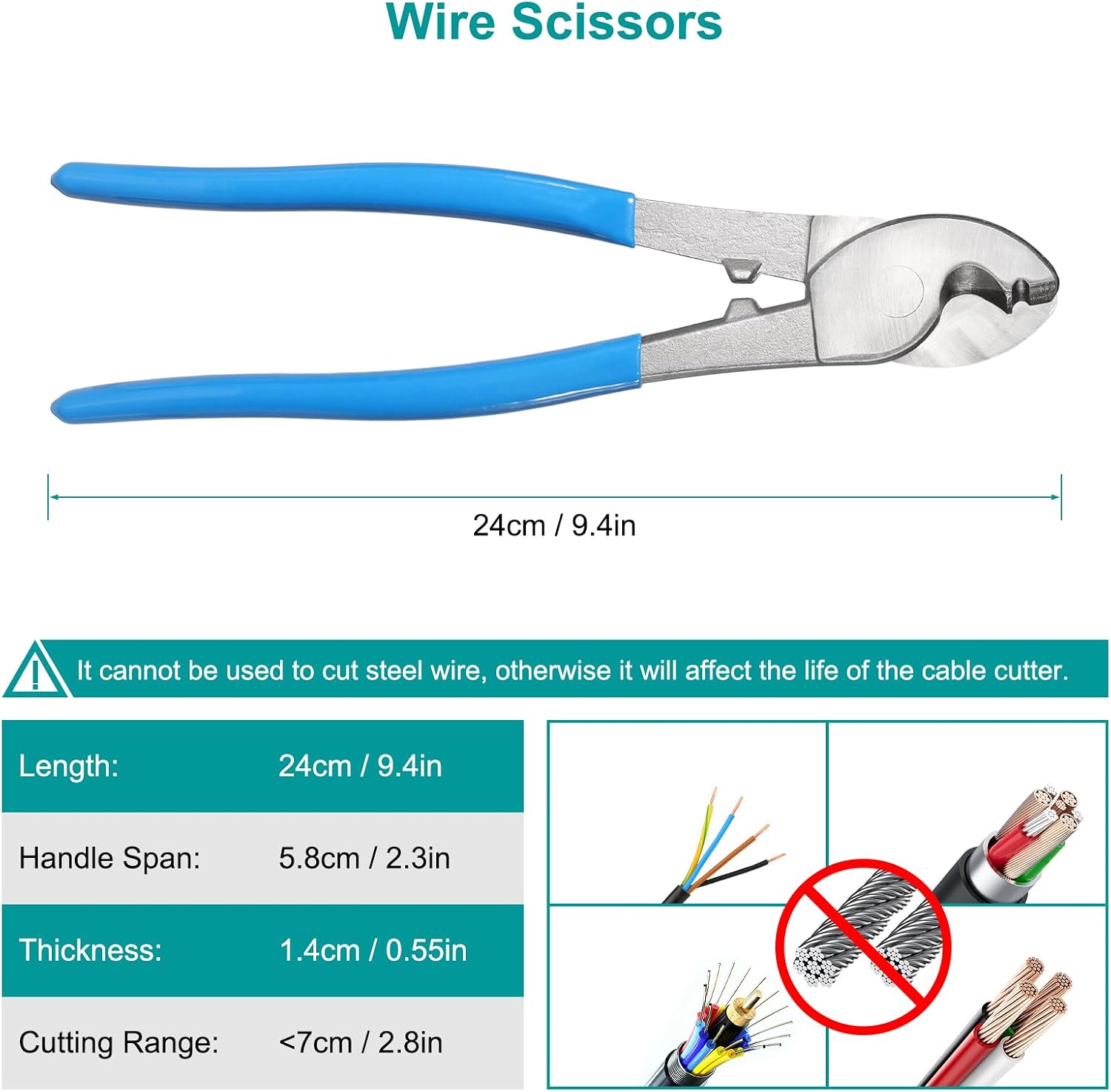

Can it cut wire rope? No. The included cable cutter is specifically described as unable to cut wire rope.

Which cable sizes are listed? The crimper and cutter are specified for 12 AWG to 2/0 AWG battery cable. The crimper is also described for copper and aluminum lugs.

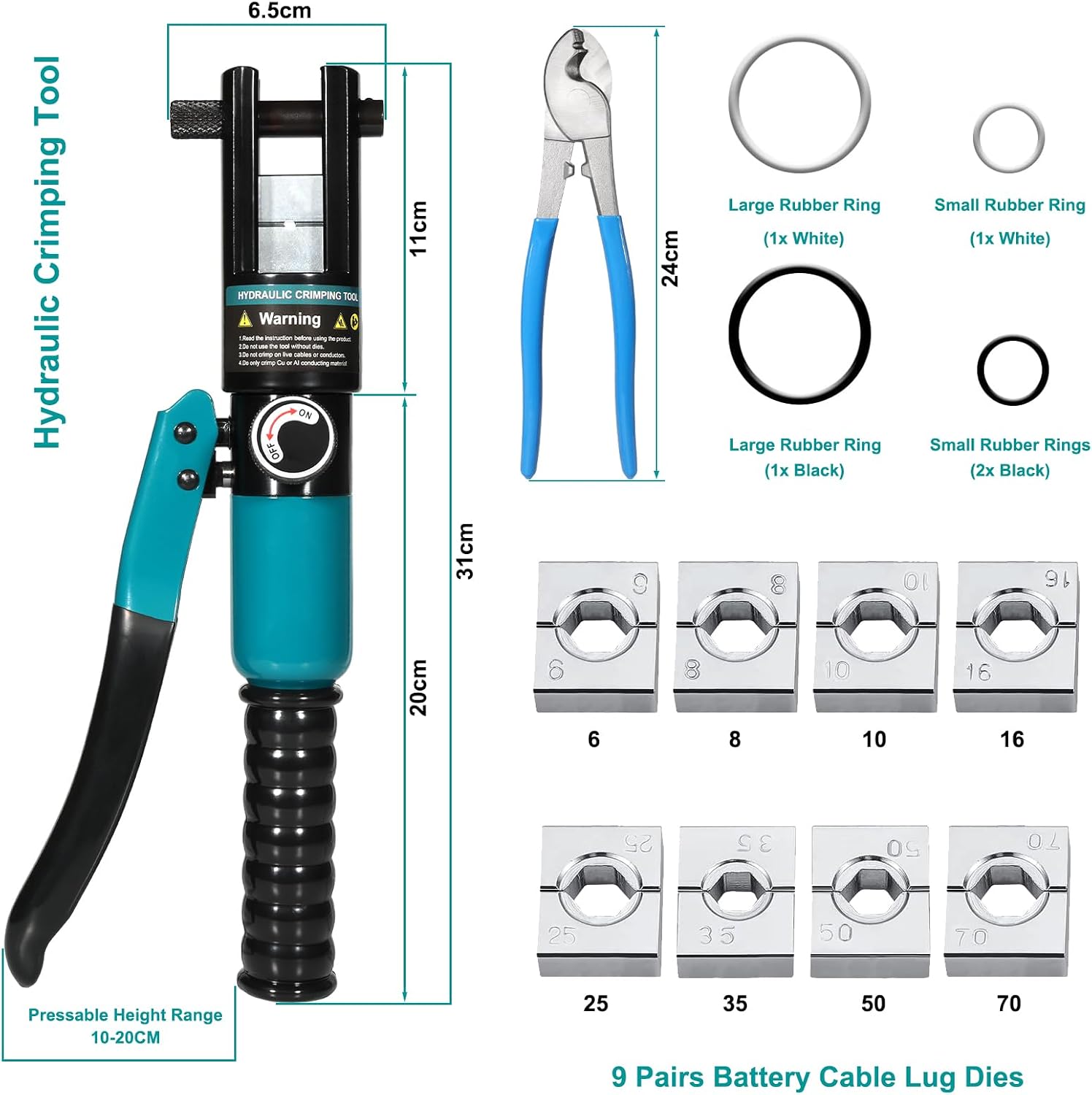

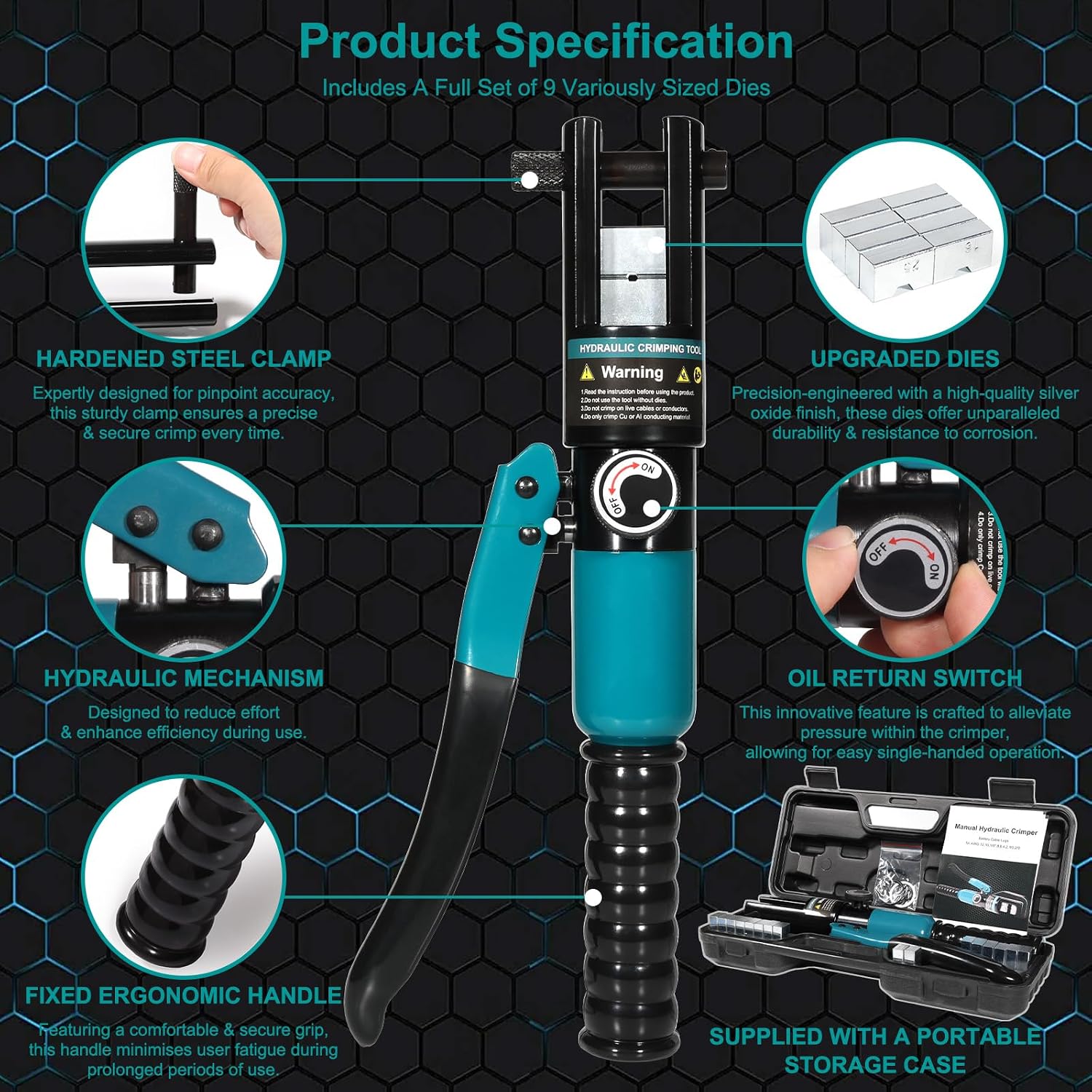

What comes in the kit? It includes the hydraulic crimper, cable cutter, nine dies, seal rings, and a rugged case. The listing also describes 18-month support for oil or leak issues, replacement parts, and performance troubleshooting.

When it makes sense

It makes sense if you regularly terminate battery or welding cable and want a crimper and cutter in one kit, especially when the work may involve different listed cable sizes or tight access. The case and nine dies are useful details for keeping the setup together between projects.

You may want to skip it if your main need is cutting wire rope, or if you only need a simple tool for occasional small-gauge wiring. This is a hydraulic cable-working kit, not an all-purpose cutting solution, choose it for the crimping range and cable tasks it actually lists.
