BOSCH PR20EVS Colt 1.0 HP Palm Router
Reviews
Price
Product description

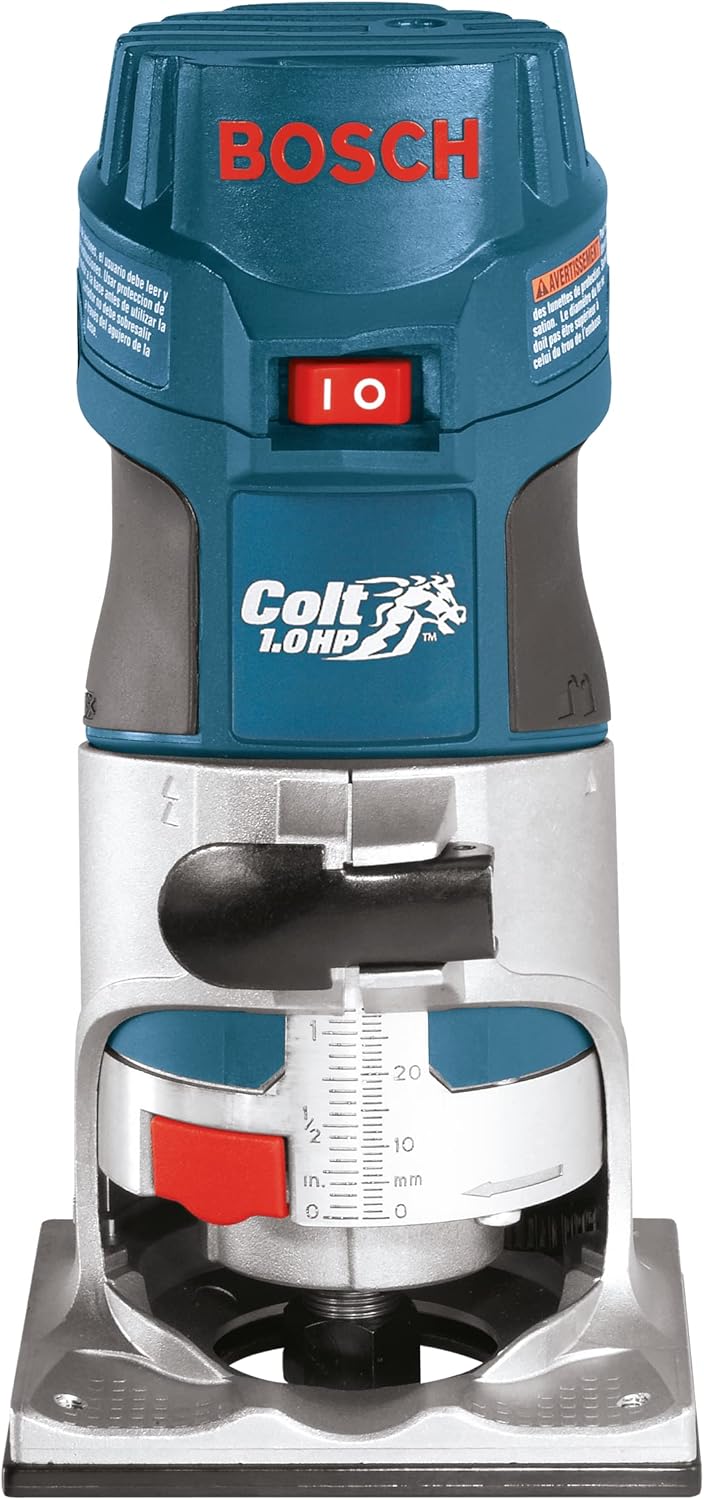

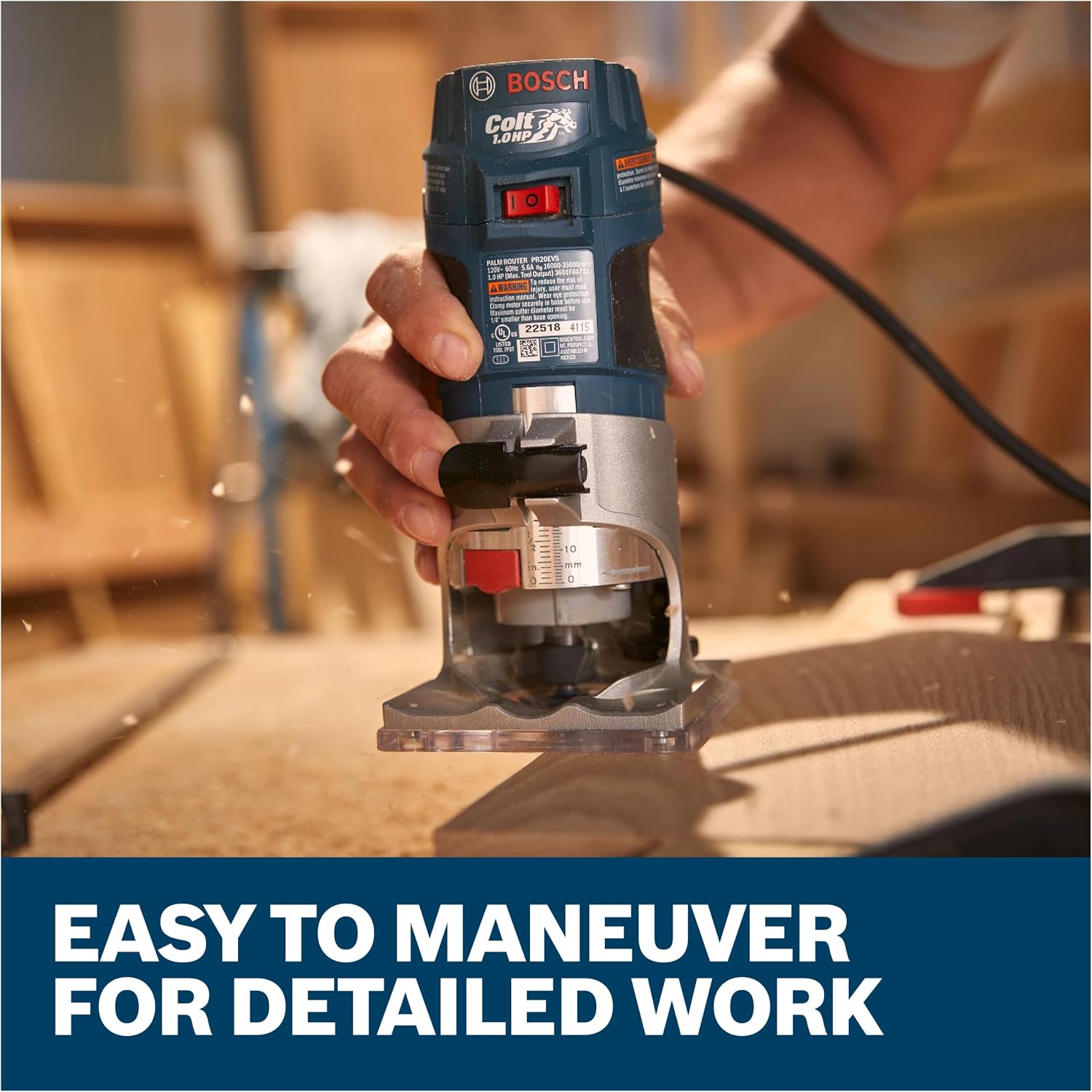

This compact palm router from Bosch delivers controlled trimming and edge work with a 1.0 HP motor and variable speed range that adapts to delicate inlays or aggressive trimming tasks. It combines a slim ergonomic grip and a rugged aluminum fixed base to help you keep steady control when routing cabinet doors, laminates, or decorative profiles.
Key Points

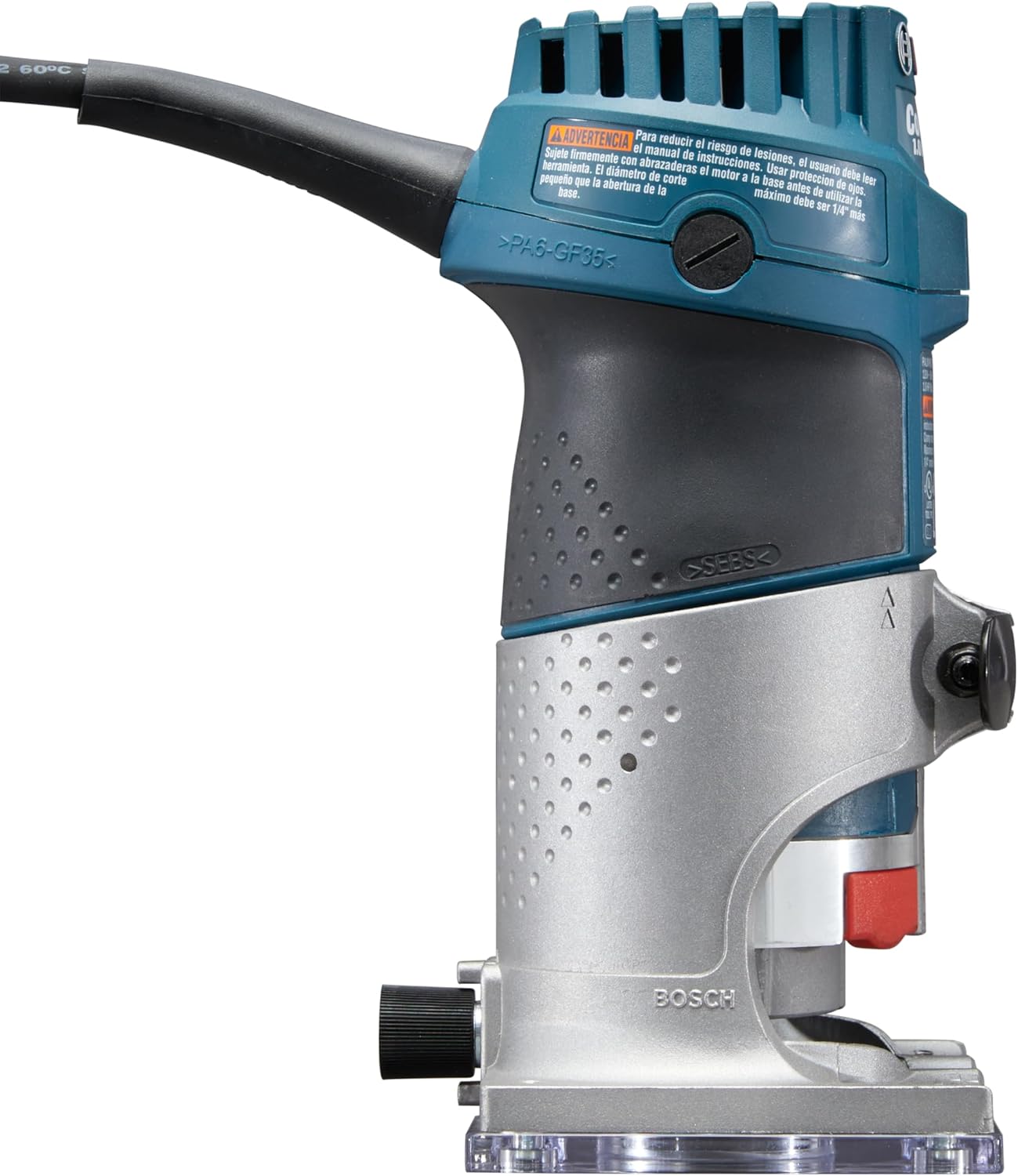

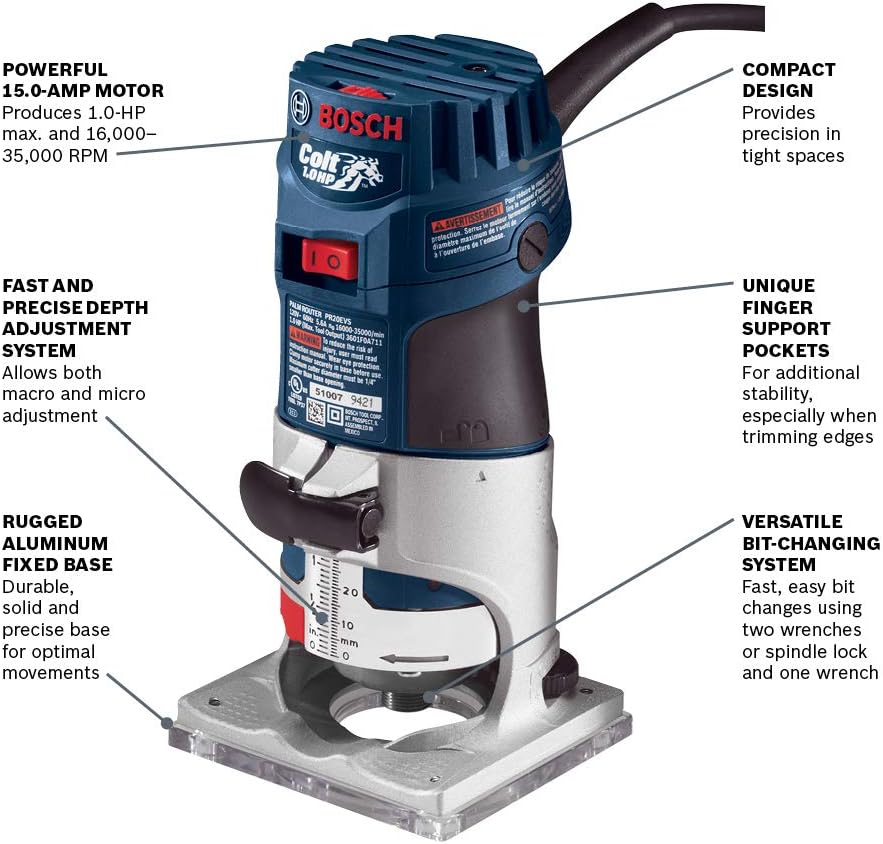

The PR20EVS operates between 16,000 and 35,000 RPM, letting you match speed to material for cleaner cuts and reduced tear-out. The tool includes a straight edge guide that supports routing up to 3-5/8 inches from an edge, and the cord exit is angled to stay out of the work area for less interference. Finger support pockets on the body provide extra stability during delicate edge trimming. Note that bit changes require two wrenches or the spindle lock plus a wrench, which is typical for routers of this class.
Technical Specifications
- Name: Bosch PR20EVS Colt 1.0 HP Variable-Speed Palm Router
- Motor: 1.0 HP, 5.6 Amp
- Speed range: 16,000–35,000 RPM
- Collet size: 1/4"
- Base material: Rugged aluminum fixed base
Why This May Interest You

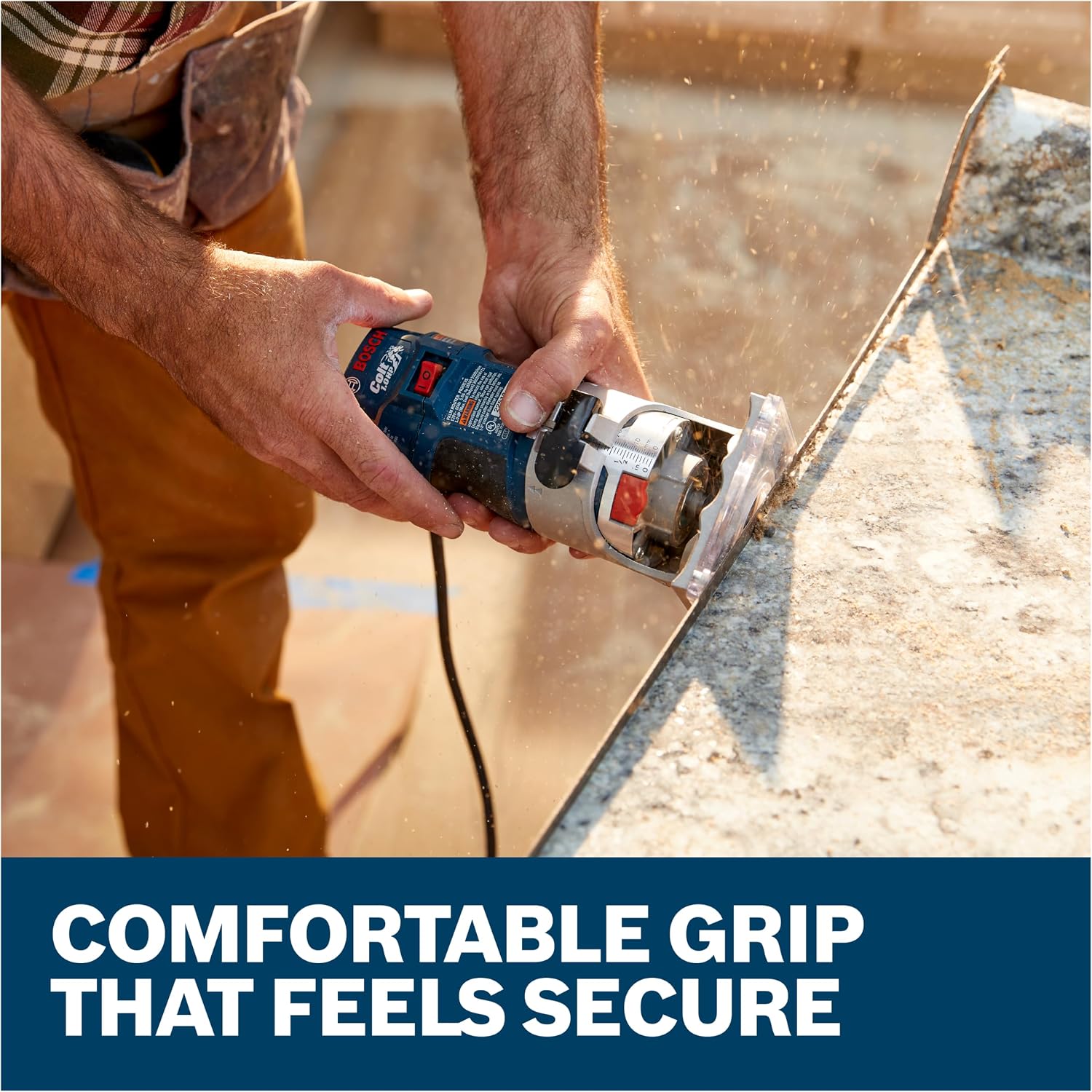

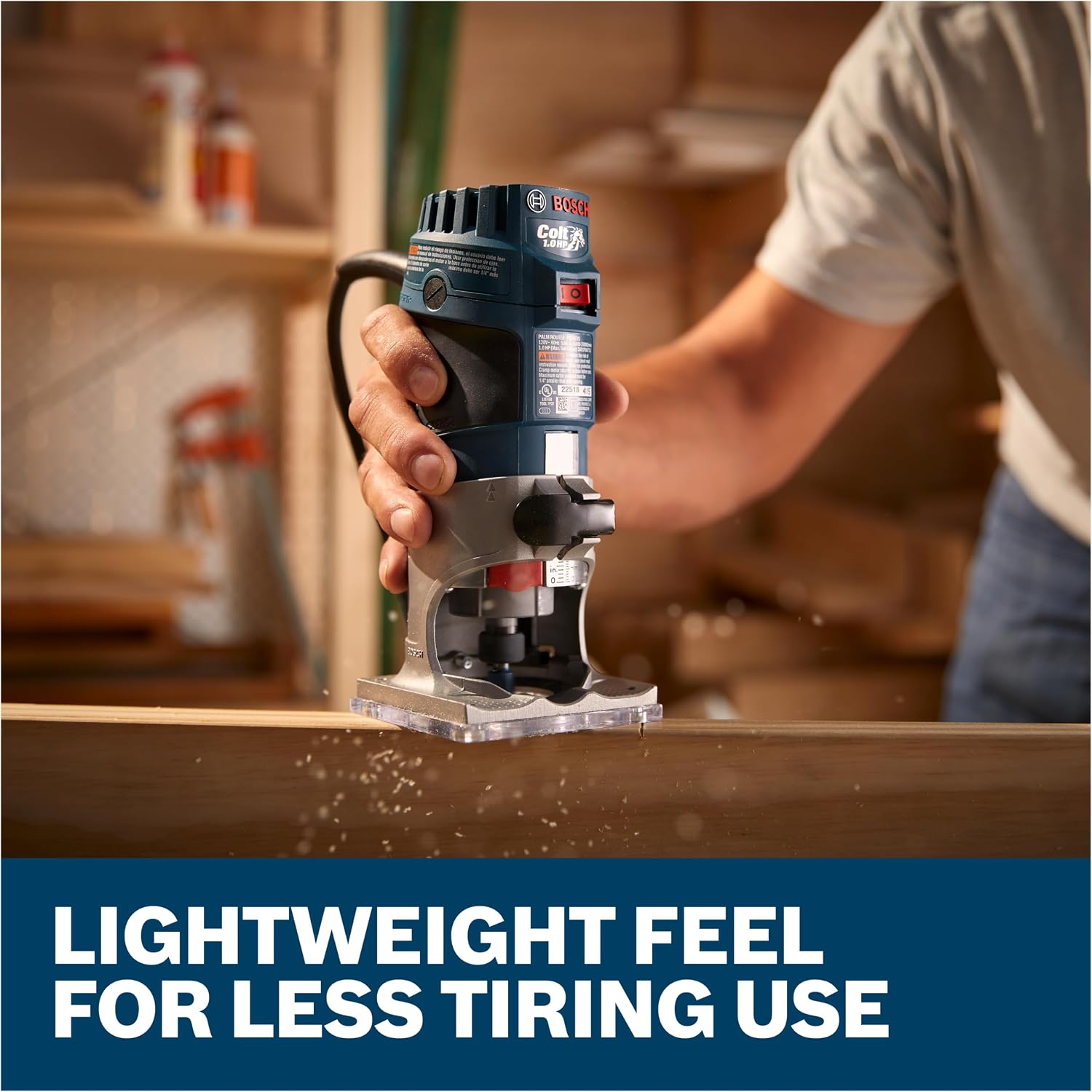

The combination of a soft start motor and Constant Response Circuitry helps keep RPMs consistent under load, which makes it easier to maintain smooth profiles when moving from hardwood to softer woods. The quick-clamp system simplifies swapping the motor between bases or removing it for storage. For users working on small furniture, door edging, or inlay routing, the compact size and comfortable grip reduce hand fatigue during longer sessions.
Usage Recommendations

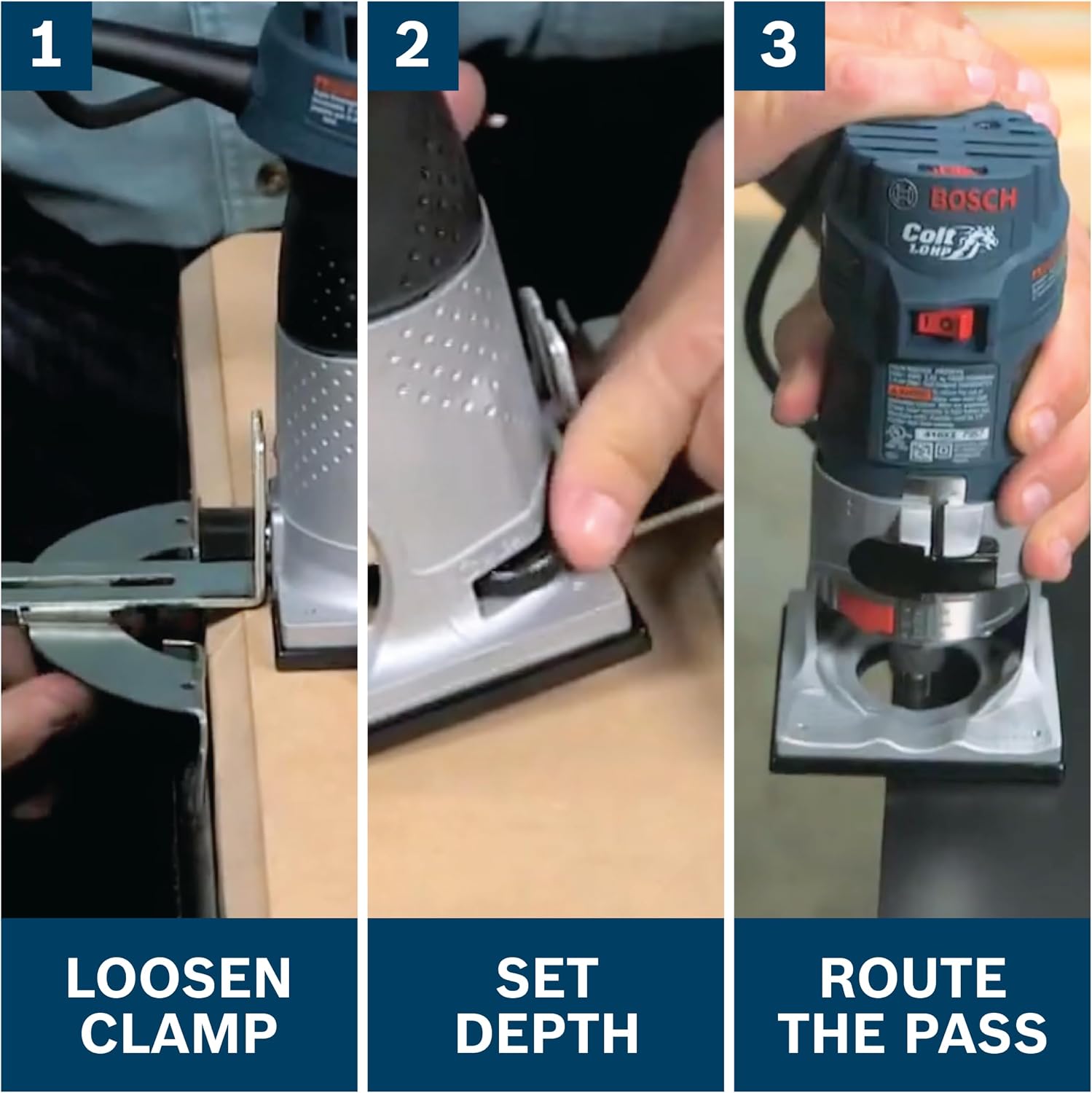

Start at a lower speed when using larger diameter bits or when working with delicate veneers, and increase RPM gradually for harder materials. Use the straight edge guide to maintain parallel cuts from the workpiece edge, and rely on the micro and macro depth adjustment to dial in shallow passes for better finish quality. Consider wearing hearing and eye protection while routing, and keep two wrenches accessible for faster bit changes.
