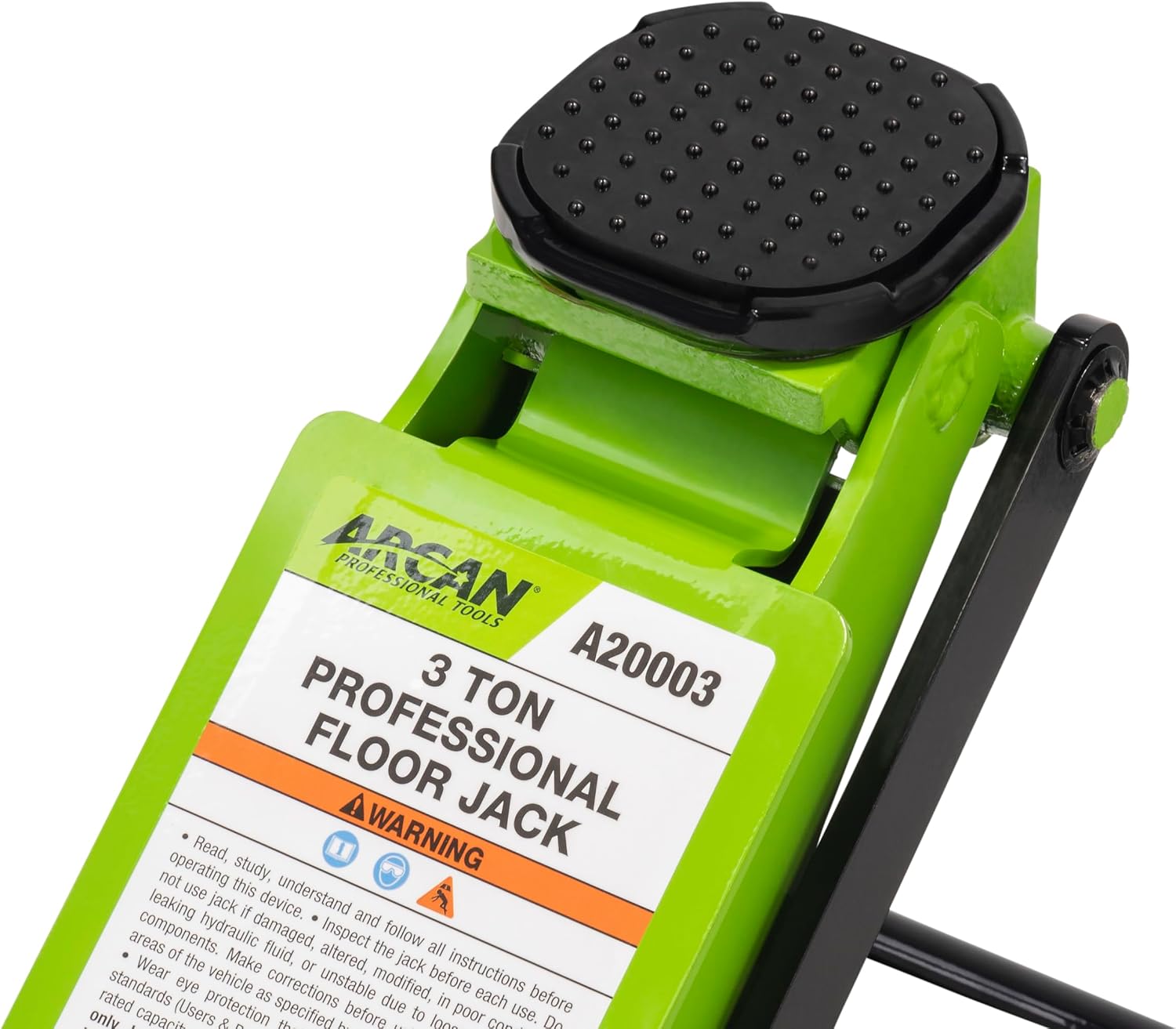

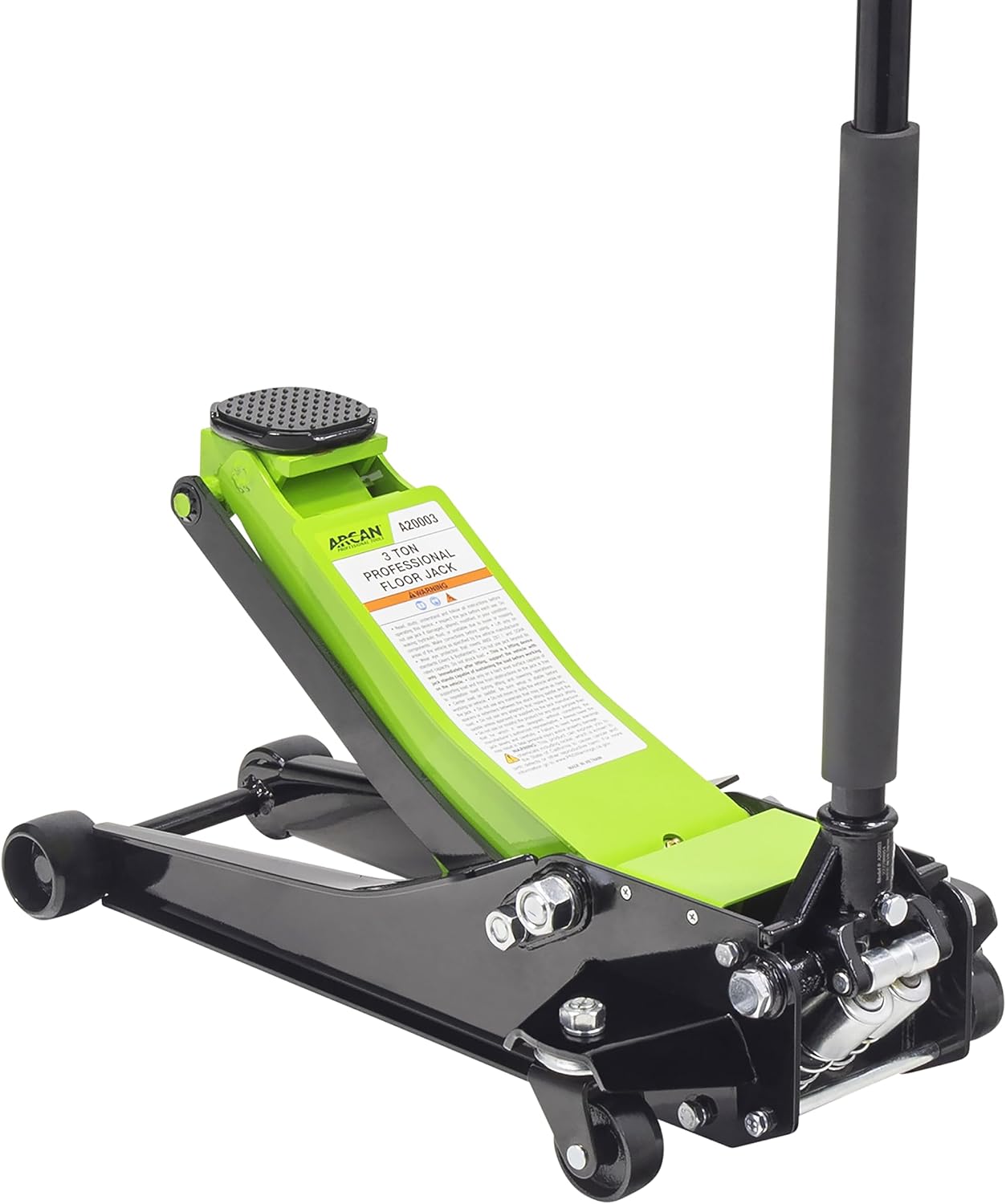

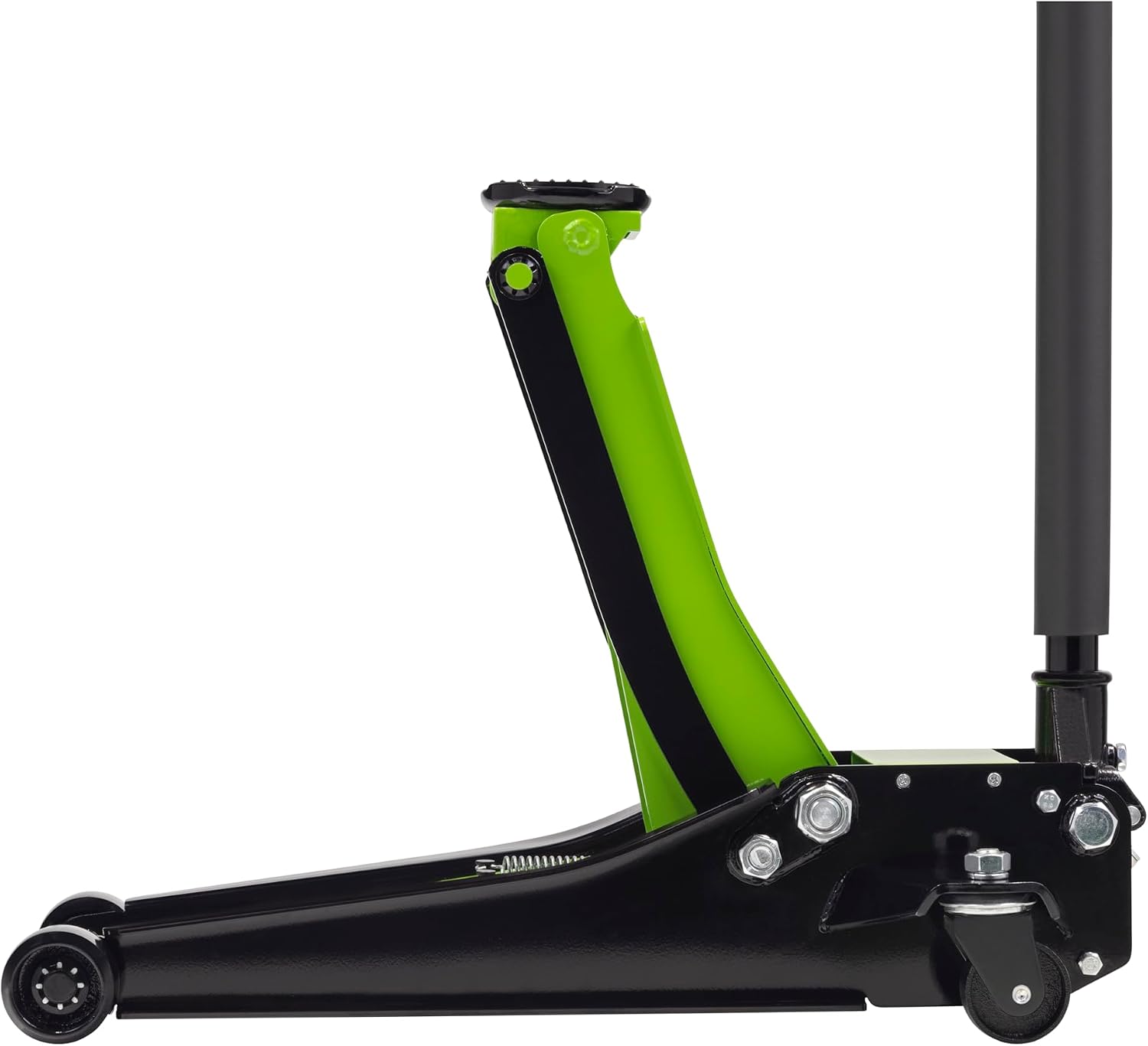

ARCAN A20003 3-Ton Steel Low-Profile Floor Jack with Dual-Piston Pump

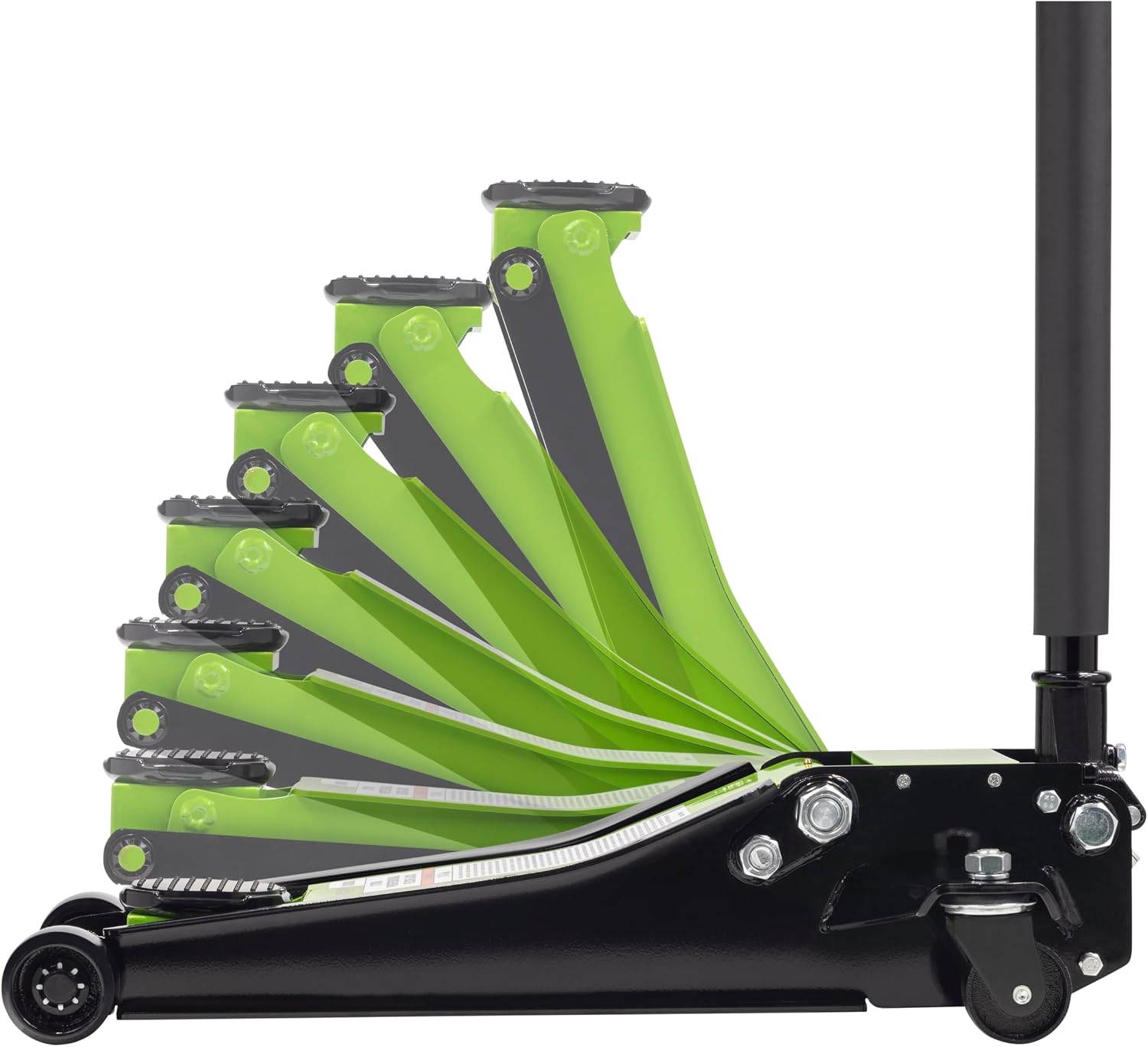

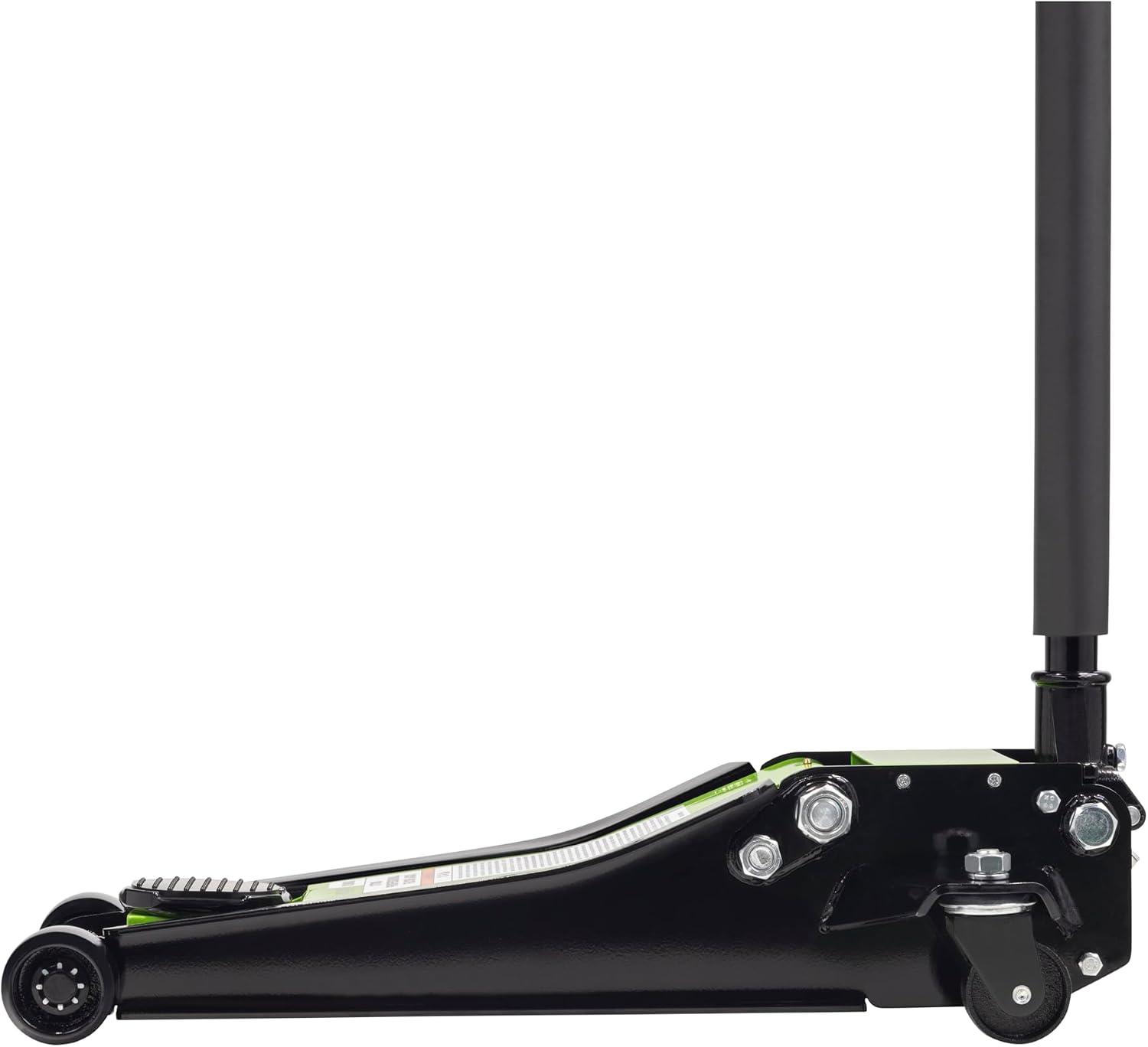

Some vehicle jobs call for access beneath a lower-clearance car, others focus on dependable lifting for routine tire service and maintenance. The ARCAN A20003 steel floor jack is designed to address both needs with a low-profile frame and a 3-ton, 6,000-pound capacity.

Its reinforced steel chassis, hydraulic safety valves, and rolling wheels support a practical setup for automotive service. A long handle provides leverage for controlled lifting and lowering.

Usage tips

Position the jack at the vehicle’s designated lifting point on a firm, level surface, and keep the load within its 6,000-pound rated capacity. The low-profile frame helps with positioning beneath lower-clearance vehicles. Once raised, support the vehicle with appropriately rated jack stands before working underneath, a floor jack is for lifting, not a substitute for stable support.

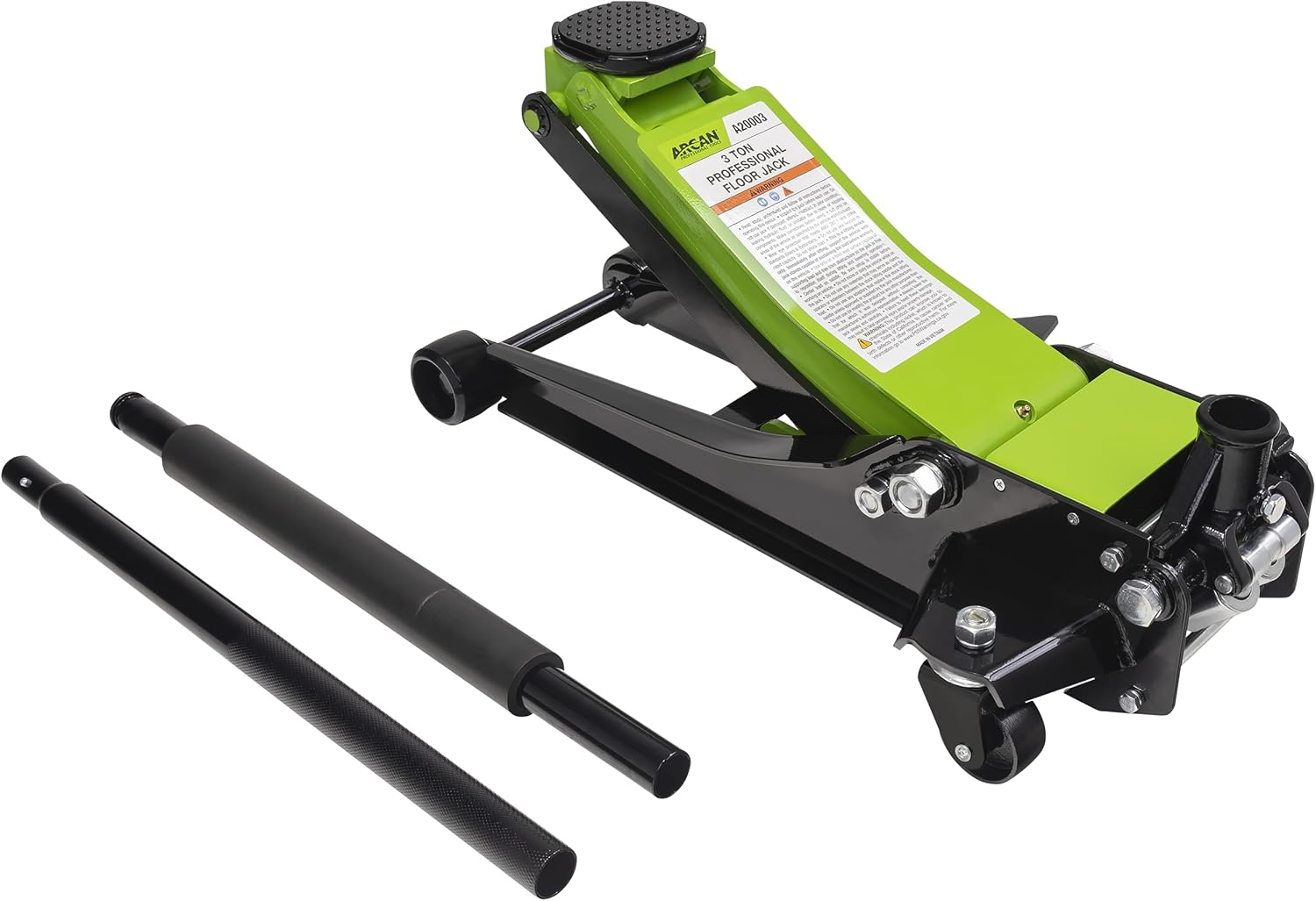

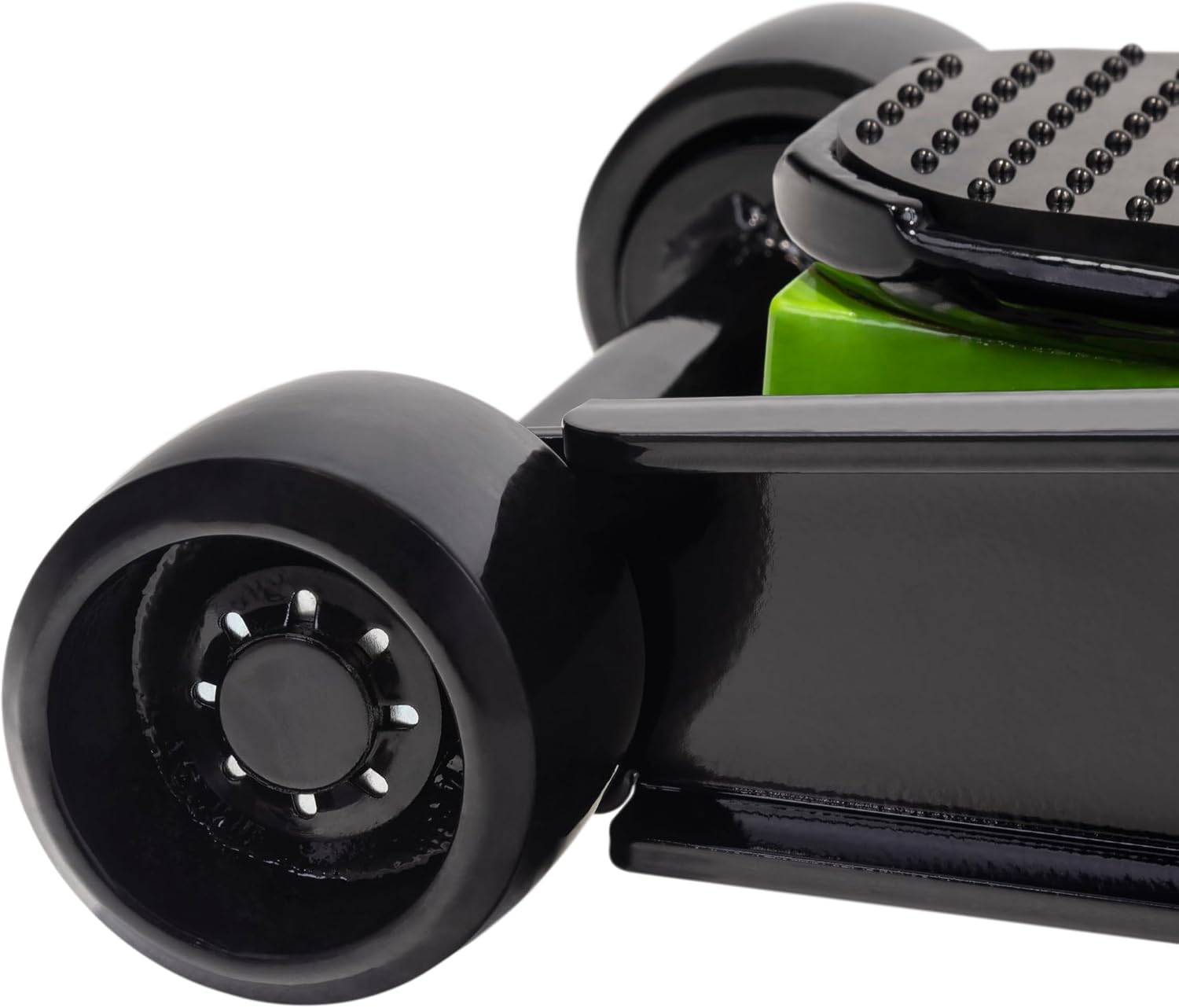

The long handle helps apply leverage during lifting and gives you control when lowering. Wide front wheels and ball-bearing rear casters help with positioning the jack under a vehicle, while the wiper seals are designed to protect internal hydraulic components from dirt and contaminants. Bypass and overload safety valves help prevent over-extension and use beyond the rated capacity.

Spec sheet

• Brand: ARCAN
• Model name: A20003
• Type: Steel low-profile floor jack
• Capacity: 3 tons (6,000 pounds)
• Minimum height: 7.5 inches
• Material: Metal, with high-carbon steel side plates
• Vehicle type: Car
• Weight: 76.8 pounds
• Dimensions: 6.3 x 29.3 x 13.8 inches
• Pump: Dual-piston quick-rise
• Warranty: 1 year

Why it’s worth it

The combination of low-profile access and 3-ton capacity makes this jack useful for more than one kind of service task, from tire changes to general vehicle maintenance. High-carbon steel side plates reinforce the chassis, and the wide front wheels and ball-bearing rear casters help keep the jack mobile as you position it. The handle is built for leverage and controlled operation, while the hydraulic valves provide protection against over-extension and exceeding the rated capacity.

Buyers often praise the jack’s sturdy feel, lifting capability, and ability to roll across pavement. Some also describe it as heavy, consistent with its listed 76.8-pound weight. For a setup that stays in one service area, its steel construction and integrated mobility features offer a useful blend of stability and repositioning.

Buying verdict

Choose the ARCAN A20003 for automotive lifting when low-profile access, a 6,000-pound capacity, and controlled hydraulic operation are priorities. It’s suited to tire service, repairs, and regular maintenance where a reinforced steel floor jack can handle lifting and move into position as needed.
