XMSJSIY VGA to 5 BNC (RGBHV) Coaxial Monitor Extension Cable, 15Pin VGA Male to 5 BNC Female, 1.5m
Product description
The essentials

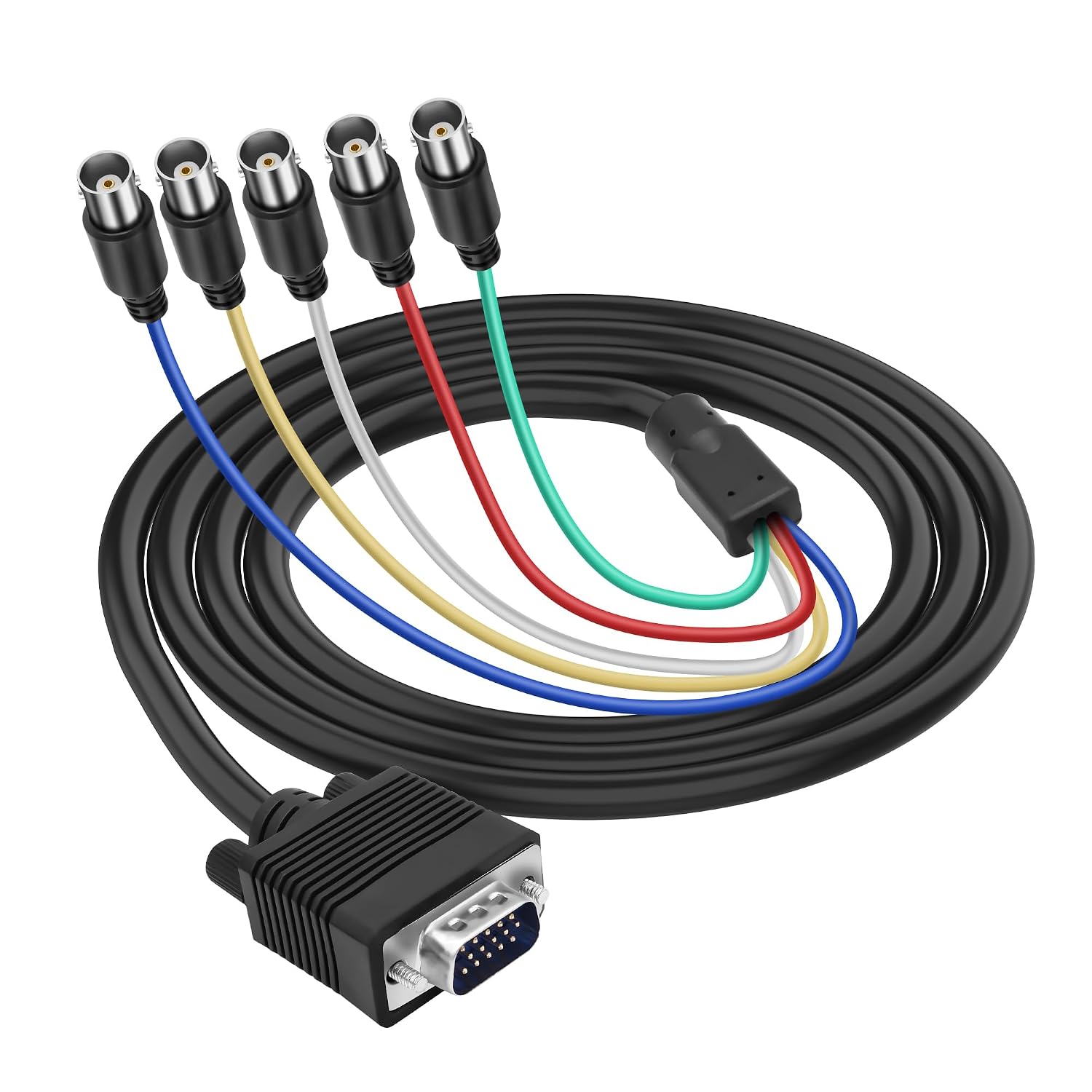

If you’re trying to move a VGA signal into a system that expects separate RGBHV inputs, a VGA to 5 BNC cable like the XMSJSIY model is a straightforward way to do it. This is a 15-pin VGA male to five BNC female breakout style lead, designed to split the picture and sync information across dedicated connections.
On paper, that “breakout” approach is exactly what helps when you want cleaner display handling and easier wiring to monitoring or recording gear. It’s also the sort of cable you end up keeping around if you regularly test or set up video equipment where identification of signals matters.
Key points
The core idea is simple: you take a VGA source and output it on five separate BNC connectors labelled for R, G, B, H and V. That means red, green, blue, and the horizontal and vertical scanning signals are carried independently rather than combined.

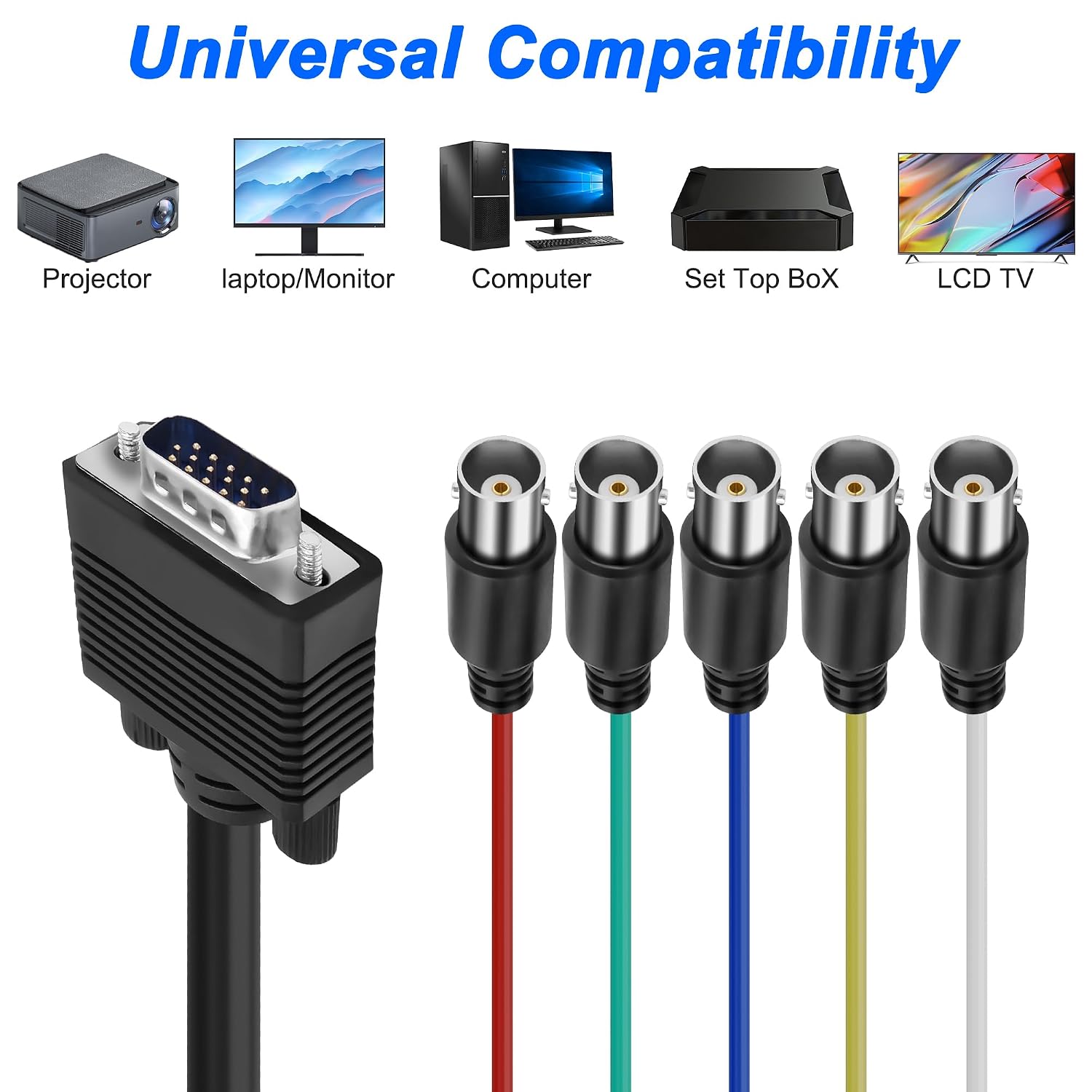

You’ll typically see this used when someone needs to connect a VGA output to equipment that uses RGBHV over BNC—think DVR-style setups, certain monitors, projectors, HDTV/digital TV arrangements, or camera/video capture workflows. It’s also described as plug and play, so for many basic setups there’s little more to do than connect and power on.
One thing to bear in mind: this cable is about matching signal routing expectations. If your receiving device doesn’t want RGBHV via BNC (even if it accepts VGA generally), you may still need the right type of adapter or a different cable altogether.
Where it shines
This cable is well suited to scenarios where you need the separate scanning interfaces. Because the R, G, B, H and V inputs are independent, it can make setup and troubleshooting more practical—especially if you’re swapping leads between devices or working with testing equipment where you want consistent, traceable wiring.
A practical example: imagine you’re setting up a small monitoring test. You connect your VGA-equipped PC/monitor output into the VGA end, then route each of the five BNC leads into a recorder/monitor that expects RGBHV. When something looks off, you can quickly check the expected channels (R/G/B and H/V) rather than guessing across a single bundled path.
In the same vein, the cable is described as reducing signal interference versus a combined approach, and it’s built with gold-plated VGA contacts for durability and reliable connection.
What you’ll notice day to day
Installation is meant to be easy—plug in and go. The lead also comes with five colour codes for the BNC connectors, which should make life simpler if you’re frequently connecting and disconnecting video gear or setting up a temporary test bench.
If your use is occasional and straightforward, this is the kind of cable that avoids fiddly work. It’s mainly a “connect the right way” product rather than something you install and forget with confidence that it will solve any compatibility mismatch.
Tech specs
- Name: XMSJSIY VGA to BNC Cable 15Pin VGA Male to 5 BNC Female RGBHV Coaxial Monitor Extension Cable
- Type: VGA to 5 BNC (RGBHV) breakout/extension cable

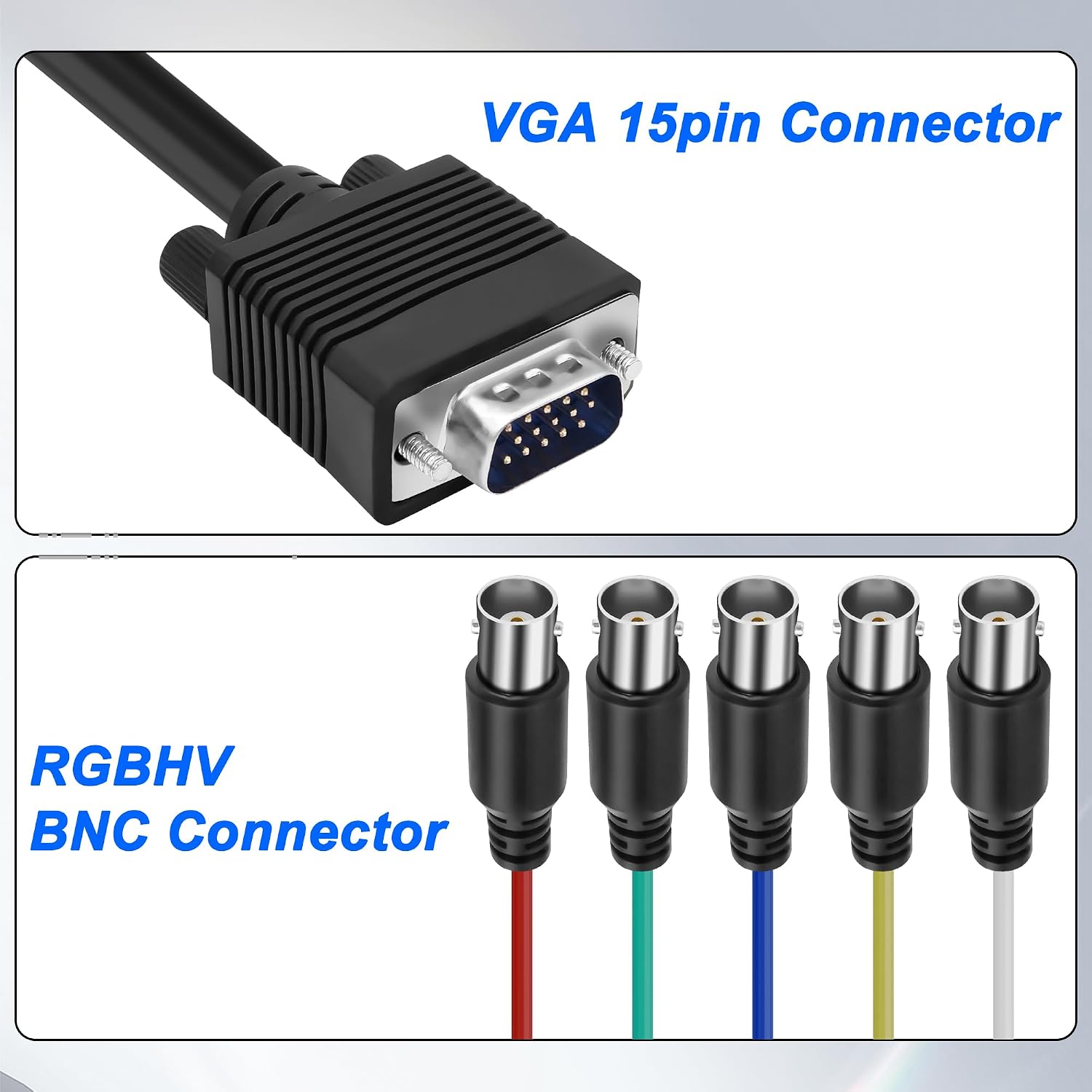

- Format: 15-pin VGA male to five BNC female connectors (R, G, B, H, V)
- Resolution: supports 1080p high-definition resolution (as stated)

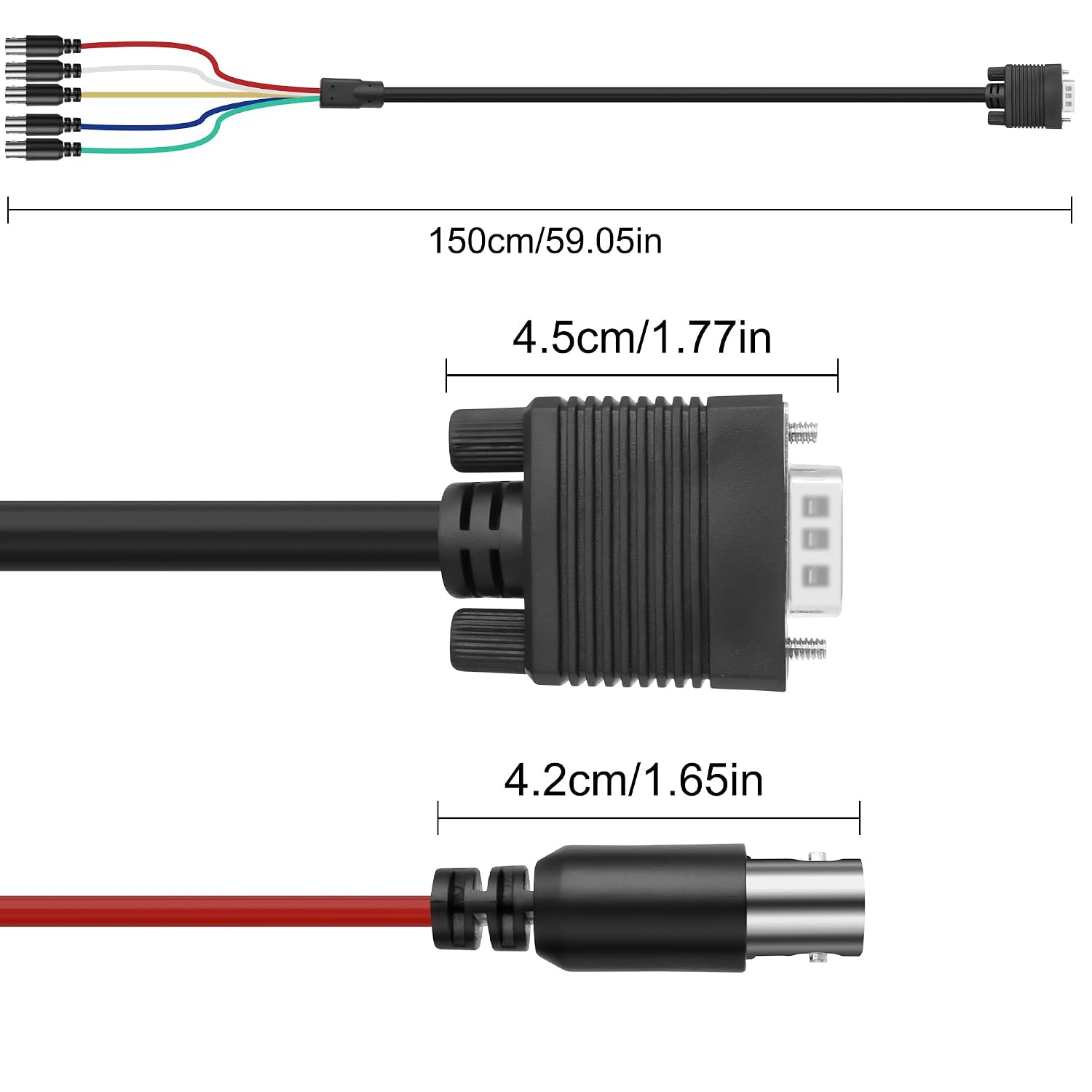

- Length: 1.5m (4.92ft)
- Material: gold-plated VGA connector (as stated)
Who it’s for (and who should skip it)
It makes sense if you have a VGA source and you need to feed a device that accepts RGBHV over five BNC inputs, such as certain DVR/monitor/projector and video monitoring/capture workflows mentioned in the description.
You may want to skip it if you’re simply trying to extend VGA to another VGA display, because this lead is designed to break out to BNC rather than keep the signal as VGA. It might also be the wrong choice if your receiving equipment doesn’t support those separate RGBHV inputs on BNC.
Worth noting: the “1080p” support is mentioned, but real-world results will still depend on what your source and receiving equipment actually support and how they interpret the RGBHV signals.
Is it worth it?
Buy the XMSJSIY VGA to 5 BNC cable if your setup specifically needs VGA split into RGBHV via five separate BNC connectors for a monitor, projector, DVR or video testing/capture environment. The independent R/G/B and H/V wiring is the big value here, and the plug and play, colour-coded approach makes day-to-day handling easier.
Don’t buy it if your goal is a simple VGA-to-VGA extension or if your receiving device expects a different connector type or signal format. In those cases it won’t magically “adapt” the signal in the way you might hope.
Mini FAQ
Does this cable support RGBHV?
Yes, the description says the five BNC connectors carry independent R, G, B, H and V (RGBHV) signals.
What devices is it meant to connect to?
The description mentions connections for setups such as HDTV, digital TV, LCD TV, projector, monitor, DVR, SDI, PC and monitors, but the key requirement is that the receiving side expects the five BNC inputs.
Is it plug and play?
It’s described as plug and play for easier installation.
What does the colour coding help with?
The five BNC connectors come with colour codes to make identification and installation easier during wiring and testing.
What’s the main limitation to watch?
If your receiving equipment doesn’t support RGBHV over 5 BNC inputs, this cable may not provide a compatible connection even though it carries a VGA-derived video signal.
