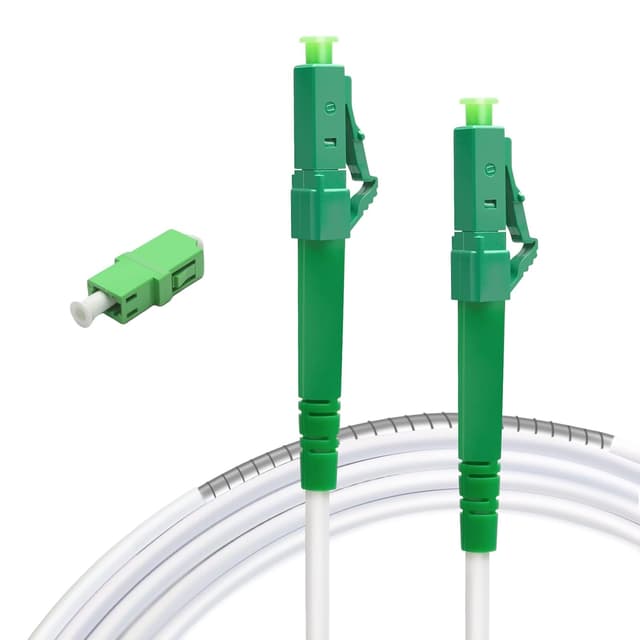

Vesperia 20m (65.6ft) Armored Singlemode Fibre Optic Patch Cable LC/APC to LC/APC OS2 9/125 LSZH 3.0mm
Product description
The essentials
If you’re setting up FTTH/FTTP internet, a fibre patch lead is one of those parts that quietly matters—get the connector type and fibre type right, and the link tends to behave as expected. This Vesperia Vesperia 20m singlemode cable is built as an LC/APC to LC/APC OS2 simplex patch cord with an LSZH outer jacket. On paper, it’s aimed at stable, low-loss connections for home installations as well as telecom rooms, data centres and enterprise network patching.
It’s not a “mystery cable”, either: the spec points clearly to singlemode 9/125 μm (OS2) fibre, LC/APC connectors (so angled APC end-faces), and a fairly protective, armoured style construction.
What you’ll notice in use
A 20m run (simplex, so one direction/strand) is a practical length when you’re routing between an ONT/receiver and an internal network termination, or between patch points in a server/patching area without needing multiple short jumpers. In day-to-day terms, the main thing you’re buying is a lead that’s designed to stay reliable when it’s handled during installation.
The cable’s “armoured” approach is the headline: a durable stainless-steel tube inside the jacket is intended to help protect the fibre core from bending, pressure and even pet damage. That’s the sort of protection you’d value in real homes and communal spaces where cables can get nudged, caught, or repeatedly moved.
And because the connectors are LC/APC, it’s generally a better fit for setups that specifically expect APC-terminated hardware—mismatching connector types is one of the easiest ways to end up with a link that just won’t behave.
Key takeaways (the important bits)
The bundle of design choices here leans toward stability and safety rather than “maximum thin and flexible”. You get:
- Singlemode OS2 (9/125 μm) for long-reach style infrastructure and typical singlemode FTTH/telecom use.
- LC/APC to LC/APC connectors, which matters for return loss and reflections.
- Stated low insertion loss and strong return loss figures (useful targets for performance-minded installs).
- LSZH jacket (3.0 mm) intended for low-smoke/zero halogen performance in enclosed or public environments.
- Reinforcement with aramid yarn to support tensile strength and flexibility during install.
There’s also an “installation friendly” angle: the cable is described as bend-insensitive when installed in tight spaces. That doesn’t mean you can ignore good routing practice, but it can take some of the stress out of careful cable management.
Tech specs
- Type: Singlemode fibre optic patch cable (simplex)
- Fibre type / core: OS2 9/125 μm
- Connectors: LC/APC to LC/APC
- Length: 20m (65.6ft)
- Jacket: LSZH (Low Smoke Zero Halogen)
- Cable diameter: 3.0mm

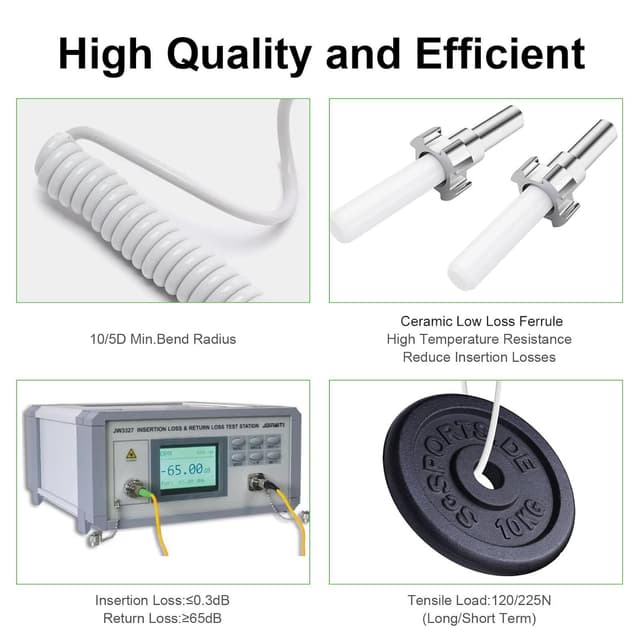

- Insertion loss (stated): ≤0.3 dB
- Return loss (stated): ≥65 dB
- Operating temperature (stated): -10 °C to 60 °C

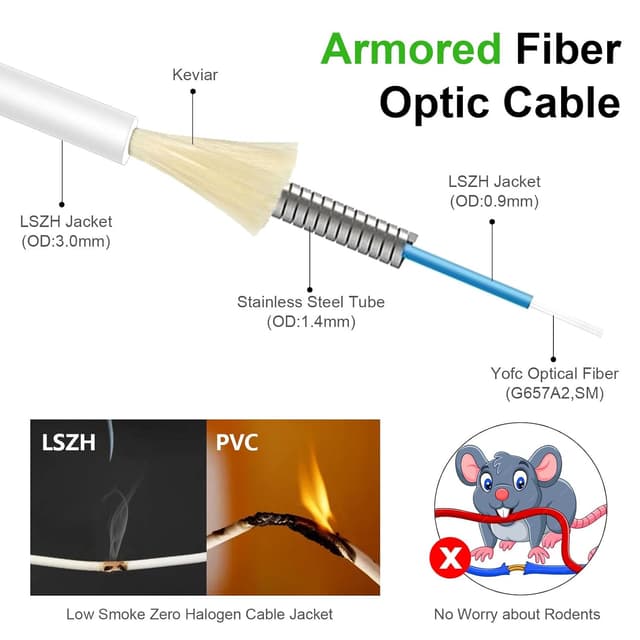

- Construction (stated): Armoured design with stainless-steel tube inside the jacket, aramid yarn reinforcement
Where it shines—and the limitation to keep in mind
This cable makes the most sense if you’re working with singlemode OS2 fibre and LC/APC termination points, and you need something that’s more protective than a basic indoor patch lead. If you’re running fibre around a building where cables might be under pressure, routed near floors, or otherwise exposed to the “real world” rather than a clean rack environment, the armoured concept is a strong point.
That said, you should be cautious about one practical limitation: it’s armoured and 3.0 mm LSZH, so it may be less “featherweight” than the thinnest patch leads. If your priority is maximum flexibility for very tight bends and delicate routing, it could feel a bit more substantial.
Also, the stated performance targets (like insertion and return loss) are only really meaningful when the rest of your link follows the same connector/fibre expectations—so it’s worth double-checking your equipment side before buying.
Who it’s for (and who should skip it)
It suits you if you:
- Are installing or extending FTTH/FTTP where singlemode OS2 and LC/APC patching is required.
- Want a patch cord that’s designed to handle day-to-day installation handling with added protection.
- Need LSZH behaviour for environments where low-smoke/zero halogen is a consideration.
You may want to skip it if:
- Your network gear expects a different connector type (for example, anything that isn’t LC/APC) or a different fibre category.
- You only need a very short indoor run and would rather prioritise the most flexible, minimal-profile cable.
Buying verdict
Is it worth it?
This Vesperia 20m armoured singlemode fibre patch cable looks like a sensible buy if your project matches the basics: singlemode OS2 9/125, LC/APC on both ends, and a length of 20m. The combination of armoured protection, LSZH jacket, and the stated loss/return-loss targets makes it the kind of lead that fits well when stability and install-friendliness matter.
It might not be the best match if you’re trying to solve a compatibility problem first—before anything else, make sure your equipment and planned routing truly want LC/APC and OS2 singlemode. If you’re confident on that, it should serve as a practical patch lead for FTTH/telecom patching where the cable may be handled more than you’d like.
Mini FAQ
What does “LC/APC” mean for compatibility?
LC/APC refers to the connector type and an angled APC finish. If your ONT, modem, splitter, or patch panel uses a different connector style (or a different end-face polish), you’ll need to address that before installation.
Is this suitable for indoor and outdoor use?
The product description says it’s intended for indoor and outdoor use, and it specifies an operating temperature range of -10 °C to 60 °C.
Does “OS2 singlemode” affect my setup?
Yes—OS2 9/125 singlemode is a specific fibre category used in many FTTH/telecom arrangements. If your system expects a different fibre type, this cable won’t be the right fix.
What’s the advantage of an armoured fibre patch lead?
On this cable, the stated benefit is protection: a stainless-steel tube inside the jacket to help guard the fibre core against bending and pressure, plus reinforcement for handling during installation.
Is LSZH important?
If your installation environment is enclosed or has low-smoke/zero-halogen requirements, LSZH jackets are typically the safer direction to look for. If your setup has no such requirement, it may still be fine, but the value depends on your context.
