VDIAGTOOL V200 Pro circuit probe tester 12/24V
Product description

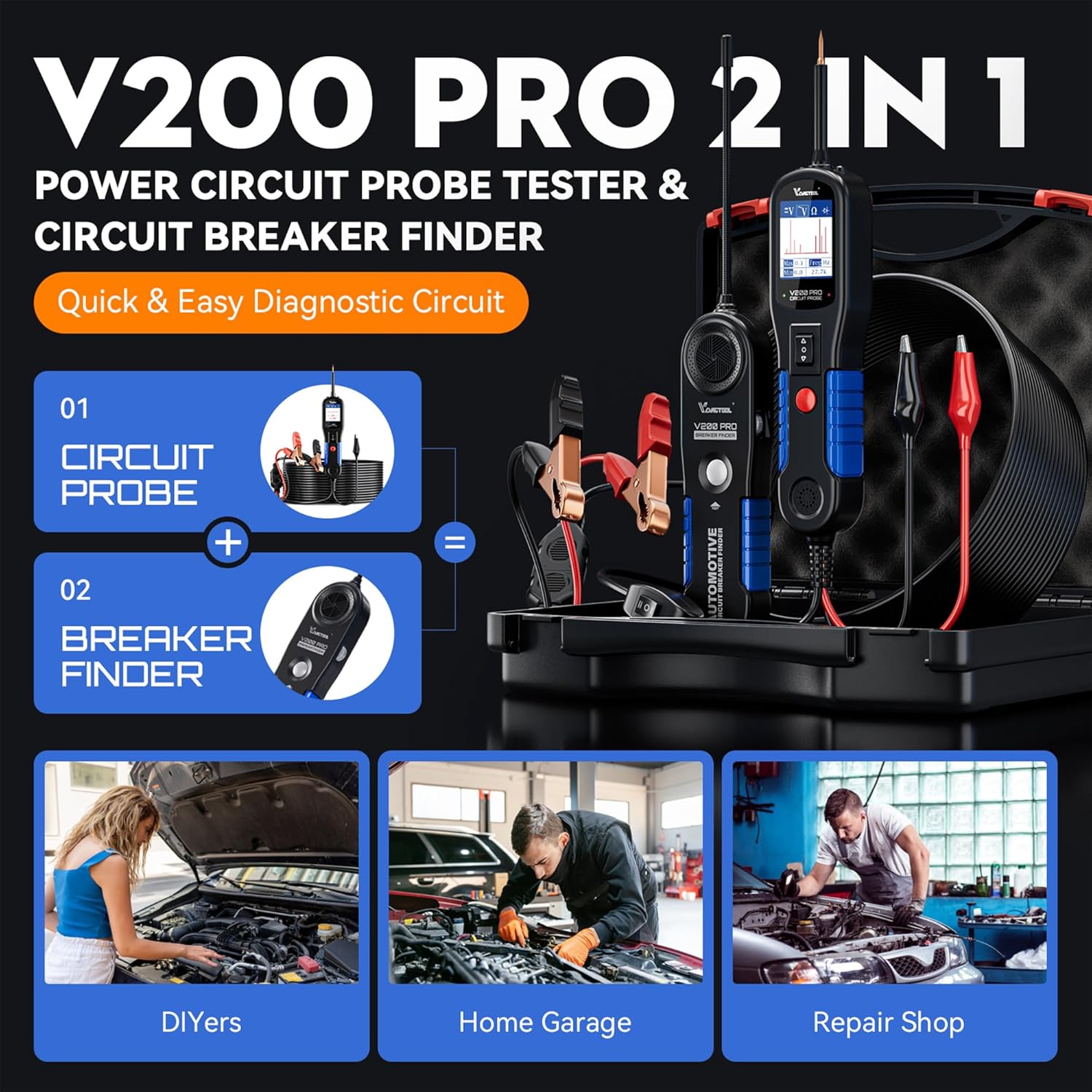

If you need to trace wiring faults and verify circuit behaviour on a vehicle, the VDIAGTOOL V200 Pro automotive power circuit probe tester kit is built for quick, practical electrical checks. It supports testing across 12 V and 24 V systems, helping you identify whether a cable or circuit is active and which side of the circuit you are working on, positive or negative. ⚡
Alongside standard measurements, it includes a mode designed for locating breaker points, open connections and broken cables, and it can help you track wiring without damaging insulation. For home mechanics, trailer owners, and anyone troubleshooting intermittent electrical issues, this is a single kit approach that replaces the hassle of switching between multiple tools.
Key takeaways
The VDIAGTOOL V200 Pro focuses on end to end circuit checks, so you can move from basic electrical testing to locating the likely fault point. It covers multiple test types that are commonly needed during automotive diagnostics, including open and short checks as well as continuity style verification. You can also use component activation signals to help test things like lamps and related electrical devices when you suspect a wiring or relay issue. ⚙️
What stands out is the way you switch modes to match the job in front of you. In one mode, you can check electrical voltage and other signal conditions, while another mode is aimed at locating a breaker point, open circuits, broken wires, and current leaks using a tone change. This workflow can save time when you are working under a dashboard, near a fuse box, or along a cable run where the fault is not obvious at a glance.

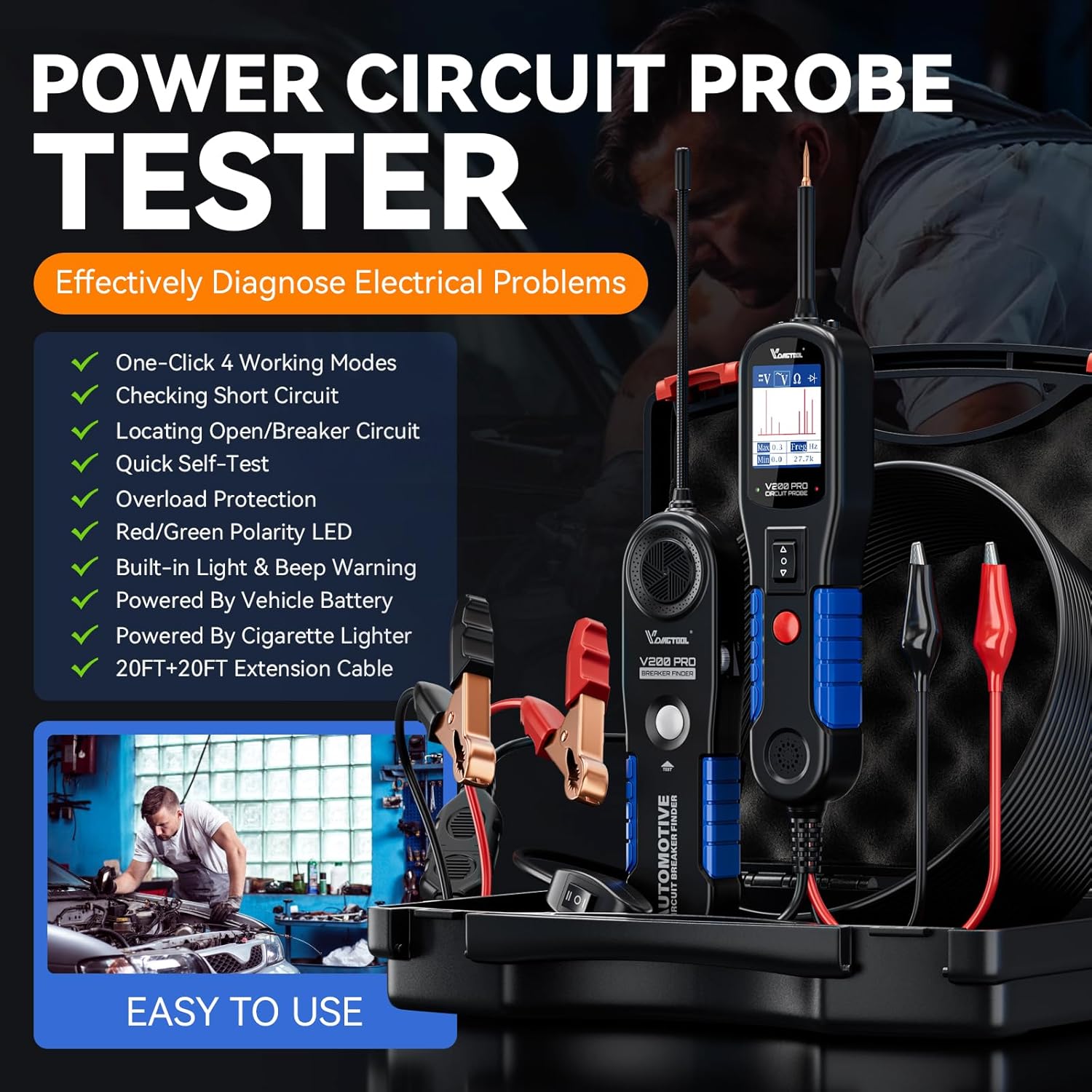

It also includes safety minded protection for overload situations. According to the product information, if the tool is overloaded it will shut down and restart, which helps protect both the tester and the car electronics. That is especially useful when you are troubleshooting under pressure and want a dependable tool behaviour rather than guesswork.
Tech specs
- Name: VDIAGTOOL V200 Pro Automotive Power Circuit Probe Tester Kit
- Type: Automotive power circuit probe tester kit
- Size: 20 ft extension cable included
- Capacity: Works with 12 V and 24 V systems
- Material: Cable and lead set for vehicle circuit diagnostics
- Colour: Not specified in the provided details
- Weight: Not specified in the provided details
What stands out

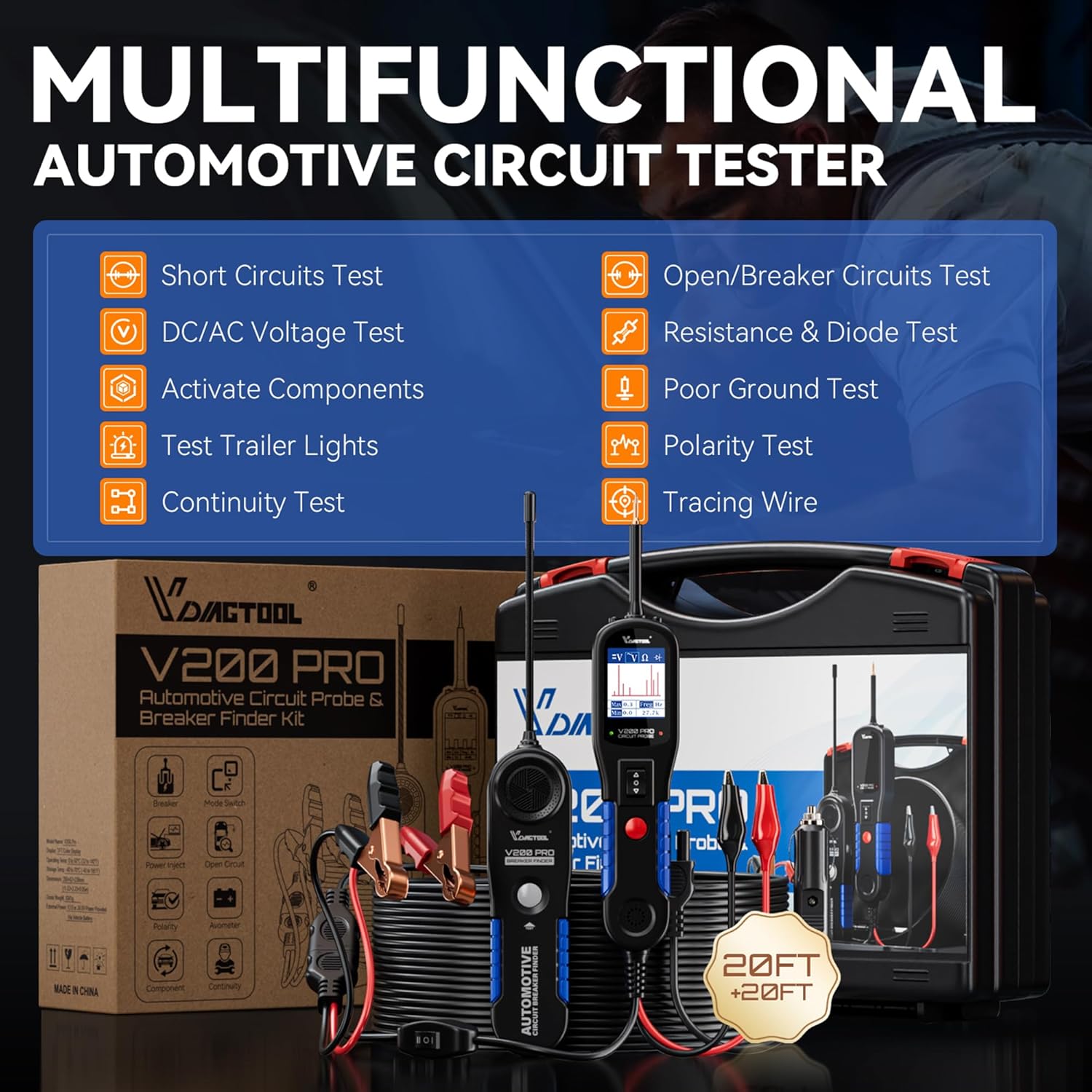

The testing coverage is wide enough to be useful across many common vehicle troubleshooting scenarios. In the functional mode described, it supports four operating modes that include AC and DC voltage, resistance and diode checks. It is also described as being able to confirm whether a cable or circuit is active, which helps you narrow down where to look next.

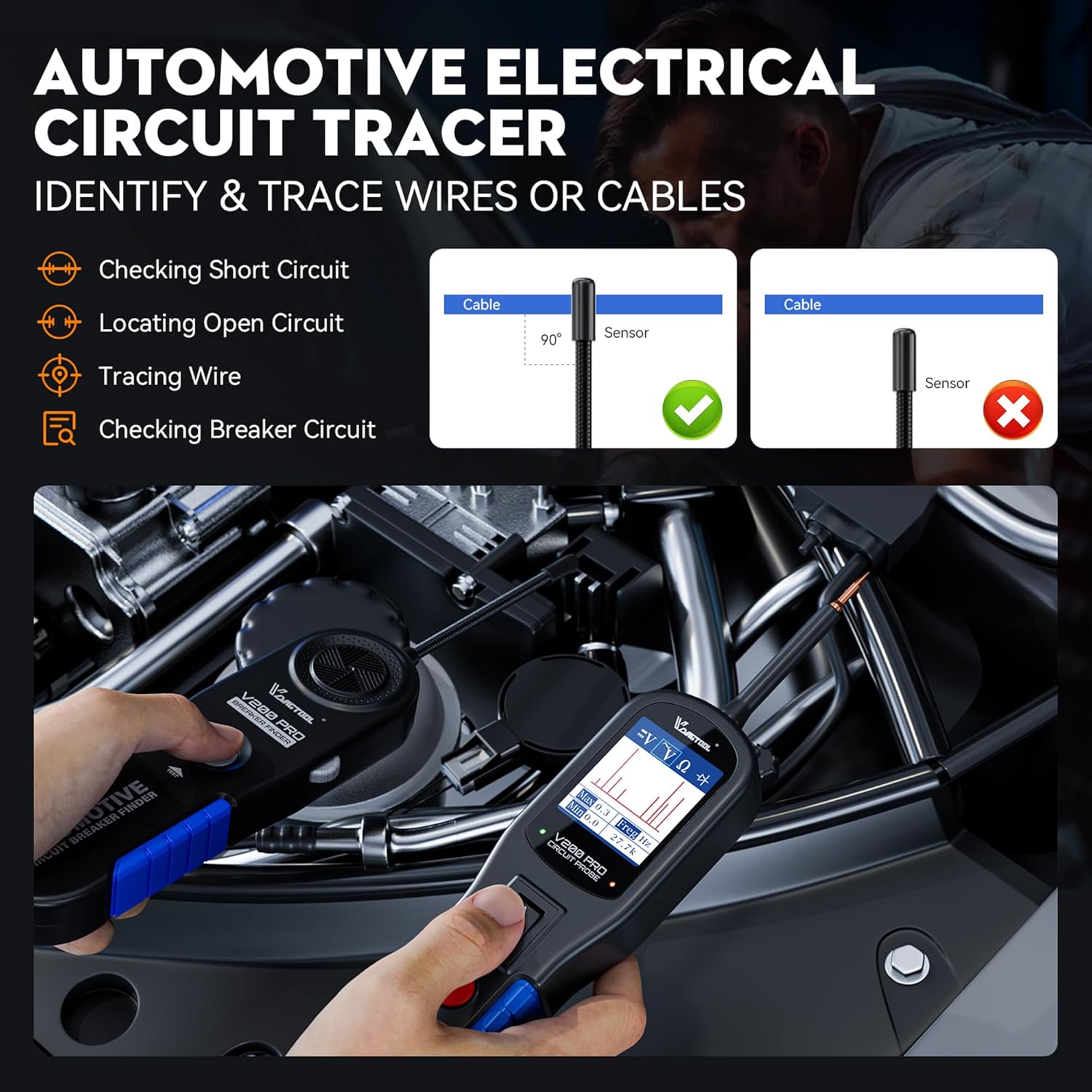

When you switch to the locating mode, the kit is designed to help you efficiently find breaker points and wiring faults. The description mentions locating open connections, broken cables, and current leakage, and it notes a tone change that can help you interpret where the issue may be. It also mentions tracing wire or cable while avoiding damage to insulation, which matters when you are working on older vehicles with brittle wiring or hard to reach looms.
For diagnosing suspect components, the kit can generate activation signals for electrical components such as car lights, motors, windscreen wipers, radiator fans, relays, and fuel injectors. If you have been seeing blown fuses repeatedly, the locator mode is described as helping identify auto short circuits, then supporting further checks across sensors. 🔧
The practical power setup is also worth noting. The kit includes a 20 foot cable length plus an additional 20 foot extension cable, which gives you room to work around the vehicle without constantly repositioning. It can be powered using a cigarette lighter connection and a crocodile clip grounding option, making it easier to set up for real world access problems.
Finally, there is an included reliability promise in the provided information, covering 3 years of warranty and lifetime technical support, plus 60 days of returns. That support structure can be comforting when you are buying a diagnostic tool for occasional but important use.
Who it’s for

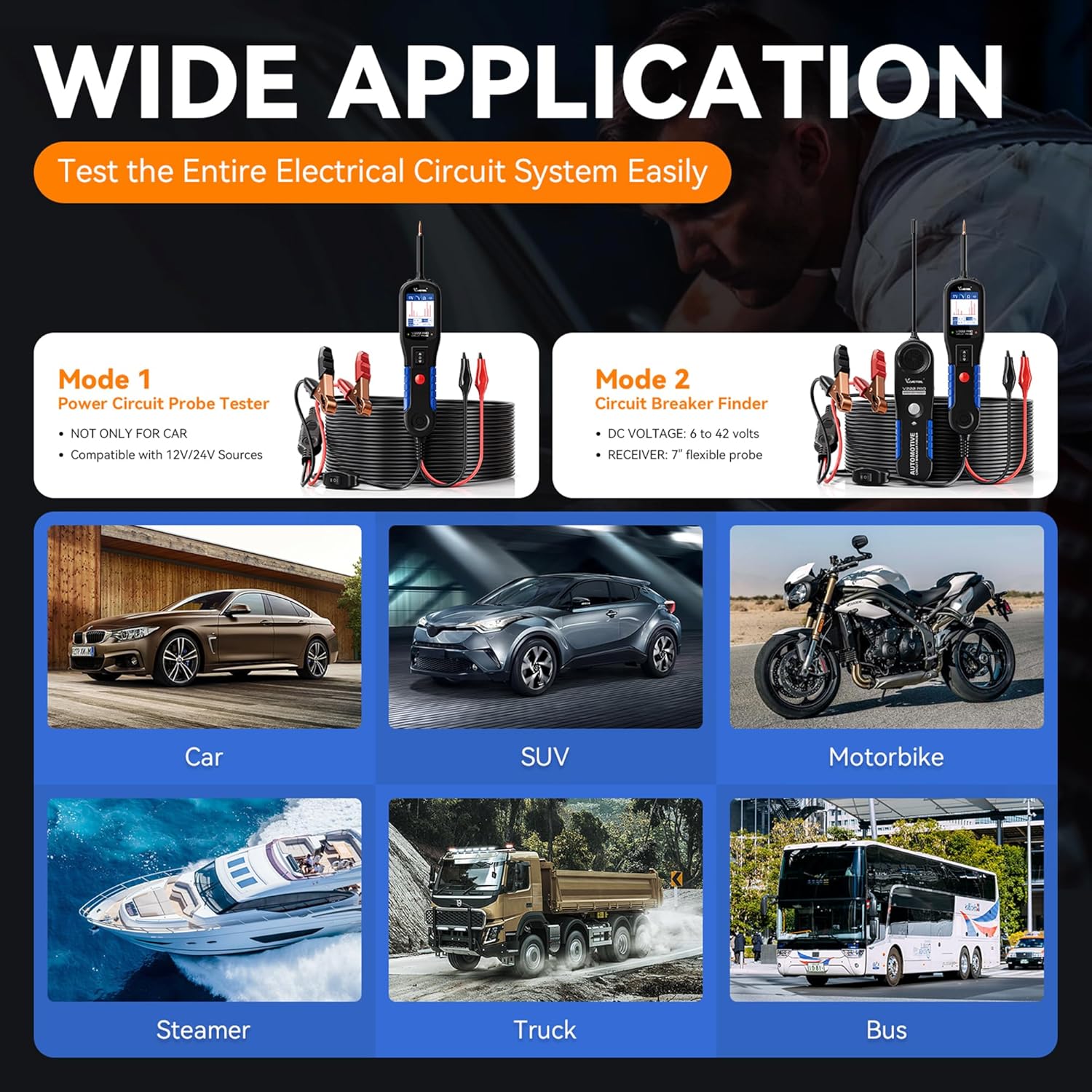

It suits you if you want a single automotive diagnostic kit for circuit probing, tracing and basic power related checks across 12 V and 24 V vehicle systems. It makes sense if you frequently troubleshoot open and short circuits, deal with wiring that is hard to access, or need a practical way to validate whether a circuit is active before you start replacing parts.
You may want to skip it if you are looking for fully specified lab grade measurements, because the provided information focuses on functional automotive circuit testing and locating methods rather than precision instrumentation. It is also most appropriate where component activation signals and the breaker point finding workflow match your day to day troubleshooting tasks, such as vehicle electrics, relays, fuses, and related diagnostic work.
For the VDIAGTOOL V200 Pro, this is about getting you from symptom to probable wiring location with an organised mode based tool workflow, with the kit safety behaviour described as overload protection and restart.
