VARICART LED Transformer 12V 30W (16.5mm ultra slim) 240V AC to 12V DC LED driver
Product description
The essentials
If you’re powering low-voltage LED lighting, the VARICART LED Transformer 12V 30W is the kind of component you install once and then try not to think about too much. On paper, it converts mains power to a constant 12V DC output and is built around the idea of stable operation without noise or flicker, using low-loss chips and high-performance components.
It’s also designed to be easier to fit than bulkier drivers. With an ultra-thin profile (only 16.5 mm), it’s aimed at installations where space is tight and you need something that can disappear into the cut-out rather than dominate the cavity. One catch, though: it’s described as non-dimmable, so it only makes sense if your lighting plan doesn’t rely on dimming.
What it’s for (and where it fits)
This is a 12V LED driver/low voltage power supply that takes 240V AC input and provides constant 12V DC output, rated up to 30W max. That constant-voltage approach is typically what you want when dealing with LED strip tape light and other 12V LED setups.
VARICART positions it for indoor monochrome, non-dimmable LED projects, including: - LED strip tape light and low-voltage strip applications - spotlights / downlights-style low-voltage fittings - LED displays - GU5.3 and cabinet-style low-voltage lighting - G4, MR11 and MR16 bulbs

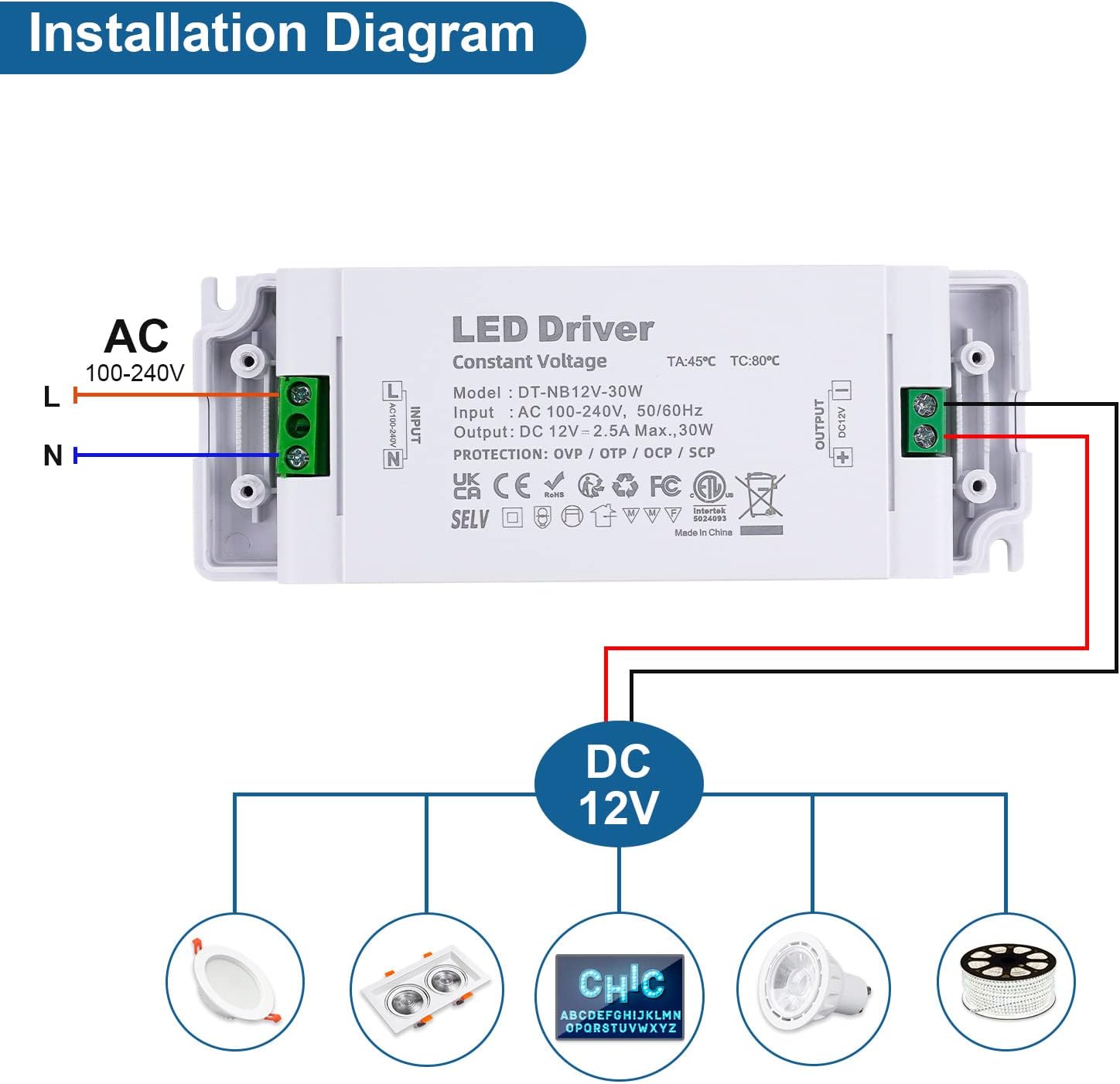

A practical way to picture it: you might mount the driver inside a cabinet or behind a recess, then wire multiple 12V LED points (depending on your total wattage). Because the unit is slim and flat, it’s easier to tuck away, and the “no minimum load” detail can make system planning a bit less fiddly than with drivers that require a certain load level.
The parts that matter most in daily use
Where this driver feels sensible is in the combination of stability claims and installation pragmatism.
The stability side: the description highlights no noise and no flicker, plus long life—so for anyone who’s sensitive to buzzing or visible flicker on indoor lighting, this is the sort of feature set you look for. It also includes built-in smart protections, which is particularly reassuring in a driver you’ll likely be keeping in place for years.
The installation side: the ultra-thin design is meant to reduce the space you need during fitment. If you’ve ever tried to hide a thicker LED driver behind a display, in a ceiling cut-out, or in a tight cabinet void, you’ll know why “fits most cut-outs” matters.
Worth noting: it’s not recommended to exceed 80% of the maximum power. In other words, the guidance suggests keeping it around 24W rather than running it at the full 30W ceiling. That won’t be a problem for many small indoor runs, but it can become limiting if you’re trying to push a lot of LEDs from one supply.
Safety and protection (what the spec suggests)

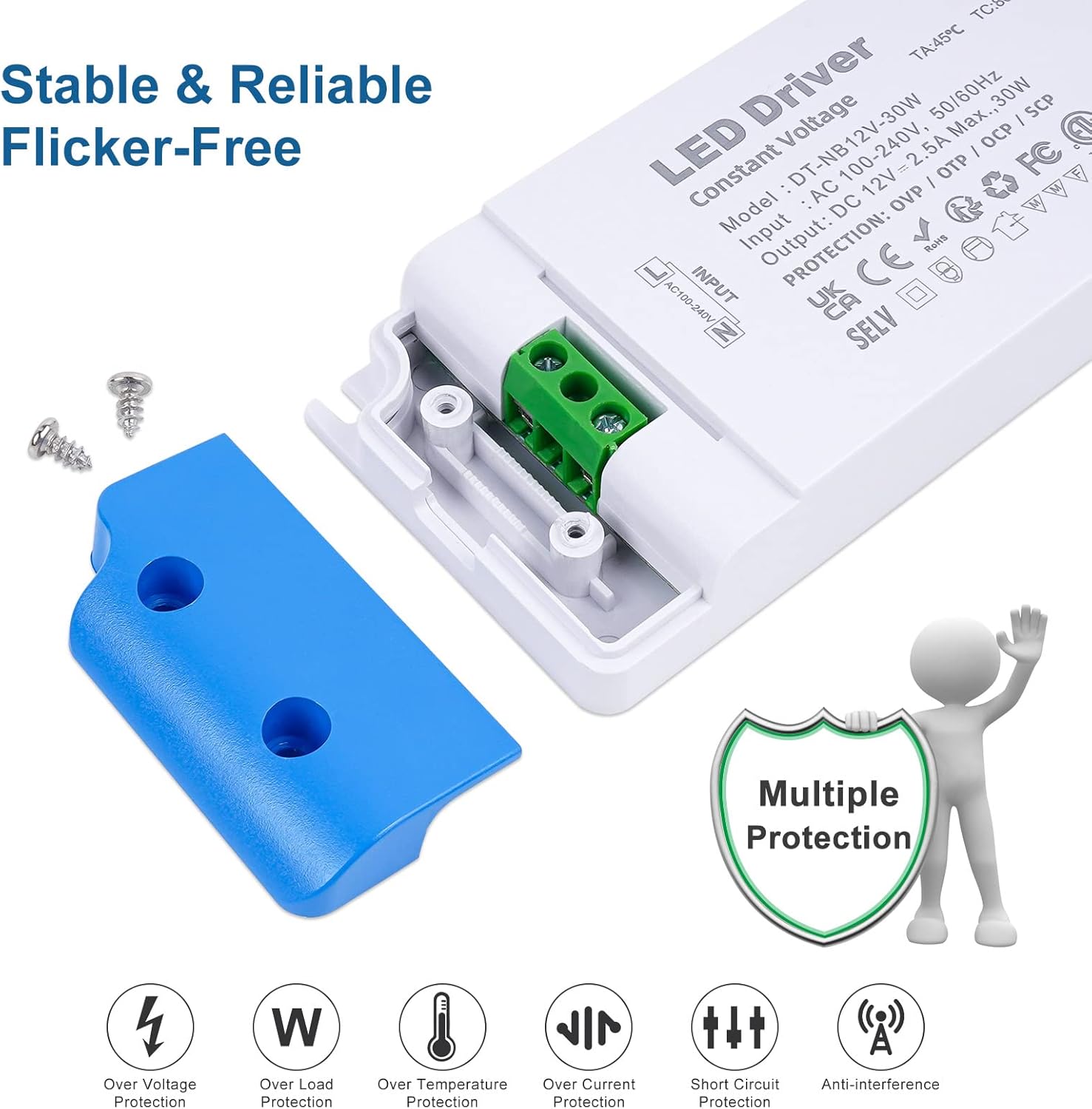

This unit is described with multiple protection features, including overvoltage, overcurrent, overload, overtemperature, anti-interference and short circuit protection.
It’s also stated as a protection class II power supply and an IP44 rated enclosure, using a PC plastic flame-retardant housing. In plain terms, that’s designed to handle dust and moisture exposure better than bare drivers, making it a more suitable choice for many indoor locations where conditions aren’t perfectly dry.
Key specifications at a glance
- Name: VARICART LED Transformer 12V 30W, Ultra Slim 12V LED Driver
- Type: 12V DC constant voltage LED driver (240V AC to 12V DC)
- Input voltage: 100–240V AC, 50/60Hz
- Output: 12V DC constant voltage, 30W max
- Output current (rated): 2.5A

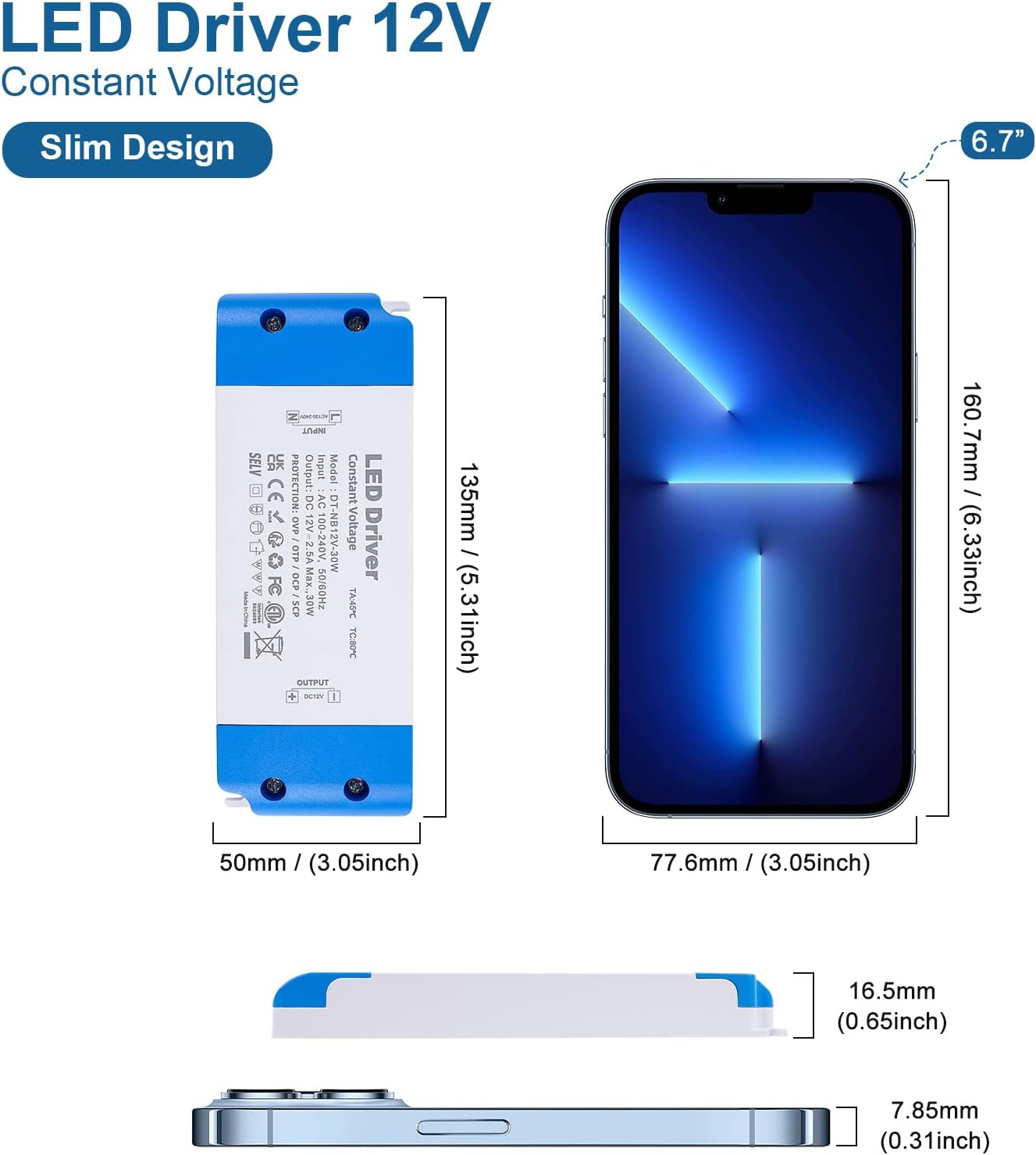

- Dimensions/thickness: 16.5 mm (ultra slim)
- Dimming: non-dimmable
- Load requirements: no minimum load
- Protection rating: IP44
- Enclosure/material: PC plastic flame-retardant housing
Installation checks before you buy
Before you commit, it’s worth double-checking a few fundamentals—because with LED drivers, small planning mistakes are where problems start.
First, confirm your lighting plan is non-dimmable. Since this driver is described as non-dimmable, pairing it with a dimmer setup won’t be appropriate.
Second, pay attention to the 80% rule mentioned in the description. If your total LED power draw is close to the maximum, you may want a different power supply approach to avoid running it at the top end.
Third, consider the environment. The IP44 and class II details suggest it’s built for many indoor setups, including locations with dust or moisture risk, but the description doesn’t imply it’s meant for extreme conditions—so if your installation is outside or exposed to heavy weather, you’d want to be cautious.
Is it worth it?
This VARICART LED Transformer 12V 30W is a solid buy if you need a slim, space-saving 12V LED power supply for indoor non-dimmable lighting, such as strip lighting, low-voltage downlight-style setups, or compatible 12V MR11/MR16/G4-style lighting. The constant voltage output, “no minimum load” note, and the protection list all point to a driver that’s meant to be dependable rather than fragile.
You may want to skip it if you’re planning to use a dimmer, or if your LED load pushes close to the 30W max—because the guidance suggests staying under 80% for best practice. It’s also more of a practical mid-range style driver based on the feature set provided, not something that’s positioned as an enthusiast-grade or high-end lighting controller.
Mini FAQ
Is this LED driver dimmable?
No. It’s described as non-dimmable, so it’s not designed for dimmer controls.
What voltage does it output?
It provides a constant 12V DC output.
Do I need a minimum load?
According to the description, there’s no minimum load.
Does it suit UK mains?
The input is listed as 100–240V AC at 50/60Hz, and it explicitly mentions supporting UK and European input.
What power should I aim for?
The description advises not exceeding 80% of the maximum power (so the recommended target would be around 24W rather than 30W max).
