Switian 6Pcs DPDT Rocker Switch, 3-Position ON/OFF/ON Toggle (6 terminals) – 16A 250VAC / 20A 125VAC Panel Mount
Reviews
Product description
The essentials
If you need a compact DPDT rocker switch with a true 3-position action (ON/OFF/ON), Switian’s set of six is the sort of component that helps when you’re wiring dual circuits or doing polarity changes. On paper, it’s built for practical jobs—think automotive or marine panels, control boxes, and DIY electronics where you want a clean, repeatable switching position rather than a vague “toggle-and-hope” arrangement.
You also get a useful bundle size: six switches means fewer compromises if you’re updating multiple points on the same panel, or if you want spares for the next project. That said, it’s not the kind of switch you buy for fancy signalling or delicate electronic loads, this is more about switching power/control reliably.
What it’s for (and where it fits)

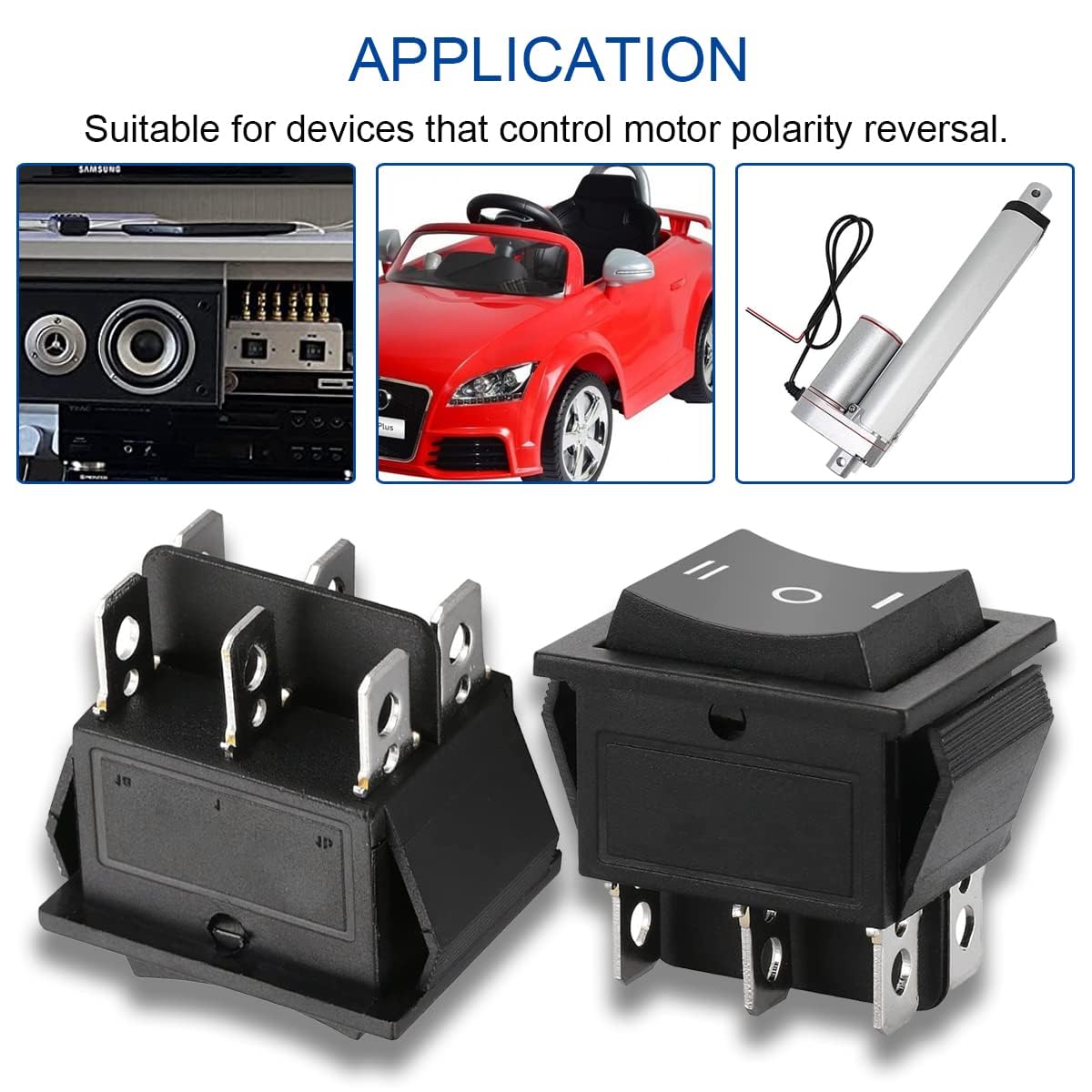

The DPDT + 3-position (ON/OFF/ON) setup is commonly used when a simple single-pole switch won’t cover the job. Based on the description, it’s aimed at tasks like reversing motors, changing polarity, or managing dual circuits. In a boat or car context, that can translate to controlling a device that needs direction changes, or selecting between two circuit states while having a hard “off” middle position.
A quick example: if you’re building a small panel to run a reversible DC motor (or a reversible pump), the middle OFF position can be a deliberate safety gap, while the two outer positions map to the two directions. For DIYers, it’s also the kind of switch that makes wiring logic easier to keep consistent across a build.
Key features that matter in real wiring

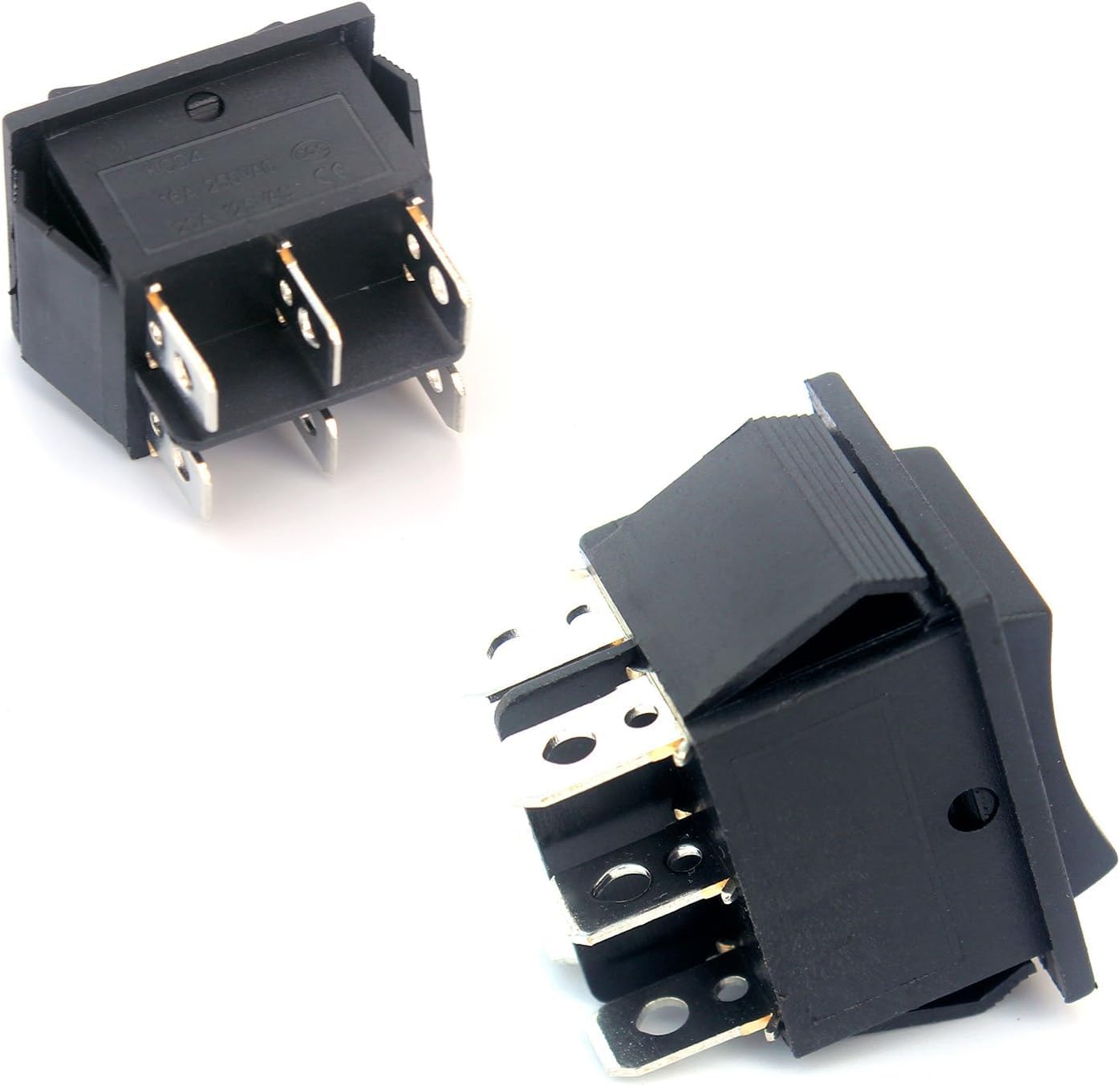

What stands out here is the combination of terminals and mounting format. It’s described as a 6-terminal rocker switch intended for panel mounting, with a standard cut-out size given as 1.2" x 0.9" (3 x 2.2cm). That makes it easier to plan a tidy front panel in tight spaces, rather than forcing a larger switch into a layout that just won’t fit.
There’s also a serious current rating stated for mains-style switching: 16A 250VAC and 20A 125VAC. That’s useful when you’re dealing with power supply or control panel circuits, where underspec switches can become the weak link. If you’re working in a 12V system, the description mentions compatibility in that broader sense—still, you’ll want to double-check your exact load and wiring requirements before relying on any switch for a specific application.
Tech specs (so you can sanity-check compatibility)
- Type: DPDT rocker switch (3 position ON/OFF/ON)
- Terminals: 6 terminals
- Rated current: 16A at 250VAC, 20A at 125VAC
- Panel cut-out: 1.2" x 0.9" (3 x 2.2cm)
- Construction: flame-retardant plastic housing, corrosion-resistant metal terminals
- Mechanical life (stated): up to 80,000 cycles
- Electrical life (stated): up to 10,000 cycles
Where it shines, and where it may fall short
Where it shines is straightforward control panels and builds that need a compact, sturdier toggle action. The stated mechanical/electrical cycle figures suggest it’s designed to be moved and used repeatedly, not just installed once and forgotten.
However, it may not be the best match if your project needs low-power logic switching, delicate sensing, or indicator-heavy features. Also, because panel cut-out size matters, you’ll want to confirm your mounting space matches the 1.2" x 0.9" opening, if your panel design is different, you might end up reworking the front panel or choosing another switch style.
And one more practical note: DPDT wiring can be less forgiving than simpler switches. It’s not hard, but you’ll still want to map ON/OFF/ON positions carefully before you connect anything that could reverse direction or change polarity.
What you’ll notice day to day
In use, the 3-position rocker layout should feel like a “controlled choice” rather than a momentary experiment. The OFF middle position is a small but important detail—when you’re switching between two states (like two motor directions), having that deliberate break reduces the chance of ambiguous behaviour.
If you’re mounting it on a boat or car panel, the described corrosion-resistant metal terminals are a sensible point. In a humid environment, that kind of terminal consideration is often what separates a switch that lasts from one that becomes flaky over time. Still, you’ll get the best outcome if the panel is installed properly and protected where the environment is harsh.
Should you buy it?
A solid pick if you’re building or upgrading a marine/automotive-style control panel, or a DIY project that genuinely needs a DPDT, 3-position ON/OFF/ON action for reversing or polarity switching. It also makes sense if you want multiple identical switches in one go, with the cut-out size specified so you can plan panel installation.
Not the best choice if your project requires a different mounting cut-out, or if you’re switching very low-signal/logic loads where this kind of power-oriented rocker switch is overkill. It might not suit you if you’re not comfortable mapping the 6 terminals to your circuit’s two switched states—getting that wiring right matters a lot for the ON/OFF/ON logic.
Mini FAQ
How many switches are included?
You get a pack of six switches.
What does 3-position ON/OFF/ON mean here?
It’s a rocker switch with three discrete states: one ON position, a middle OFF, and a second ON position.
Are these suitable for power/control panel use?
The description gives current ratings of 16A 250VAC and 20A 125VAC, which points to power/control switching rather than low-power signalling.
Will they fit my panel?
They’re described as panel mount with a standard cut-out of 1.2" x 0.9" (3 x 2.2cm). If your cut-out differs, you’ll need to check your panel design first.
Is the rating enough for a 12V system?
The description mentions compatibility for 12V systems in general terms, but you should still verify your actual load and wiring setup for safe operation.
