Vabiooth trinocular microscope stage 0-50°C
Product description
The essentials

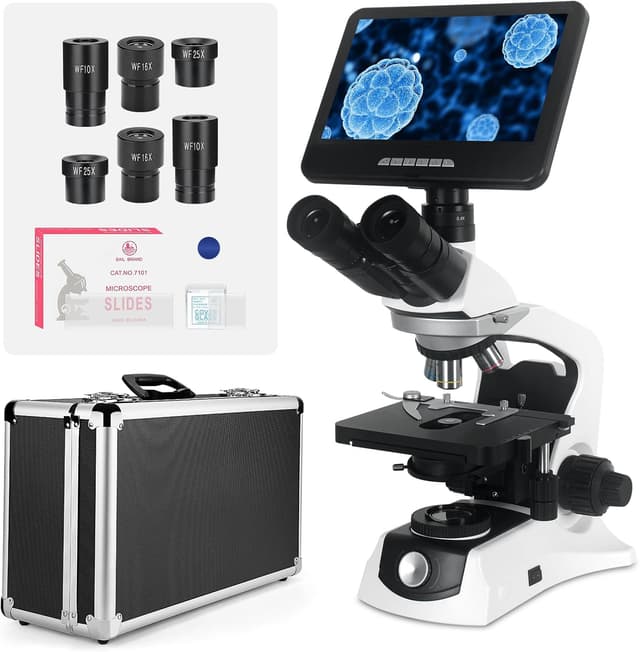

A constant temperature trinocular compound microscope is built for situations where specimen conditions matter, and the Vabiooth Lab Constant Temperature Stage Trinocular Compound Microscope is designed around that need. With a 7 inch 5MP electronic eyepiece and LCD screen, you can view samples directly from the display while keeping both hands free for setup and slide handling. The adjustable thermostat mechanical stage helps maintain a controlled temperature range of 0-50 degrees, which can support consistent observation when sample vitality is important. 🧪
This microscope also supports structured slide movement. With stage divisions of 1.0 mm and X and Y axis manipulation, it becomes easier to return to the same coordinate on a slide, so repeated checks are more practical. It is a strong option for lab work, pet hospital use, farm husbandry, and breeding related research where temperature stability and clear viewing both count. 🧫
Key features

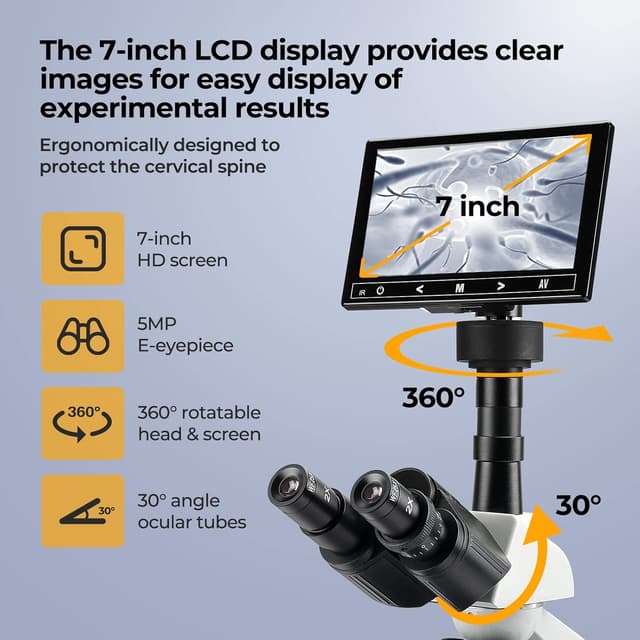

The most noticeable everyday feature is the combination of the trinocular setup and the built-in viewing experience. The 5MP electronic eyepiece works with a 7 inch LCD display, giving you a larger field of view directly from the screen without relying on an external large monitor. A 30 degree ergonomic tilt on the WF glass eyepieces is intended to reduce neck strain, which can make longer sessions feel less demanding. 📷

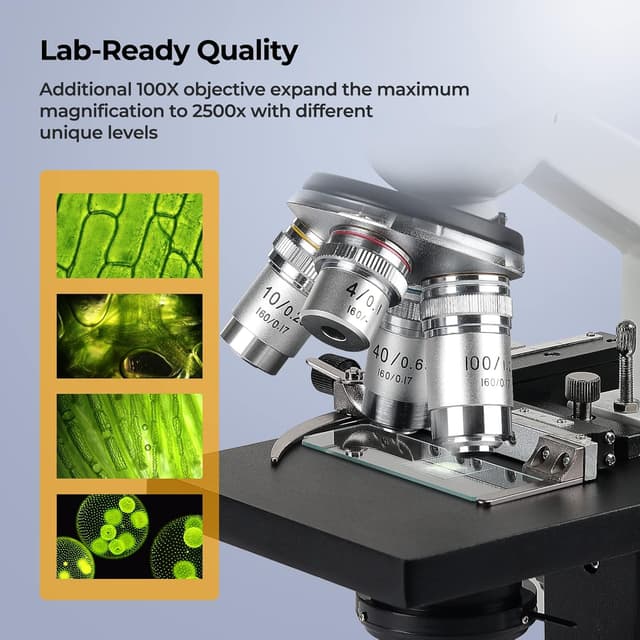

For viewing flexibility, the included wide-field eyepieces and objective lenses cover a broad magnification range of 40X to 2500X. Wide-field WF10X/25X/H16X glass eyepieces are paired with objective lenses labelled 4X, 10X, 40X and 100X. The presence of achromatic objectives is also helpful for keeping colour fringing better controlled across magnification levels, depending on your sample type and illumination.

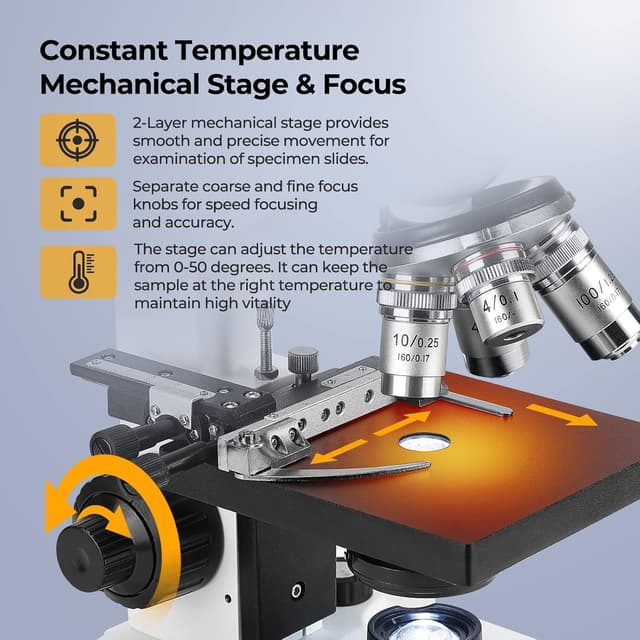

The constant temperature mechanical stage is the key differentiator. The stage temperature is adjustable from 0 to 50 degrees, using a new technology approach intended to keep the sample near the right temperature for sustained vitality during observation. It includes precise slide manipulation along X and Y and uses slide divisions of 1.0 mm, so you can lock the slide into place and record coordinates more reliably when you need to revisit a location.
Tech specs
- Name: Vabiooth Lab Constant Temperature Stage Trinocular Compound Microscope
- Type: Trinocular compound microscope with constant temperature mechanical stage
- Magnification: 40X-2500X
- Display: 7 inch LCD screen
- Electronic eyepiece: 5MP
- Stage temperature range: 0-50 degrees
- Objective lenses: 4X, 10X, 40X and 100X
Who it’s for
It makes sense if you want more than standard microscope viewing and you regularly deal with specimens that benefit from stable conditions. It suits use cases like husbandry, farm observations, and pet hospital work, where keeping the temperature consistent can help maintain observation quality over time. You’ll also appreciate it if you record or share your findings, because the system supports video capture via a video capture card. 🧬
It might not be the best match if your workflow relies on very lightweight equipment for quick field use, because microscopes like this are typically intended for a dedicated bench or lab area. It also helps to think about your slide handling requirements, since the value here comes from precise stage movement and repeatable positioning rather than only casual viewing.
