Thermalright Phantom Spirit 120 EVO CPU cooler

Thermalright Phantom Spirit 120 EVO is an air CPU cooler built around efficient heat transfer and everyday reliability. It combines a dual 120mm PWM fan setup with a 7 heat pipe design, so it can handle the job of keeping temperatures in check during demanding workloads and long PC sessions. If you are upgrading a desktop on AM4, AM5, or a range of Intel LGA sockets, this cooler is designed to help you run with a stable cooling approach while keeping installation options in mind. 👌

Key features

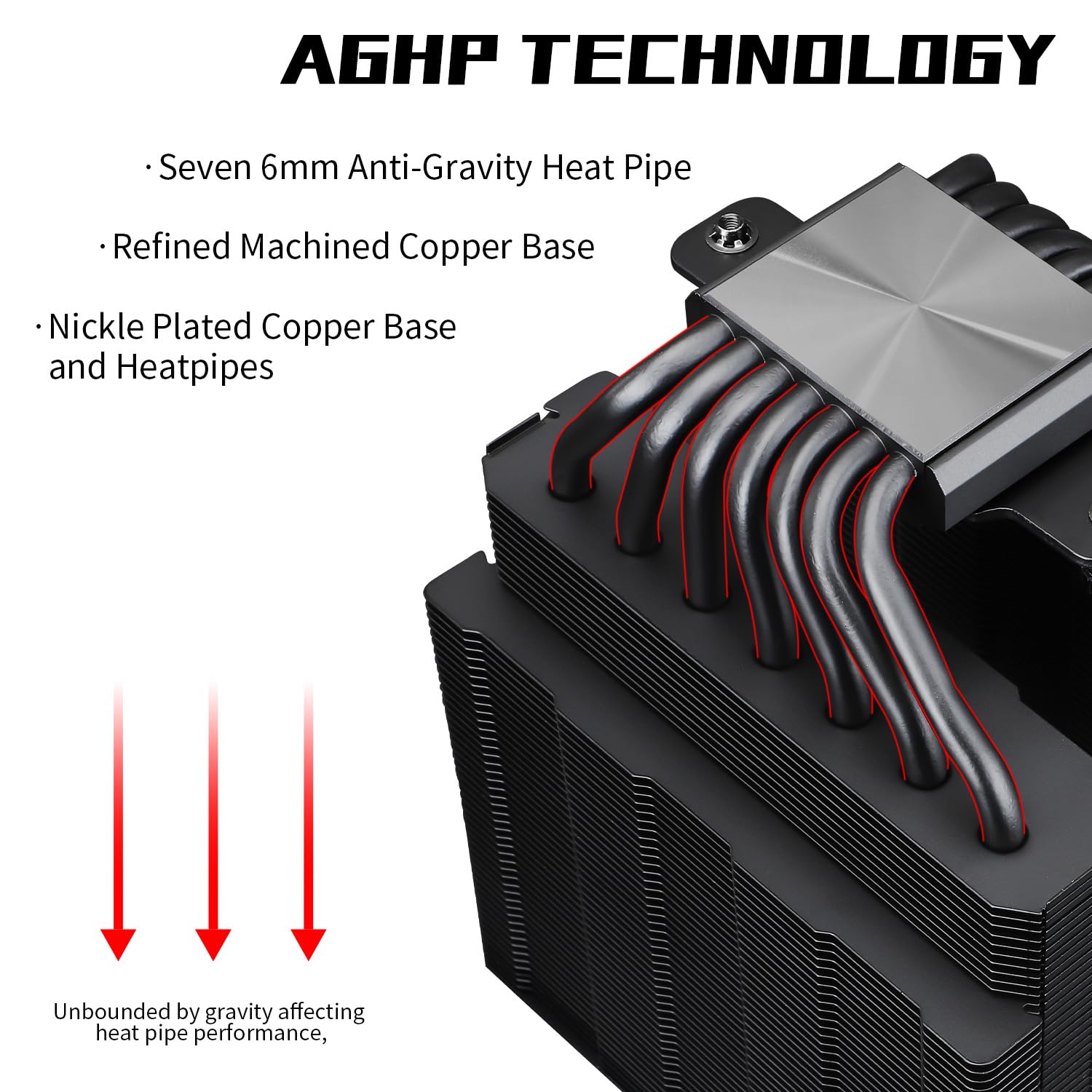

The Thermalright Phantom Spirit 120 EVO is designed to move heat away from your processor using seven 7 x 6 mm heat pipes, with Thermalright’s AGHP 4.0 technology. According to the manufacturer, AGHP uses an improved approach that considers gravity effects caused by vertical and horizontal orientation, aiming for consistent performance. You also get a micro fin style machining focus on the base, with a copper base that is reflux soldered and precision micro engraved for contact and heat transfer. 🔧

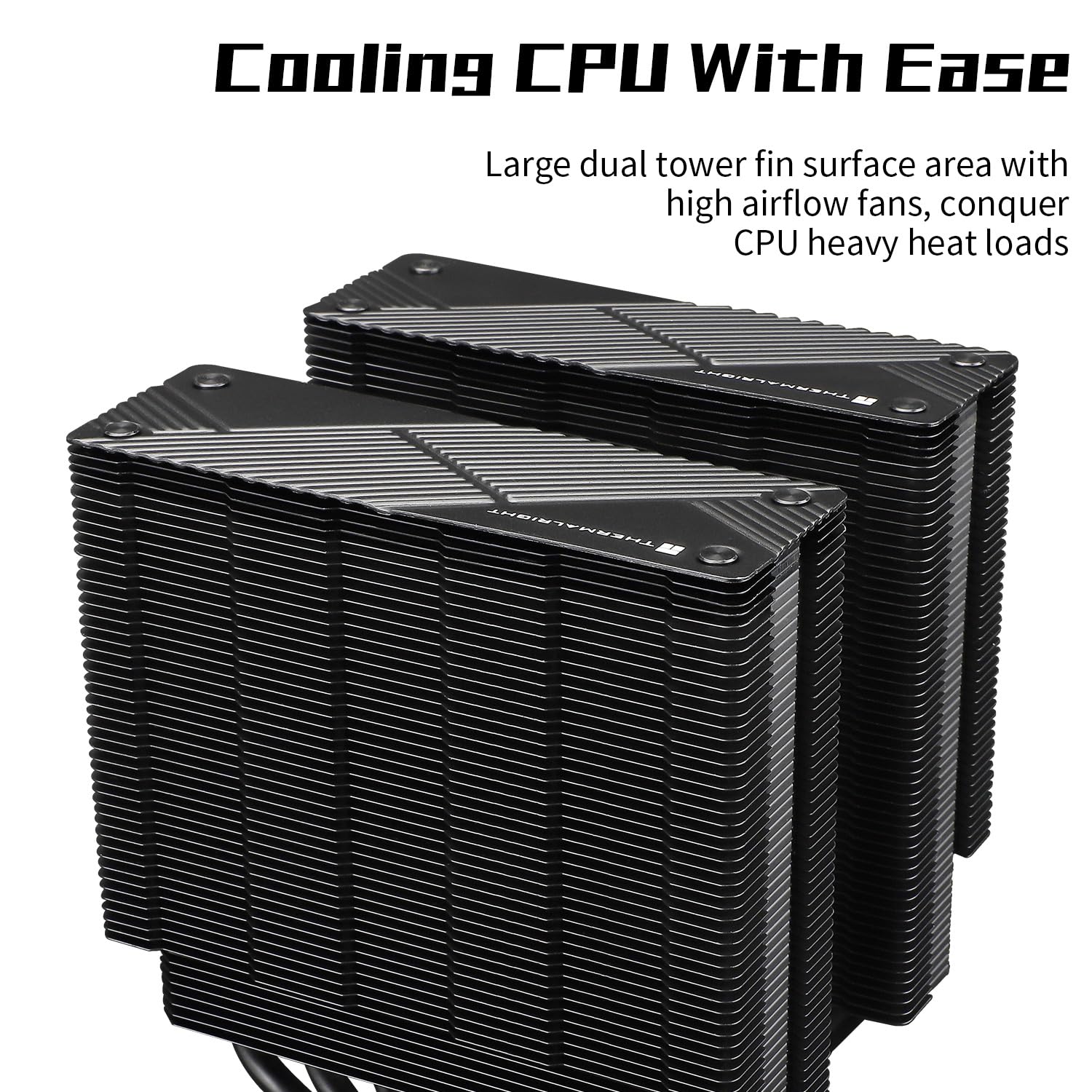

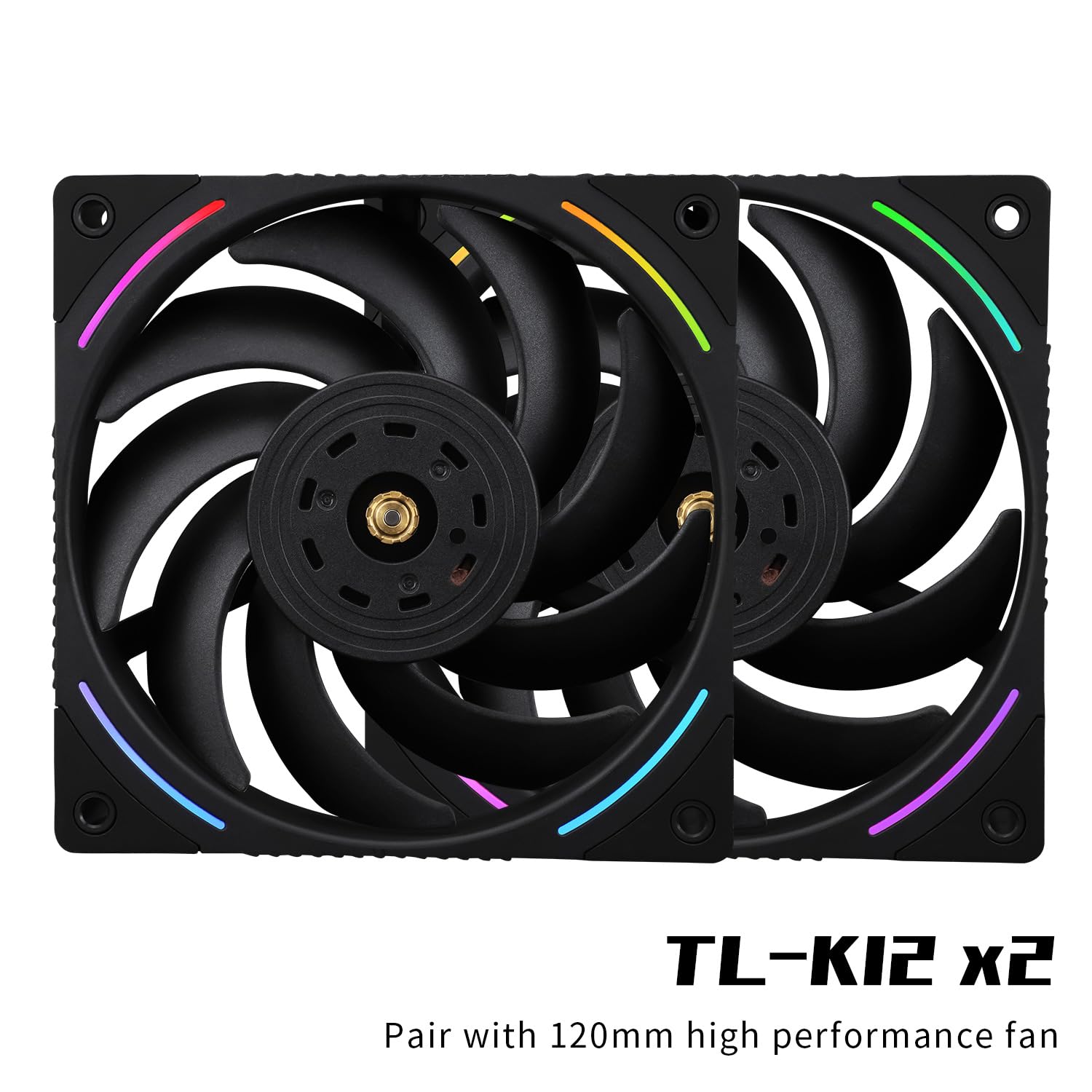

The cooler uses a refined black anodised fin process, with twin tower styling and fully plated, blackened heat pipes, which is intended to support overall cooling effectiveness. It is also built around a dual fan design using TL-K12 PWM fans for control across typical desktop use. This makes it a practical option if you want a cooler that balances airflow and noise while staying in a sensible mid range of day to day operation. 😊

Worth noting, Thermalright says you can improve compatibility by avoiding treatment of the graphics card, and that support depends on matching the correct mounting parts to your motherboard socket. That means it is still important to check your CPU socket, clearance around the motherboard area, and whether the included bracket and guidance align with your setup.

Tech specs

• Name: Thermalright Phantom Spirit 120 EVO CPU air cooler
• Type: CPU air cooler with dual PWM fans
• Size: 120 x 120 x 25 mm fans

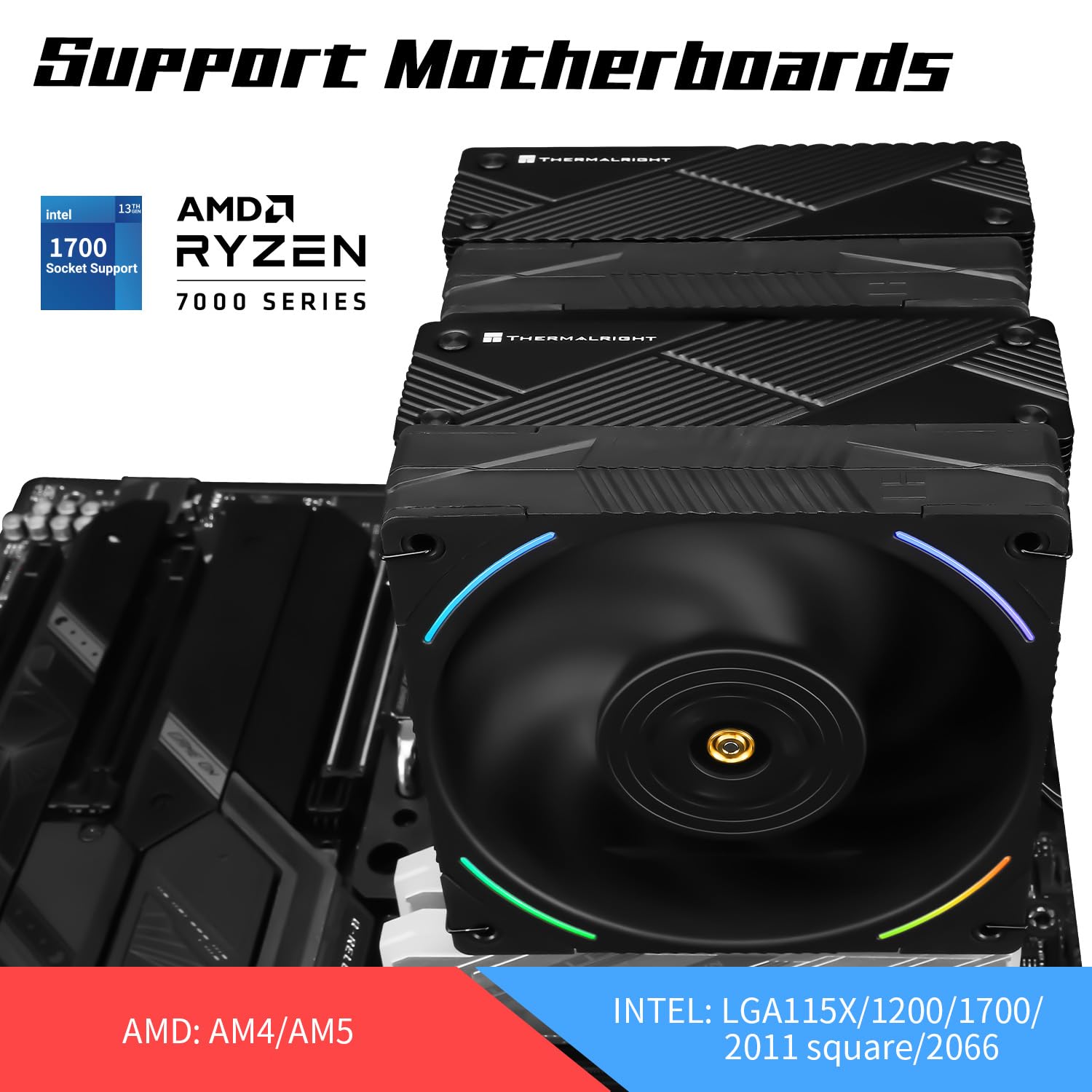

• Processor socket compatibility: AM4, AM5, Intel LGA1700, 1150, 1151, 1155, 1156, 1200, 2011, 2066, and LGA1851
• Heat pipes: 7 x 6 mm heat pipes
• Fan speed: 2150 rpm ± 10%
• Noise level: ≤ 27 dB(A)

What to know

Thermalright’s AGHP 4.0 technology is positioned as the key engineering detail behind the heat pipe behaviour, using an improved method that accounts for gravity effects when the orientation changes. The manufacturer also highlights an industrial life expectation and S-FDB bearing approach, which is relevant if you prefer a cooler that you do not want to think about for years of desktop use. It also features UL class A safety insulation materials, and Thermalright mentions using industrial PBT plus PC materials for quality oriented construction.

For day to day cooling control, the dual PWM setup is powered through 4 pin headers and works at 12 V, so it can be regulated through motherboard fan control depending on your system. The fan side is rated up to 69 CFM maximum airflow, with the combined aim of keeping the cooling body temperatures under control during gaming sessions, daily productivity, and sustained CPU loads. If you like quiet operation, the stated noise level of 27 dB(A) gives a useful reference point when comparing options, though actual results will vary with your fan curve.

You’ll also want to ensure your motherboard platform matches the cooler’s listed compatibility, since Thermalright mentions that for different CPU socket layouts, a suitable mounting plate or fasteners are provided. The installation steps can be followed via the provided instructions or a tutorial, which helps reduce guesswork when fitting the cooler to your particular board. When you are building or upgrading, this compatibility detail can be the difference between a smooth install and a lot of extra checking.

The essentials

It makes sense if you want a conventional air cooler that focuses on strong heat pipe transfer, uses AGHP 4.0 engineering, and includes dual 120mm PWM fan control for everyday desktop workloads. You’ll like it if your setup uses Thermalright Phantom Spirit 120 EVO compatibility targets such as AM4 or AM5, or Intel LGA sockets including LGA1700, LGA1200, and LGA1851. It’s also a solid pick if you care about the durability angle, since Thermalright references long service life with S-FDB bearings and industrial oriented components. ✅

It might not be a great match if your system has very tight clearance around the motherboard or if your chosen case setup restricts the cooler’s height or airflow path. It may also be less suitable if you are looking for very specific aesthetic or chroma lighting requirements, because the information available focuses on performance and materials rather than lighting features. It’s a practical option for users who want dependable CPU cooling and straightforward fan control without overcomplicating the build.
