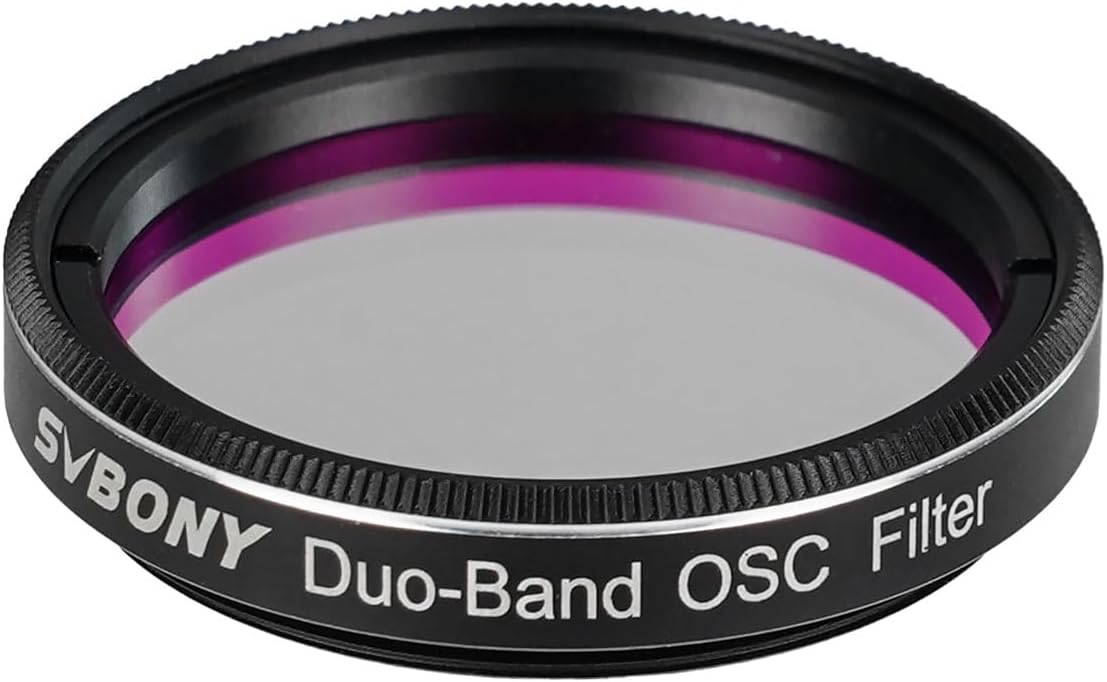

Svbony SV220 7nm Dual‑Band Nebula Filter

This dual-band nebula filter improves contrast for deep sky observation and astrophotography by isolating the H-alpha and OIII emission lines. It is aimed at users who want clearer views of emission and planetary nebulae when imaging with a one-shot colour camera or observing visually, offering better separation from city lights and moonlight interference.

Key Points

The filter passes narrow bands centred on hydrogen alpha and doubly ionised oxygen, allowing emission nebulae to stand out against the sky background. It is designed to work with 1.25 inch focusers and accessories, so it fits standard eyepieces, cameras and electronic filter wheels. For astrophotography, the result is reduced post-processing work because skyglow and broadband light are largely rejected, which can speed up workflow and improve final contrast.

Build quality aims to reduce internal reflections thanks to a black matte aluminium rim and multi-resistant coatings that protect against water, stains and scratches. The manufacturer indicates that the filter increases perceived contrast without actually amplifying the intrinsic brightness of nebulae, so you should expect clearer detail rather than artificially brighter stars. 🌌

Technical Specifications

• Name: Svbony SV220 Telescope Filter

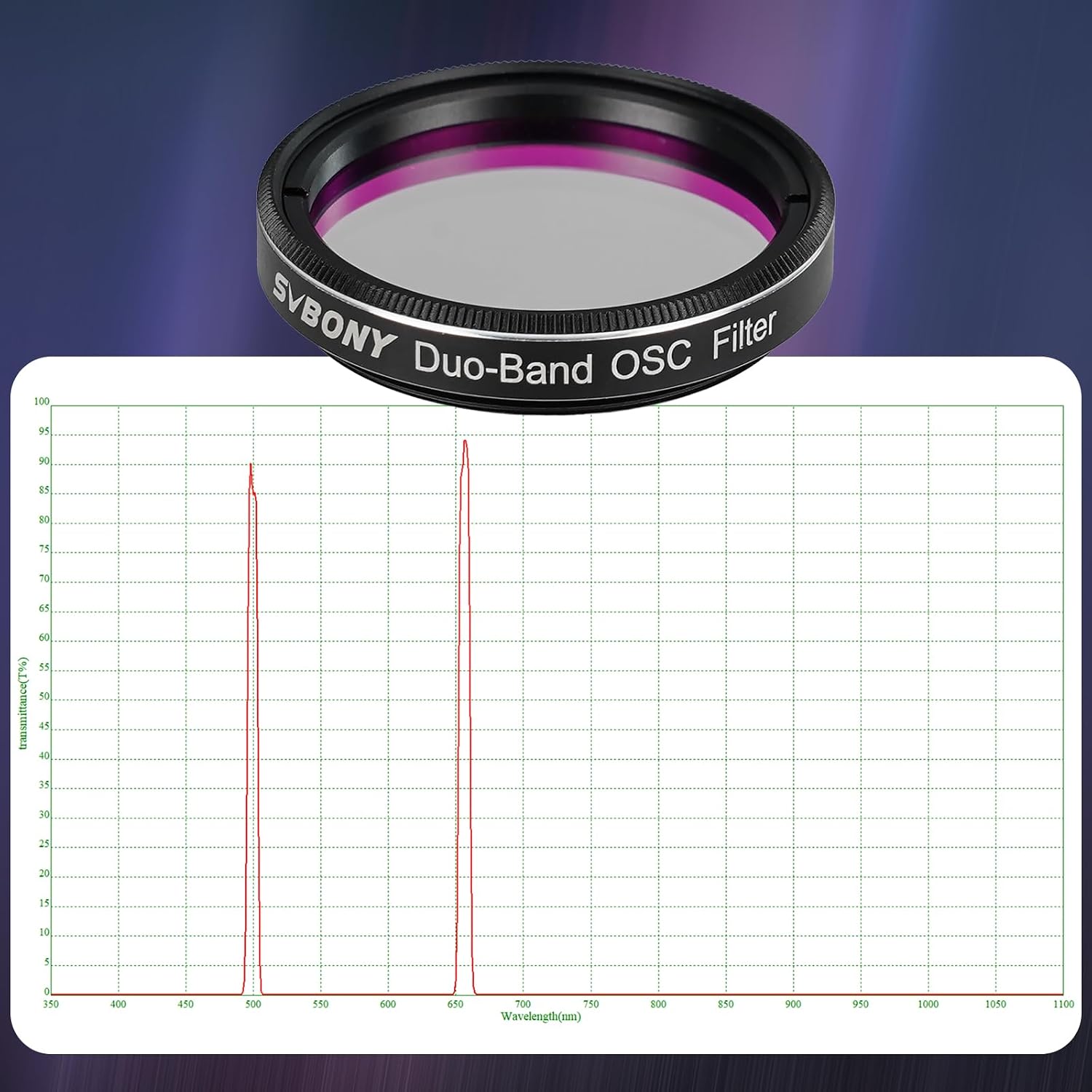

• Wavelengths: Hα 656 nm and OIII 500 nm
• Bandwidth: 7 nm dual narrowband

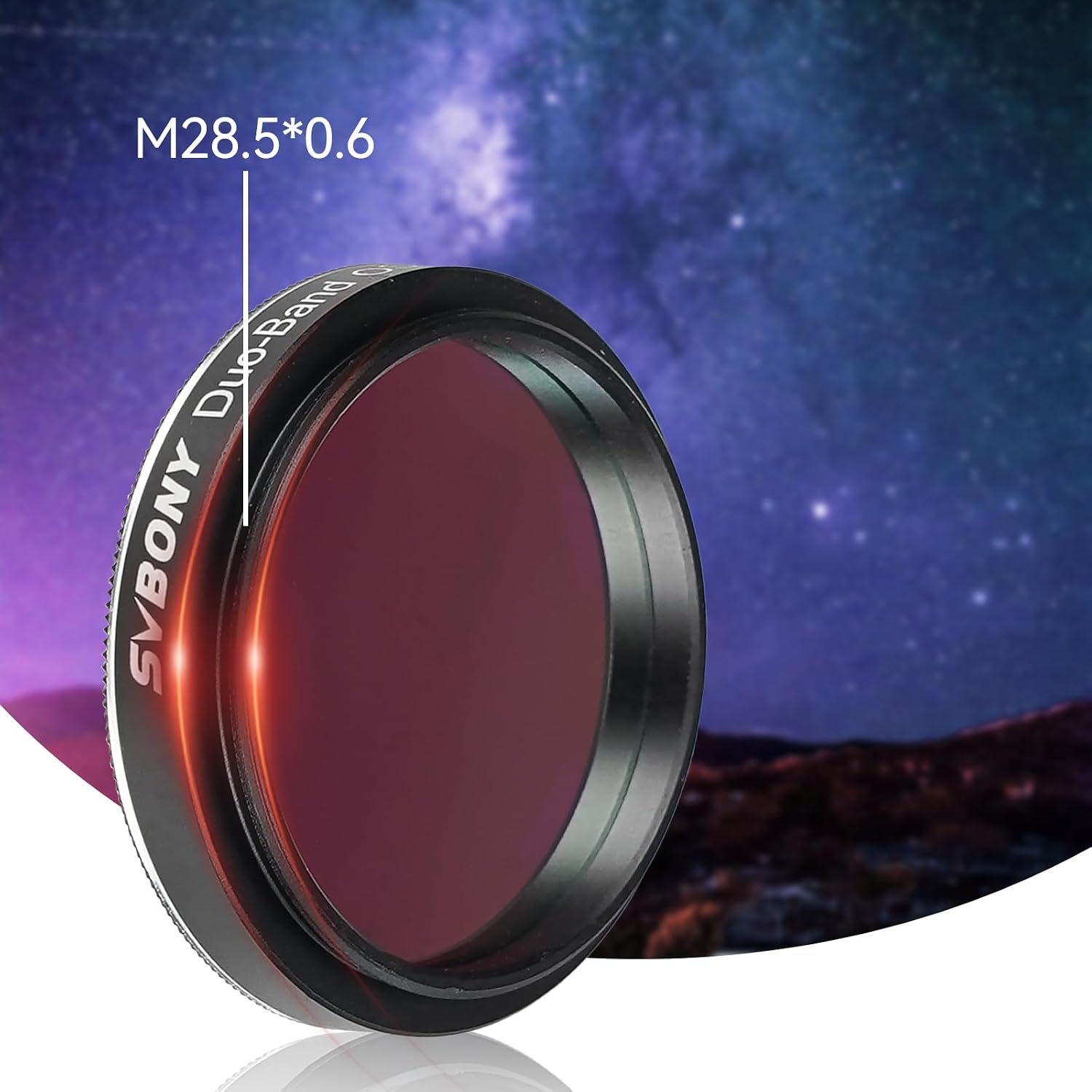

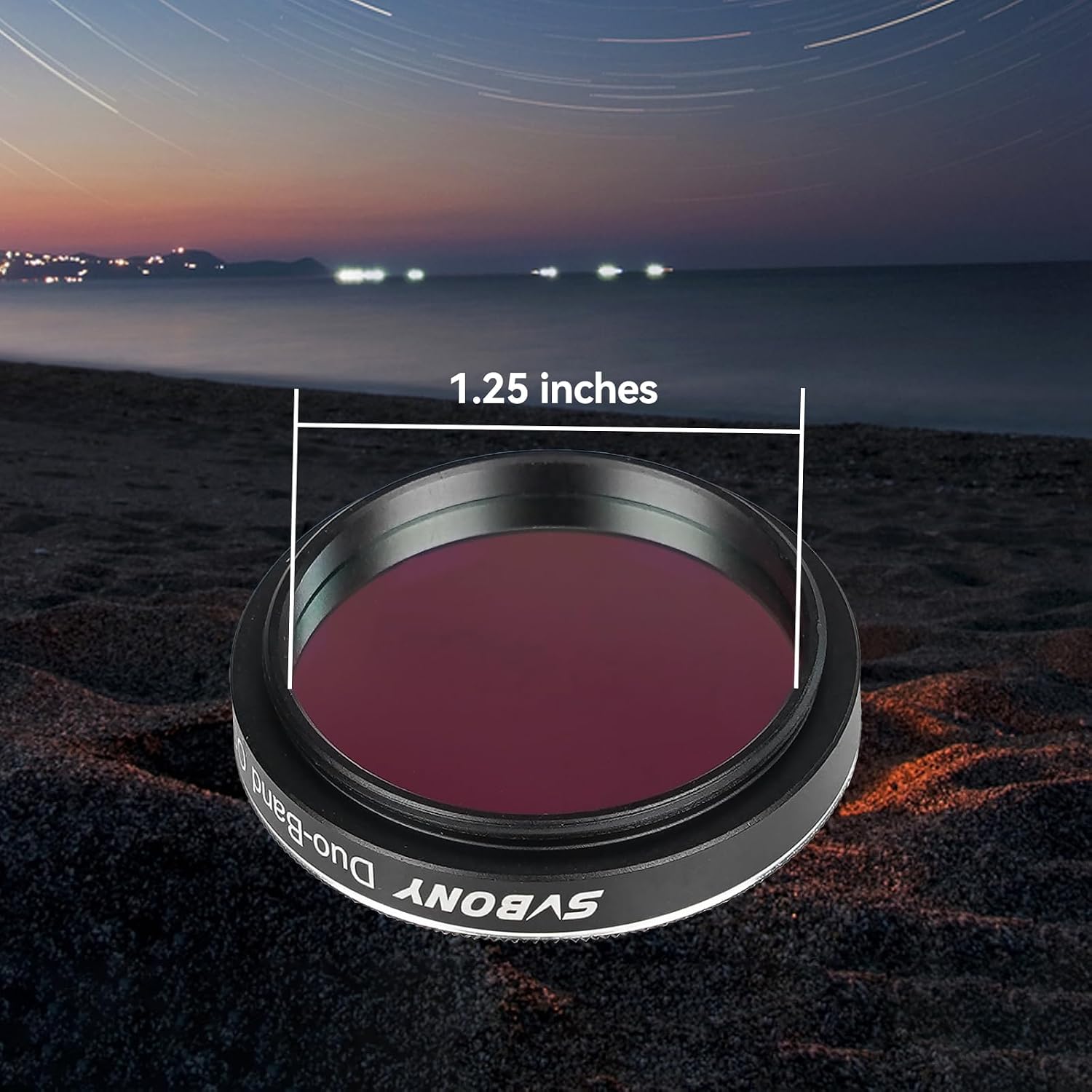

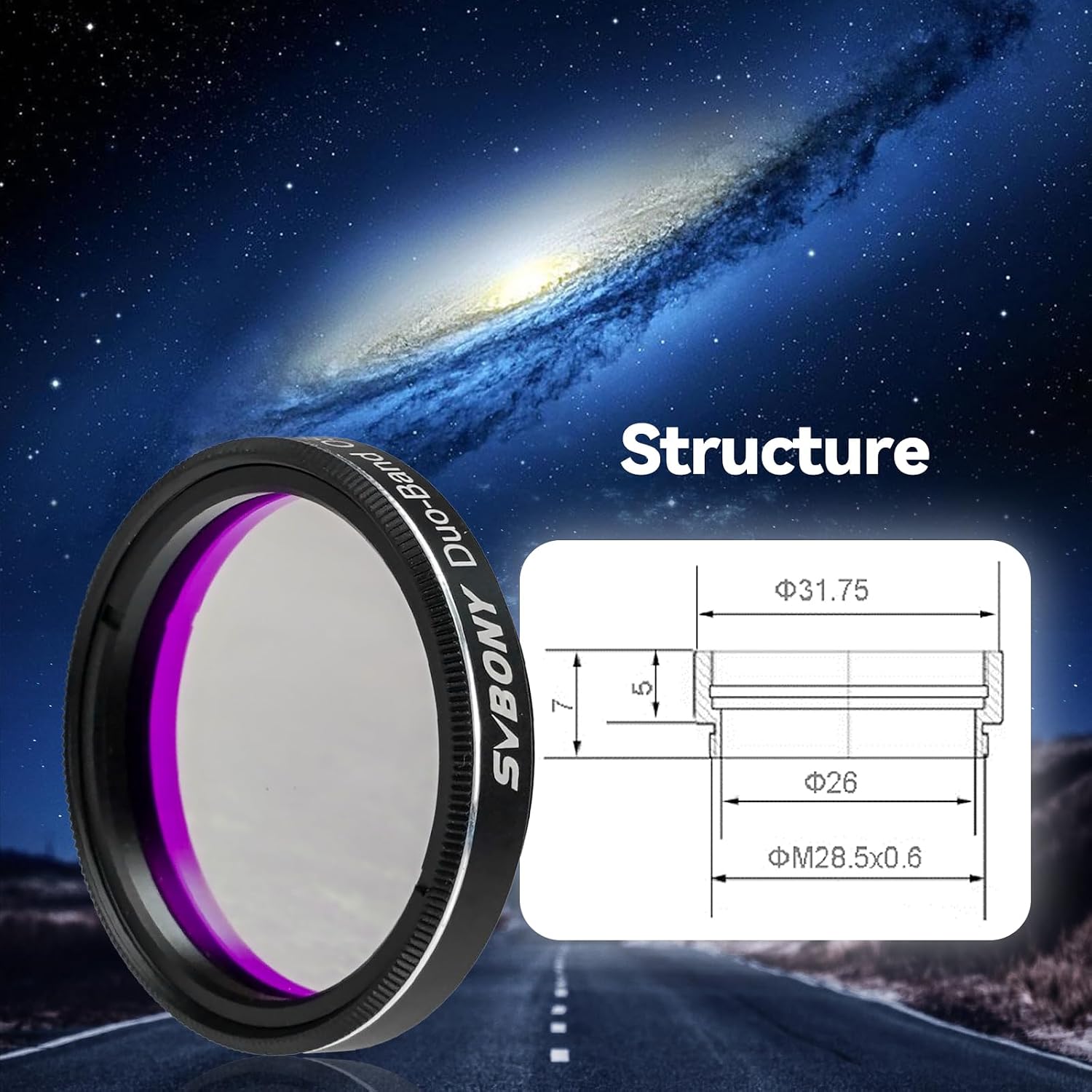

• Interface: 1.25 inch standard
• Transmission rate: 85% (according to the manufacturer)
• Optical density: OD5 for out-of-band rejection
• Mount material: Aluminium alloy rim with black matte finish

Usage Recommendations

Attach the filter between the telescope and camera or place it into a 1.25 inch eyepiece holder for visual use. For one-shot colour (OSC) cameras, use the filter to capture emission nebulae where hydrogen alpha and OIII emissions dominate, especially under light-polluted skies. When stacking images, the narrower bands will reduce unwanted gradients, but note that exposure times may need to be longer than for unfiltered broadband imaging because the filter restricts the incoming light. 🔭

Consider that narrowband imaging emphasises certain structures in nebulae while other faint broadband features may be less visible. In addition, if you plan to image star clusters or reflection nebulae, this type of filter may not deliver the same benefits as it does for emission nebulae. Finally, when combining with electronic filter wheels check clearance and backfocus to avoid vignetting or mechanical interference. ✨
