REYLAX 12V Dimmable TRIAC LED Driver (Constant Voltage) 40W, 3.33A
Product description
What it is and why you’d buy it

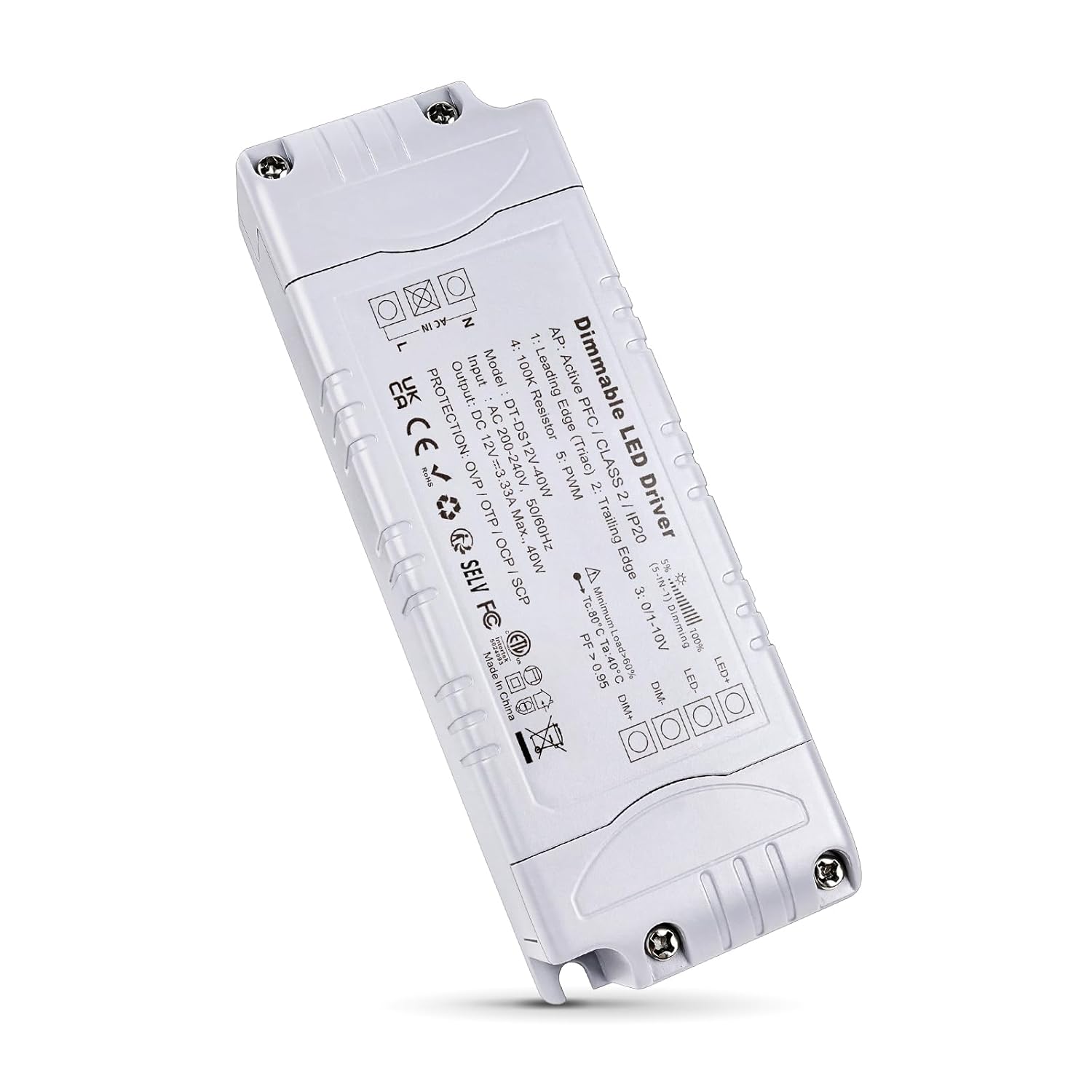

This REYLAX LED driver is a constant voltage power supply designed specifically for LED applications. In plain terms: it takes an AC input in the 200–240V range and outputs DC 12V up to a maximum of 3.33A (with a stated 40W capacity). If your lighting setup needs a dedicated 12V driver and you want dimming via a TRIAC dimmer, this is the sort of unit to look at.
The part that usually matters most for buyers is how it behaves when you dim and whether the rest of the system is sized correctly. On paper, this driver keeps the dimming range fairly wide (5% to 100%) and it’s aimed at stable, repeatable dimming rather than “works in a pinch” performance.
That said, it’s not a universal electronics box for everything. The manufacturer explicitly positions it for LEDs only, and it’s not suitable for motors, doorbells or other mechanical products.
The essentials for day-to-day use
You’re effectively choosing this driver if your current 12V LED circuit needs a replacement power supply and you also plan to use TRIAC dimming.
A micro example: imagine you’ve installed 12V LED strip or downlights in a room where you’d like softer evening lighting. With a compatible TRIAC dimmer, the driver is intended to allow you to reduce brightness down to around 5% without immediately shutting down or behaving erratically. That’s the kind of everyday experience it’s trying to enable.

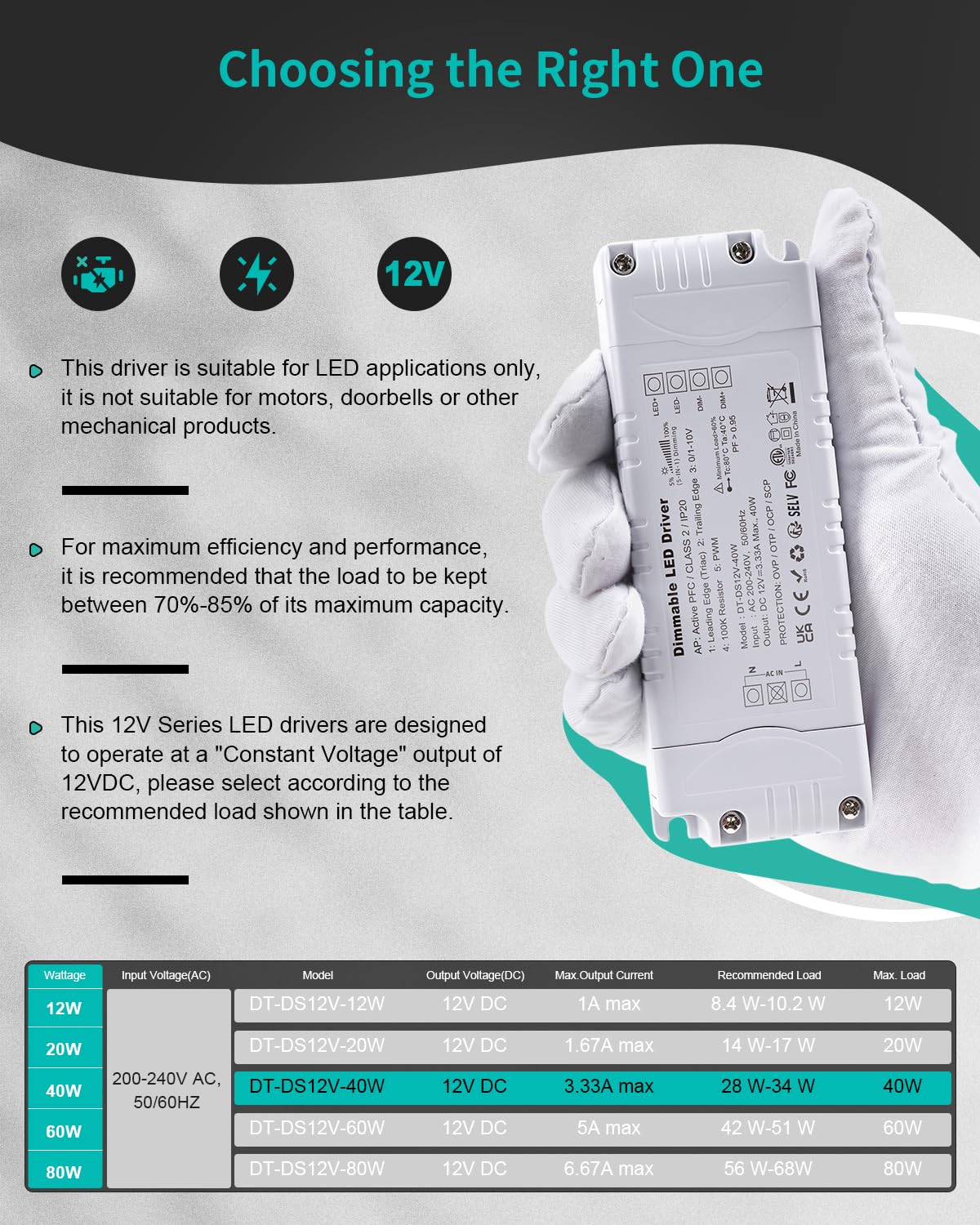

One nuance to keep in mind is that drivers like this can be picky about the load. For best efficiency and performance, the guidance is to keep the load between 70% and 85% of the driver’s maximum capacity.
So while the stated recommended load is 28W–34W, your real-world outcome will depend on what you’re powering and how closely your total wattage sits in that window.
Key features that affect performance

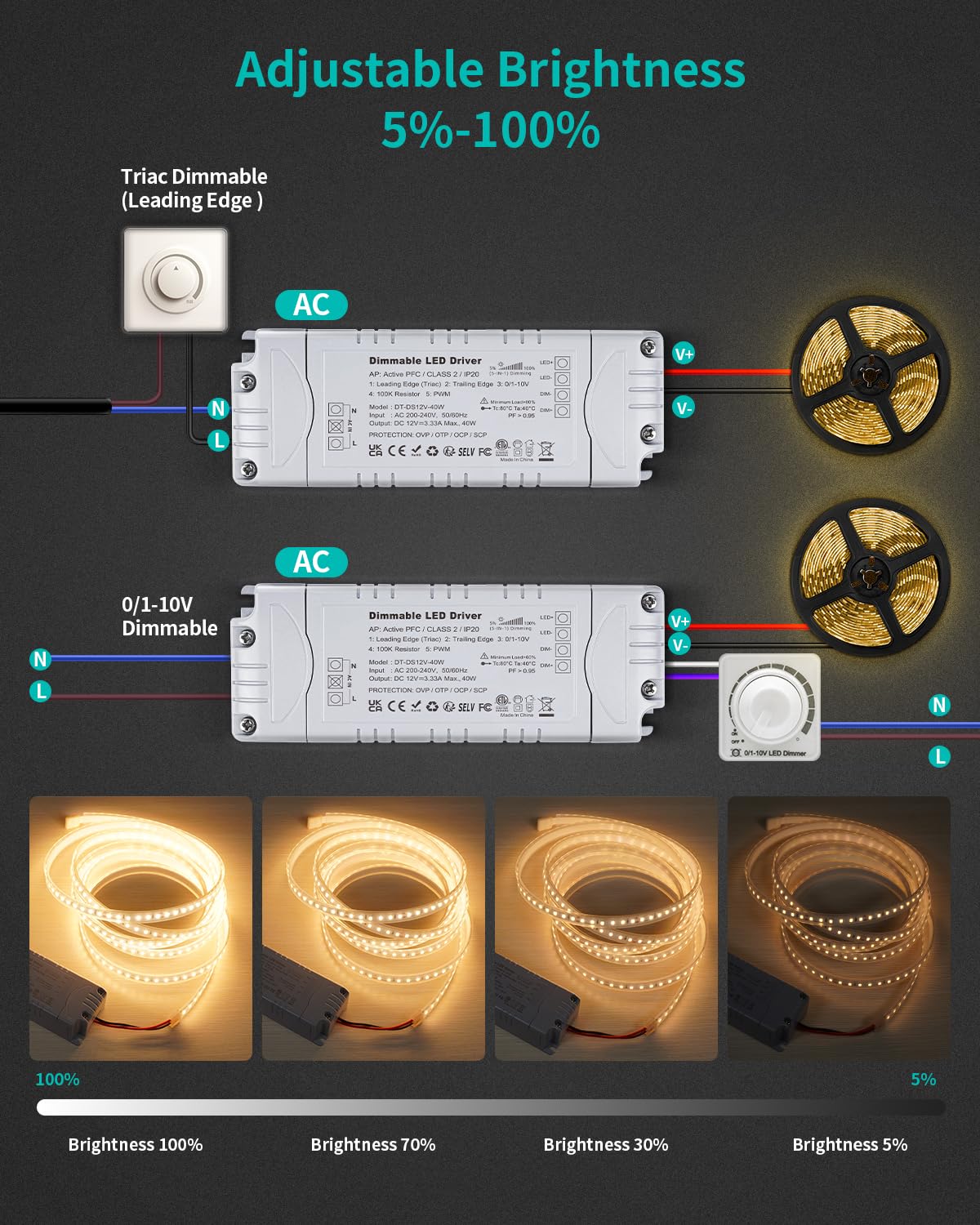

Dimming range (TRIAC): The listed dimming range is 5%–100%. That’s broadly what you’d expect for people who actually use dimming day to day, rather than only switching on/off.
High power factor: It’s claimed to have a power factor greater than 0.95. In practice, that tends to mean lower losses and a cleaner load profile on the supply side, which is generally preferable for both efficiency and how the system behaves.

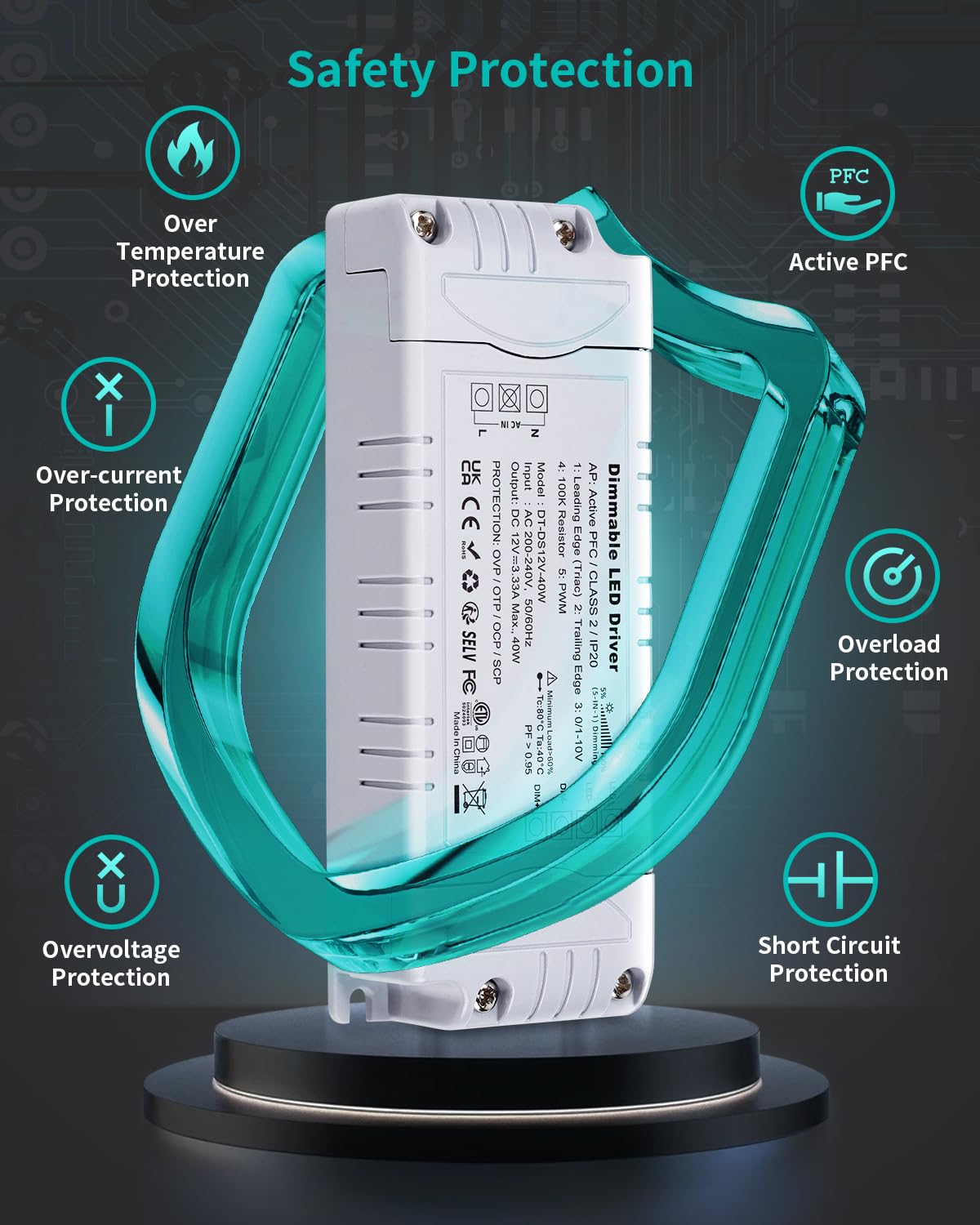

Protection built in: The driver includes protection for short-circuit, over-current, over-voltage, and over-temperature. These protections won’t make a poorly designed installation “good”, but they do reduce the chances of the driver failing in normal misuse scenarios.

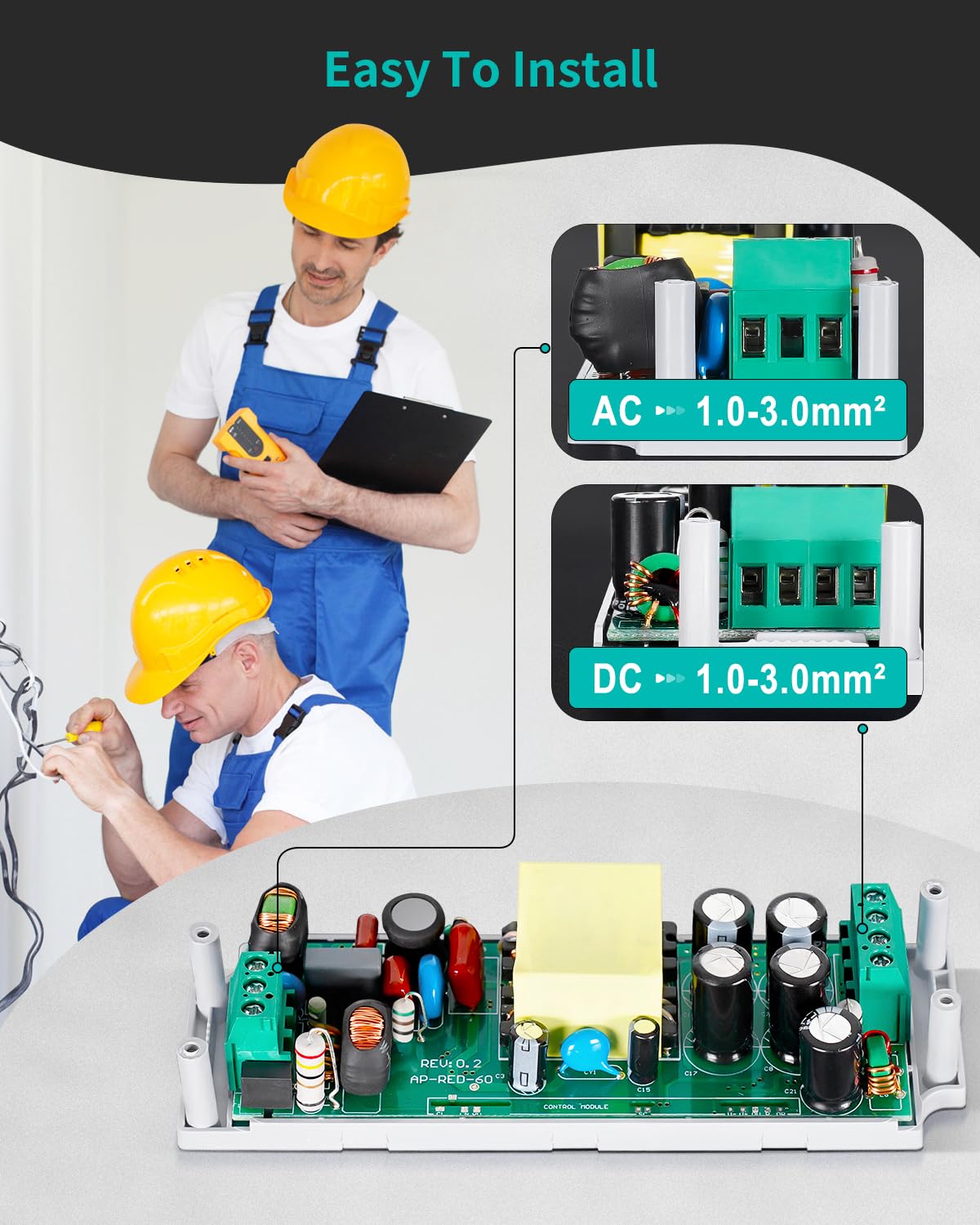

Compact, Class II construction: It’s described as Class II flame-retardant and designed for easy installation and wiring, with moisture and dust protection. If you’re fitting in typical spaces where the environment isn’t perfectly controlled, that moisture/dust note is at least reassuring on paper.

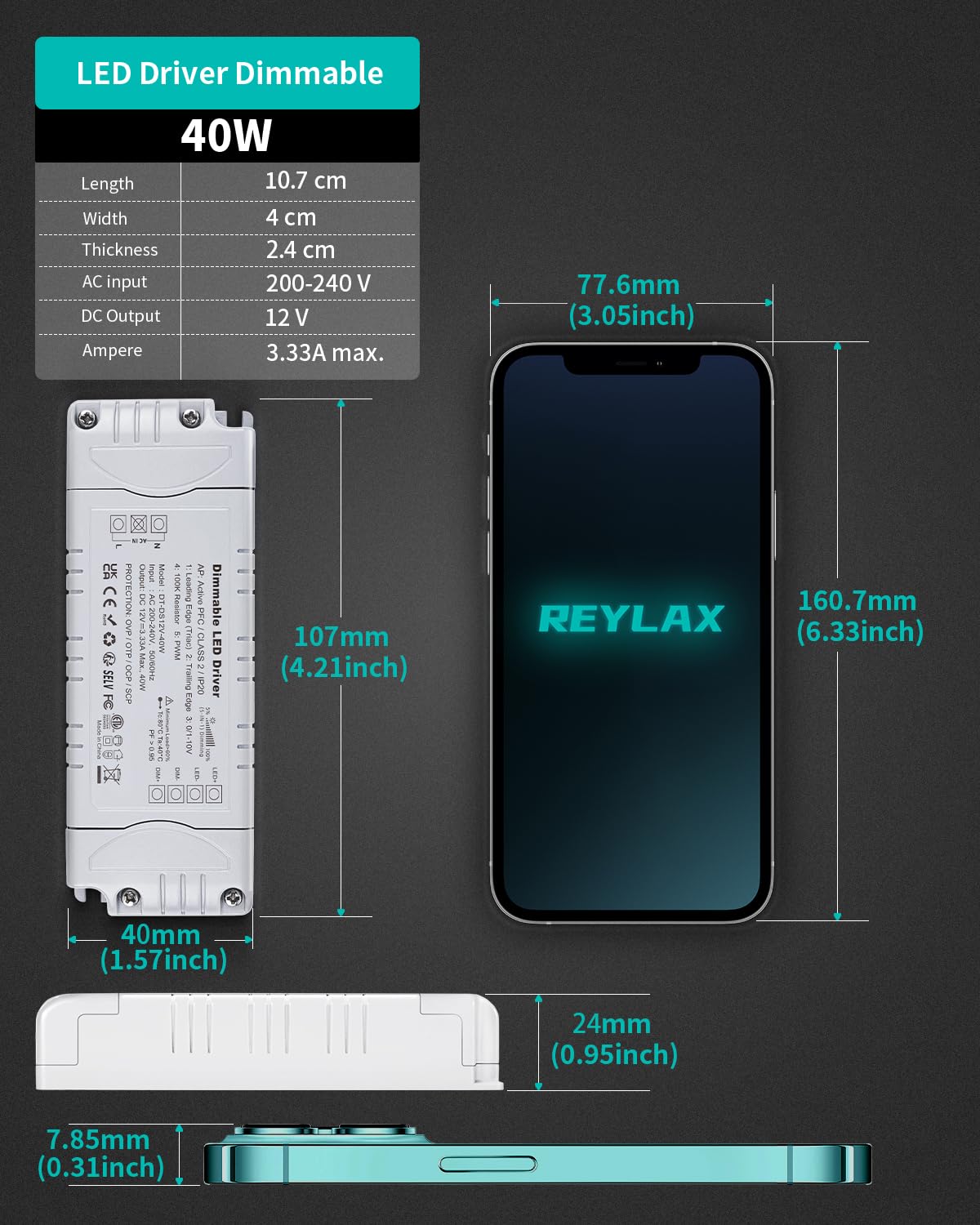

Tech specs that you should double-check
Below are the details provided that are most likely to affect compatibility with your LED setup:
- Input (AC): 200–240V
- Output (DC): 12V
- Max output current: 3.33A
- Max power: 40W
- Dimming range: 5%–100%
- Recommended load: 28W–34W
- Power factor: >0.95
Also note the stated advice: for maximum efficiency and performance, keep the load between 70%–85% of the driver’s maximum capacity. If your total LED wattage is far below that, it may not run as efficiently (or may not suit your expectations). If it’s too high, you’re outside the intended operating window.
Who it suits, and who should avoid it
It’s a sensible choice if you:
- Need a 12V constant voltage LED driver with TRIAC dimming capability
- Have a total LED load roughly in the 28W–34W area, or otherwise align with the 70%–85% guidance
- Want built-in protection (short-circuit, over-current, over-voltage, over-temperature) for a more robust install
It may not be the best match if:
- You’re powering something other than LEDs. The driver is explicitly for LED applications only, and the manufacturer says it’s not suitable for motors, doorbells or other mechanical products.
- Your LED load is likely to be heavily variable or consistently outside the recommended operating range. For dimming setups, stable performance is often closely tied to correct sizing.
Careful buying checklist (before you commit)
Before choosing this, it’s worth spending a few minutes confirming the basics rather than assuming everything will “just work”:
- Confirm your LEDs are 12V constant voltage (not a different LED type or wiring style).
- Check your total wattage against the recommended load 28W–34W and the 70%–85% efficiency guidance.
- If you plan to dim, make sure your dimmer approach aligns with the driver’s TRIAC dimmable positioning.
- Installation environment matters: the driver is described as moisture and dust protected, but always follow your electrician’s best practice for mounting and wiring.
Mini FAQ
What does “TRIAC dimmable” mean here?
It means the driver is intended to work with a TRIAC-style dimming control method, with a listed dimming range of 5% to 100%.
Is this driver suitable for non-LED devices?
No. It’s stated to be for LED applications only and not suitable for motors, doorbells or other mechanical products.
What wattage should I aim for?
The provided recommended load is 28W–34W, and the guidance for maximum efficiency is to keep your load between 70% and 85% of the driver’s maximum capacity.
Does it include safety protection?
Yes, the driver is described as having short-circuit, over-current, over-voltage and over-temperature protection.
Final verdict
It’s worth considering if you’re building or repairing a 12V LED installation and you specifically want TRIAC dimming with a driver that’s also designed around sensible load sizing (28W–34W recommended, and 70%–85% for peak efficiency). If your lighting plan doesn’t match those constraints, you may end up disappointed—this one is more about correct setup than forgiving mismatch.
