PATIKIL 50W 30Ω Aluminium Shell Resistor (3 Pack) – Chassis Mounted, 5% Tolerance
Product description
What it is and what it’s for

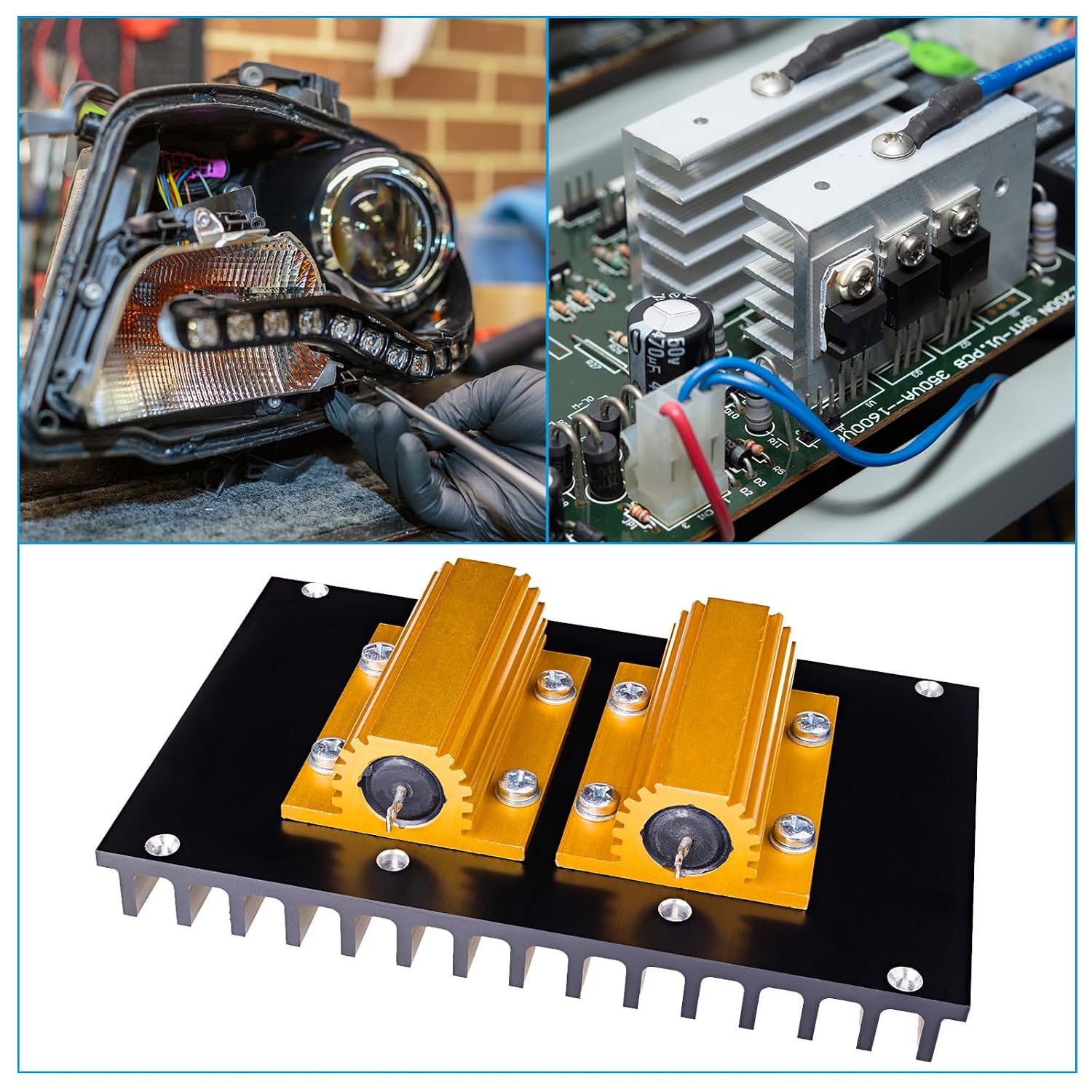

The PATIKIL 50W 30 Ohm Aluminium Shell Resistor is a high‑power wirewound resistor designed for chassis mounting. Sold as a pack of three, these resistors work as load or current‑limiting elements in power supplies, automation gear, lighting, audio, frequency converters and inverters. With a robust aluminium housing and cooling grooves on the surface, they are meant to cope with higher temperatures and tougher environments where space is at a premium.
A differential angle: what stands out

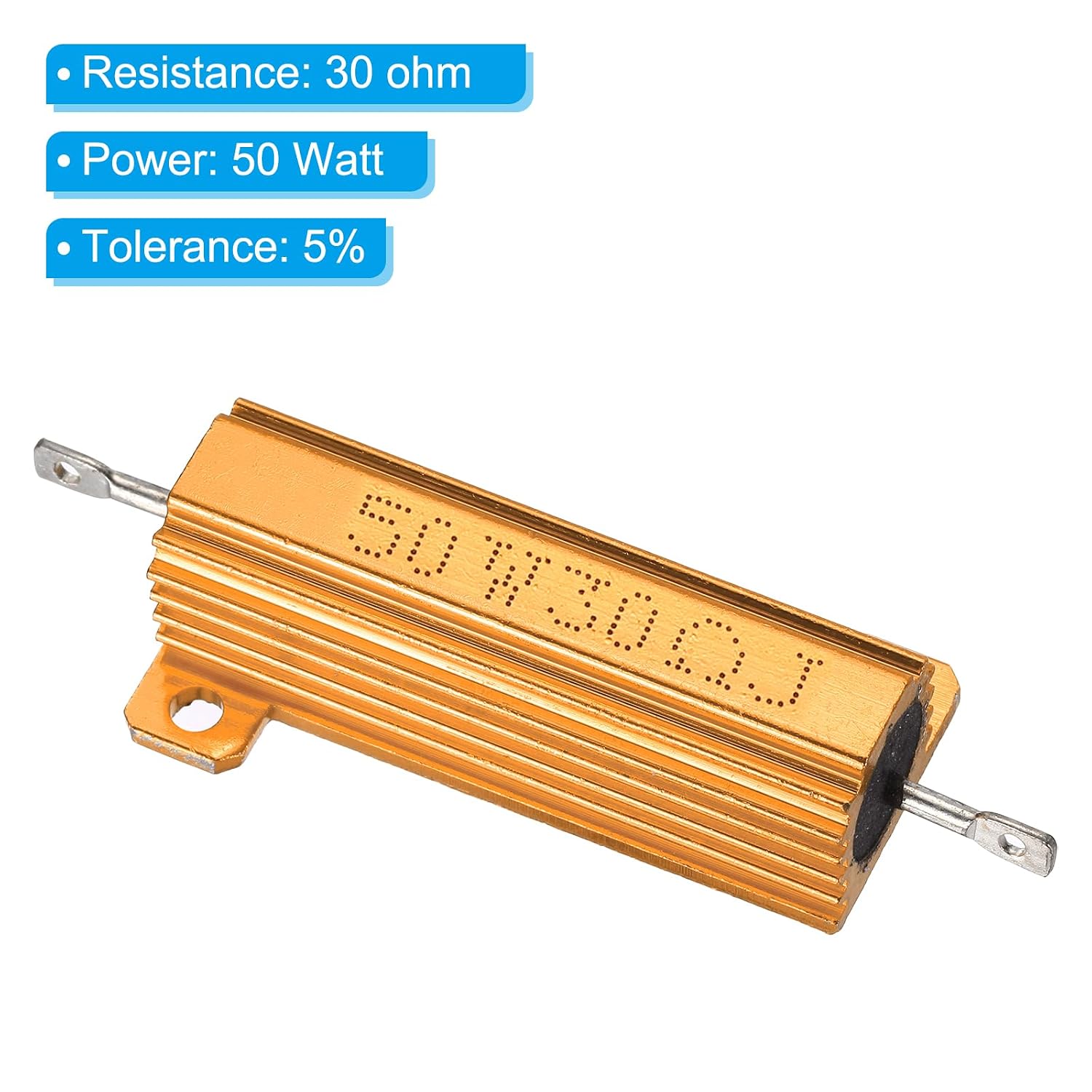

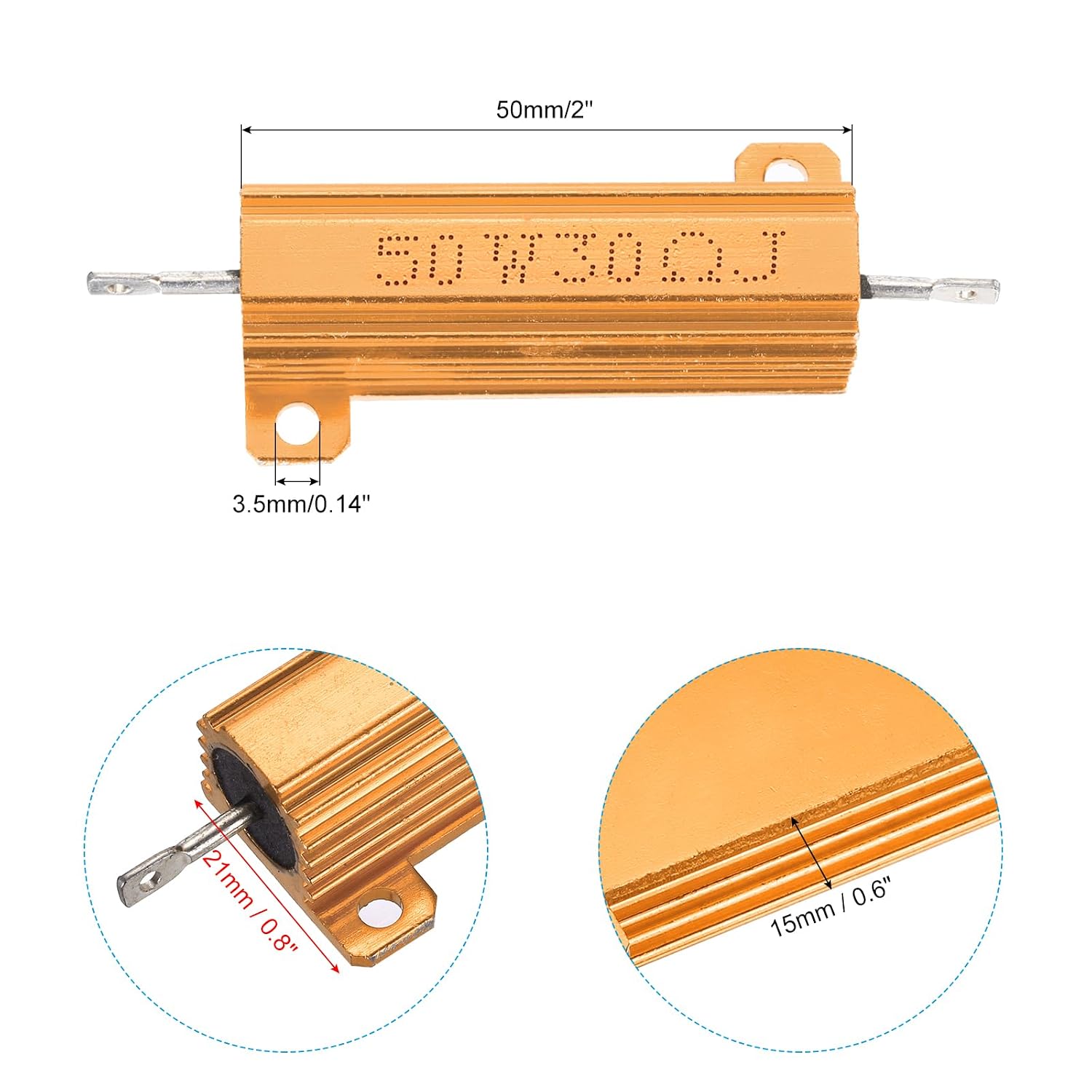

On the paper, the main selling points are straightforward: a compact 50 W rating, 30 ohm resistance and a 5% tolerance, all wrapped in an aluminium shell that aids heat dissipation. The chassis‑mounted design with screw fittings aligns with practical installation on metal boards, and the 3.5 mm mounting holes ease integration into existing setups. For projects where space matters but power handling can’t be compromised, these resistors offer a tangible balance of size and capability.
The practical advantages and limits
The aluminium power resistor is described as having good high‑temperature resistance and strong overload capacity, with a solid construction that promises long service life. In real terms, that translates to steadier performance in environments prone to heat or vibration, provided it’s mounted correctly on a metal board and not on flammable substrates. A notable caveat is that the resistor will get hot in operation, so touch‑safety and proper clearance are essential. The note about mounting on metal boards rather than insulating plastics or wooden surfaces isn’t just formal, it affects how you plan a safe installation.
Who it’s for
If you’re assembling industrial control or automation equipment, a power supply or an inverter, and you need a dependable load element that can handle continuous duty at moderate temperatures, this trio of aluminium‑housed resistors could fit the bill. They may suit hobbyist projects where compact form and ease of mounting matter, as well as professional builds that require several identical parts for uniform loading.
Who it isn’t ideal for
This is not designed as a precision, low‑drift resistor. With a 5% tolerance, it’s not the best match for circuits needing tight resistance control. If a project demands minimal thermal drift or very precise power dissipation, prioritising higher specificity or alternative thermal management might be warranted. Also, it is explicitly noted that the axial load resistor should be mounted on a metal board, using other substrates could introduce risk or performance variation.
When it makes sense to buy
Choose these resistors if you value a compact, mechanically straightforward solution for power dissipation in chassis installations where heat management is managed by an appropriate heatsinking or mounting surface. The 50 W rating provides a comfortable safety margin for many load scenarios, and having three identical parts helps with parallel or multi‑element designs without hunting for matching values.
When to look elsewhere
If space is extremely critical and you need an even smaller footprint, or if you require tighter resistance tolerance, or you expect operation in more aggressive thermal cycles, exploring higher‑spec choices or different mounting configurations could be worthwhile. Likewise, for projects relying on surface insulation protections, the warning about heat generation should push you to consider alternative topologies.
What to check before purchasing
- Confirm you have a suitable metal mounting surface and enough clearance for heat dissipation.
- Verify your power supply or cabling can accommodate a 50 W load and 30 ohm resistance in the intended configuration.

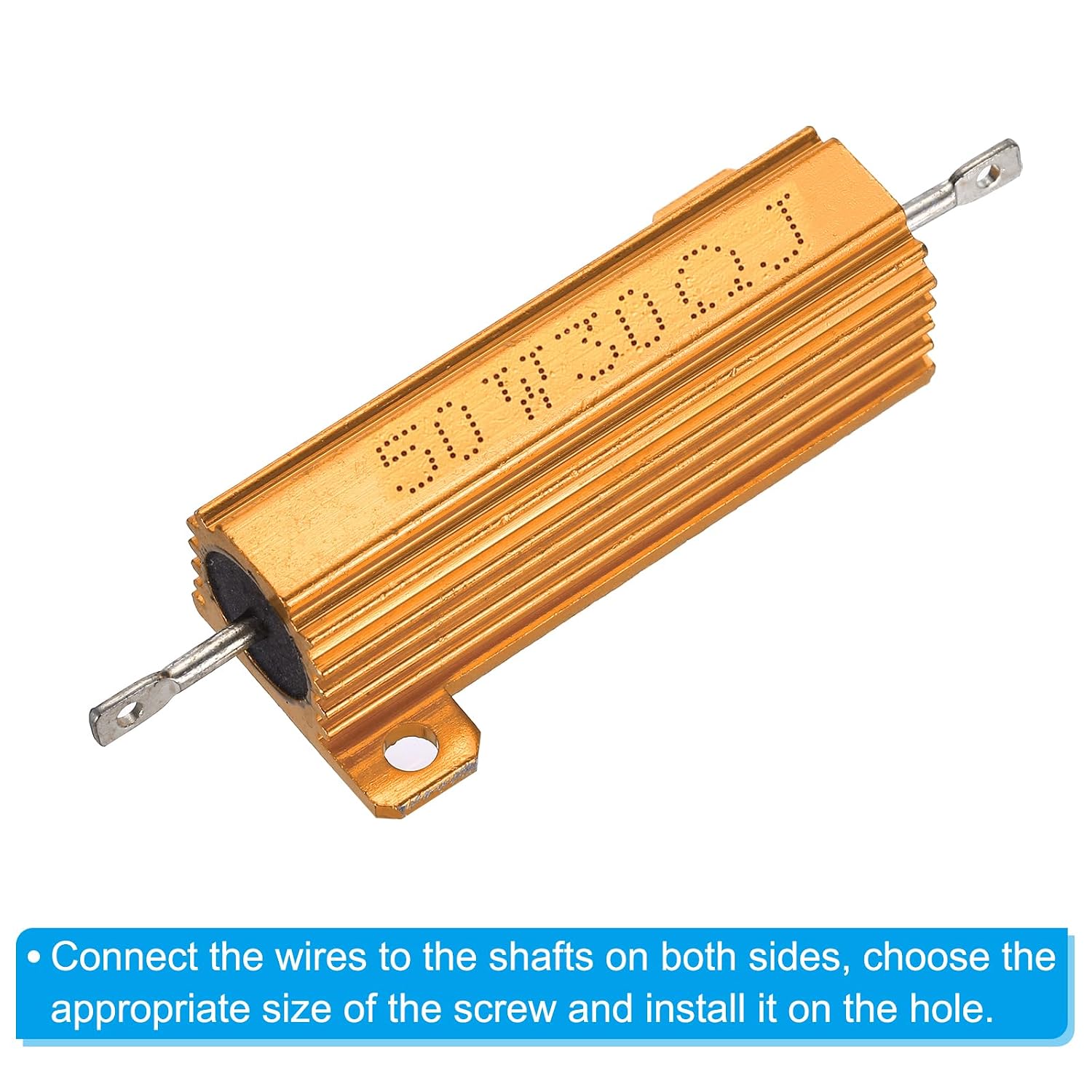

- Plan for proper screw sizing and mounting hardware to match the 3.5 mm mounting holes.
- Ensure safe handling and avoid touching the body while powered, plan for enclosure or spacing to prevent contact.
How it compares to alternative approaches
In contexts where a resistor needs to act as a load on a power conversion chain, a compact aluminium shell style like this one can offer a good compromise between physical size and heat handling compared with larger, bulkier packages. For users weighing options between chassis‑mounted loads and other forms, the aluminium shell plus screw fixings facilitates straightforward integration into metal frames, which is often simpler than trying to add heatsinks to smaller, non‑housings. If your priority is absolute compactness or very tight tolerance, you might look at other styles or resistor types, otherwise, this solution aligns with practical, real‑world uses where a reliable, mountable heat‑dissipating load is needed.
What you’ll notice in use
In day‑to‑day use, expect dependable stability under load as long as the device is mounted correctly. The housing’s cooling grooves should aid heat transfer, though you’ll still feel heat on touch when powered—this is normal and a reminder to keep hands off during operation. The product’s strength is not in offering micro‑adjustability, it’s in predictable resistance and robust physical design that suits industrial environments rather than bespoke laboratory experiments.
FAQ (practical answers)
- Is this resistor suitable for high‑precision circuits? Not primarily, it offers 5% tolerance, which is better for general load use than exact calibration.
- Can I mount it on plastic? No, mounting on metal boards is advised for safety and performance reasons.

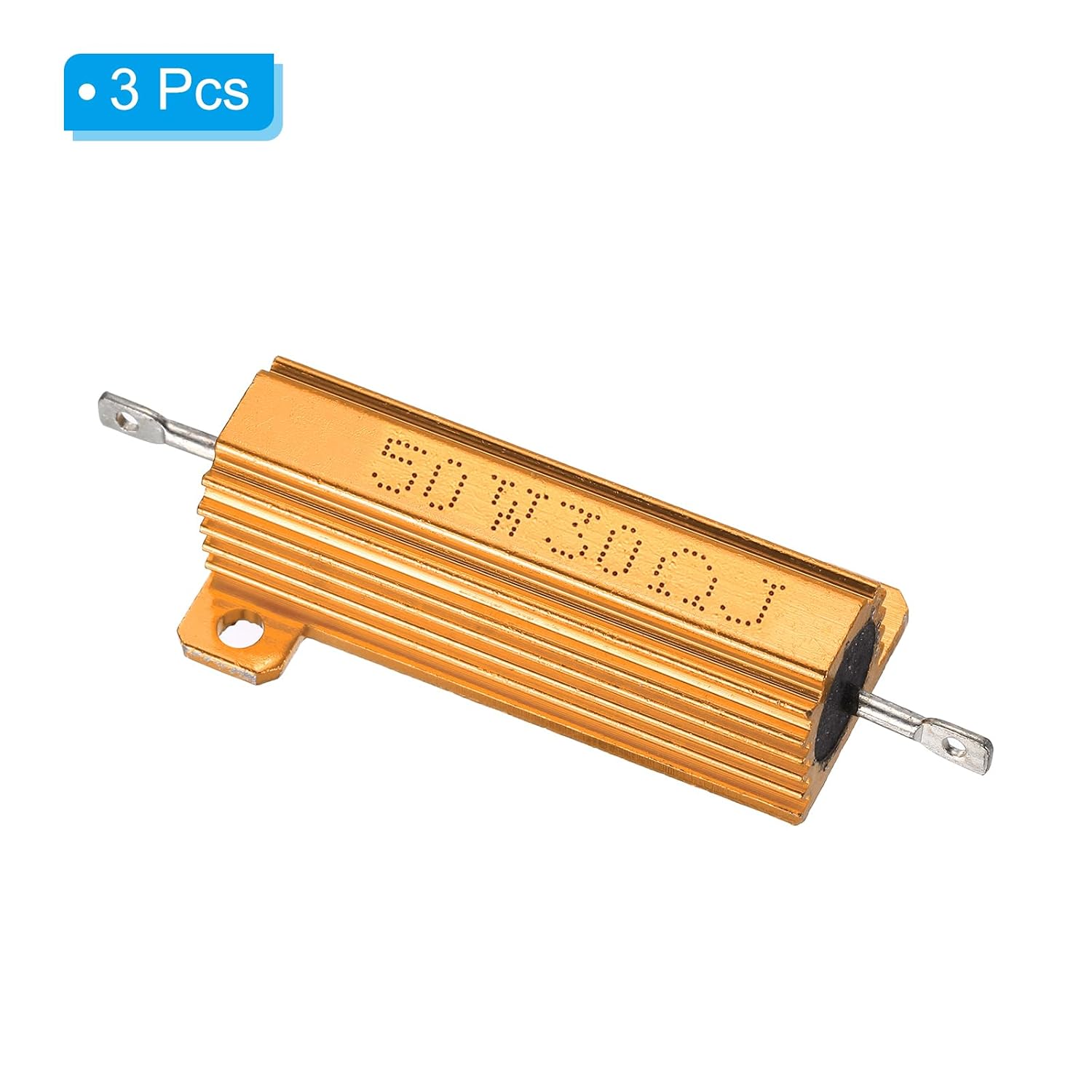

- How many units are in the pack? Three resistors are included.
- What is the likely lifespan? The description notes solid structure and stability for long service life, assuming proper mounting and operating conditions.
Final verdict
Is it worth it? Worth considering if you need a compact, chassis‑mounted load resistor in a trio for automation or power‑supply work, and you can ensure metal board mounting with adequate cooling. It’s a pragmatic option that prioritises durability and straightforward installation over ultra‑tight tolerances. If your project demands low heat, very small size, or precise resistance, you should look for alternatives. For many industrial and DIY applications, this trio provides a sensible balance of form, function and value.
Quick usage example
In a lighting control project, you might wire one resistor per phase as a simple load element on a metal chassis, ensuring spacing to allow airflow and avoiding any contact with insulating materials that could heat up. The 50 W rating gives headroom for short peak loads, with the aluminium shell helping keep the temperature in check during normal operation.
