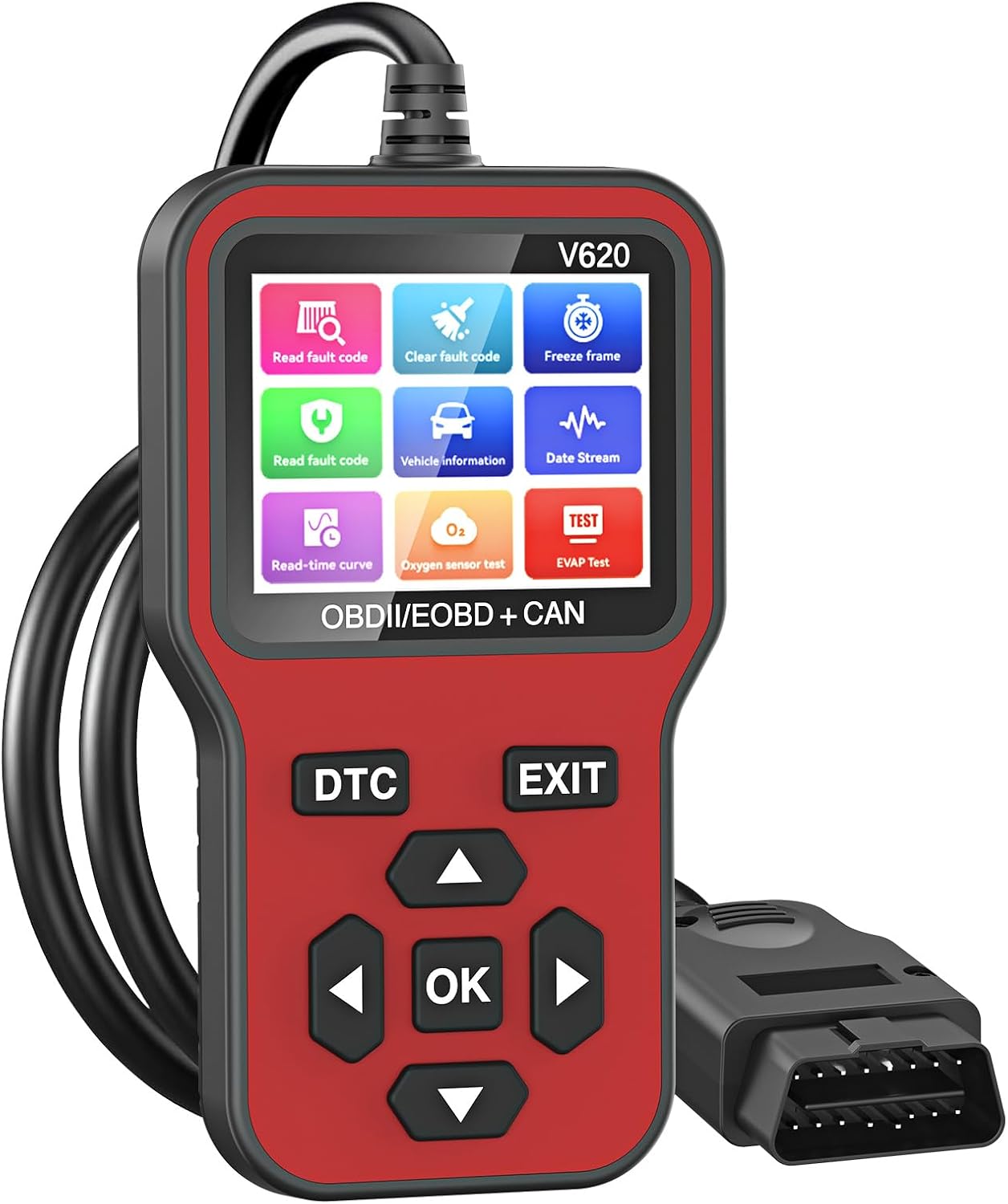

OBD2 Scanner V620 car diagnostic tool
Product description
This compact OBD2 scanner combines engine code reading with basic battery and alternator testing, making it a practical handheld diagnostic tool for DIYers and technicians checking petrol and diesel vehicles from 1996 onwards. It displays live data streams and freeze-frame snapshots on a 2.8-inch colour screen, helping to identify check engine faults and monitor battery voltage during inspections.
Key Points

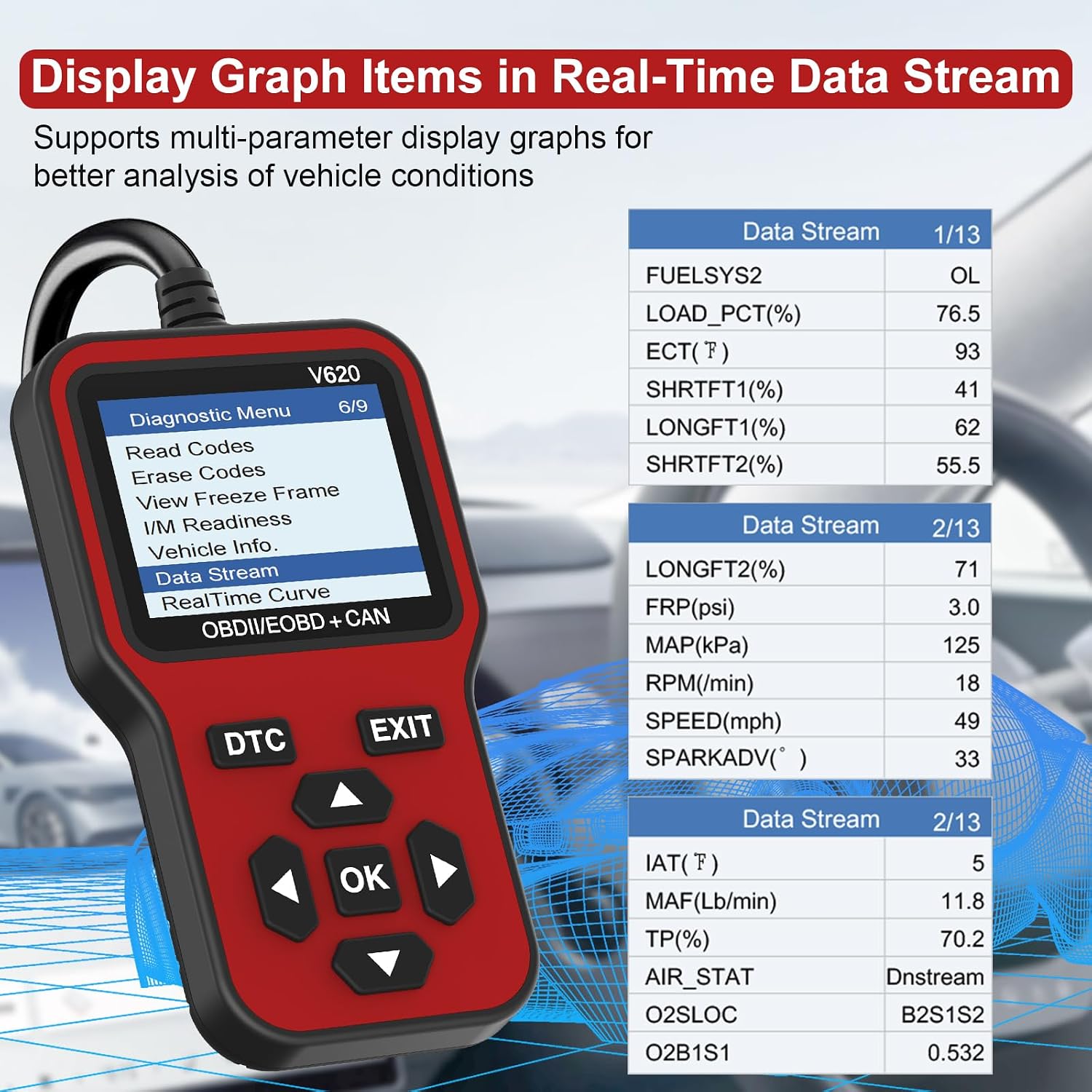

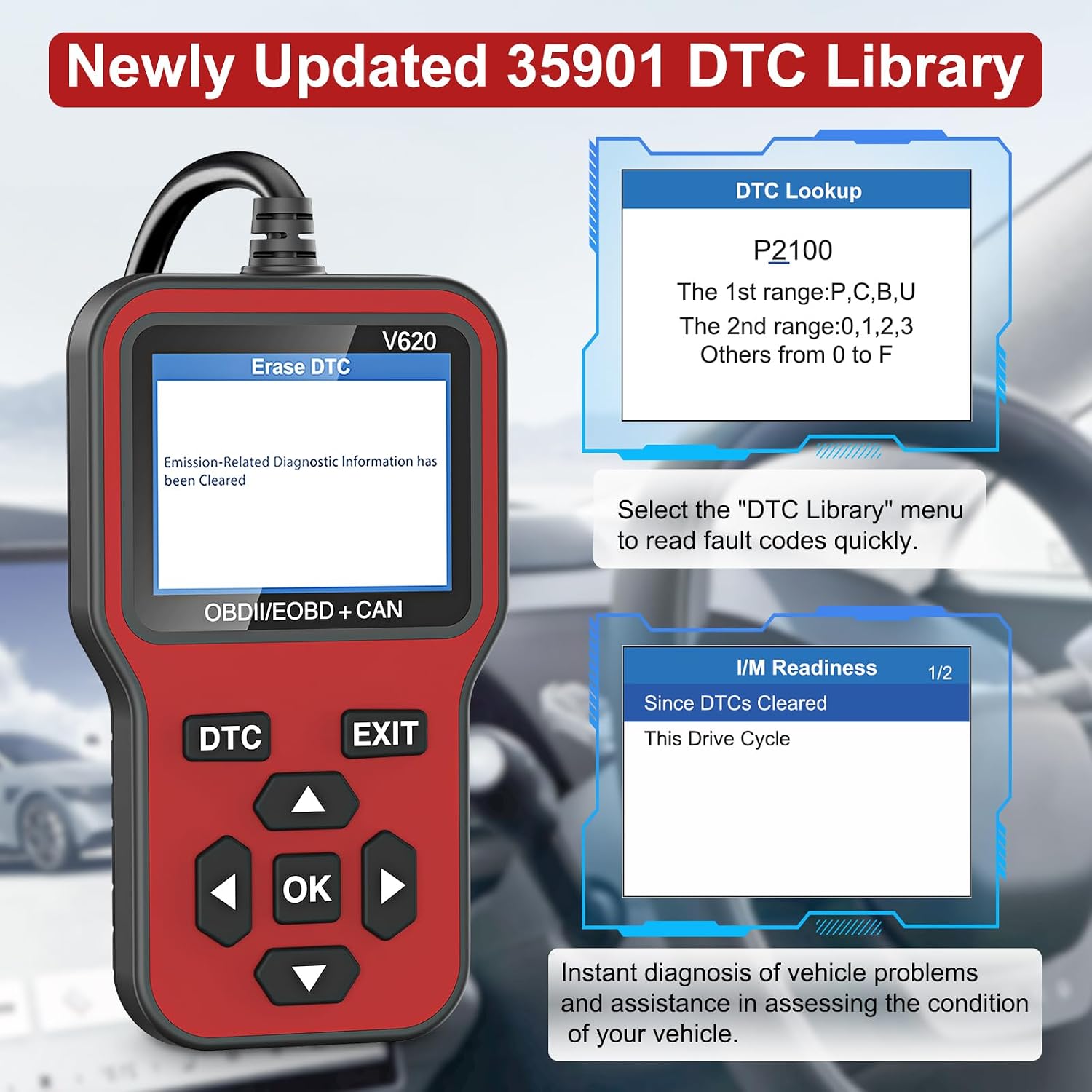

The device reads and clears engine codes and shows I/M readiness status, so you can verify emission-related readiness before repairs. Live data streaming and graphical real-time curves make sensor values and fuel trims easier to interpret, and freeze-frame capture stores the conditions present when a fault occurred. According to the manufacturer, the scanner supports all OBDII protocols and is compatible with most US cars from 1996, plus many European and Asian models from 2000 onwards. Note that it only accesses engine codes and does not read systems such as ABS, SRS, or transmission.
Technical Specifications
- Name: OBD2 Scanner V620 Battery Tester Universal Car Diagnostic Tool
- Display: 2.8-inch colour screen

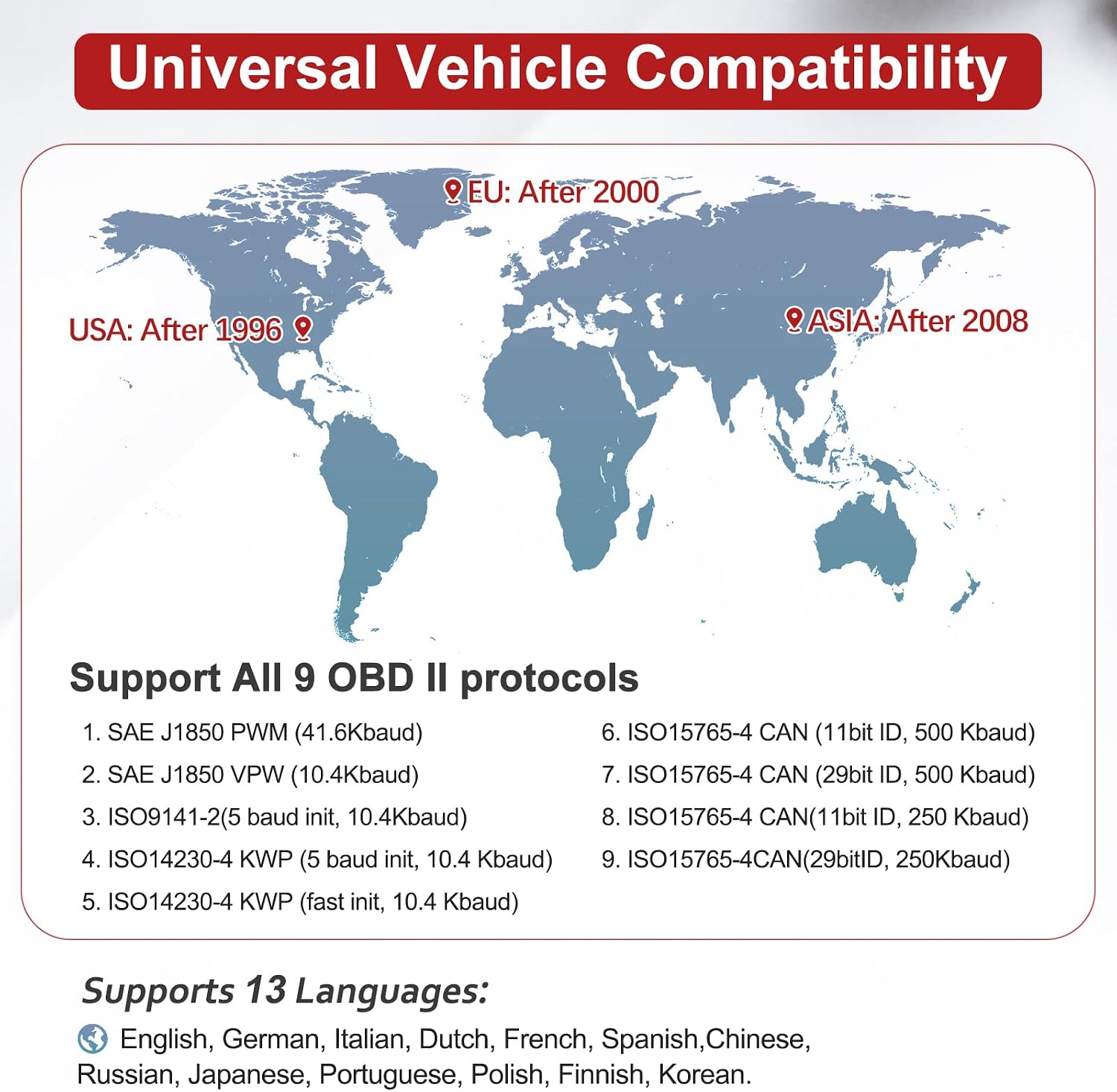

- Vehicle coverage: OBDII protocols, supports vehicles from 1996 (US) and 2000 (EU/Asia)

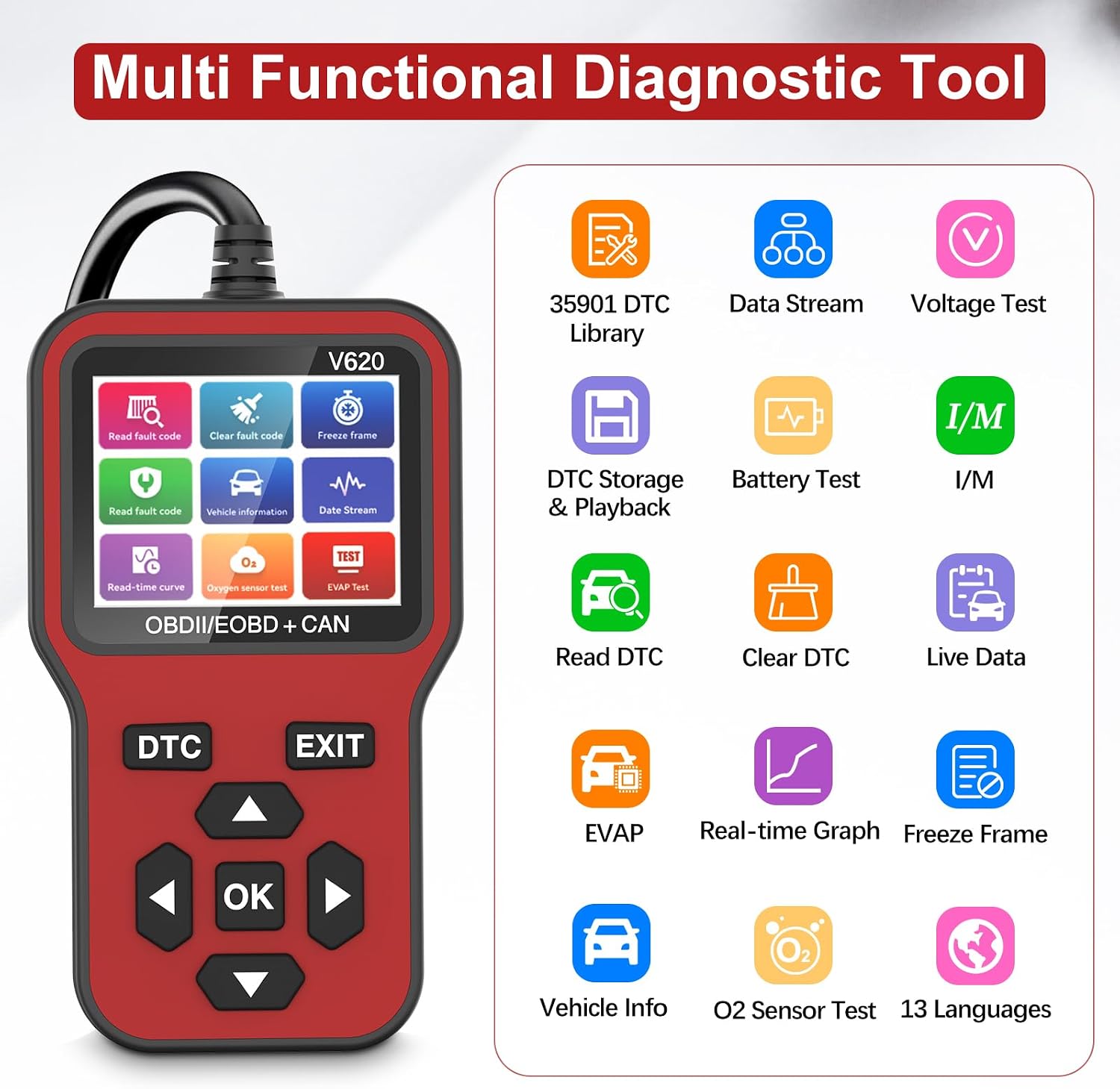

- Functions: Read/clear engine codes, I/M readiness, live data stream, freeze frame, battery and alternator testing
- Dimensions: 5.91 x 3.46 x 0.76 inches
Usage Recommendations

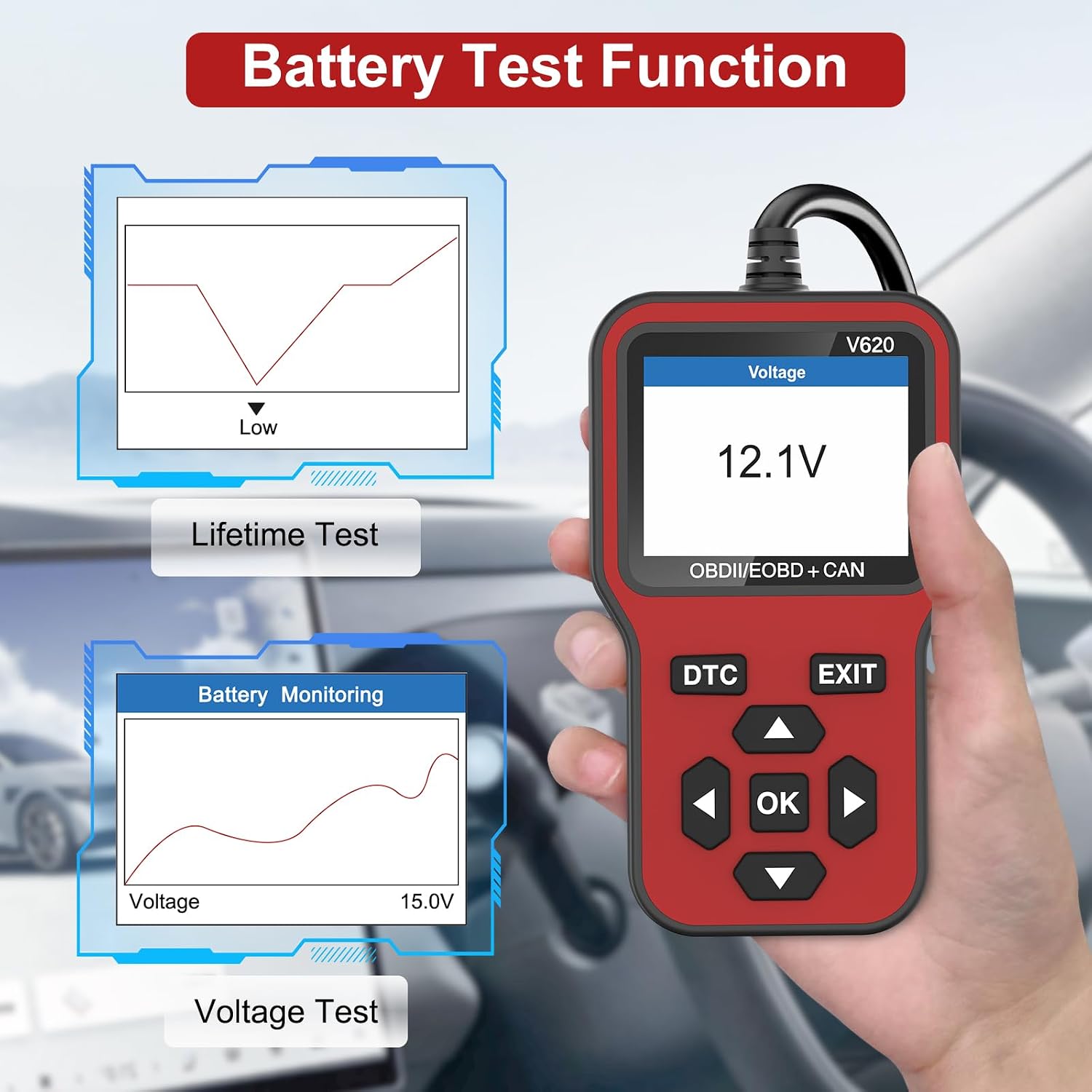

Plug the reader into the vehicle OBD2 port and power it from the vehicle battery for immediate, plug-and-play diagnosis. Use the battery tester and alternator check while cranking and at idle to compare readings and detect weak battery performance or charging faults. When a fault code appears, capture the freeze frame and consult the code definition on the unit to plan further repairs or parts replacement.
Positive Aspects
The V620 is lightweight and portable, fitting easily in a glove compartment for roadside checks and routine maintenance. Its graphical presentation of live data simplifies reading sensor behaviour and monitoring changes over time, which can help narrow down intermittent faults. The battery and alternator test adds extra value beyond basic code reading by allowing quick verification of 12 V system health. Some limitations to consider are the engine-only scope and the absence of advanced system coverage, so professional workshops may require a more comprehensive scanner for full vehicle diagnostics.
