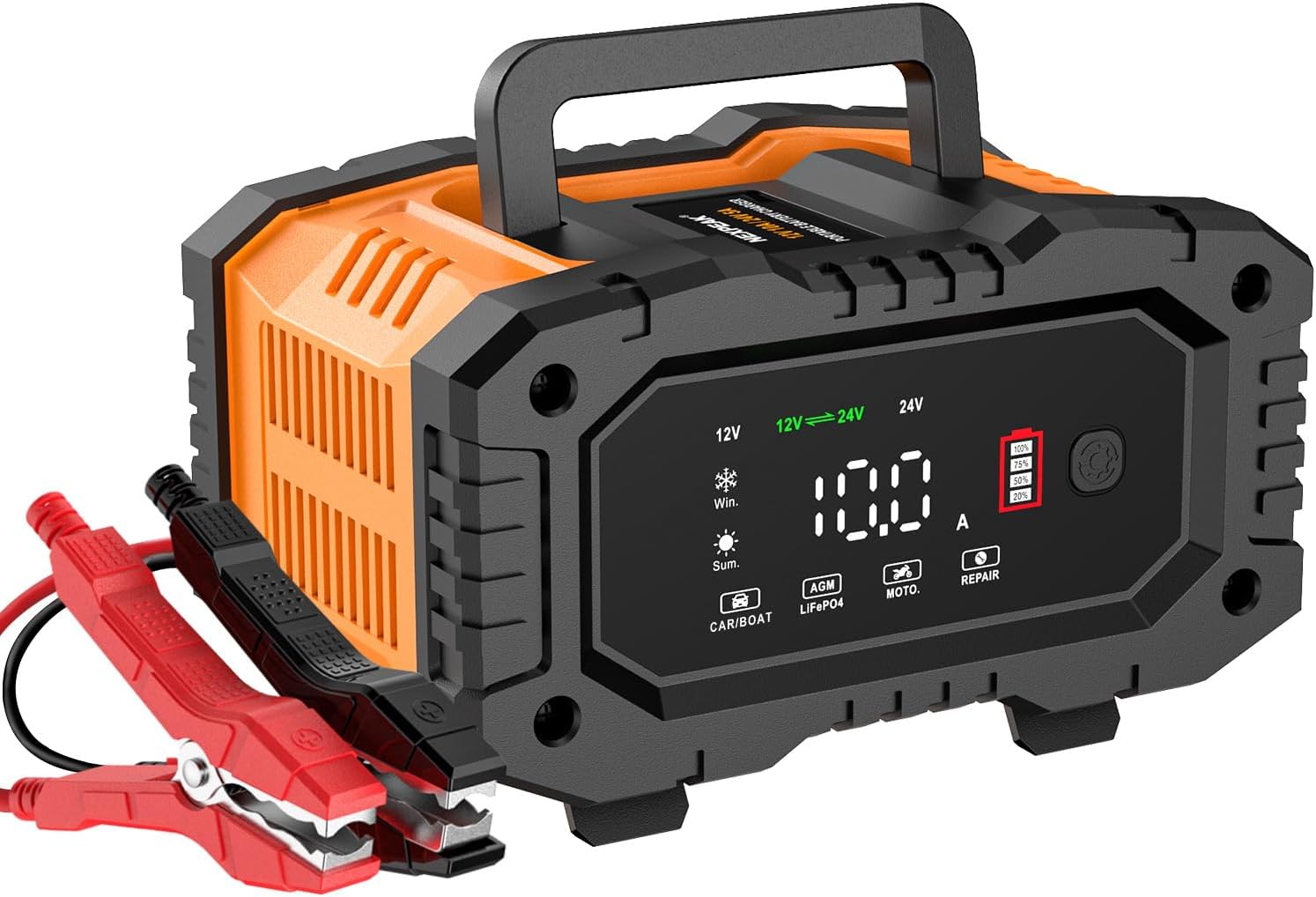

NEXPEAK Battery Charger 10A for 12V/24V

This 12 V/24 V battery charger from NEXPEAK combines faster charging with smart maintenance for cars, motorcycles, trucks and marine use, helping to keep starter and deep-cycle batteries ready for use. It supports LiFePO4 and several lead‑acid chemistries and includes temperature compensation and an automatic float mode to reduce overcharging while parked.

Key Points

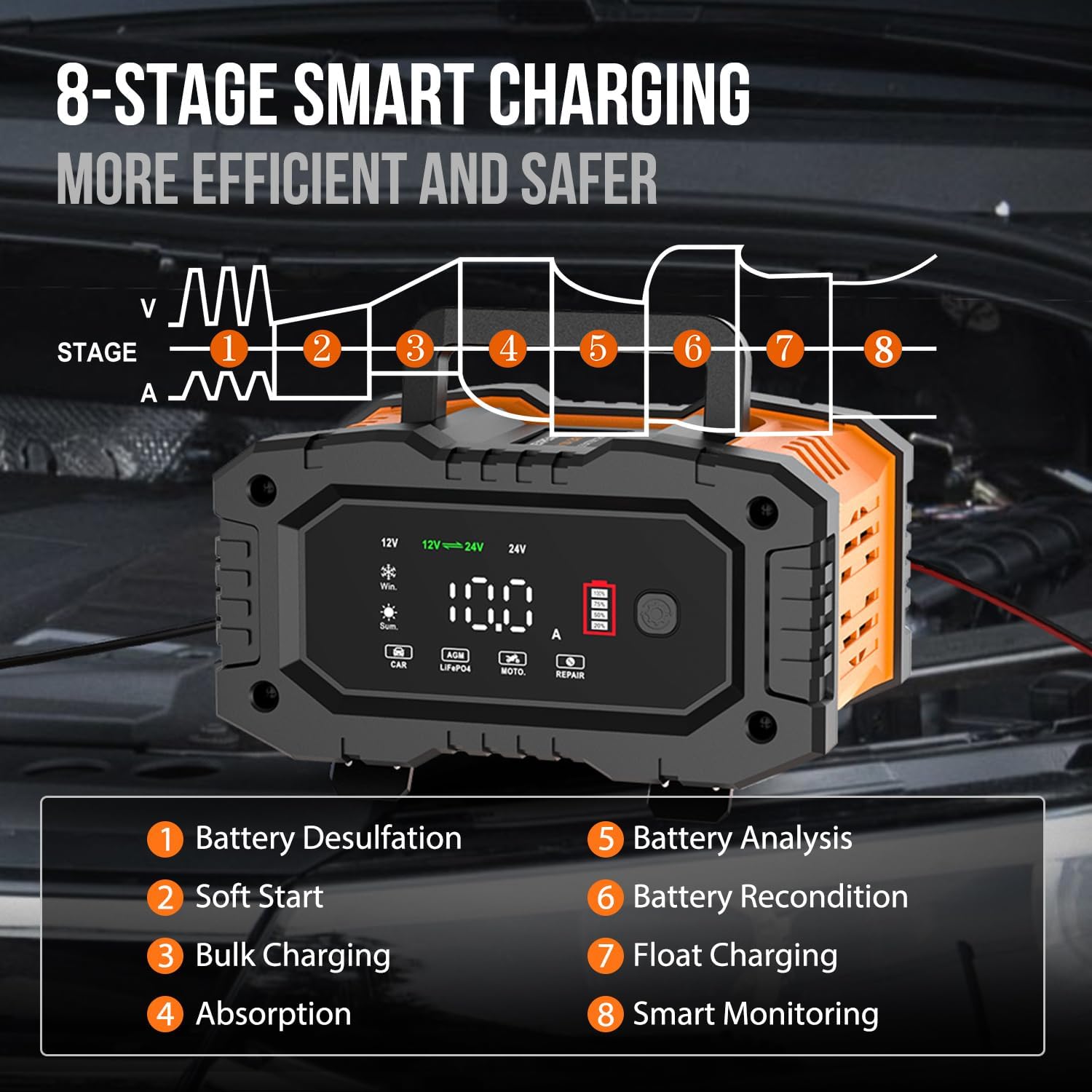

The unit offers 10 A output at 12 V and 5 A at 24 V, giving quicker replenishment than many 8 A automatic chargers and making it suitable for regular vehicle upkeep and seasonal storage. It operates an eight‑step charge cycle that includes detection and repair phases, switching to maintenance charge when the battery reaches full capacity. The charger also provides a large LCD that shows charge current, voltage, internal temperature and a percentage state of charge so you can monitor progress at a glance. ⚡

Technical Specifications

• Name: NEXPEAK 12V/24V Battery Charger 10A
• Output (12 V): 10 A
• Output (24 V): 5 A
• Compatible battery types: LiFePO4, AGM, GEL, Wet/SLA
• Display: Large LCD with voltage, current, temperature and charge percentage
• Cable length: 3 m

Advantages

The charger’s pulse repair and desulphation features can help recover some lost capacity from sulphated lead‑acid batteries, which may provide stronger starts and longer service life according to the manufacturer. Automatic polarity protection and multiple safety systems reduce the risk of misuse, and the ABS flame‑retardant casing adds mechanical robustness and corrosion resistance. The extended 3 m cable gives more flexibility when accessing awkward battery positions on cars, motorcycles or marine craft. 🔋

Usage Recommendations

Connect the charger in a dry, well‑ventilated location and ensure clamps are attached to clean battery terminals. The device automatically detects system voltage so there is no need for manual switching between 12 V and 24 V. For best results allow the eight‑step programme to complete so the maintenance phase can preserve charge without overcharging. Consider that a totally depleted battery may not be recoverable by any charger, and very large deep‑cycle banks could require a higher‑current unit for rapid servicing. 🌡️

Technical Details

• • Input/output protections: overcurrent, overvoltage, short circuit and reverse polarity

• Temperature compensation: automatic adjustment of voltage and current based on internal sensor

• Charging modes: normal charge, maintenance (float) and winter/summer modes displayed on screen
