Mounting Dream MD5420-021 soundbar bracket 6.8 kg

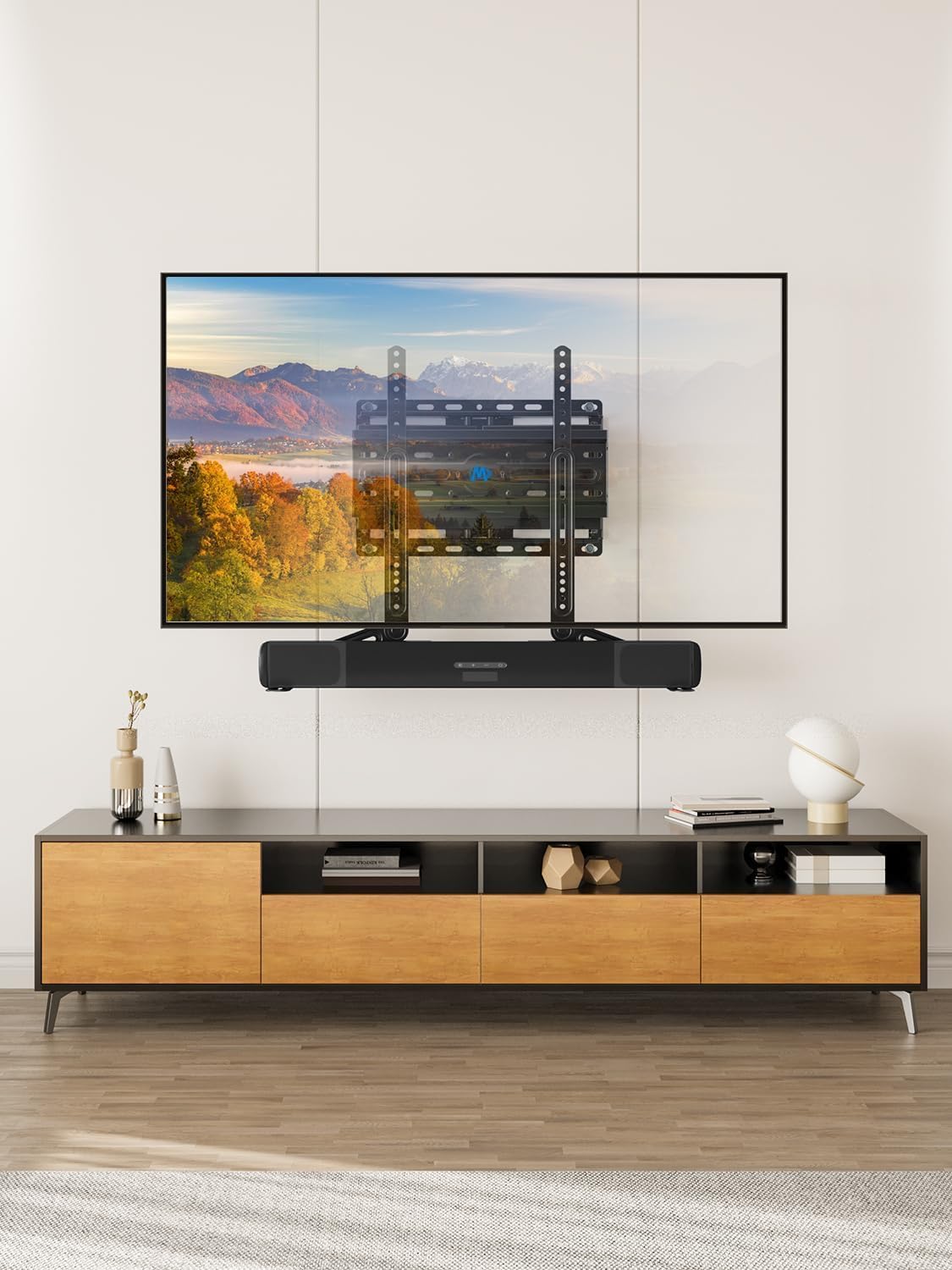

This Mounting Dream soundbar bracket lets you place a compact soundbar above or below a TV to free up space and keep cables neat. It supports soundbars up to 6.8 kg and is suitable for use with most fixed, tilt and multifunction TV wall mounts, making it a practical addition to living rooms and home cinemas where clean, integrated audio placement matters.

Key Points

The bracket includes two detachable extension plates that allow the mount to fit a wide range of VESA patterns on the back of the TV. A tool-free locking knob secures the soundbar quickly, and the toothed joints on each arm help prevent slippage during everyday use. The package also provides L-shaped brackets for soundbars with underside mounting holes, so both rear and bottom attachment points can be accommodated. According to the manufacturer, the design avoids extra screw holes in the wall by attaching directly to the TV mounting structure.

Technical Specifications

• Name: Mounting Dream MD5420-021
• Capacity: up to 6.8 kg

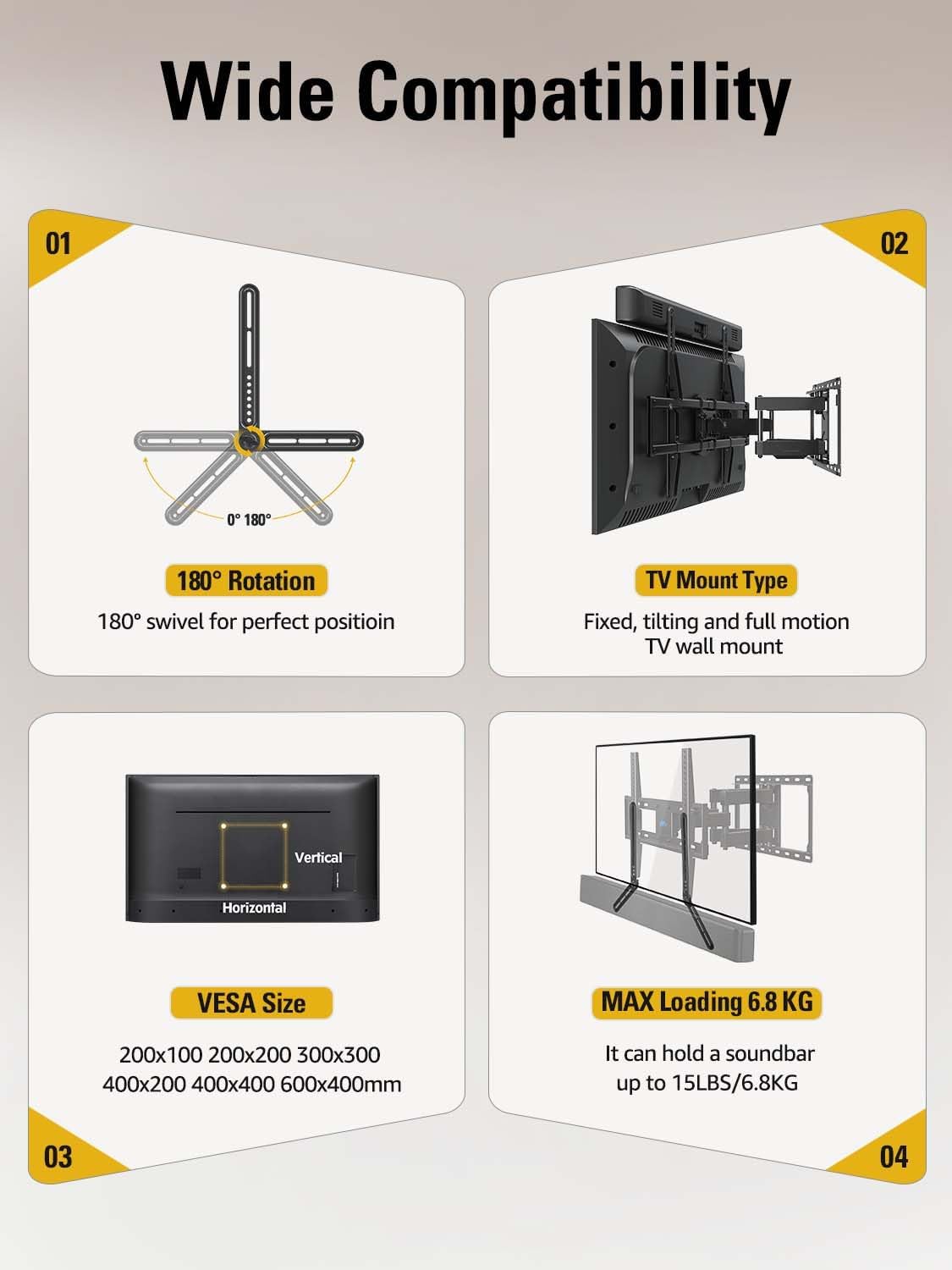

• Compatible TV VESA patterns: 200x100mm, 200x200mm, 300x300mm, 400x200mm, 400x400mm, 600x400mm, and similar

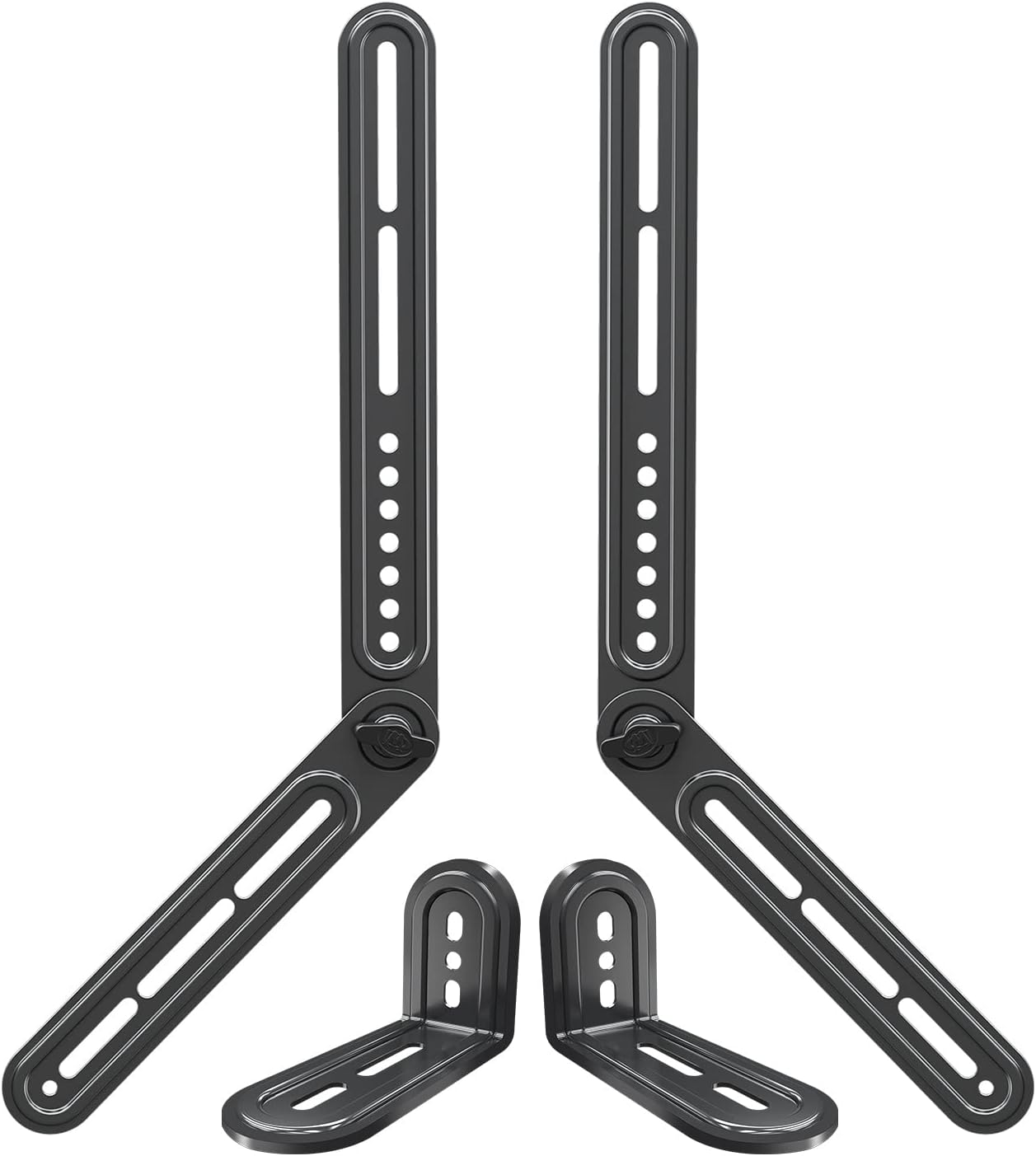

• Included accessories: two detachable extension plates, L-shaped brackets, mounting hardware, multi-language instructions

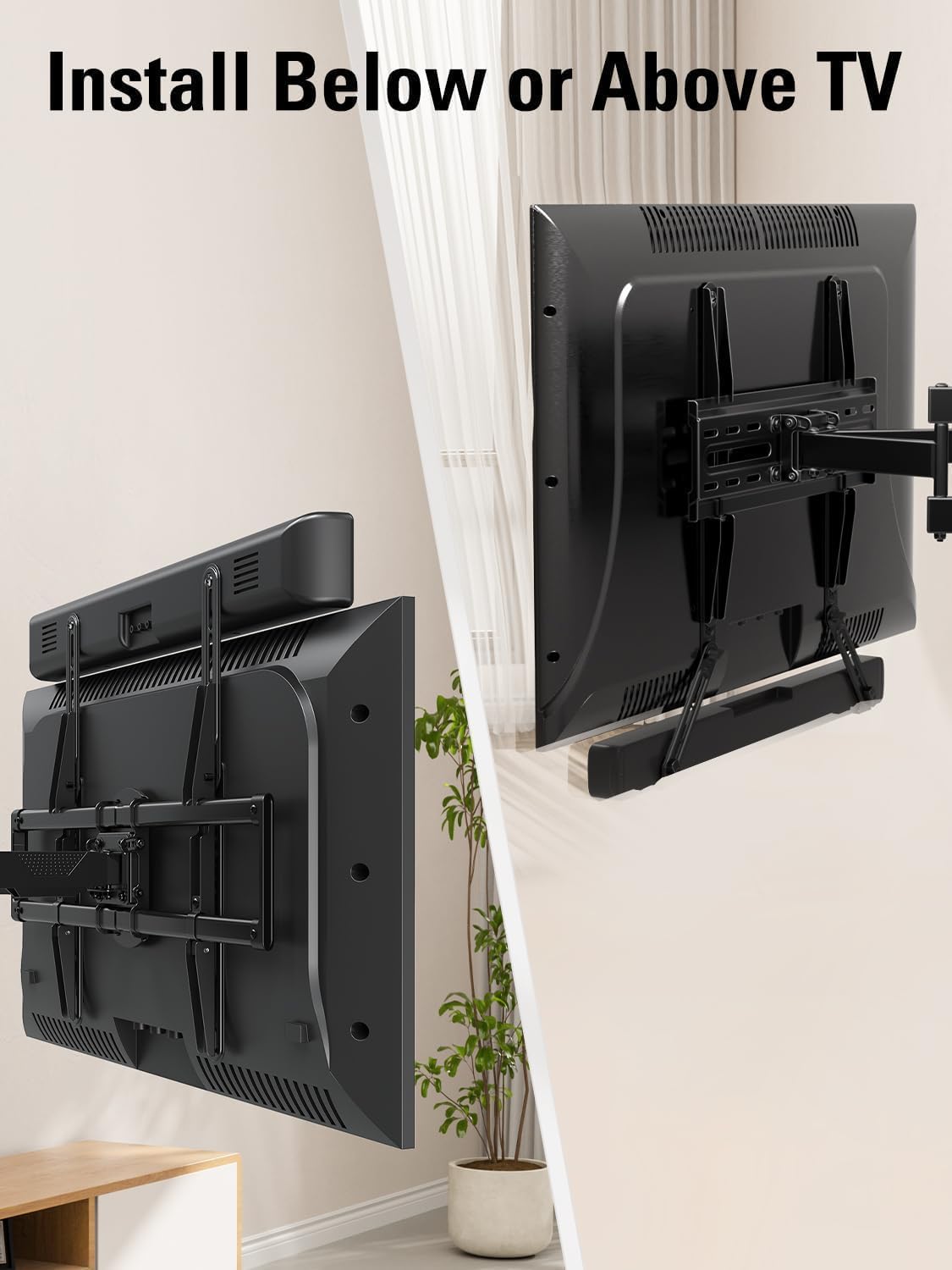

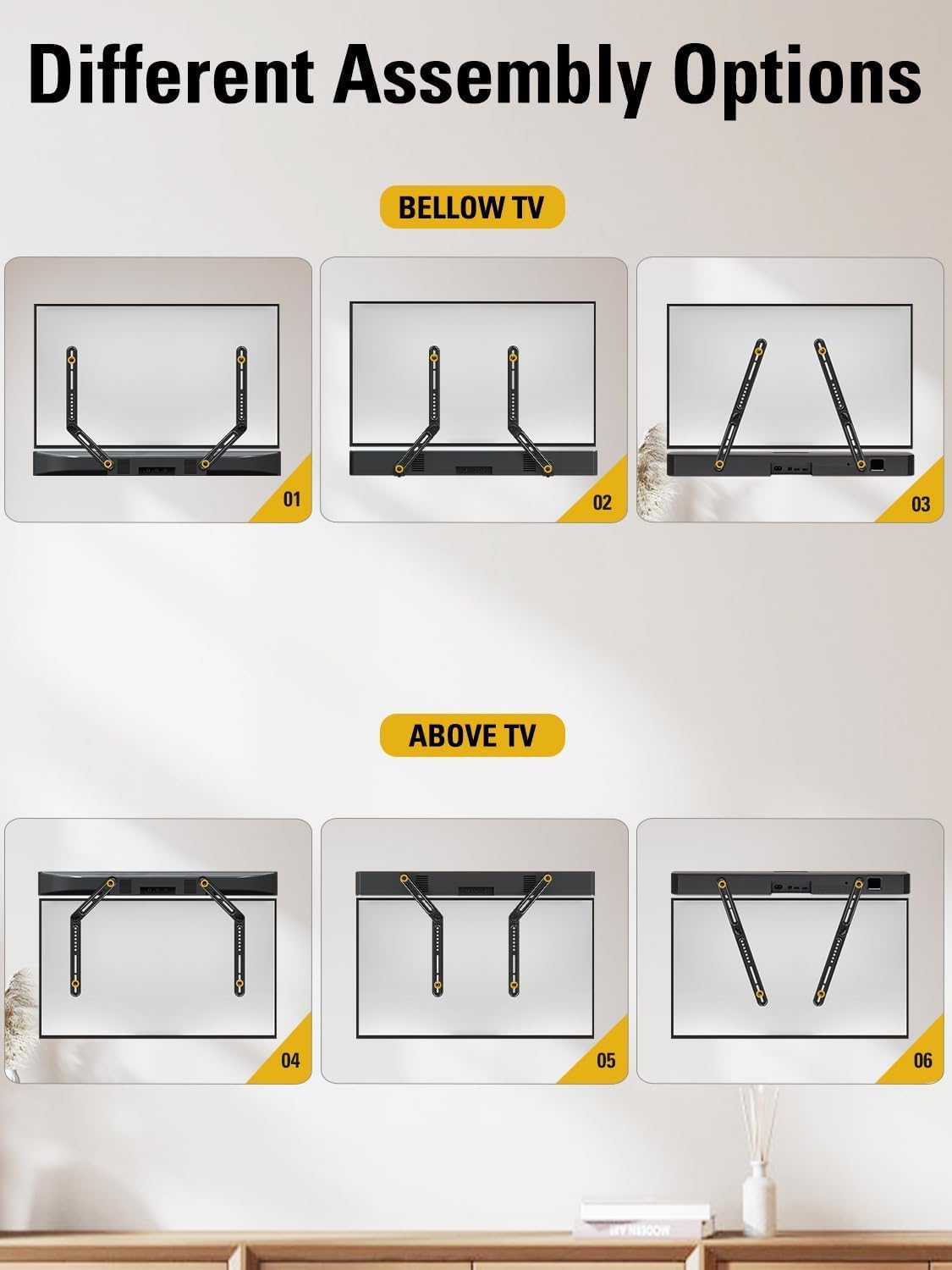

• Mounting orientation: above or below TV

Usage Recommendations

For secure installation, first confirm the TV wall bracket is rated to carry the combined weight of the TV and the mounted soundbar. Fit the extension plates to match the TV VESA pattern, then attach the bracket to the TV mounting plate following the labelled hardware bags and the illustrated instructions. The tool-free knob is convenient for adjustments once the bracket is positioned. If the soundbar has underside mounting points use the supplied L-shaped brackets to achieve a solid connection. Note that some specific Samsung soundbar models are not compatible according to the manufacturer, so check the rear mounting hole layout before proceeding.

Advantages

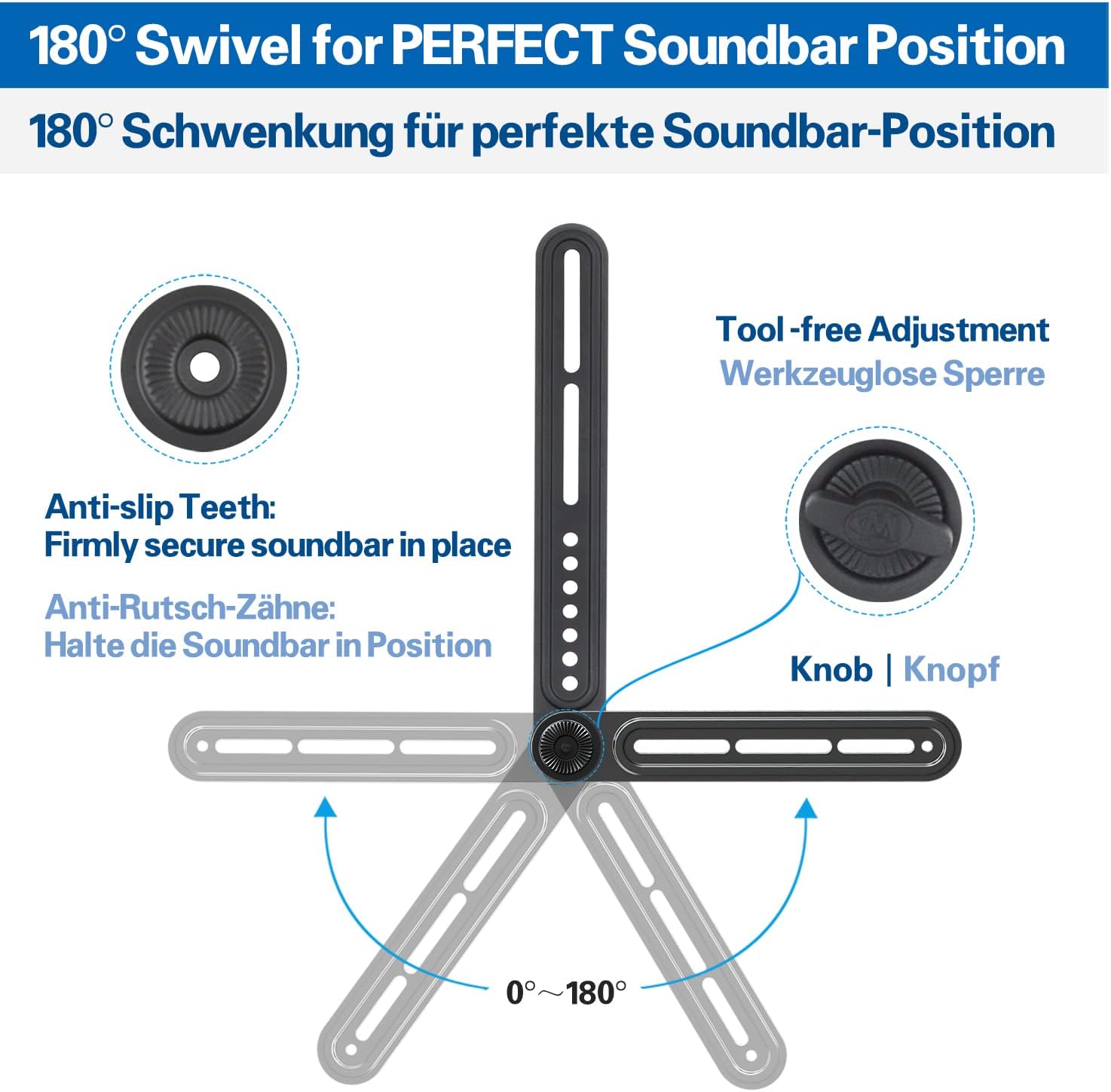

This bracket helps create a streamlined AV setup by keeping the soundbar aligned with the TV and reducing visible fittings. It offers more flexibility than many fixed mounts because the arms can rotate up to 180 degrees, allowing small adjustments to position and clearance. The included hardware and clear instructions aim to simplify a DIY installation. A possible limitation is that the mount suits compact and mid-sized soundbars only, so heavier or unusually shaped units may require an alternative solution.
