BONTEC TV Wall Bracket Full-Motion 60kg

This full-motion TV wall bracket from BONTEC gives flexible viewing for LED and LCD screens between 32 and 85 inches, combining solid load capacity with articulation for living rooms, bedrooms or dedicated media spaces. It supports heavier panels up to 60 kg and offers tilt, swivel and rotation adjustments to reduce glare and improve sightlines when mounting larger TVs.

Key Points

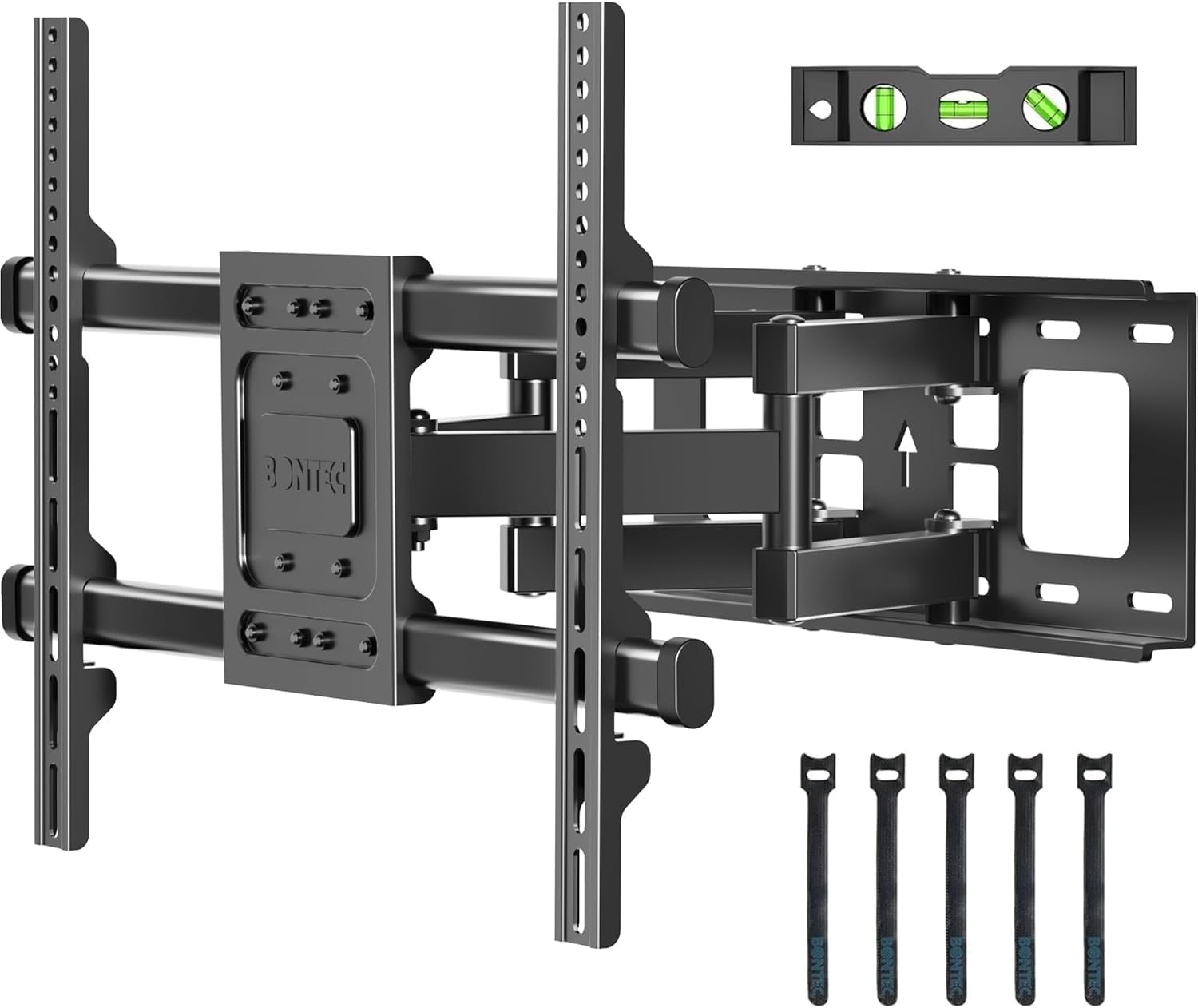

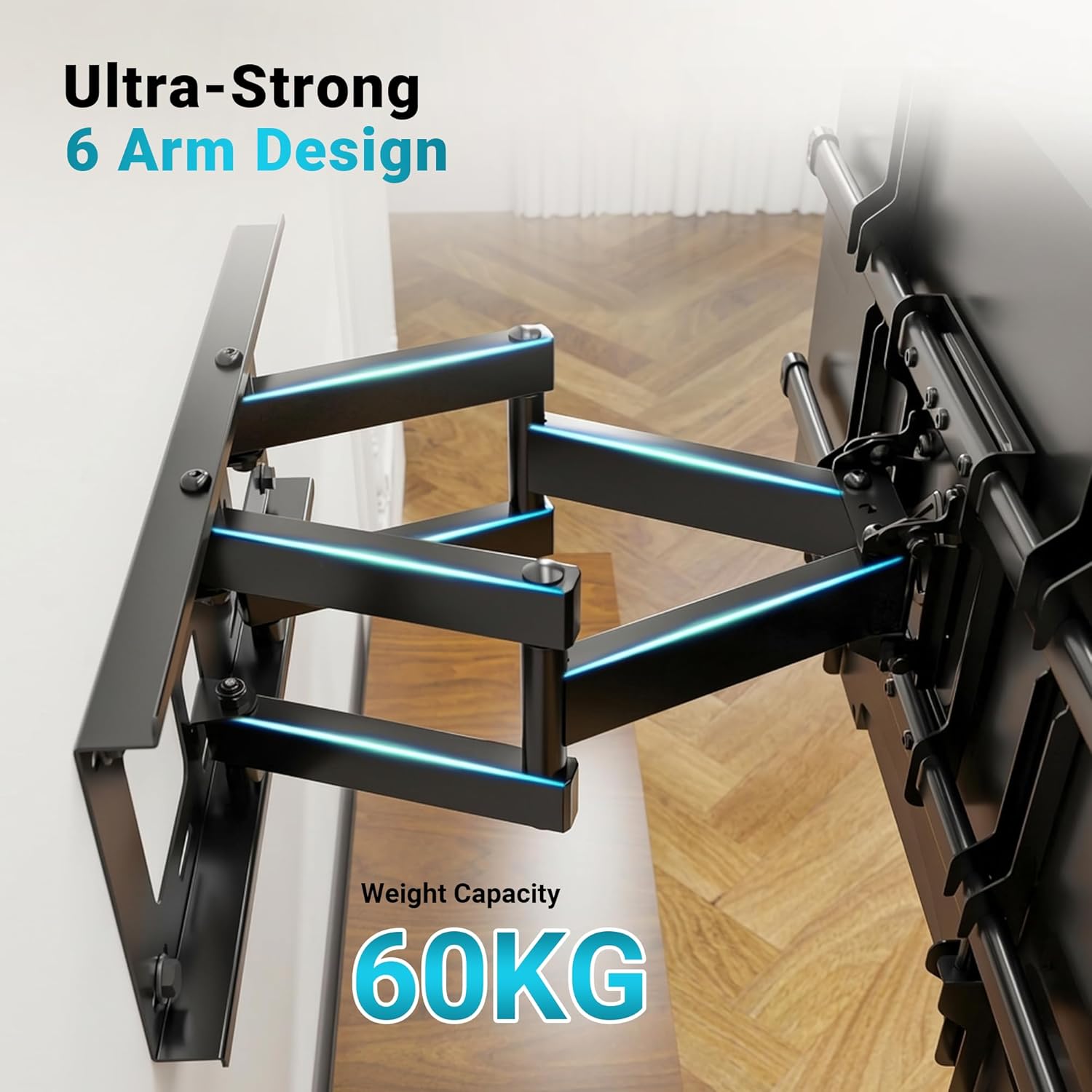

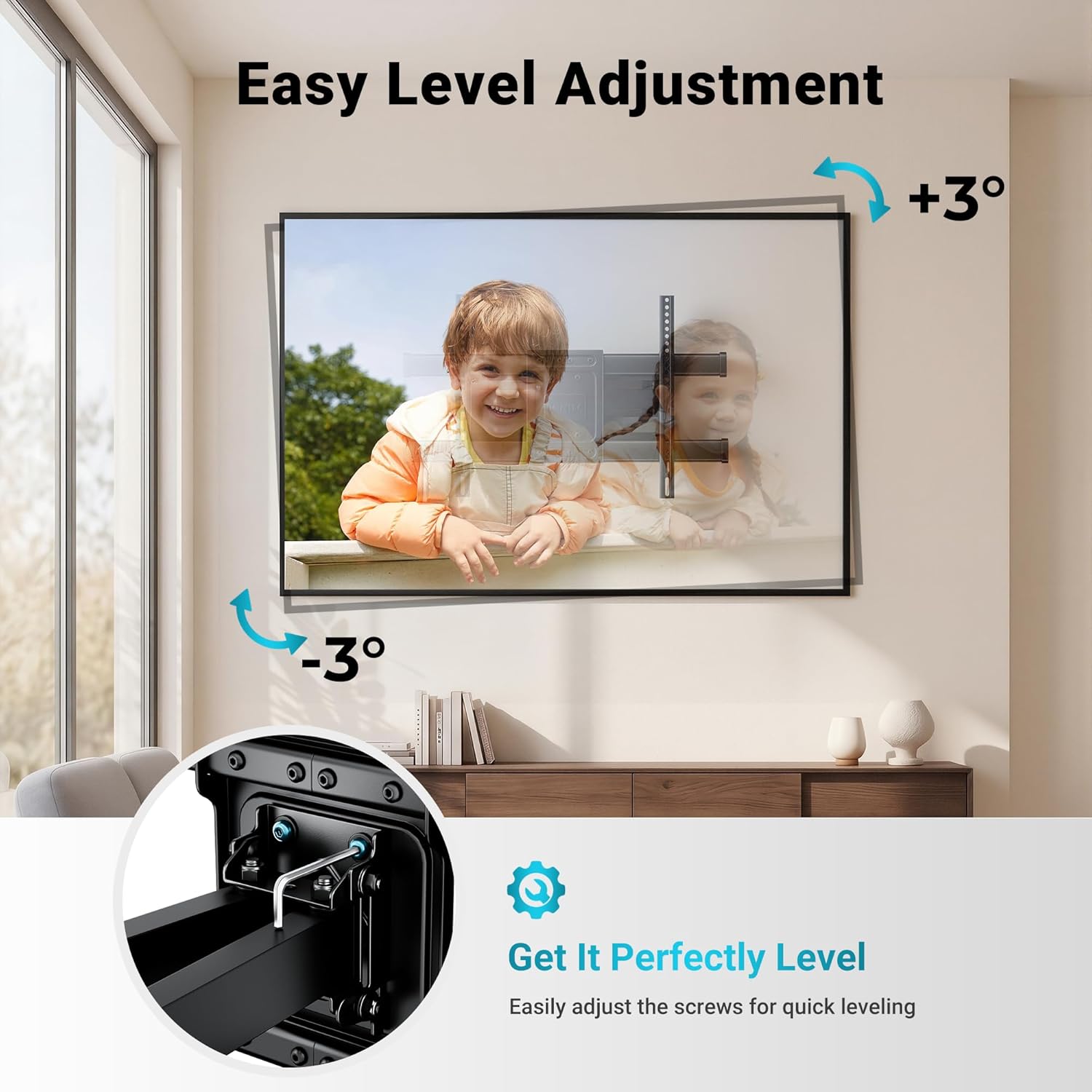

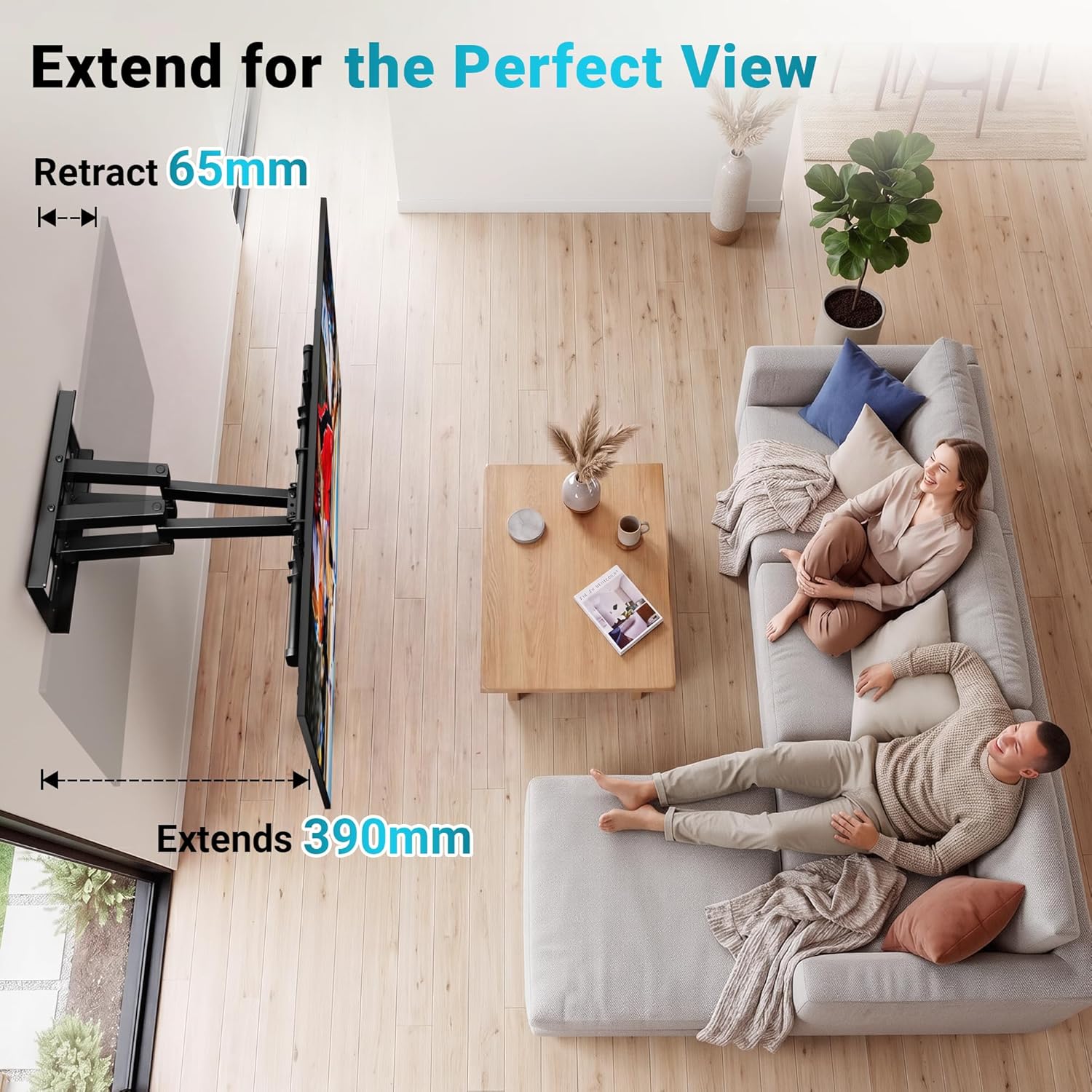

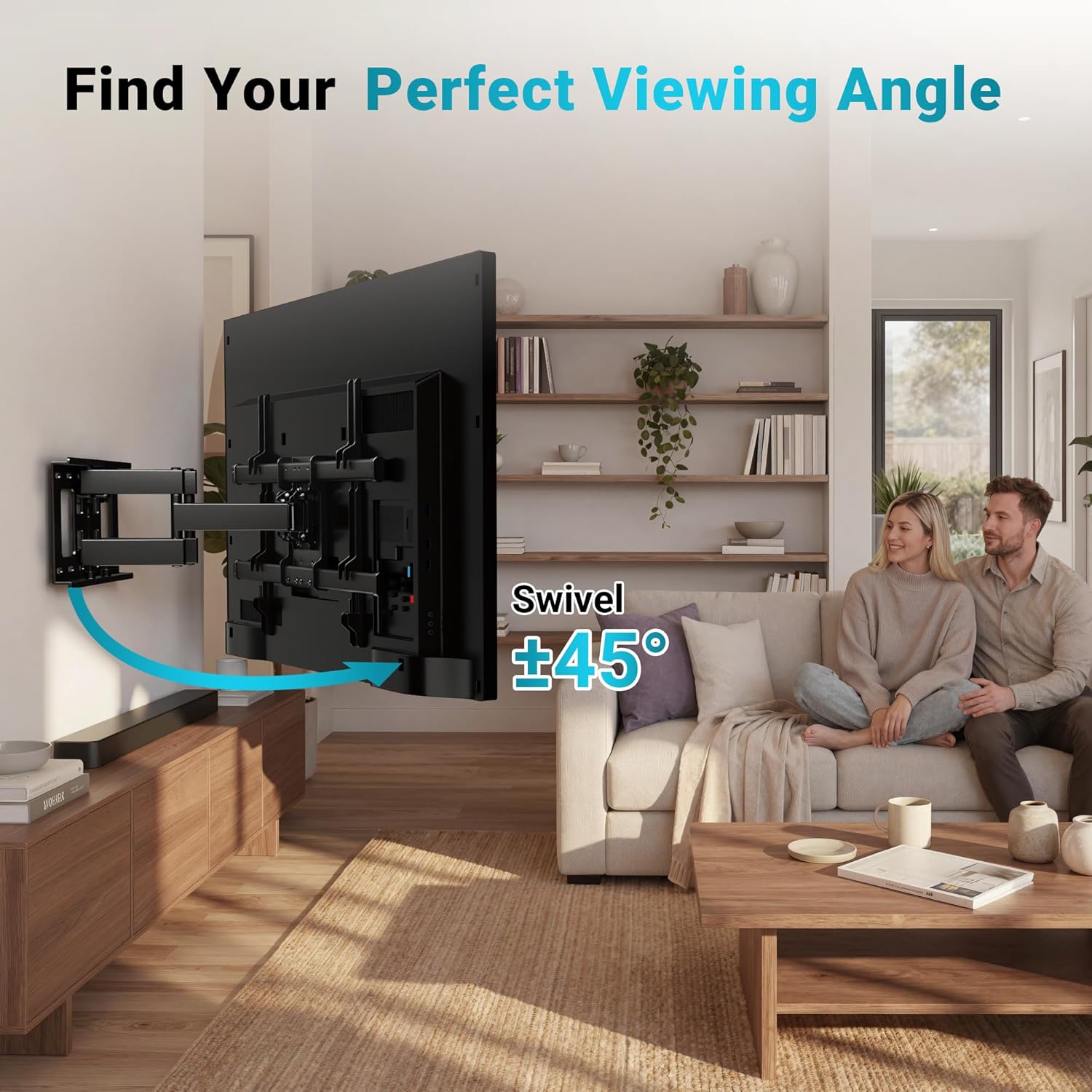

The mount uses double articulated arms that swivel approximately 45 degrees left and right, with tilt range of +20 and -20 degrees and small rotation adjustment for levelling. The arms fold back to a compact profile, keeping the screen close to the wall at around 65 mm when retracted, and extend to a maximum of 390 mm when pulled out for angled viewing or cable access. This unit includes a bubble level and cable ties to help neat installation and cable management. Consider that the maximum swivel angle can depend on the size of the television, according to the manufacturer.

Technical Specifications

• Name: BONTEC TV Wall Bracket for 32-85 Inch LED LCD

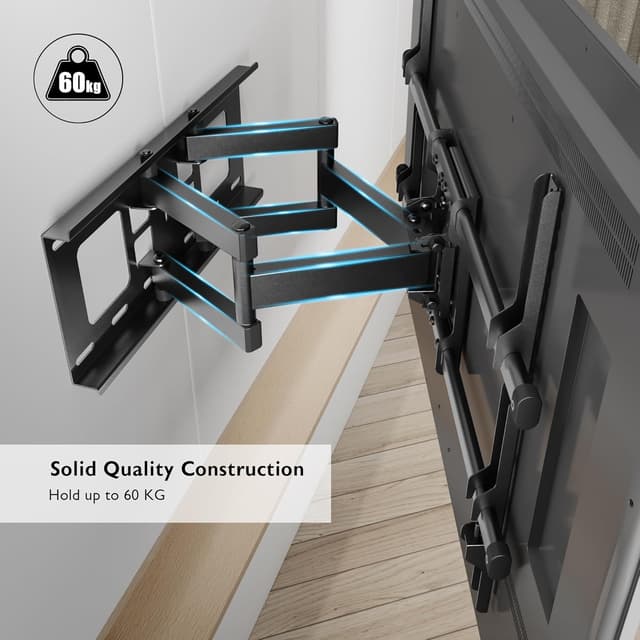

• Maximum load: 60 kg
• Supported VESA patterns: up to 600 x 400 mm
• Tilt range: +20° / -20°

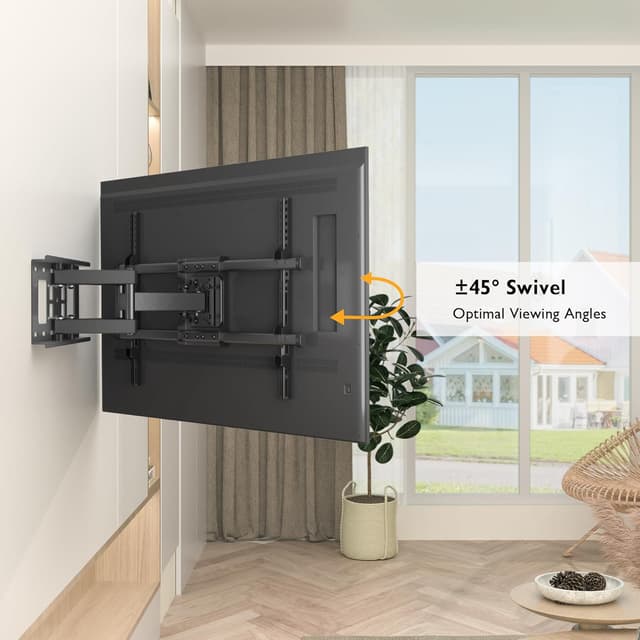

• Swivel range: ±45° (approximate, dependent on TV size)

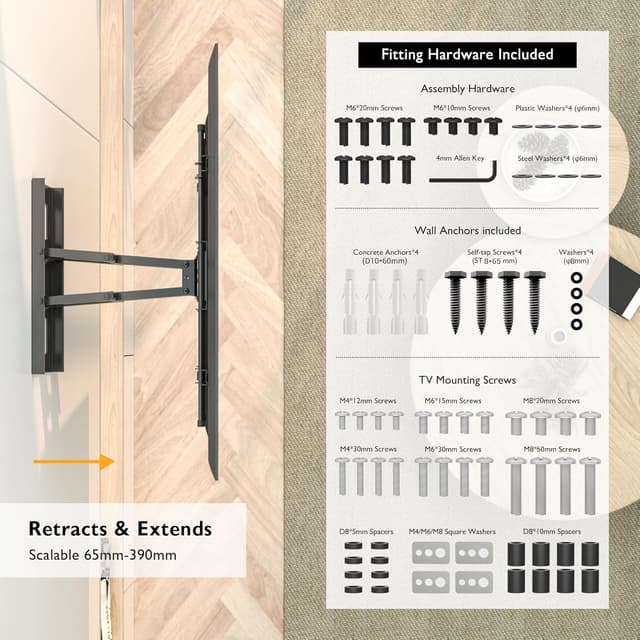

• Extension from wall: 65 mm retracted to 390 mm extended

Advantages

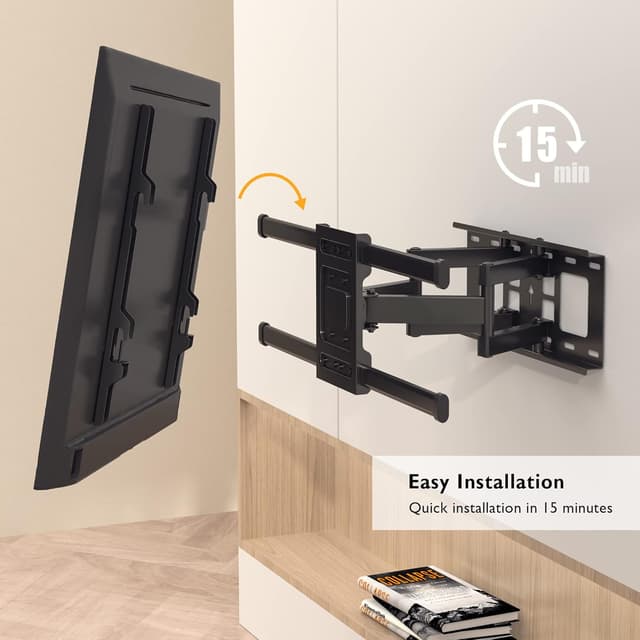

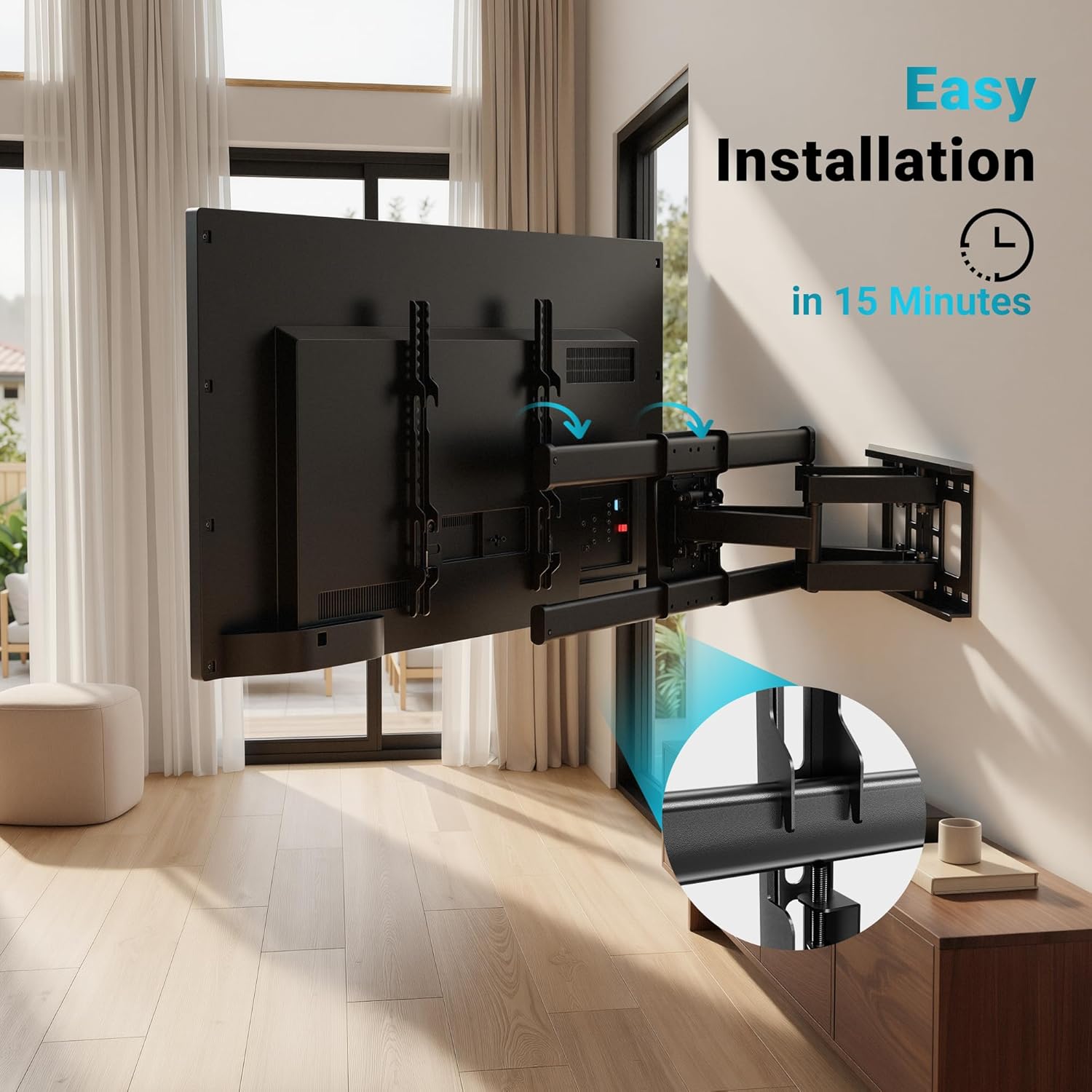

The heavy-duty construction uses cold-rolled steel with a black protective coating, which aims to resist corrosion and offer long-term stability. For users who rearrange seating or want to watch from different angles, the full-motion design allows quick repositioning of the screen without having to remount the TV. The included fitting hardware and graphical instructions simplify the process for anyone comfortable with basic DIY tasks, and the bubble level helps align the bracket before tightening.

Usage Recommendations

Before fitting, verify your television’s weight and VESA hole pattern match the mount specifications. The mount is suitable for most major brands including Samsung, LG, Sony, Panasonic, TCL and Philips when their VESA and weight match. Do not attempt installation on hollow plasterboard or soft cavity walls, as the bracket is intended for solid wall fixing. If uncertain about wall type or load-bearing capacity, consult a qualified installer.

Practical Tips

Route cables neatly through the supplied ties to keep the look tidy and to reduce strain when the arm is extended. When positioning the bracket, allow for sufficient clearance for ventilation and access to rear ports. Note that while the mount provides substantial articulation and reach, very large screen sizes may reduce swivel range and require two people to handle safely during installation.
