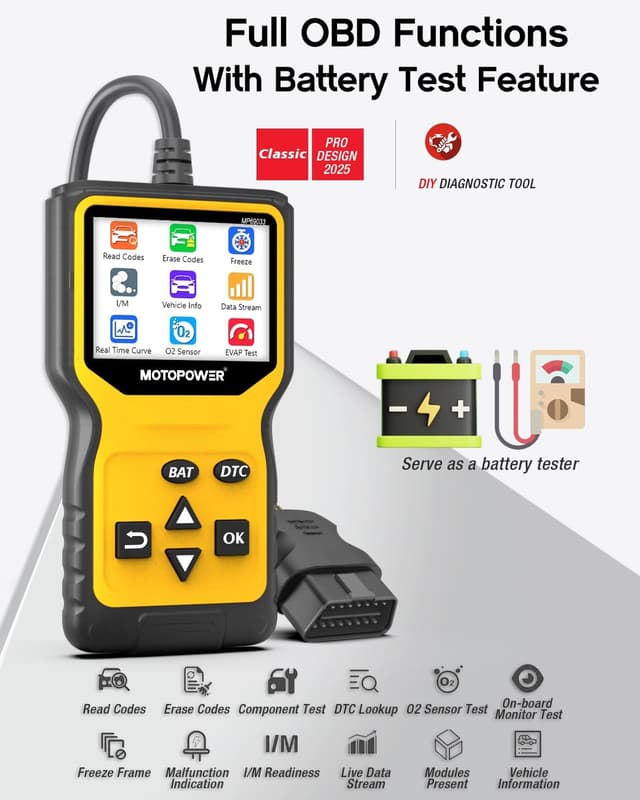

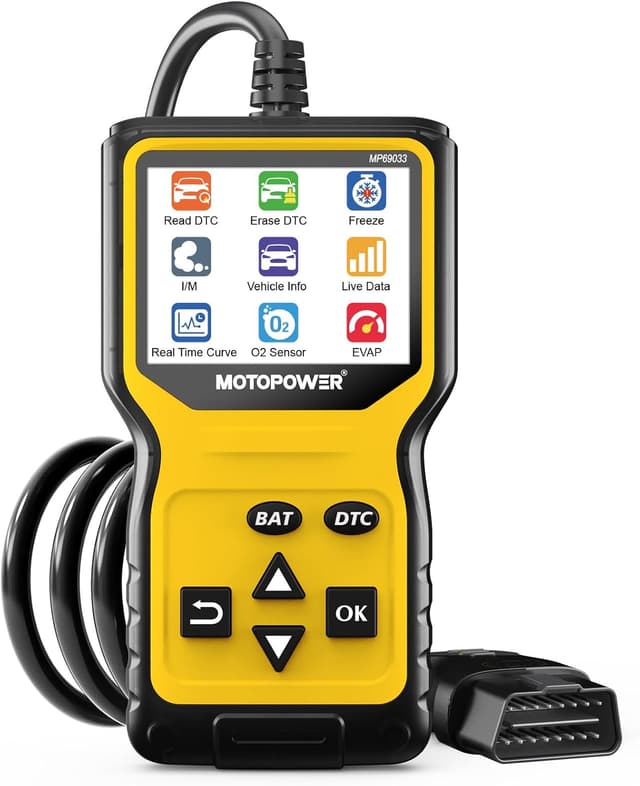

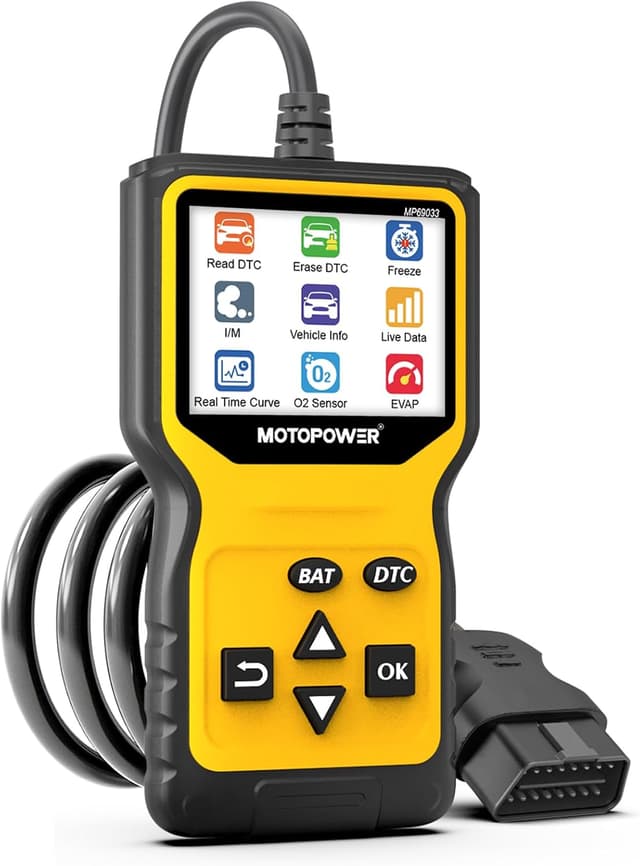

MOTOPOWER MP69033 Pro OBD2 scanner with battery test

This compact diagnostic tool combines engine code reading and battery analysis in a single handheld unit, making routine vehicle checks quicker and more informed. It is useful for checking engine fault lights before a garage visit and for monitoring 12V battery and alternator performance during regular maintenance.

Key Points

The scanner reads and clears OBD2 trouble codes and shows live data such as vehicle speed, engine speed, coolant temperature and calculated load values. It also includes a built-in code library so fault descriptions are available on screen, which helps you understand probable causes before seeking professional repairs.

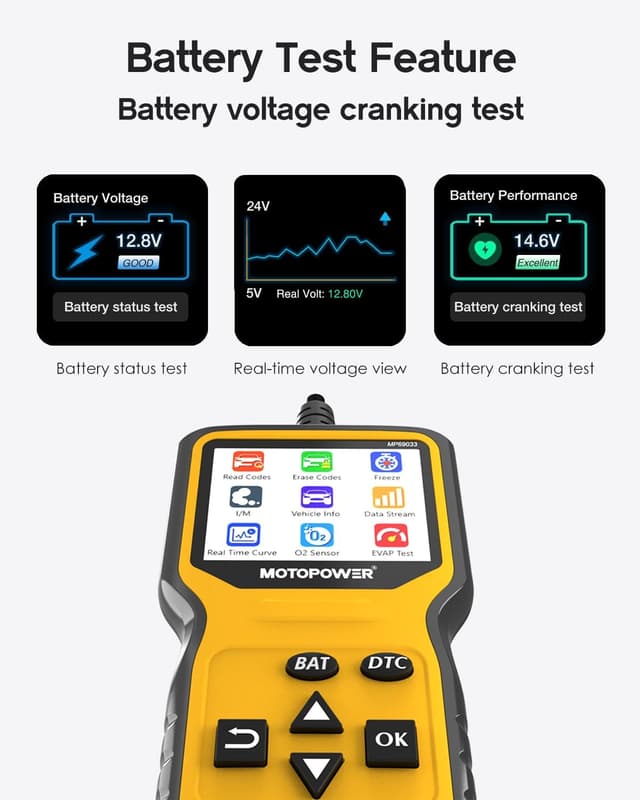

Battery and alternator testing is available with real-time monitoring and live ripple analysis that can detect diode failures. This feature allows a basic health check of 12V systems and alternator output, though test results may vary with temperature and vehicle age according to the manufacturer. The device is plug and play and does not require apps, WiFi or additional batteries, so it works straight out of the box for DIYers and workshops alike. ⚙️

Technical Specifications

• Name: MOTOPOWER MP69033 Pro OBD2 Scanner
• Screen: 2.8-inch TFT colour screen
• Supported protocols: KWP2000, J1850 VPW, ISO9141, J1850 PWM, CAN
• Languages: English, German, Dutch, Spanish, French, Italian, Russian, Chinese
• Functions: Read/Clear DTC, Freeze Frame, I/M Readiness, Live Data, Battery and Alternator Test

Advantages

This tool reduces guesswork by combining engine diagnostics with a battery tester in one unit, so basic issues can be identified at home without multiple devices. The integrated DTC library helps interpret codes, while the real-time data stream provides a clearer picture of sensor behaviour and engine parameters. Also, the extended cable and straightforward menu layout make it easier to access the OBD port in tighter engine bays.

For workshops that need a simple, fast code reader for routine checks, the faster processing chip noted in the original description aims to deliver responses more quickly than some entry-level alternatives. 🔧

Usage Recommendations

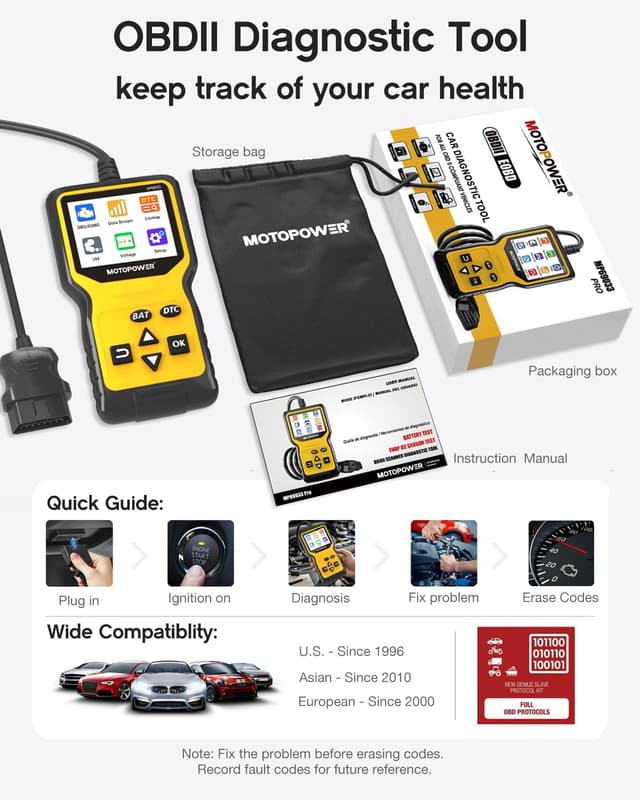

Plug directly into the vehicle OBDII port and navigate the intuitive menu to select the required test. For battery checks, perform tests with the engine off and then with the engine running to compare resting voltage and alternator output. When interpreting battery or alternator results, consider manufacturer thresholds and the possible influence of extreme temperatures or battery age on readings.

Note that ABS and airbag systems are outside the supported OBDII functions and cannot be diagnosed with this unit, so separate specialised equipment would be required for those systems. ⚠️.
