Loocam 2MP Hybrid 4-in-1 CCTV Dome Camera (1080p) with 80ft IR, IP66 for Analogue DVR Systems
Product description
Key takeaways
If you’re working with an existing analogue CCTV setup and want a dome camera that can play nicely across common HD-over-coax formats, the Loocam 2MP Hybrid 4-in-1 is built for that job. It’s a wired, hard-installed camera designed to connect to a compatible DVR, with an on-screen display (OSD) menu that lets you switch between 4 output modes.
On paper, that flexibility is the main reason to consider it. In practice, the setup depends quite a lot on what your DVR supports (and which mode you select). If you’re hoping to use it as a standalone camera with no DVR involvement, it’s not that type of product.
What it is and what it’s for

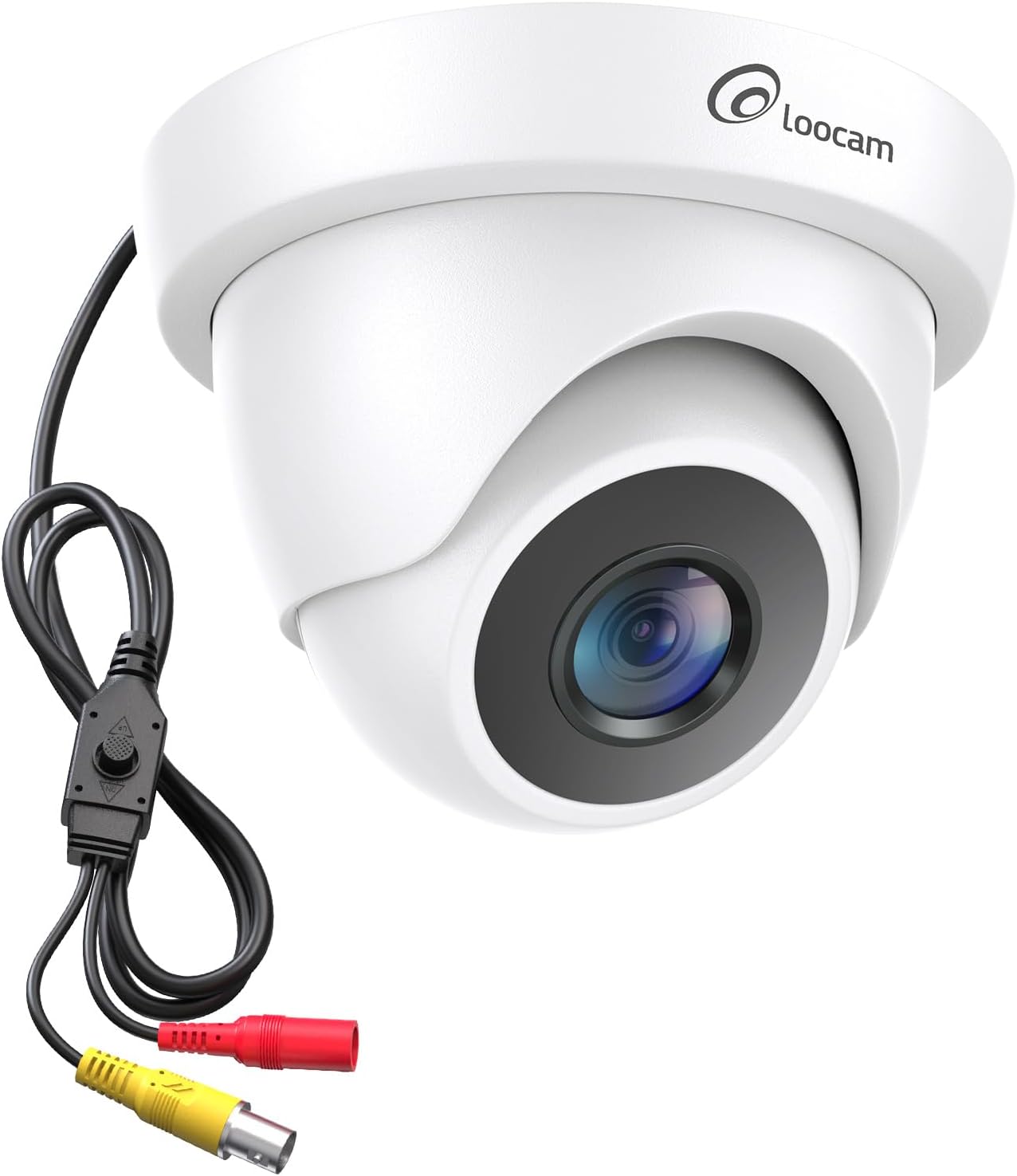

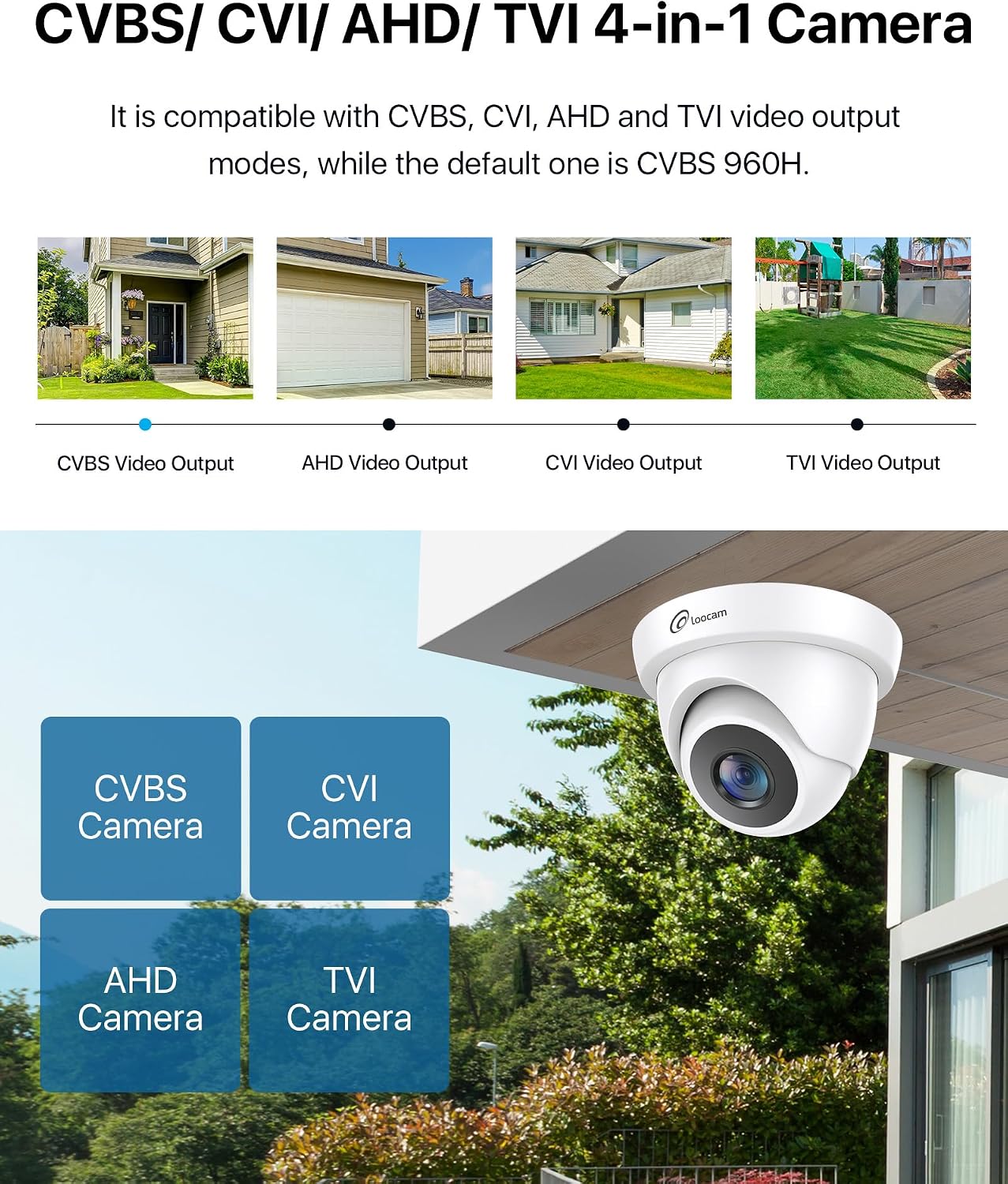

This is a Loocam 2MP CCTV dome camera for wired security systems. It’s intended for use with analogue surveillance DVRs and supports a hybrid 4-in-1 approach across HD-CVI, HD-TVI, AHD and traditional CVBS/960H analogue output.
A simple example: imagine you’re adding a new outdoor monitoring point above a driveway. You already have an analogue DVR, you run coax for the feed, and you want a cleaner image than basic standard definition. With the right DVR mode selected, this camera is designed to output either 960H (the default) or one of the HD modes.
Key features that matter day to day
The dome form factor is a practical choice for many properties, and the camera is designed for indoor and outdoor use thanks to its IP66 weatherproof rating. There’s also a built-in IR array (24 IR LEDs) for night-time viewing.

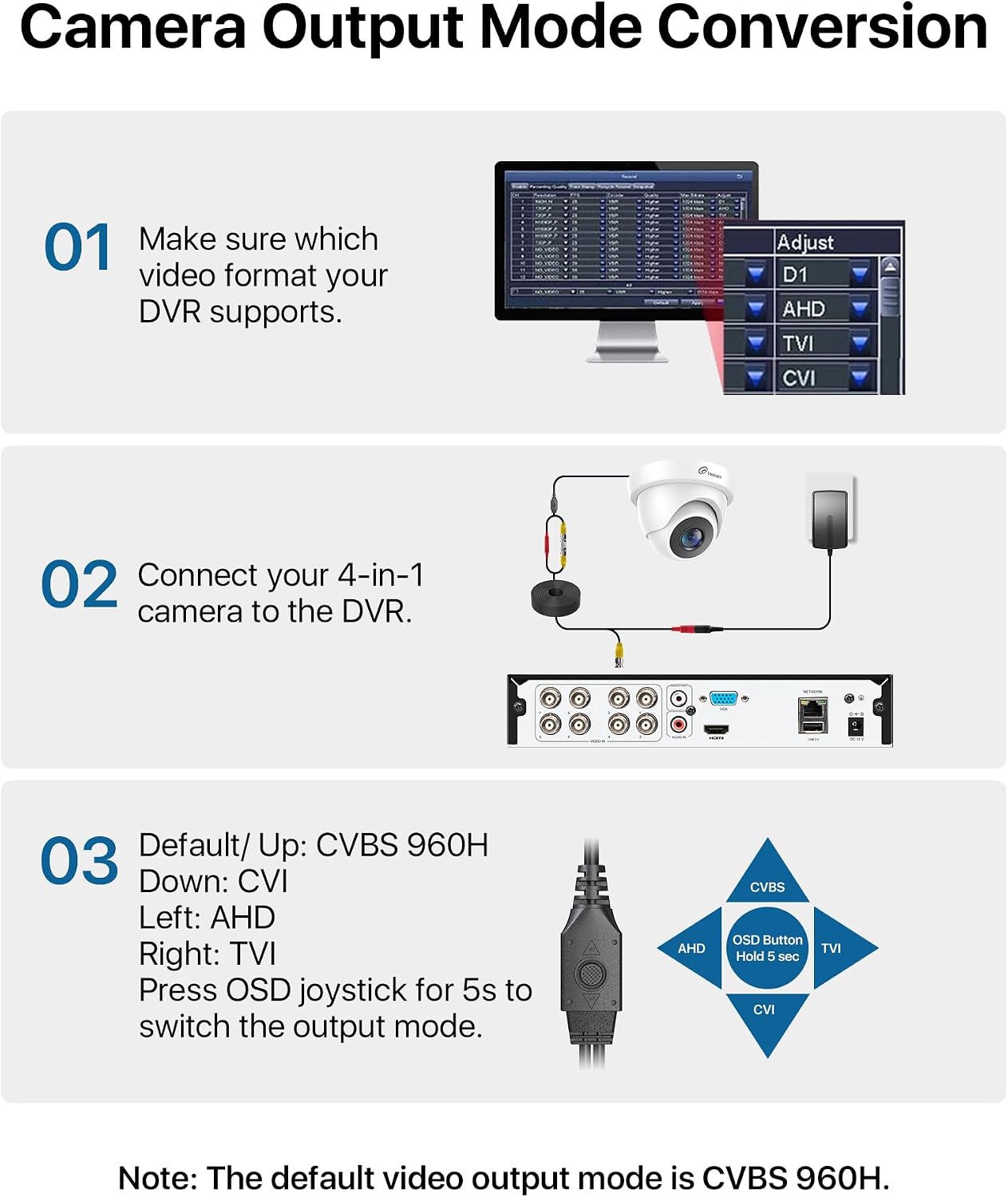

In real use terms, the switchable output modes are what you’ll feel during installation. The OSD menu allows you to change the video output mode to match your DVR type. The product notes it can be changed quickly (stated as around 5 seconds), which is helpful if you need to adjust after you’ve tested the feed.

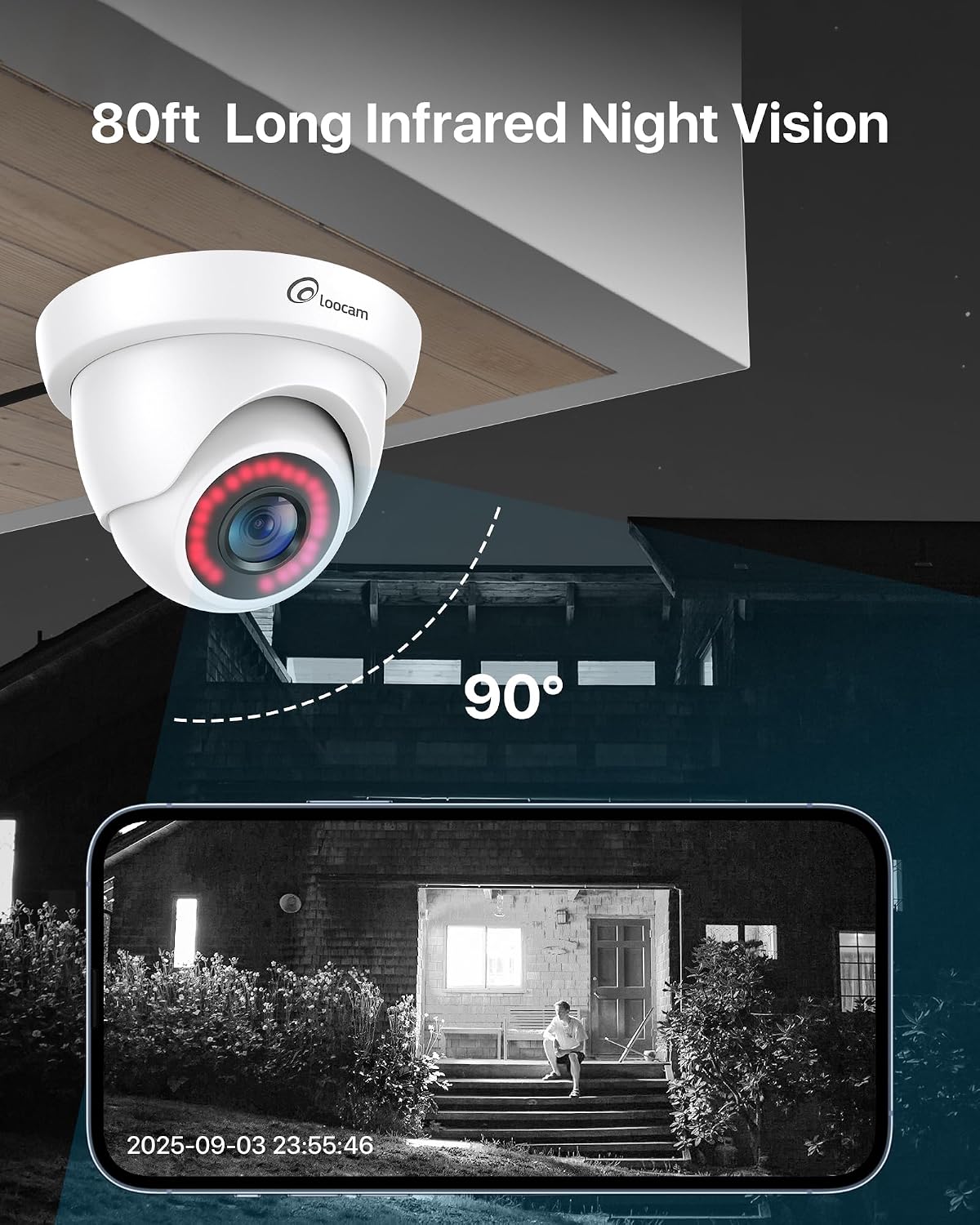

Also, the IR behaviour is described as colour in the day and black-and-white at night, with an automatic IR-cut filter. The exact range depends on lighting conditions (the listing mentions up to 80ft in total darkness and up to 100ft in ambient light).
The essentials: compatibility and limitations

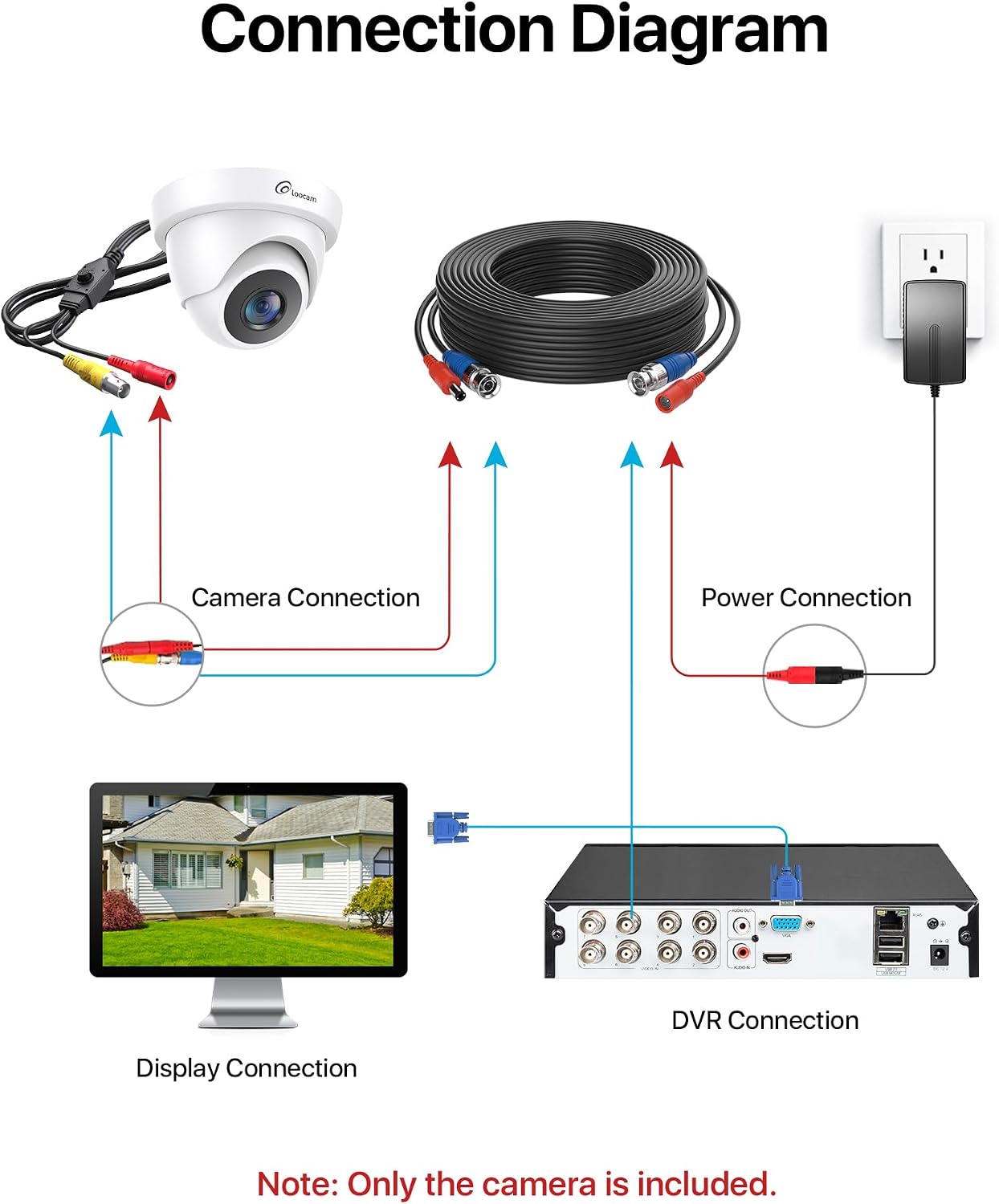

You should buy this only if your overall system is the right kind of analogue DVR setup. The camera is hard-wired and the listing is clear that it cannot work separately. It needs to connect to the DVR, and you also need to supply power and coaxial video cables yourself.

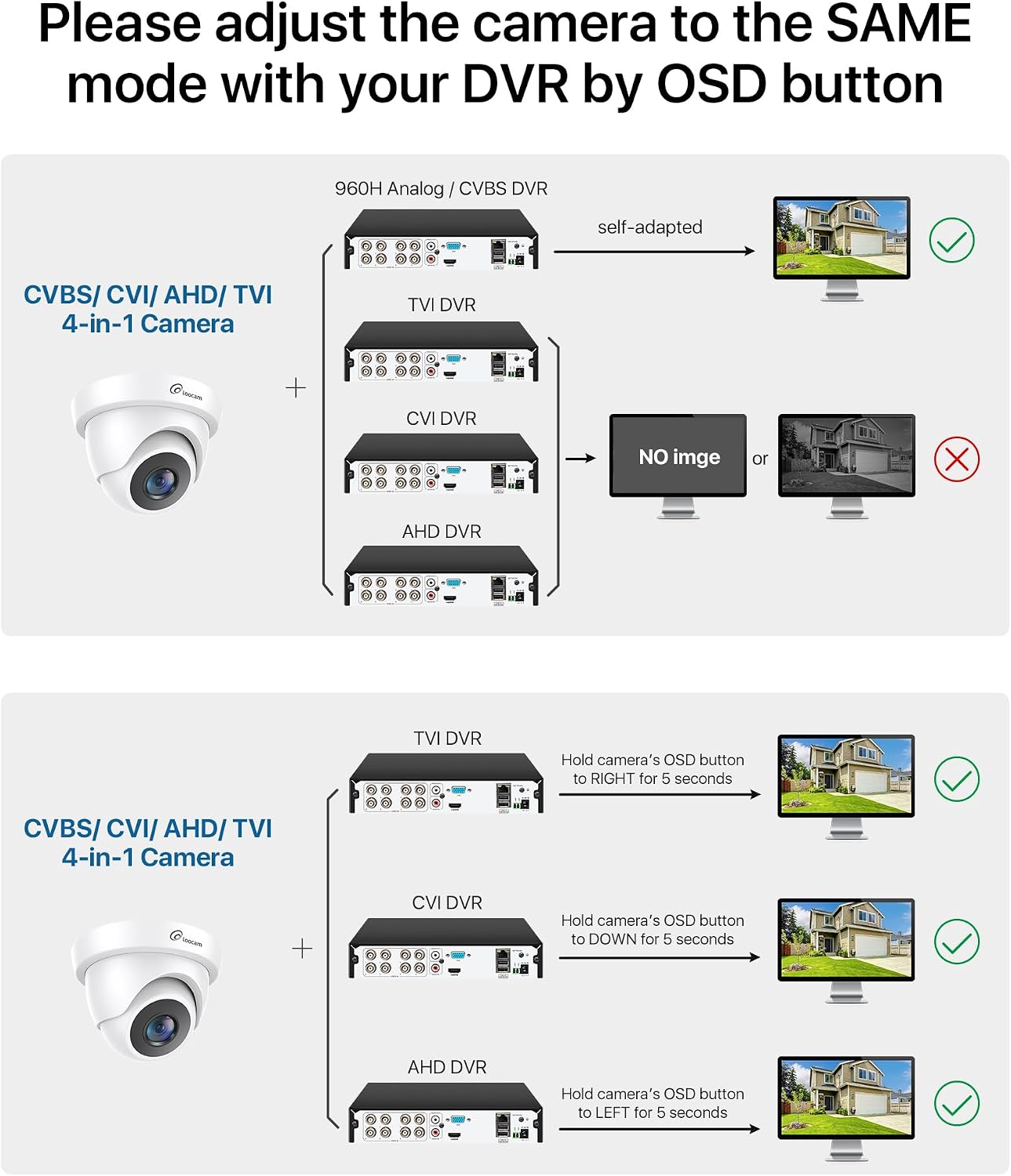

Another important note: the default video mode is stated as 960H. If you want the higher 1080P HD modes, the listing says you must switch the camera’s output mode according to your 1080P DVR type. So it’s not “plug-and-play” in the universal sense, it’s plug-and-play within the limits of your DVR compatibility.
Outdoor-ready build (and what to double-check)
The housing is described as Metal+Plastic, with a 3-axis camera stand and a cable through bracket, which should help for stable installation and weather-exposed mounting. Since it’s rated IP66, it’s aimed at tougher environments like rain or snow.
Before you buy, check that you can source the required components. The listing specifically says the camera power supply and coaxial video cables are not included. You’ll want to confirm you have (or can buy) the correct power supply and cabling for your DVR and wiring plan.
Tech overview
Tech specs
- Type: Hybrid 4-in-1 CCTV dome camera
- Resolution / output modes: 1080P (AHD, CVI, TVI) and 960H (CVBS) via selectable OSD menu
- Night vision: 24 IR LEDs with automatic IR-cut filter
- Stated night vision range: up to 80ft in total darkness, up to 100ft in ambient light
- Field of view: wide 90° view
- Weather resistance: IP66
- Housing: Metal+Plastic
- Mounting support: 3-axis camera stand and cable-through bracket
Is it worth it?
It makes sense if you already have an analogue DVR and you want a dome camera that can switch between 960H and 1080P over-coax outputs (HD-CVI/HD-TVI/AHD) using its built-in OSD menu. The IP66 rating and IR illumination are practical for outdoor or mixed indoor/outdoor placements, and the 90° view is suitable for many straightforward coverage needs.
You may want to skip it if your goal is a standalone camera system without a DVR, or if you’re not sure what video mode your DVR supports. The listing also states you’ll need to provide the power supply and coaxial video cables, so factor that into your shopping list.
If your priority is simply “one camera to match any recorder” without spending time on mode selection, this approach can feel limiting. But if you’re comfortable aligning the camera output to your DVR, it’s a sensible purchase for upgrading an existing analogue setup.
Mini FAQ
Q: Does this camera work on its own?
No. The listing says it needs to connect to a DVR to work.
Q: Which video mode does it use by default?
The default mode is stated as 960H.
Q: Can I switch to 1080P output?
Yes, the camera includes an OSD menu to change output modes, but you must switch according to your 1080P DVR type.
Q: Is it suitable for outdoor use?
It’s rated IP66 and is described as suitable for indoor and outdoor use.
Q: What’s included in the box?
The listing says the camera did not come with a DVR, power supply, and video power cable, and those are required and sold separately.
