KM10 Power Circuit Probe Kit: All-in-One 12V/24V Automotive Tester
Product description
What it is and what it solves

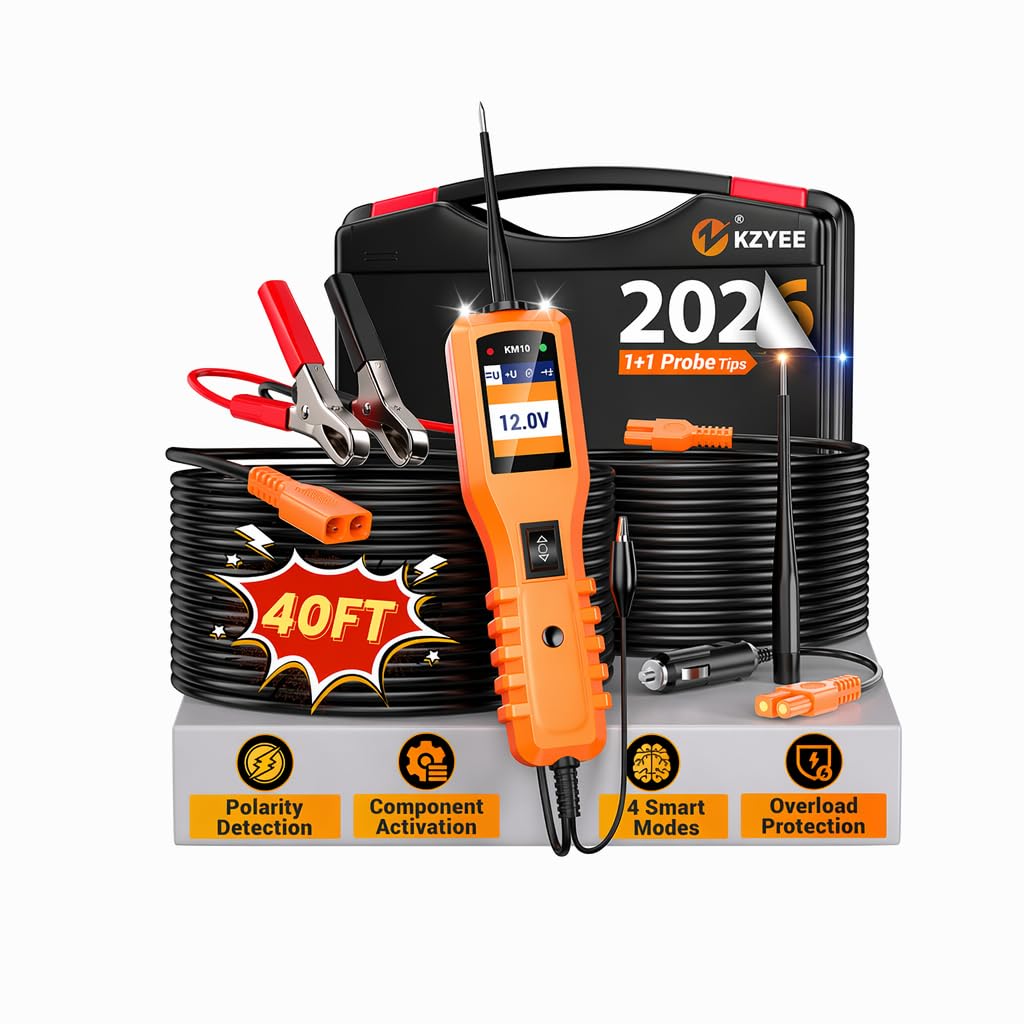

The KM10 Power Circuit Probe Kit is an all-in-one automotive circuit tester and live current/voltage analyser. It combines voltage, polarity, resistance, continuity, diode testing, duty cycle, ground, signal, and component activation into a single handheld tool. The aim is to help diagnose shorts, opens and bad grounds without dismantling panels, across a wide 6–30V system range. It also doubles as a current probe and real-time signal visualiser, enabling you to see live DC/AC voltage, frequency and waveform under load. If you prioritise speed and confidence in diagnosing intermittent faults, this kit is designed to reduce guesswork and potential part misjudgement.
How it works in practice
On the screen you’ll see a live colour waveform and status indicators. The red/green LEDs plus audible cues offer quick guidance, so you can identify faults like weak sensors or unstable grounds as they occur. The tool is aimed at diagnosing components such as injectors, PWM signals and sensor outputs, helping you decide whether to replace a part or rewire before committing to a replacement. Its extendable reach — 20ft plus 20ft of cable — makes long vehicles, trailers or RVs workable without unplugging the battery.
What stands out (pros)
The KM10 is praised for its breadth of capability in a single unit. It allows you to test live signals and verify functions by activating components directly through the probe, which can save hours of diagnostic time. The auto-reset 10A breaker adds a layer of safety, reducing the risk of sparks or blown fuses when probing sensitive circuits. The large colour TFT display makes complex signals easier to interpret at a glance, and the integrated work light helps you stay productive in dim engine bays.
What may give you pause (cons)
The device packs a lot of functions into one tool, which means there can be a learning curve for accurate interpretation of readings if you’re new to electrical diagnostics. Some users might find the range of features overkill for casual DIY tasks, and the instrument’s performance is ultimately limited by the quality of the vehicle’s wiring and the user's ability to interpret waveform data. It isn’t a universal replacement for a dedicated oscilloscope or professional testing gear, especially in highly specialised diagnostic scenarios.
Who it’s for
It’s well suited to professional mechanics and serious DIY enthusiasts who regularly troubleshoot automotive electrical systems, including cars, trucks, motorcycles, trailers and boats. If you work with ECU signals, injectors or sensor outputs and want a single tool to power up and verify functions before parts replacement, this kit can be a pragmatic investment.
Who it isn’t ideal for
If your work is limited to basic voltage checks or you rarely diagnose intermittent faults, a simpler tool may suffice. If you require industry-grade oscilloscope features or highly precise automotive data logging across multiple channels, this kit may not fully meet those demanding needs.
When it makes sense to buy
Consider this kit when you value a comprehensive, portable tester that provides live insight into circuits under load. It’s particularly useful when you want to verify component activation, check for hidden faults and avoid unnecessary part replacements.
Before you buy: quick checks
- Confirm that your typical vehicle systems fall within the 6–30V range and that you will benefit from real-time waveform visuals.
- If you often work in dark spaces, the integrated light is a helpful feature, otherwise, you may rely on external lighting.
- Ensure you understand how to interpret the colour waveform and the safety implications of using an auto-reset circuit breaker.
How this compares to alternative approaches
For many deployments, a dedicated multimeter or a basic tester can reveal straightforward faults but may miss intermittent issues or driver-signal faults under load. The KM10’s strength is diagnosing under real-world operating conditions, where signals are live and components operate within a circuit. If you need absolute signal fidelity or higher channel count, a more advanced diagnostic scope could be worth considering.
FAQ (practical, non-technical answers)
- Can I test both DC and AC signals with KM10? Yes, it reads live DC/AC voltage and signals, showing frequency and duty cycle.
- Do I need to remove panels to use it? No, it is designed to help locate shorts, opens and bad grounds without extensive disassembly.
- Is the tool safe to use around high currents? It includes a 10A auto-reset breaker for protection, but you should follow standard automotive safety practices.
Is it worth it?
Worth considering if you regularly diagnose automotive electrical faults and want a single tool that links diagnostics to direct component activation, with a focus on fault isolation and practical workflow rather than purely theory.
