KAIWEETS HT100 voltage tester 12V–1000V 🔌📟

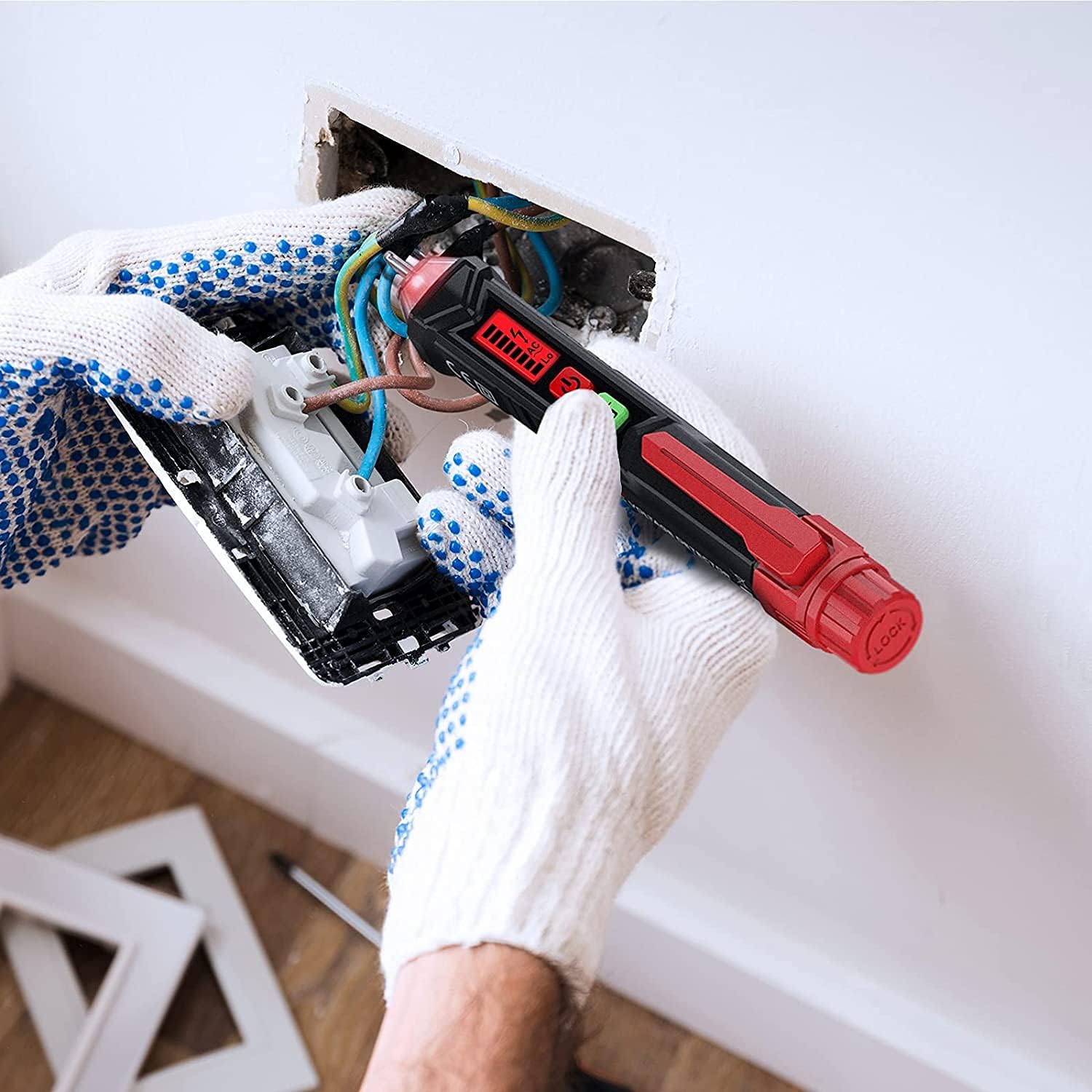

This compact voltage tester helps quickly identify live and neutral conductors and gives audible and visual alerts for detected voltages. As a non-contact voltage tester it allows safe checks on outlets, terminal strips and supply cords, making basic electrical troubleshooting faster and more convenient 😊.

Key Points

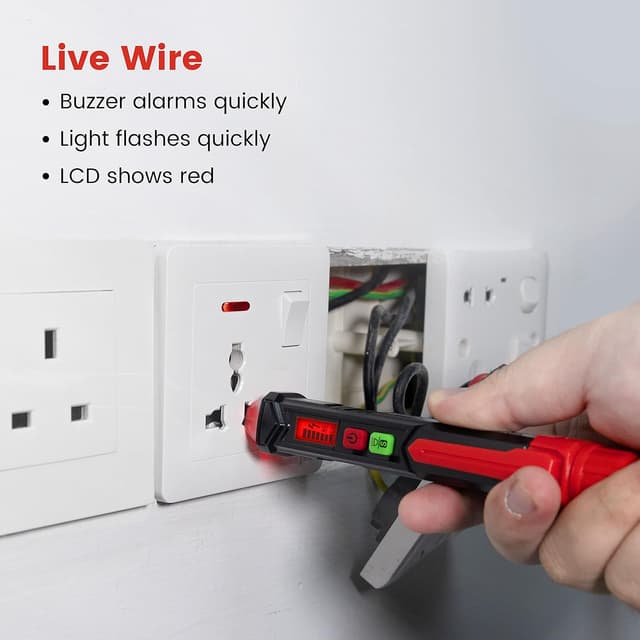

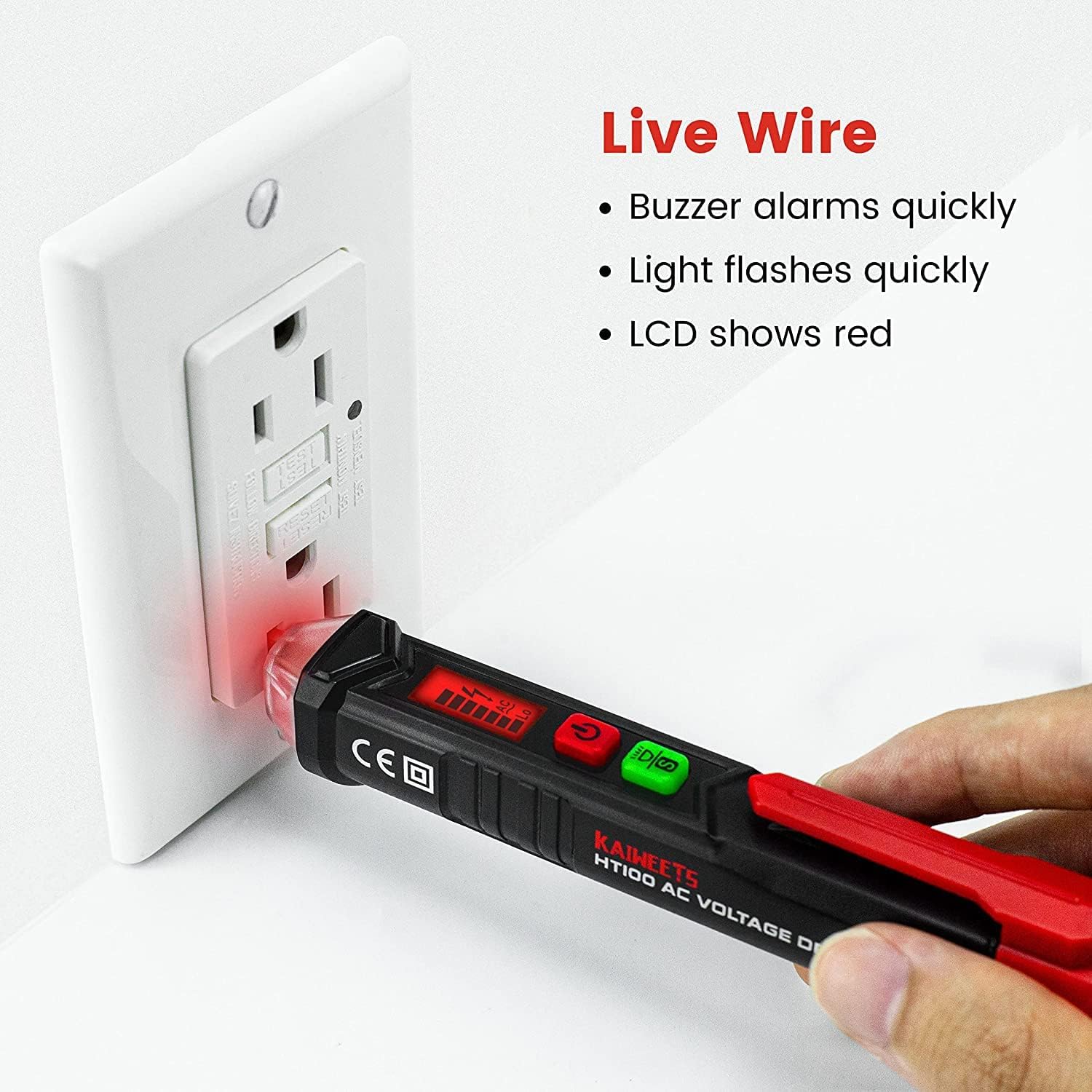

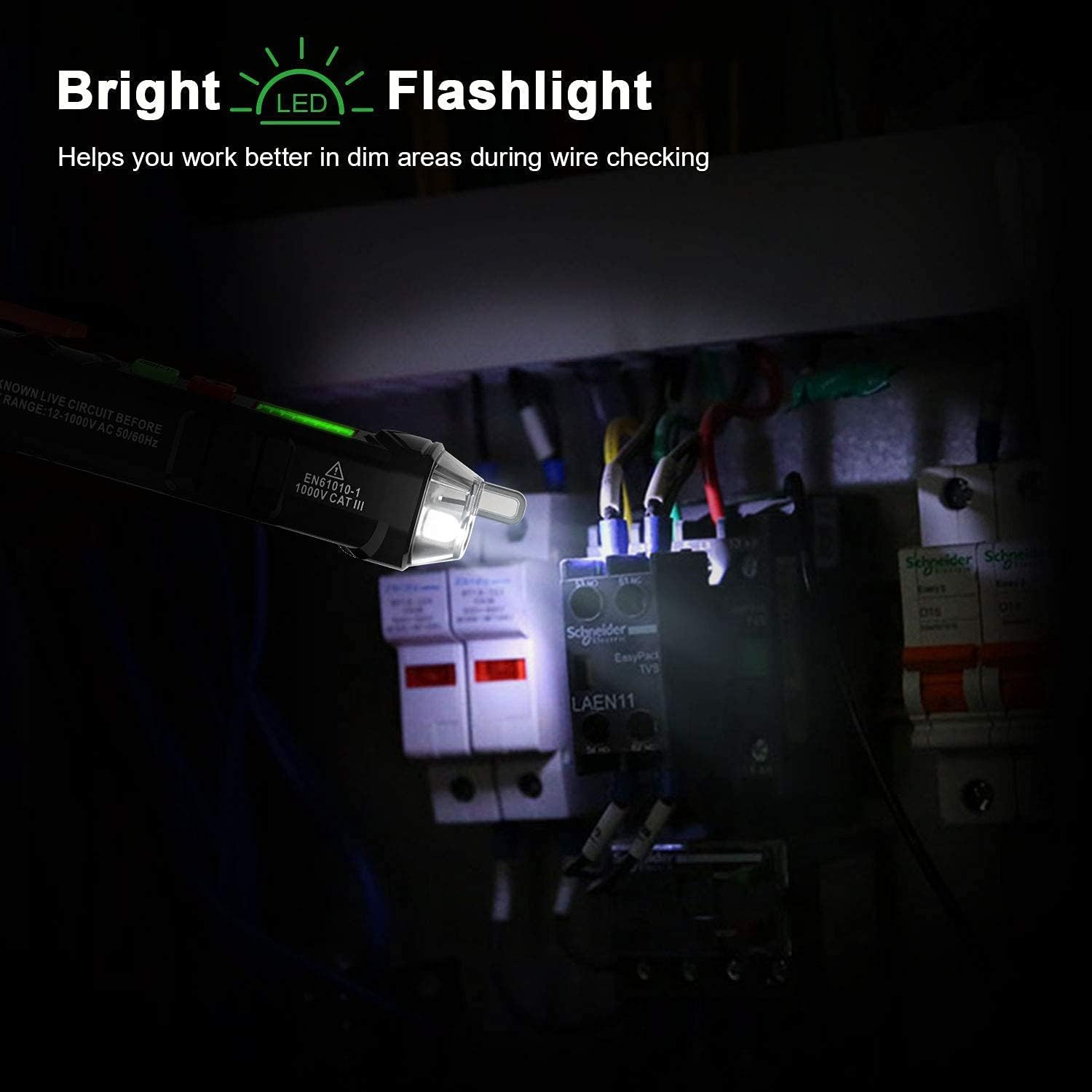

The probe uses an NCV inductive sensor that glows red and emits a beep when voltage is present, with beep frequency rising as the detected voltage or proximity increases. The display changes colour to indicate higher or lower voltages, with red signalling higher voltage and green showing lower or null readings. There is a bright built-in LED torch for working in poorly lit spaces, and the unit will automatically switch off after three minutes without activity to conserve battery life.

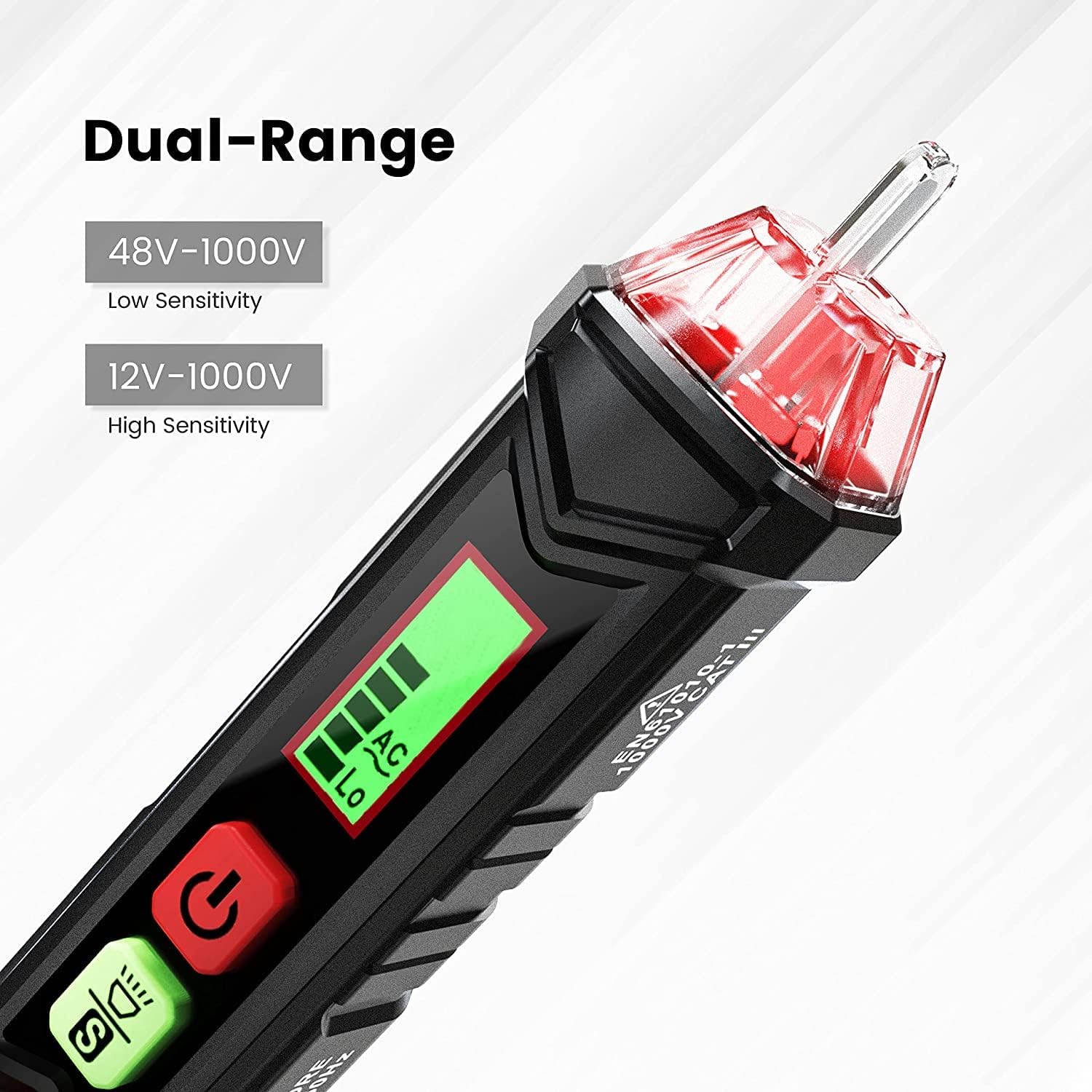

This model offers sensitivity adjustment to switch between a low and standard detection range, which can help when checking doorbells, thermostats or irrigation controls. According to the manufacturer, the device meets IEC safety ratings for CAT III 1000V and CAT IV 600V, and features double insulation and a high voltage alert that lights a safety symbol when readings exceed 90V. ⚡

Technical Specifications

• Name: KAIWEETS HT100 Voltage Tester
• Detection ranges: 12–1000 V AC and 48–1000 V AC
• Safety rating: CAT III 1000 V, CAT IV 600 V

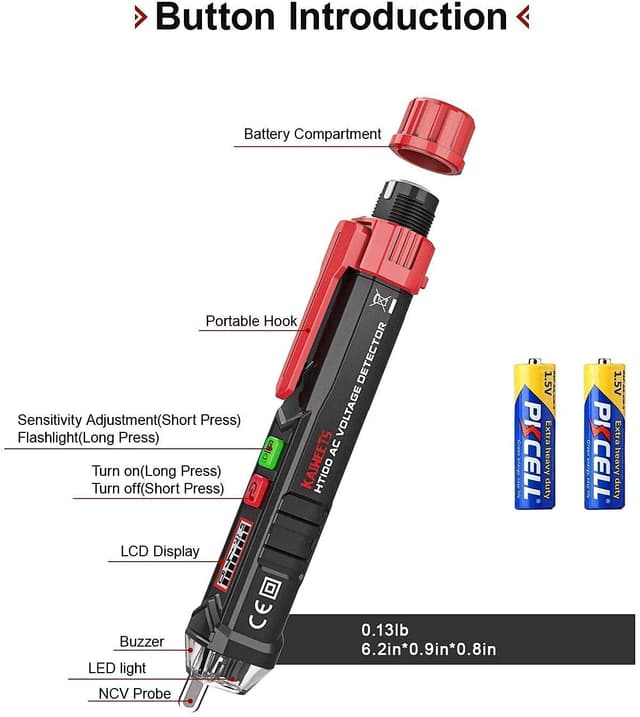

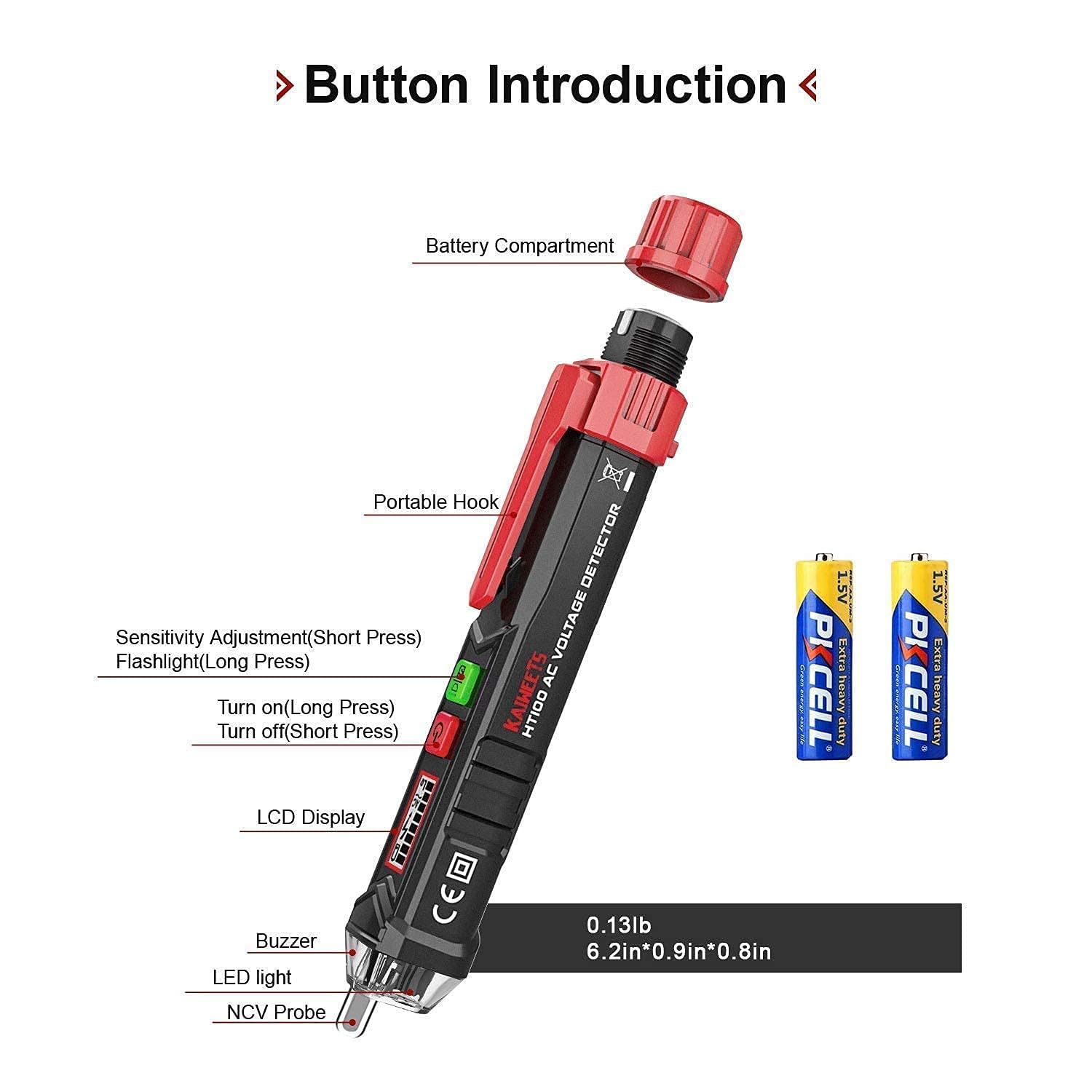

• Indicators: NCV bar graph, red/green screen, buzzer alarm, LED flashlight
• Power management: auto power off after 3 minutes, low-power indicator below 2.5 V
• Service: 36-month after-sale service according to the manufacturer

Advantages

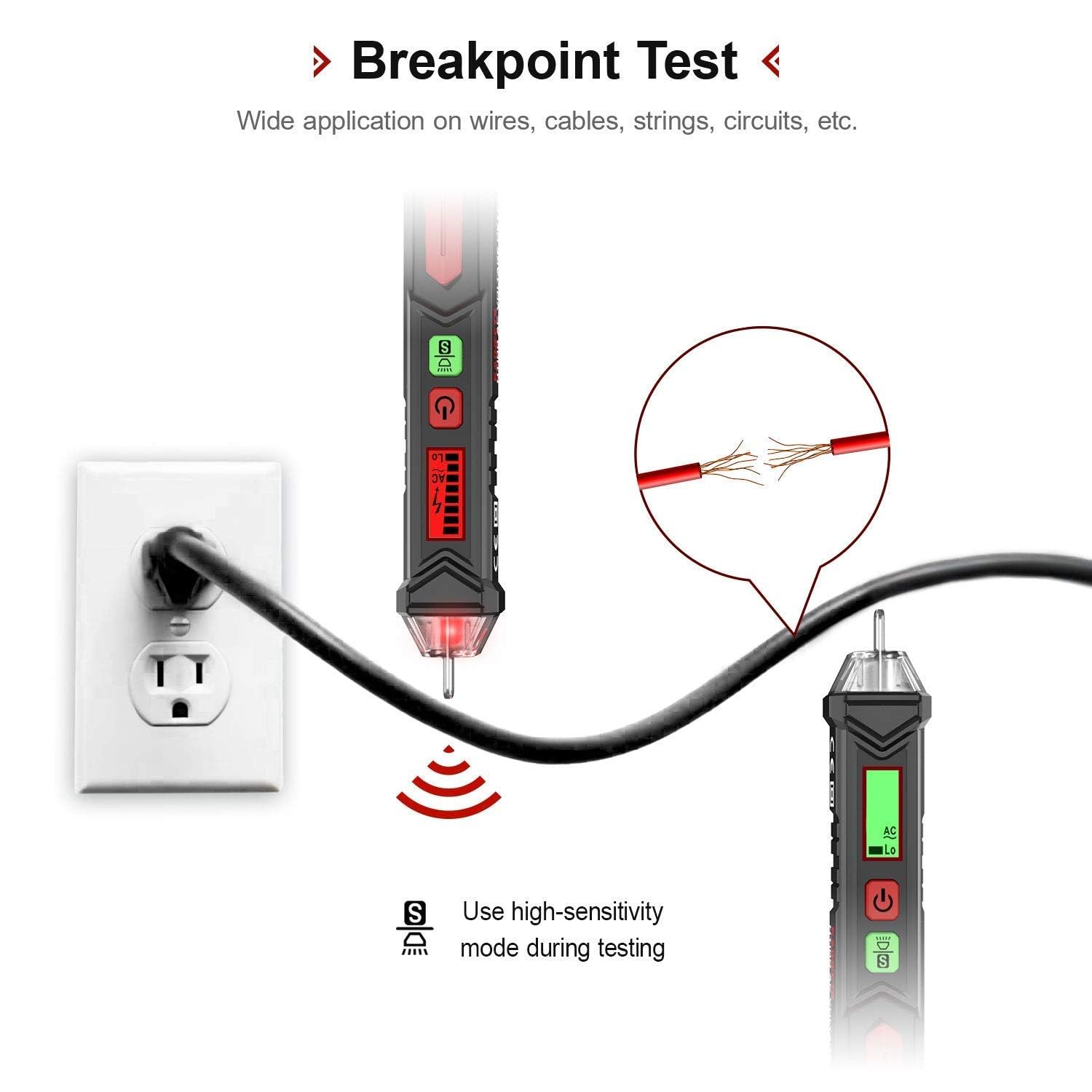

Adjustable sensitivity gives flexibility for both standard mains work and lower-voltage systems, so one tool can cover a wider set of tasks. The combined visual bar graph and audible buzzer make it simple to localise live wires even when access is awkward. Its pocket-sized form and clip make it easy to carry on a shirt or tool pouch, and the bright LED helps when inspecting junction boxes and behind appliances. 🔦

Usage Recommendations

When using the tester, place the tip close to the conductor or outlet to let the NCV sensor determine presence of AC voltage. For low-voltage circuits press the sensitivity button to switch to the lower detection range before testing. Consider that non-contact detectors indicate proximity to AC fields and do not replace direct measurement instruments for precise voltage readings. Follow standard safety practice and avoid exposing the tip to live metal contacts directly.
