Huepar LP36 laser mounting pole 3.7m

A telescoping mounting pole like the Huepar LP36 helps you position rotary and line lasers at consistent working heights, whether you are setting out walls, aligning ceilings, or marking reference lines during a job. With a stable tripod base and an adjustable clamp, it supports accurate placement for tasks where you cannot rely on fixed stands alone. 🧰 If you want a practical way to raise and fine tune your laser quickly on site, this mounting pole is worth a closer look.

The system uses a spring loaded base for fast tension setup, and the pole can be adjusted to different heights between floor and ceiling. On top of that, the included mounting bracket offers a 1/4-20 male thread connection plus a 5/8-11 thread adapter, so you have flexibility for common laser types. ✅ It also includes a transport bag and a compact storage length, which makes it easier to move between rooms or job sites without turning the setup into a routine.

The essentials

The Huepar LP36 is a laser mounting pole designed to give you height control for rotary and line lasers, using a telescoping rod you can adjust as work demands change. It is built around a spring loaded base and a stable tripod with height adjustment, helping you secure the pole while you measure and mark. Because the rod sections are telescopic and graduated, you get clearer repeatability when you need to return to a specific height during the same task. 📏

One of the main benefits is the combination of quick setup and fine adjustment. The mounting bracket includes a height fine tuning knob, which allows you to adjust the height within a small range once the pole is positioned. There is also an adjustment depth, which matters if your laser measures from the back within the stated range. 😊

If you work on layout and alignment jobs where a laser needs to sit at a known reference level, this kind of pole can reduce time spent improvising supports. It is also useful when your working area does not have a convenient surface for a laser stand. Worth noting, the mounting clamp arrangement is specific to the thread sizes it supports, so it is important to check your laser’s mounting thread before relying on it.

Key features

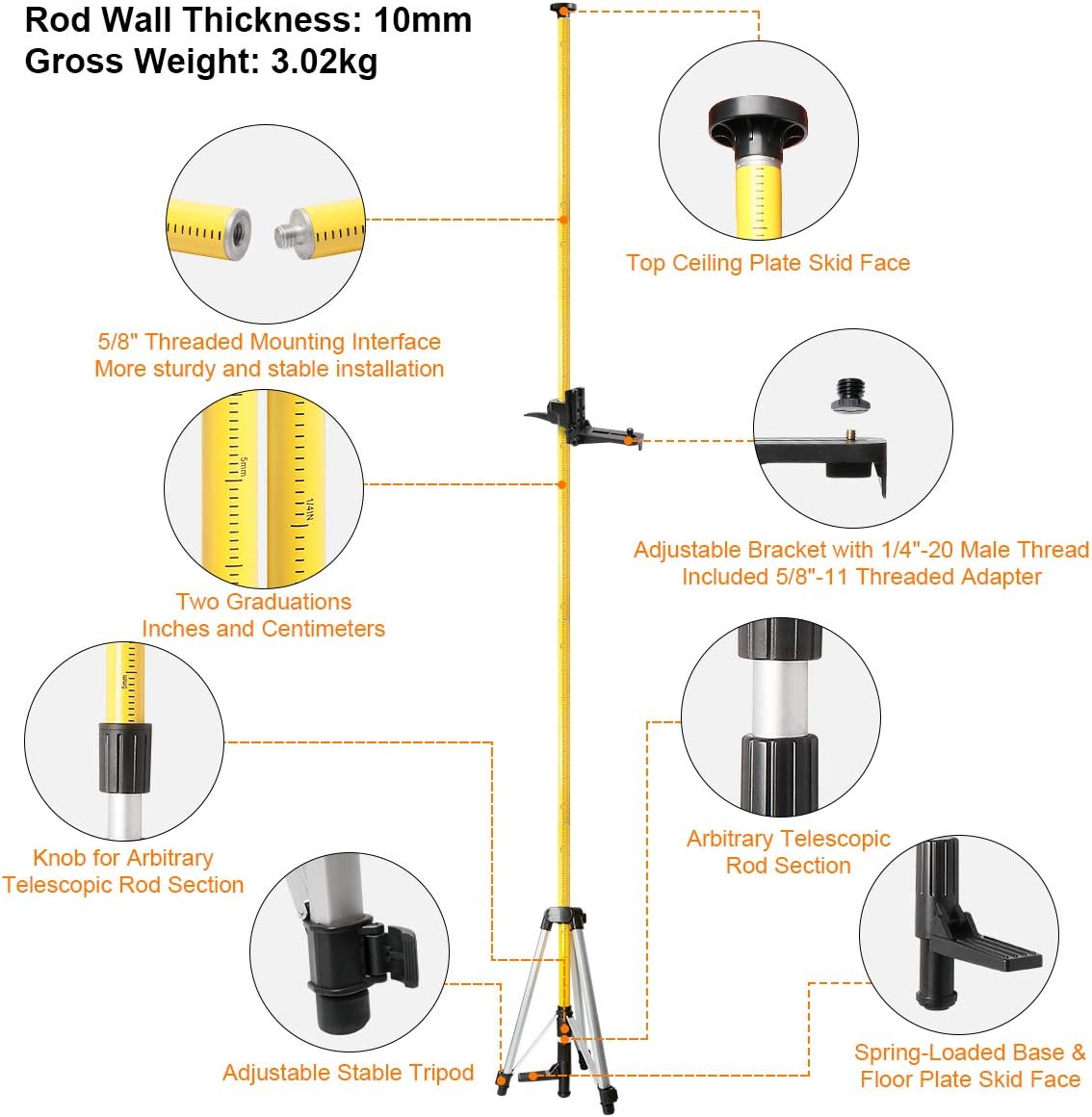

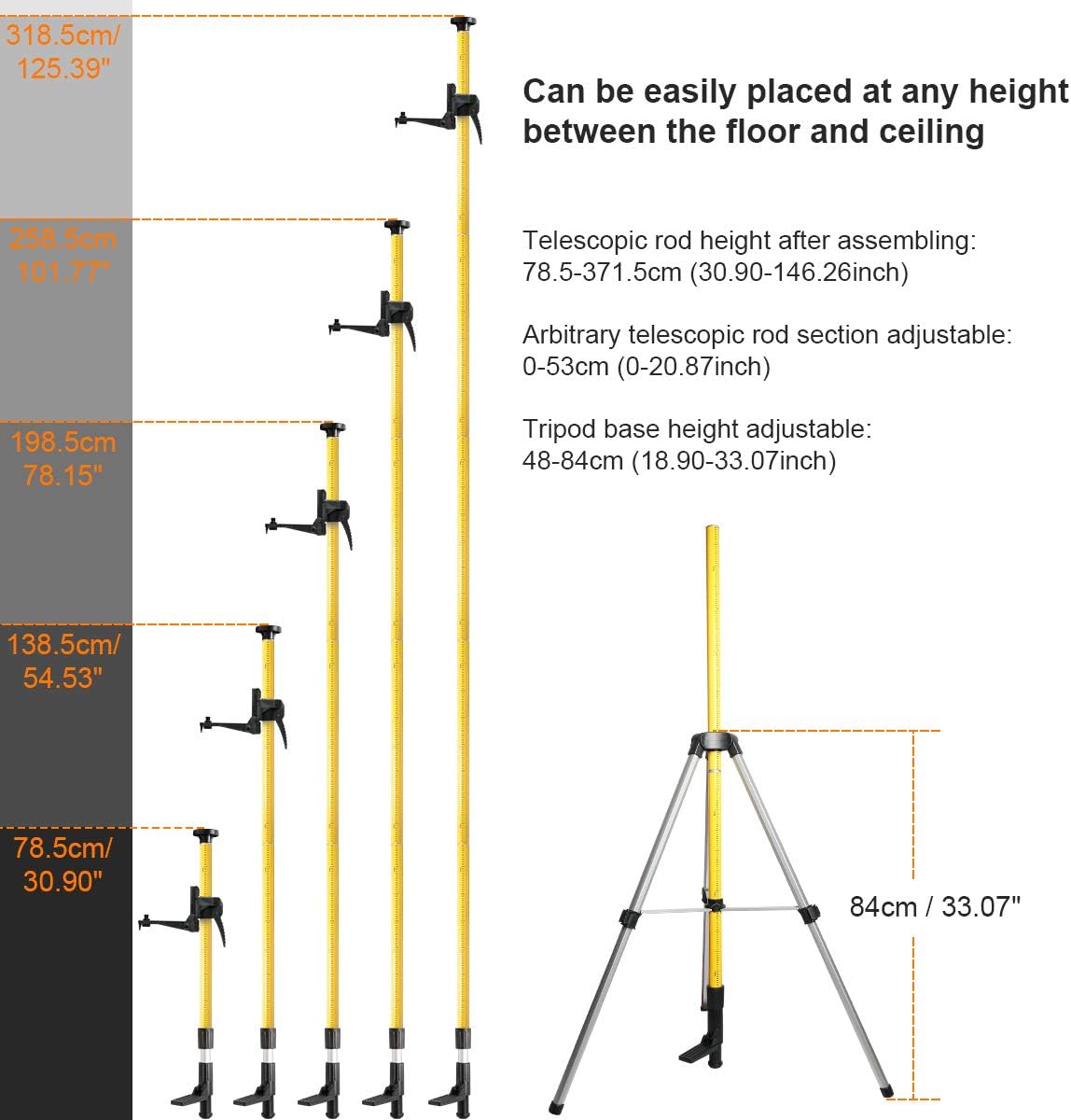

The LP36 uses an arbitrarily adjusted telescopic rod concept, with multiple telescopic rod sections plus a tail rod section that can telescope out additional length. When fully assembled with all sections and both end parts, the pole reaches about 3.7 m or 12.18 ft. The graduations are marked in black on the yellow pole, with both inches and centimetres, which helps you set heights more confidently.

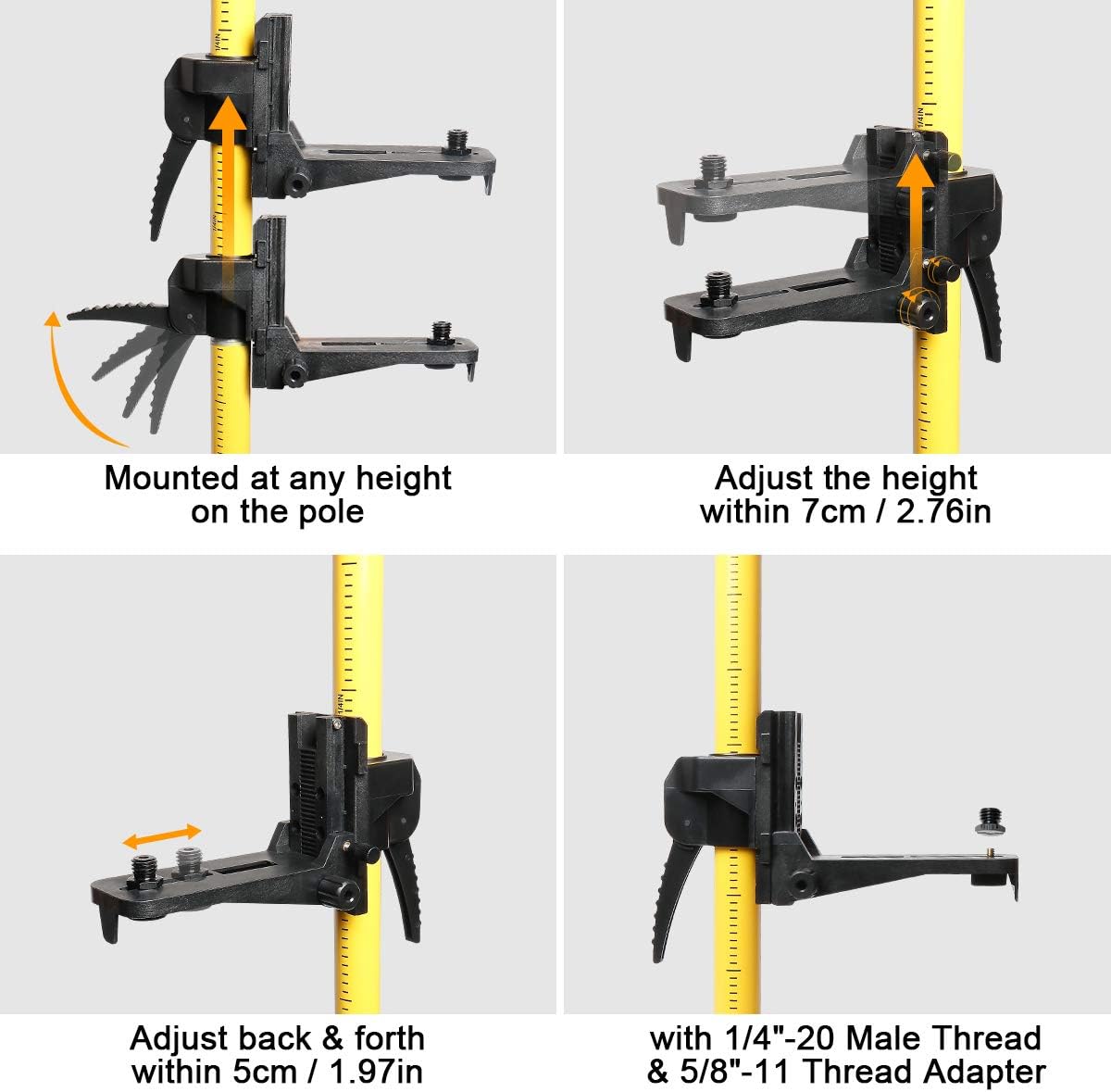

For mounting, the bracket uses a 1/4-20 male thread connection and includes a 5/8-11 thread adapter, making it compatible with a wide range of common line lasers and rotary lasers. The bracket can be placed at different positions along the rod according to your needs, so you can raise the laser without needing to move the whole base. The height fine tuning knob supports height adjustment within 7 cm, and depth adjustment within 5 cm, to help the setup suit instruments that measure 6.5 to 11.5 cm from the back.

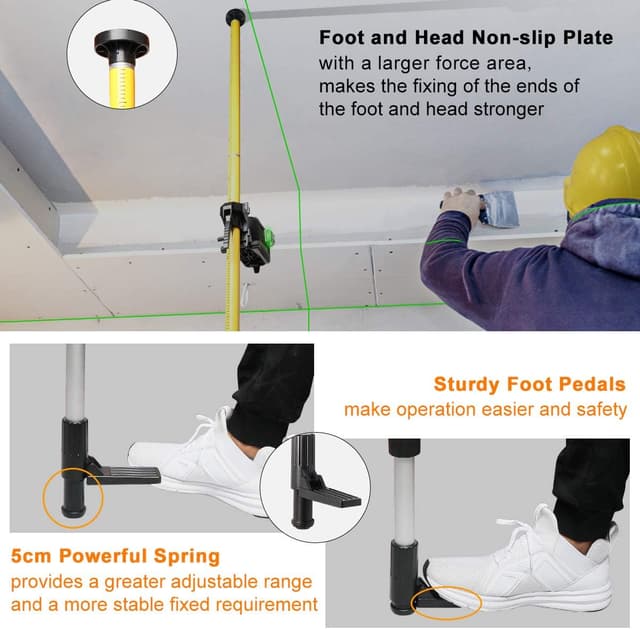

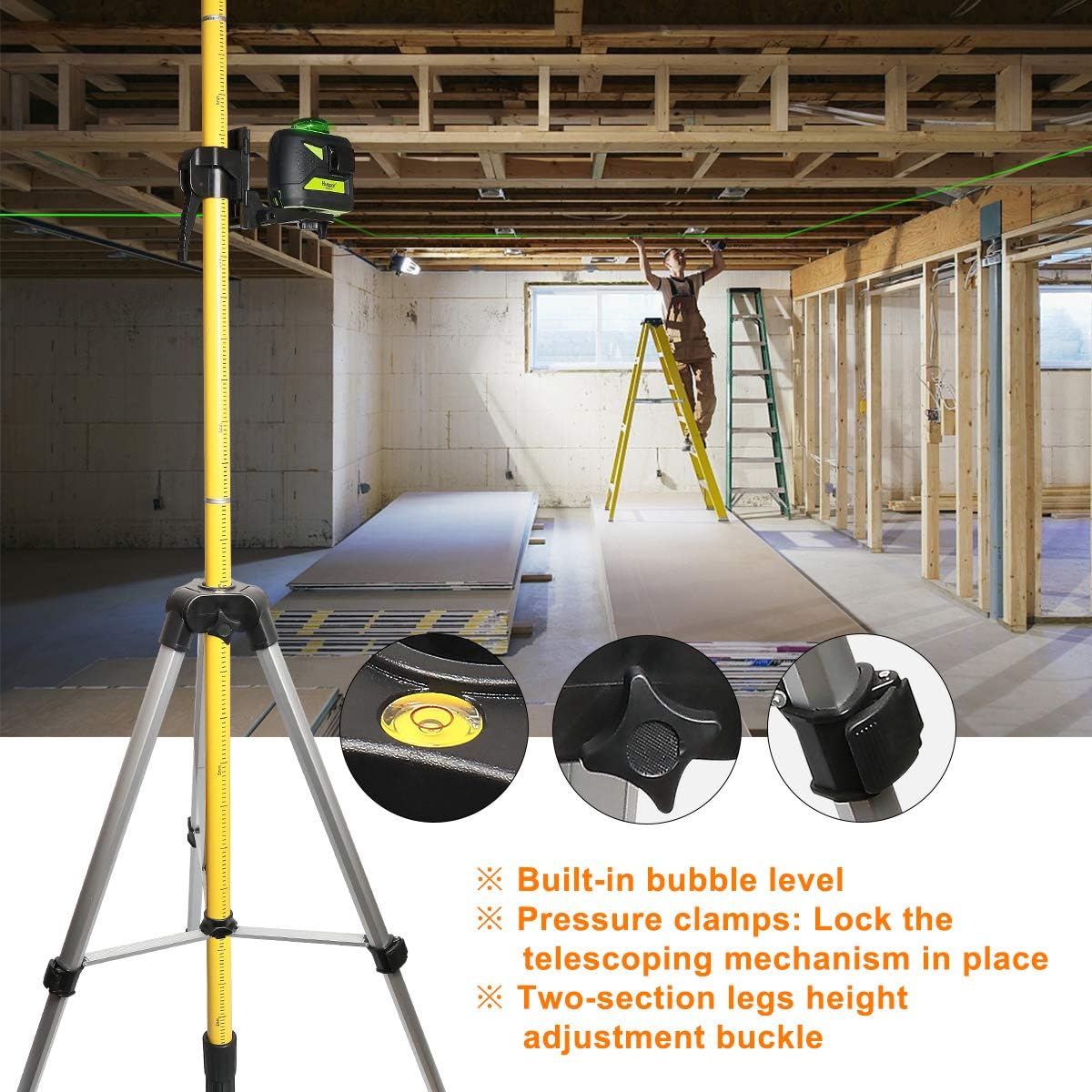

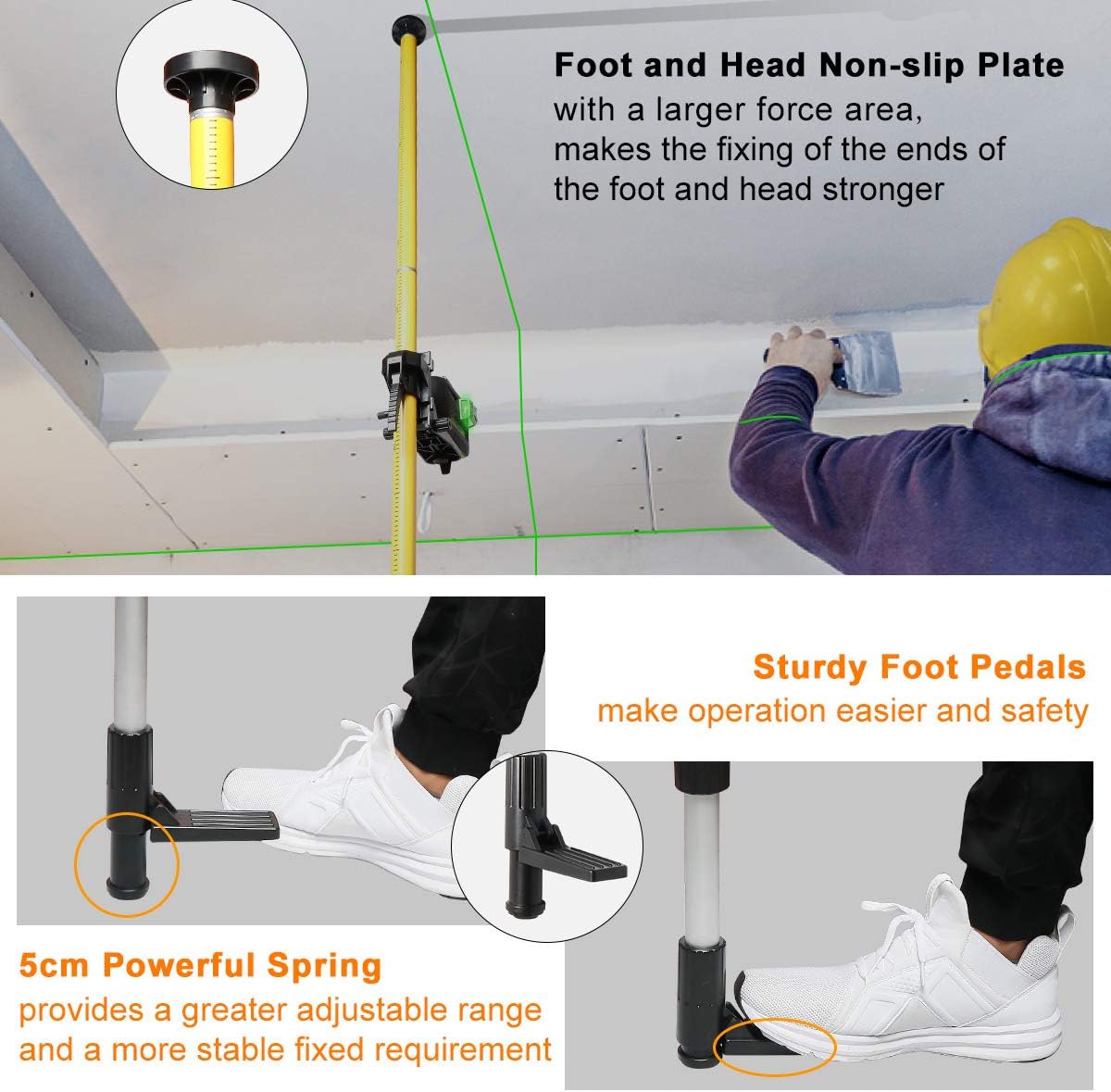

Stability is handled in multiple ways. The spring loaded base uses a powerful spring to provide a greater adjustable range and a more stable fixed requirement, and the foot and head plates include non slip surfaces with a larger force area. There are sturdy foot pedals to make operation easier while you set the tension. There is also a small embedded bubble level in the head to help support accurate measurement.

On the tripod side, the legs offer height adjustment using two section buckles, with an adjustable range from 0.48 m to 0.84 m. A screw clamp on the side of the head further stabilises the pole so it is less likely to shift once positioned.

Tech specs

• Name: Huepar Laser Mounting Pole LP36
• Type: Telescoping laser level mounting pole with tripod
• Size: 3.7 m or 12.18 ft fully assembled
• Format: Graduations marked on the yellow pole in inches and centimetres
• Material: Non slip foot and head plate surfaces
• Resolution: Height fine tuning within 7 cm and depth adjustment within 5 cm
• Compatibility: 1/4-20 male thread with 5/8-11 thread adapter included

What’s included and how it suits you

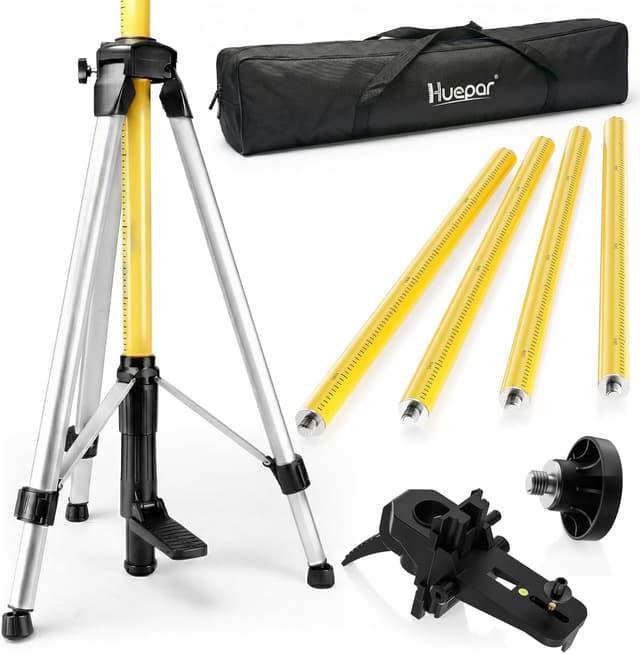

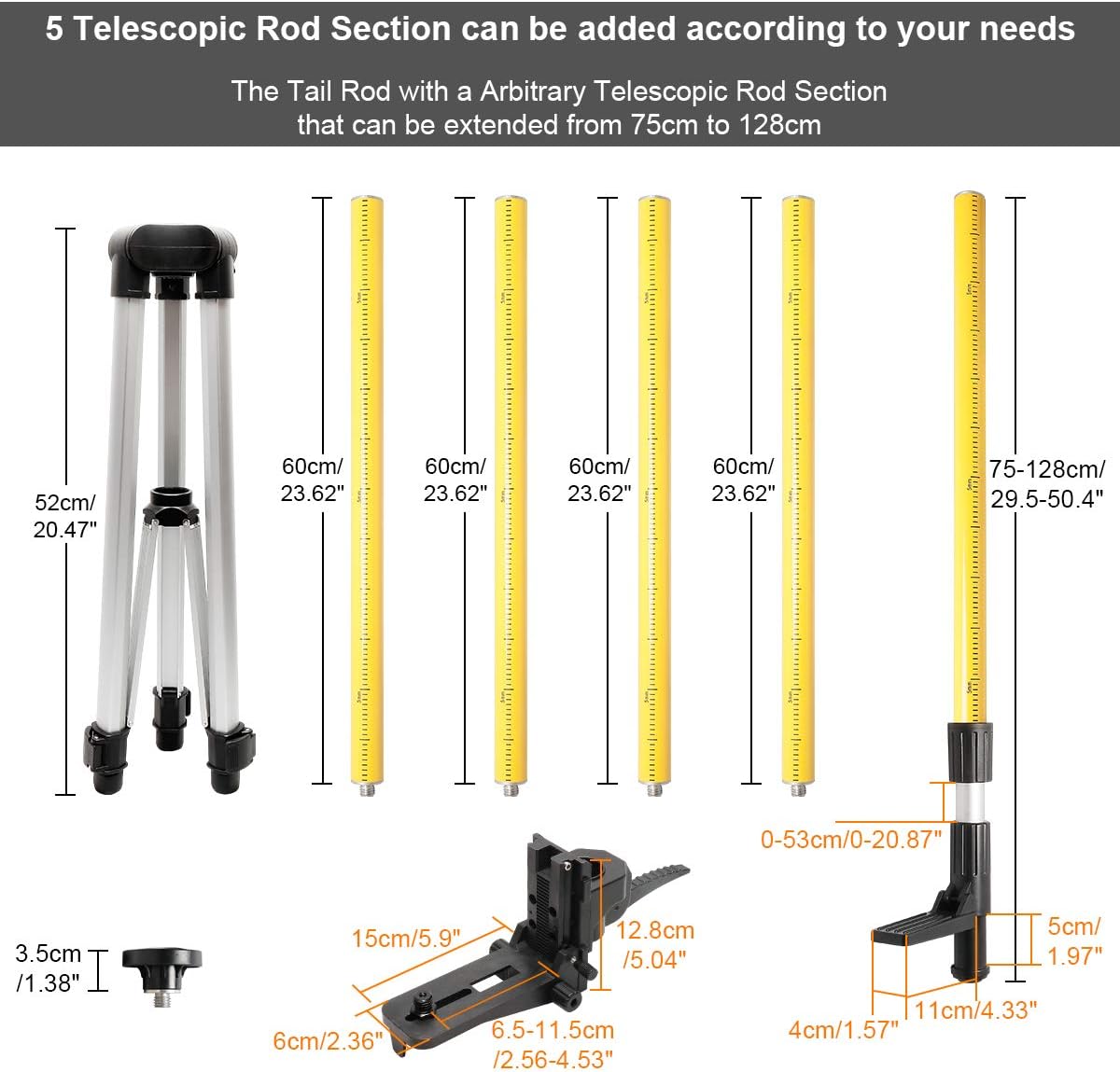

This kit is supplied with multiple telescopic rod components and the key pieces needed for setup, including four telescopic rod sections plus one tail rod. It also includes the tail rod section with spring loaded base and an arbitrary telescopic rod section, along with a top ceiling skid plate to support the contact points. The package includes the mounting bracket with the 1/4-20 male thread, the 5/8-11 screw adapter, a tripod, and a transport bag.

It makes sense if you regularly need to place lasers at a controlled height between floor and ceiling, especially when you cannot use fixed stands. It also suits you if you want a balance of quick tension setup and later fine tuning using the height fine tuning knob. You may want to skip it if your laser has a mounting method outside the supported thread sizes, or if your work requires a different form of mounting than a clamp on a pole.

You’ll likely appreciate the storage and transport options too, since the storage length is stated as 80 cm and comes with a soft carry bag for easier handling. With a bubble level embedded in the head and a screw clamp that helps prevent shifting, it supports measurements that stay consistent during marking and layout work. Overall, Huepar LP36 is a practical add on when you want a more controlled laser placement workflow, from assembly through to on site adjustment.
