ERGAOBOY PC12-02 & PL12-02 10-piece Push-to-Connect elbow and straight fittings (12mm tube / 1/4" BSP)

What these fittings are for

If you’re building or updating a pneumatic line and you want fewer tools and less fiddling, push-to-connect fittings like these ERGAOBOY combinations are designed for exactly that kind of job. The set includes both elbow and straight pieces, so on paper it covers the common need to either keep a run going or change direction without adding extra complexity.

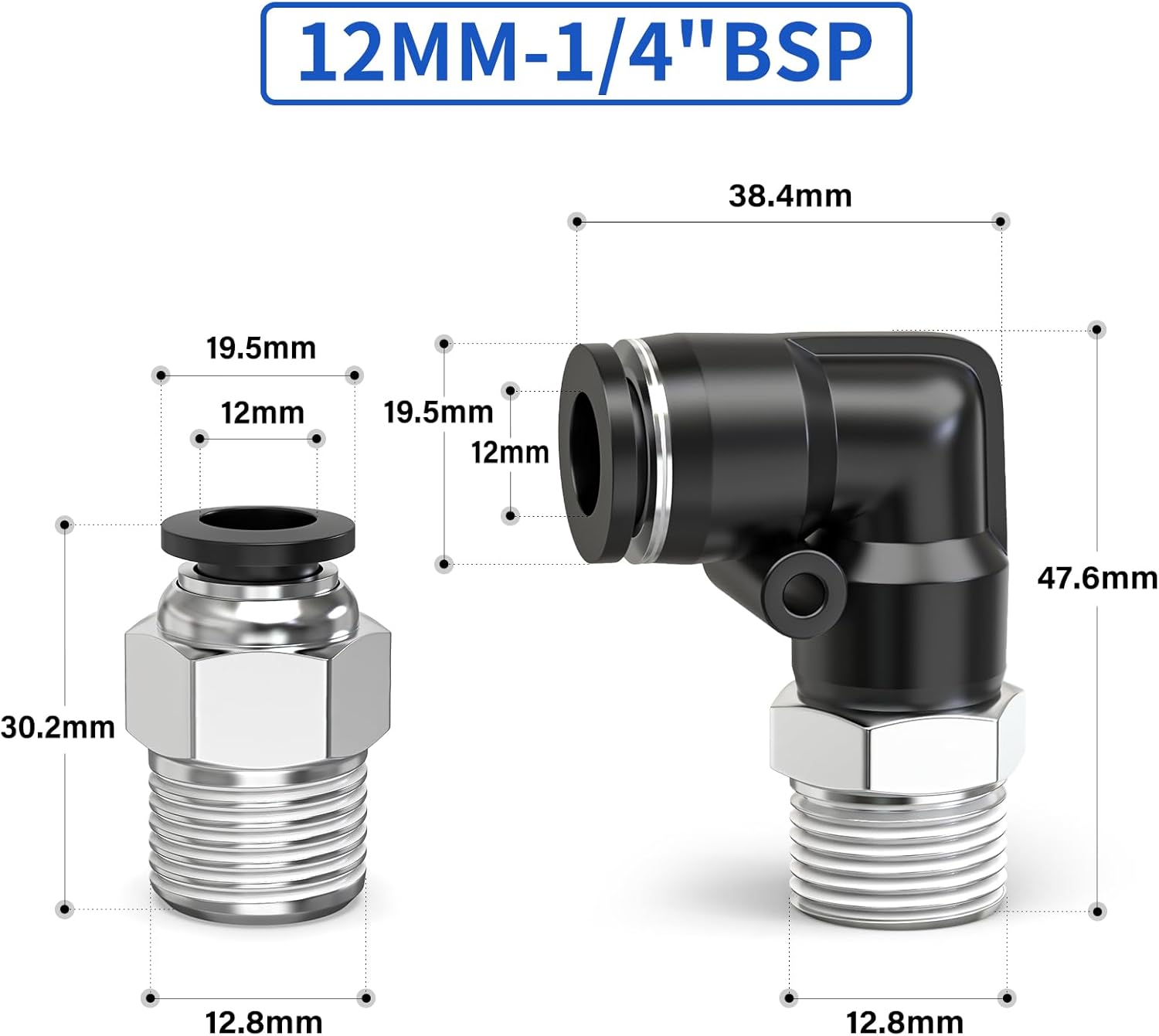

These are push-in fittings with a BSP-threaded connection (listed as 1/4" BSP thread size) and a 12mm tube OD tube size. The idea is straightforward: insert the tube manually into the fitting and (as described) you can also remove it without tools. That makes them the sort of thing people reach for when they’re laying out air tubing, doing maintenance, or want a quick way to re-route without having to rework the whole line.

Key things to check before buying

Before you commit, it’s worth slowing down for a minute on the sizes and the connection type. The listing states “12MM Tube OD x 1/4 BSP Thread” and also notes that BSP thread size is nominal and doesn’t represent the actual diameter. In other words, it’s not the kind of product where you can guess and hope.

A few practical checks that save headaches: - Confirm your air system ports or manifold really use a compatible 1/4" BSP thread connection. - Verify your tubing is truly the correct outer diameter (12mm tube OD). Push-fit relies on the tube size matching the intended design. - If you’re dealing with existing tubing that’s slightly worn, cut unevenly, or not square at the end, the push-in seal may not behave as well as you’d expect—so it pays to have clean, straight cuts.

Also, the stated operating window is 0–1 MPA and 0–60°C. That’s fine for many workshop air setups, but if your application runs hotter or higher pressure, you’ll want to double-check whether this sits far enough within your real-world conditions.

What stands out in everyday use

The most noticeable selling point here is convenience. The push-in design is described as tool-free for insertion and removal, and the connection is said to provide a tight, strong seal. On a typical setup day, that translates to less time under the bench and fewer delays waiting for the right fitting or trying to line things up with thread and tape.

The set is also “black elbow and straight combination”, which matters more than it sounds if you’re tidying a layout: having both straight runs and direction changes in the same bundle can reduce the number of separate parts you need to source.

That said, push-to-connect systems are still dependent on correct tube prep and the right tube material/diameter. If you’re expecting a system that’s fully forgiving of poor tube cuts, this is where you may find it doesn’t live up to the easiest-case scenario.

Materials and performance expectations

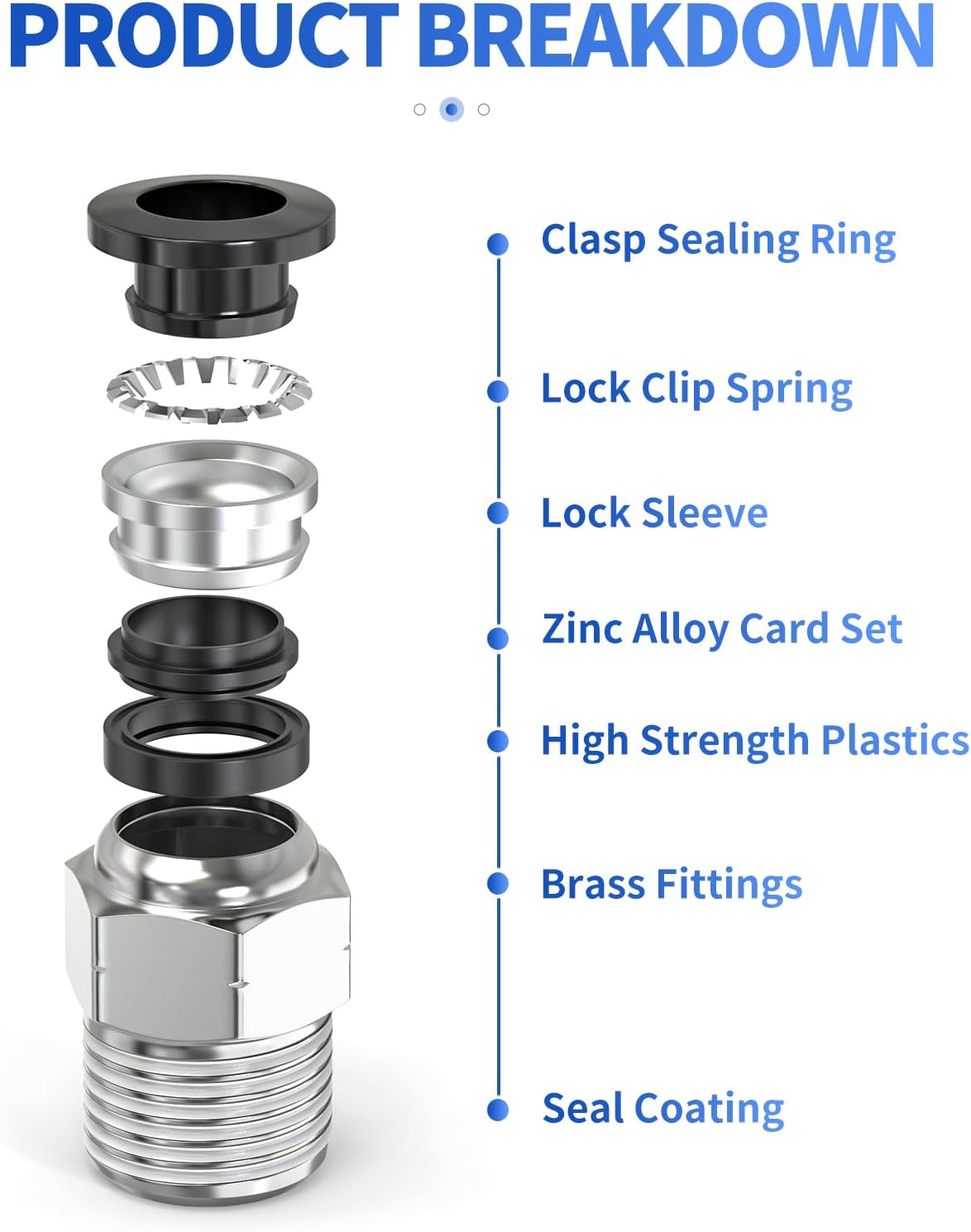

These fittings are described as being made from high quality copper and plastic, with claims around wear resistance, heat resistance, and corrosion prevention (prevent rust and corrosion). For most indoor pneumatic workflows—tooling, air lines for small machinery, general workshop use—that material mix is a sensible direction.

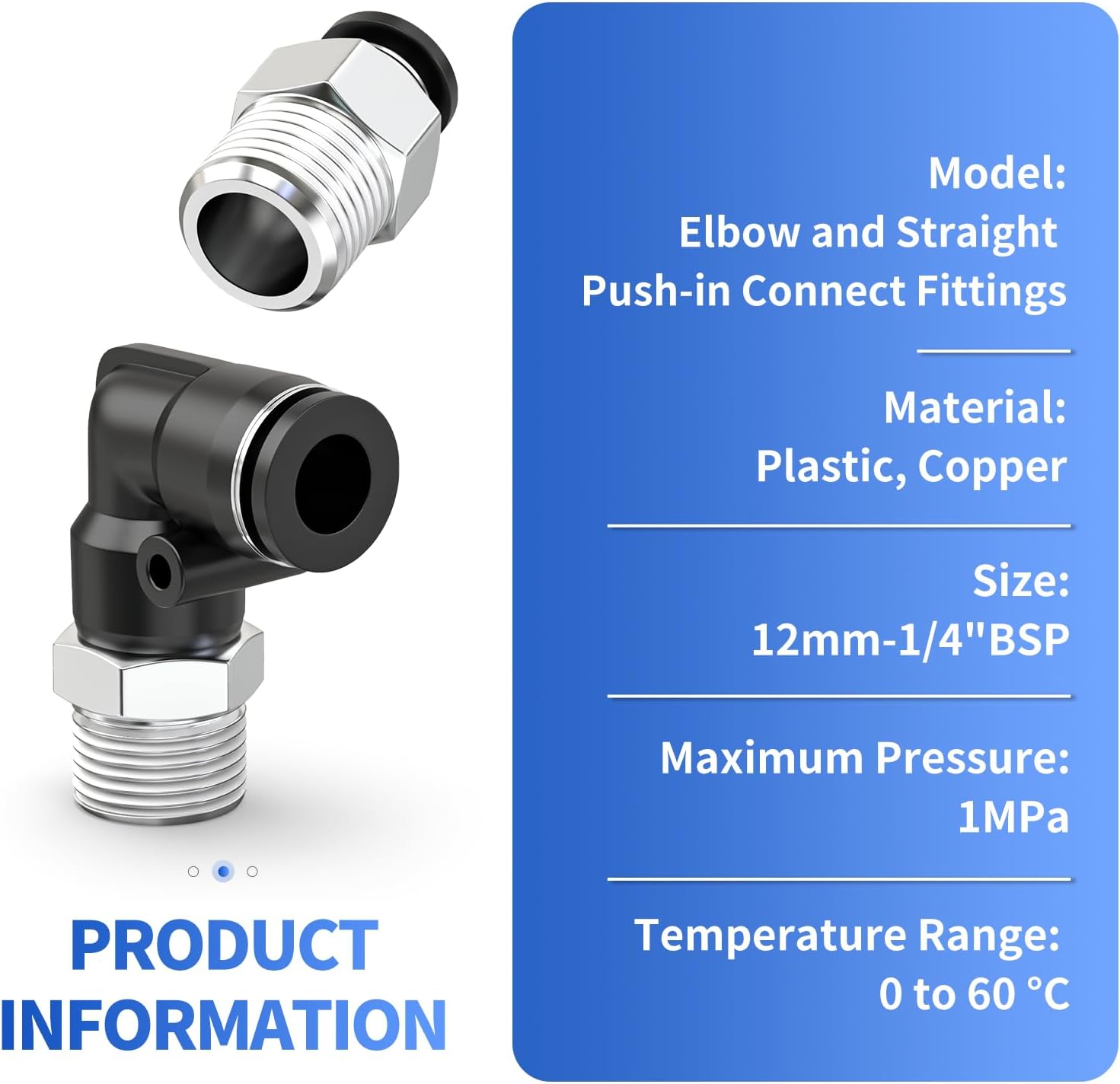

They’re also presented with an operating pressure and temperature range of 0–1 MPA and 0–60°C. Based on that, you can treat them as a practical mid-range workshop component rather than something aimed at extreme industrial duty. If you’re trying to “overrun” a system beyond what’s stated, the limitations matter.

Where they fit best (and where they don’t)

It makes sense if you’re: - building a pneumatic line where you want elbows and straight connections in the same pack - aiming to install or adjust tubing without tools - working within the stated temperature and pressure range for your setup

It may not be the best match if: - your system’s port uses a different thread standard or size than the listed 1/4" BSP - your tubing doesn’t match 12mm tube OD (push-fit relies heavily on this) - you expect performance outside 0–1 MPA or 0–60°C

And one more real-world note: because BSP sizes are nominal, if you’re relying on measurements rather than the thread designation, it’s worth checking with the actual fitting/port specification you’re connecting to.

Included in the set (and how to use them)

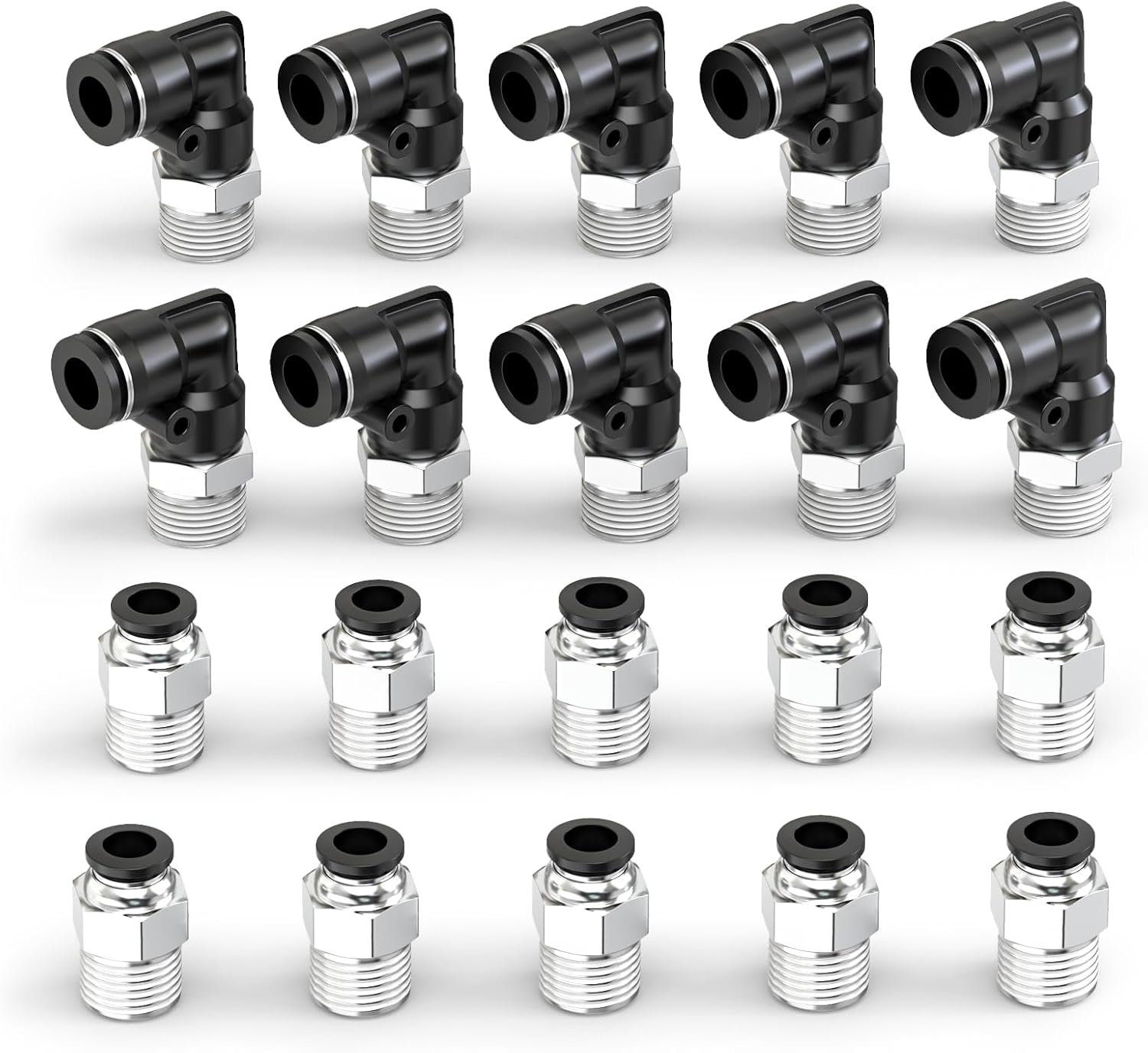

This product is described as a 10-piece set including black elbow and straight push-in connect fittings. The most practical approach is to plan your routing first—then use straight connectors for the linear runs and elbow fittings where you need a change of direction.

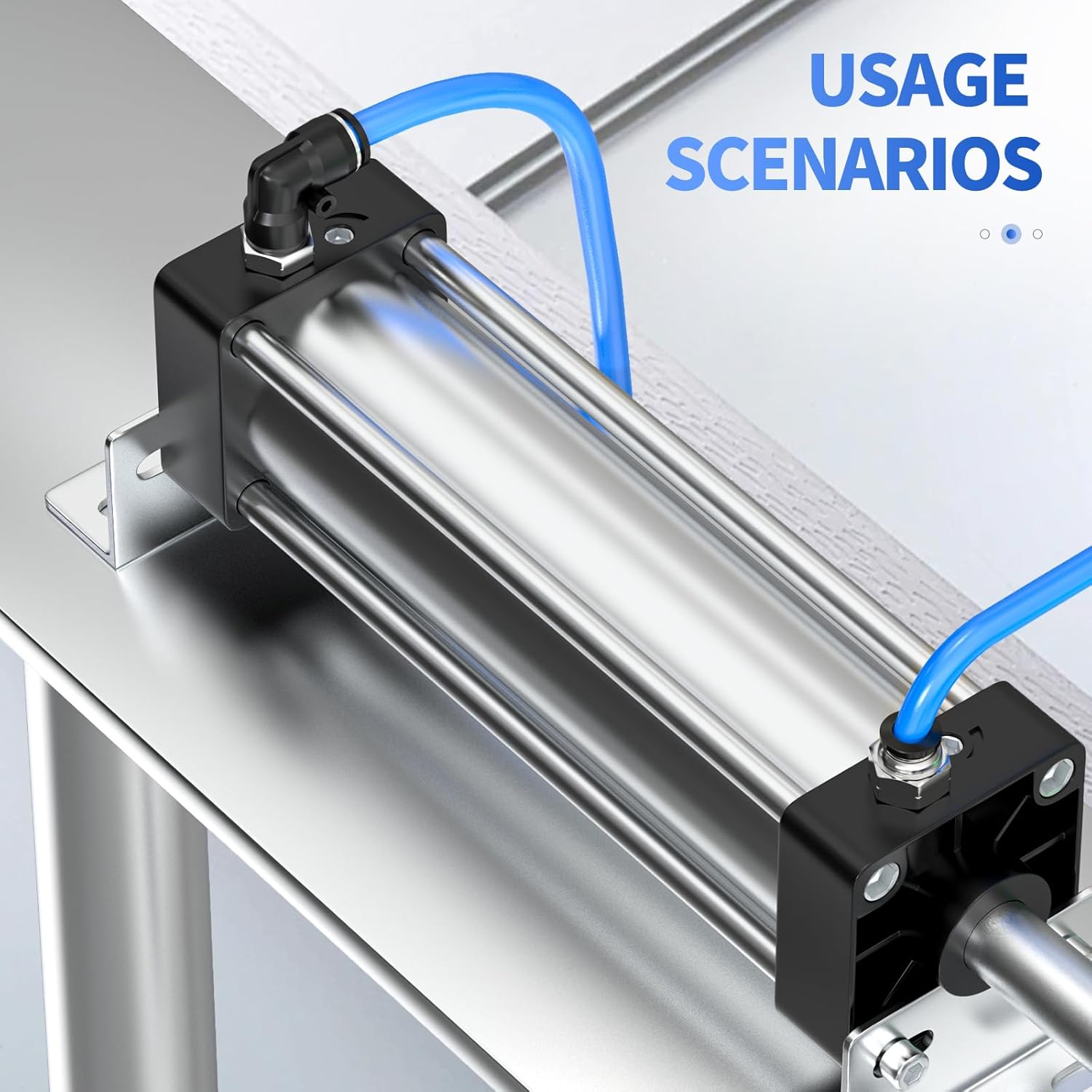

A concrete example: if you’ve got a compressor feed coming into a workbench and you need to go around an obstruction to reach a valve or actuator, straight segments can carry the run and elbows can help you turn the line smoothly without re-threading or sourcing additional direction-change hardware.

If you’re frequently reconfiguring setups, the tool-free push-in and pull-out concept is exactly the kind of convenience that tends to get used more than you expect.

Is it worth it?

A solid pick if you need a mixed set of elbow and straight push-to-connect pneumatic fittings, and you can confirm your tubing is 12mm tube OD and your ports are compatible with a 1/4" BSP thread connection. The copper/plastic material approach and the stated 0–1 MPA, 0–60°C operating range suggest it’s aimed at typical workshop and light industrial pneumatic use.

You may want to skip it if you’re unsure about BSP thread compatibility, if your tubing size isn’t a clear match, or if your application runs beyond the listed pressure/temperature window. In those cases, you’ll likely spend more time troubleshooting seals and fit than you save on installation.

Quick FAQs

Will I need tools to install these push fittings?

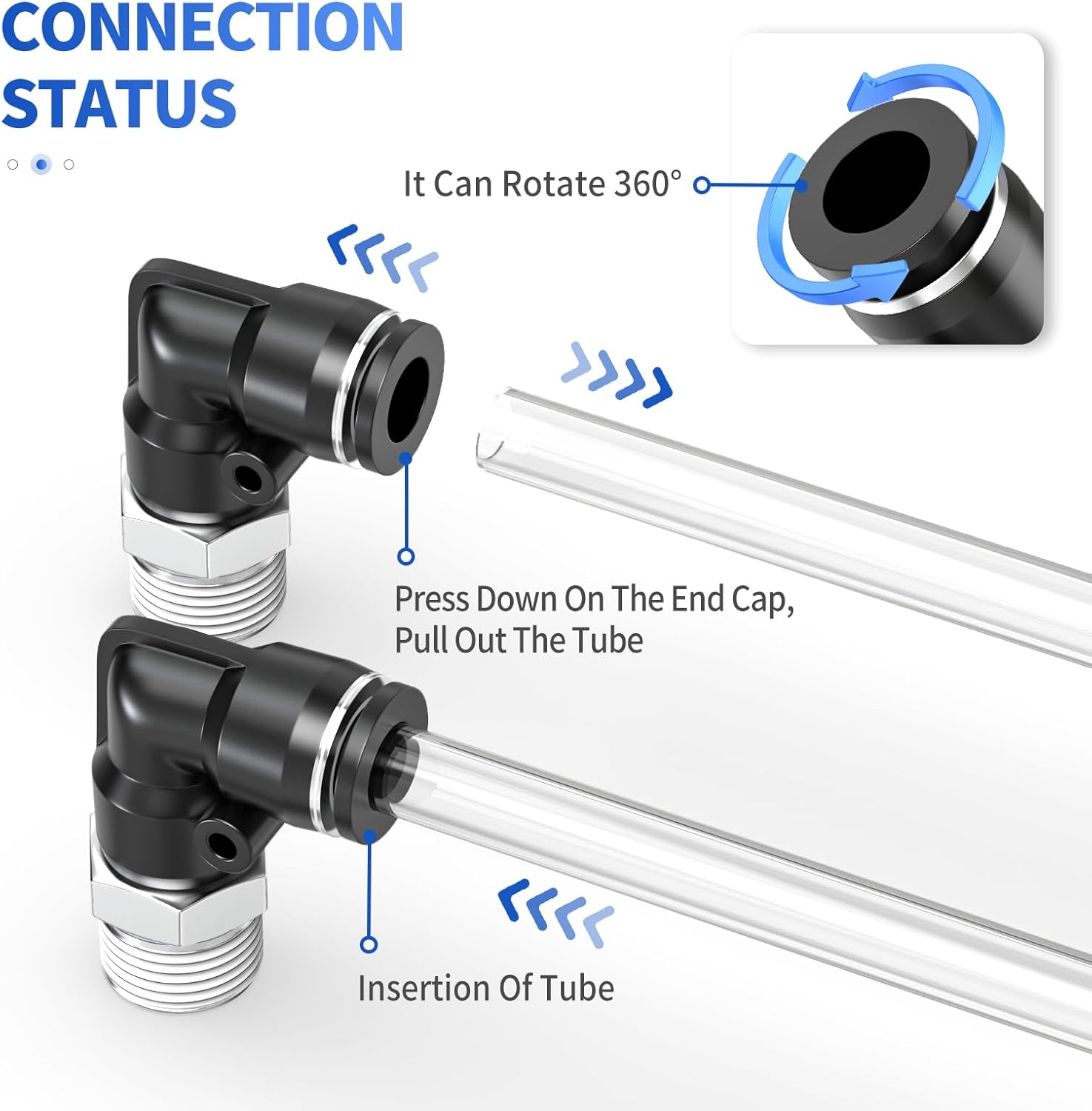

The description says the push-in fittings can be installed and removed without tools, using manual insertion into or pulling out of the air pipe.

What tube size do these fittings suit?

They’re listed for 12mm tube OD, so tube outside diameter is the figure to base your choice on.

What pressure and temperature are they rated for?

The stated operating range is 0–1 MPA and 0–60°C.

What does “1/4 BSP thread” mean here?

The listing notes that BSP thread size is nominal and doesn’t represent the actual diameter, so it’s best to rely on compatibility with the thread designation and the port you’re connecting to.
