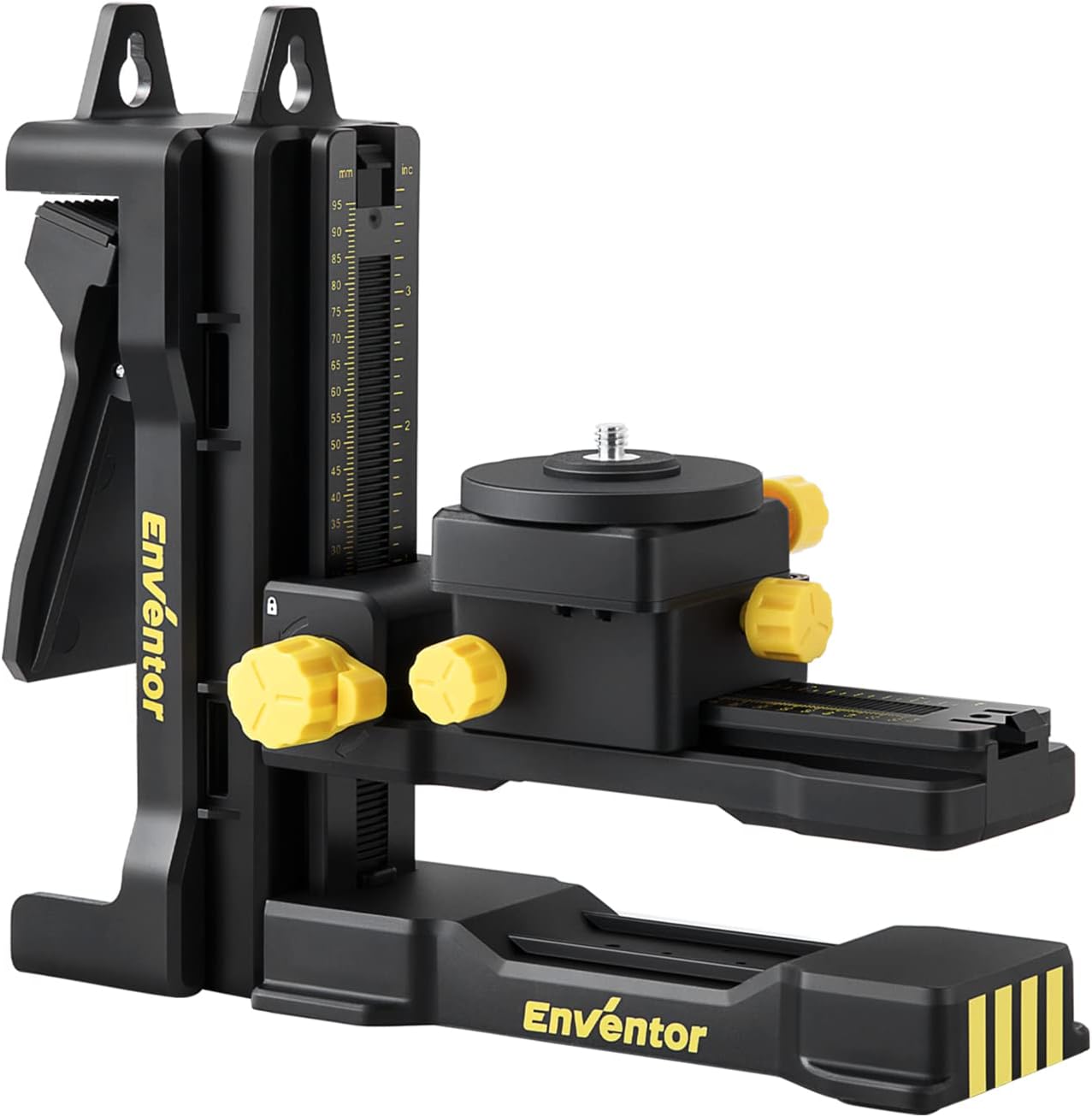

Enventor L-Shape Magnetic Bracket Base for Laser Level

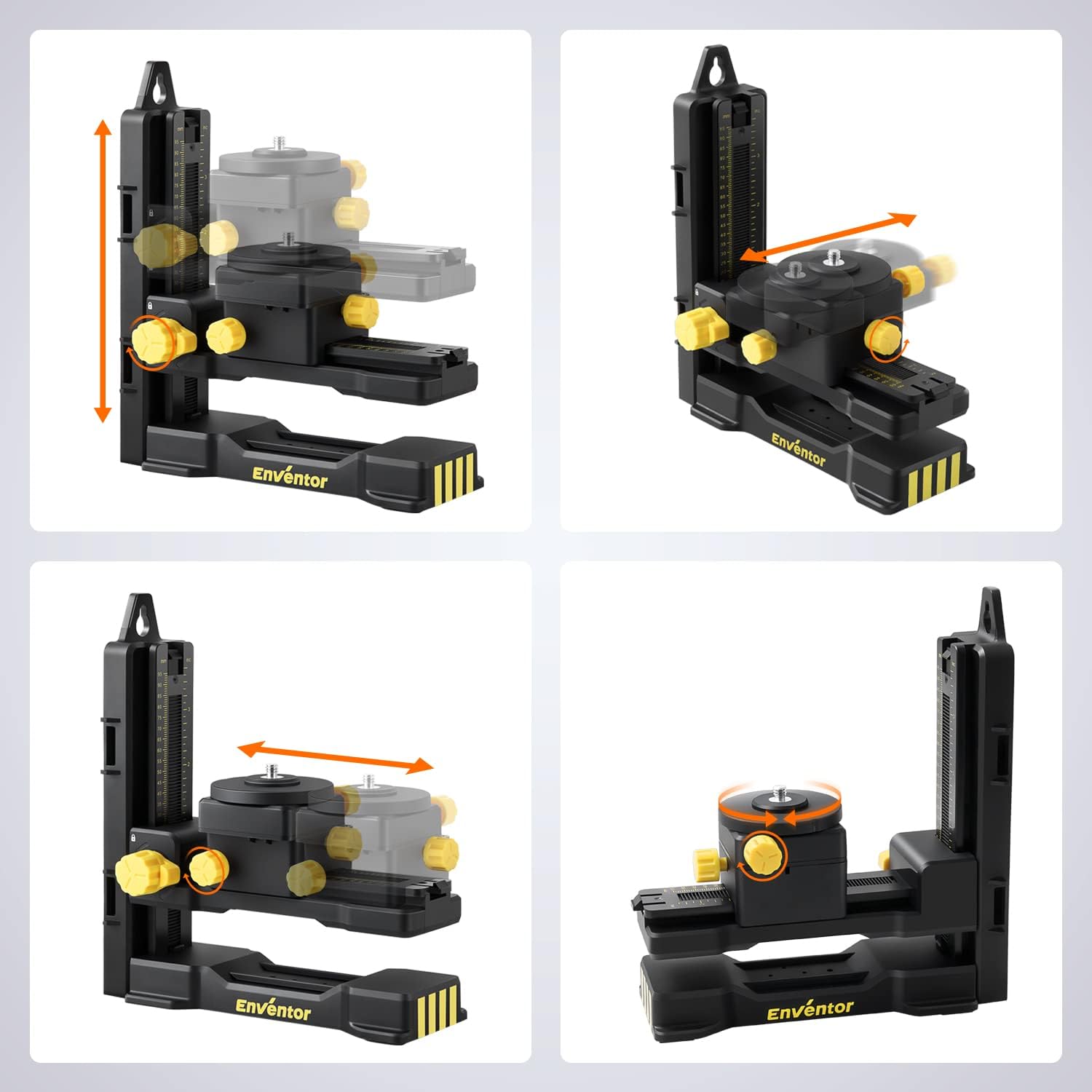

This L-Shape Magnetic Bracket Base for Laser Level offers precise multi-directional adjustment and solid compatibility for professional alignment tasks. Designed to streamline setup, it supports left and right shifts up to 3 cm and forward and backward tweaks up to 5.5 cm while allowing 360° horizontal rotation. Height can be fine-tuned within 9.5 cm using the height adjustment and lock controls, with measurement scales in millimetres and inches for quick reference.

Key Points

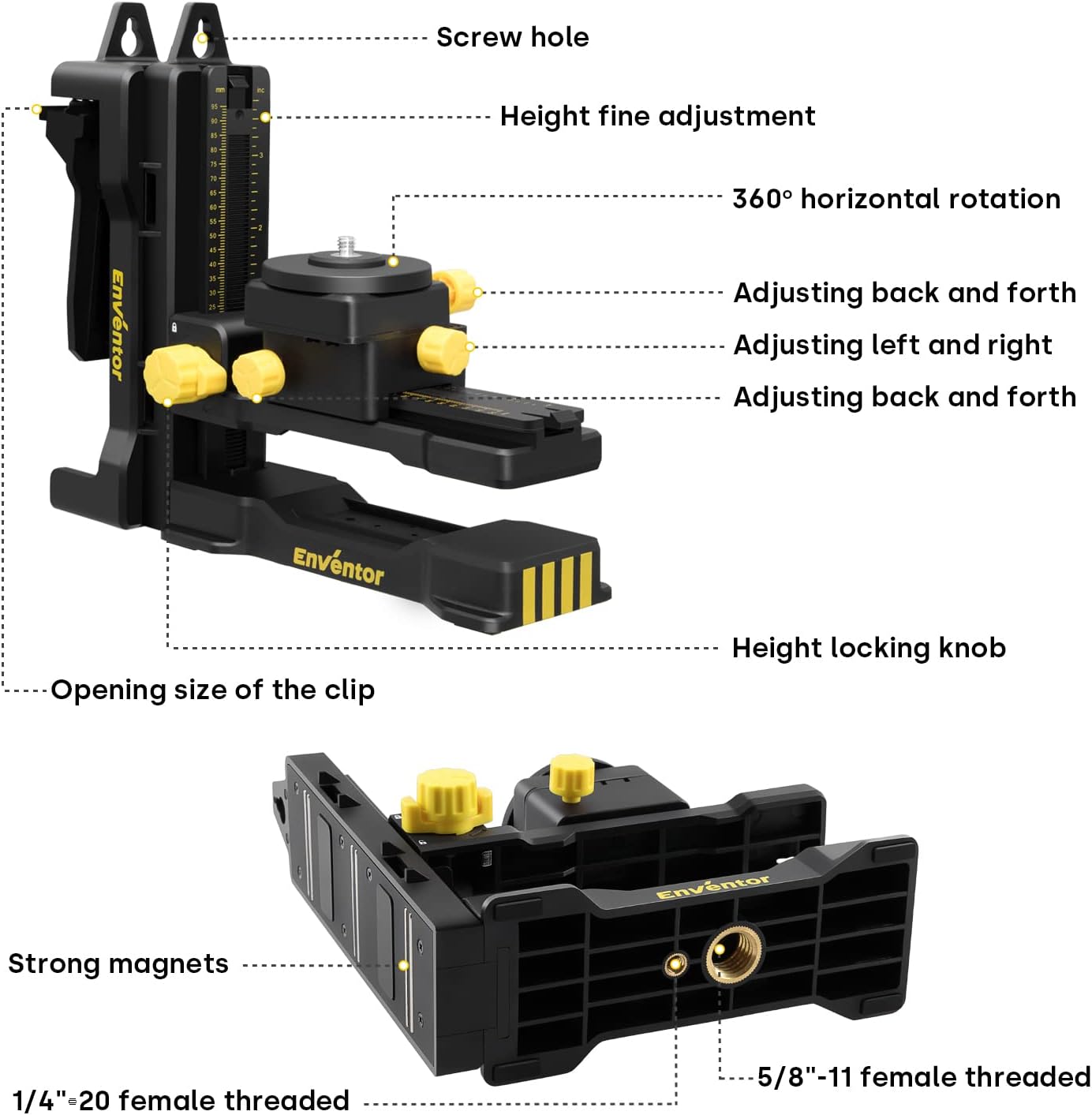

The bracket mounts via a standard 1/4"-20 male thread, fitting most laser levels with a corresponding female thread. It is compatible with ENVENTOR Y011G, Y011R, EN011G, EN011R and Z03CG units, making it a versatile addition to a technician’s kit. Multiple installation options are possible thanks to both 1/4"-20 and 5/8"-11 threads, plus suction, hanging and cord-tie methods. A strong magnet lets the base secure to metal surfaces, while holes for screws enable wall mounting. A threading groove supports tying and fixing with cords or cable ties, expanding the ways you can position and stabilise the device. This flexibility helps when working in confined spaces or on uneven surfaces. 🧰🧲

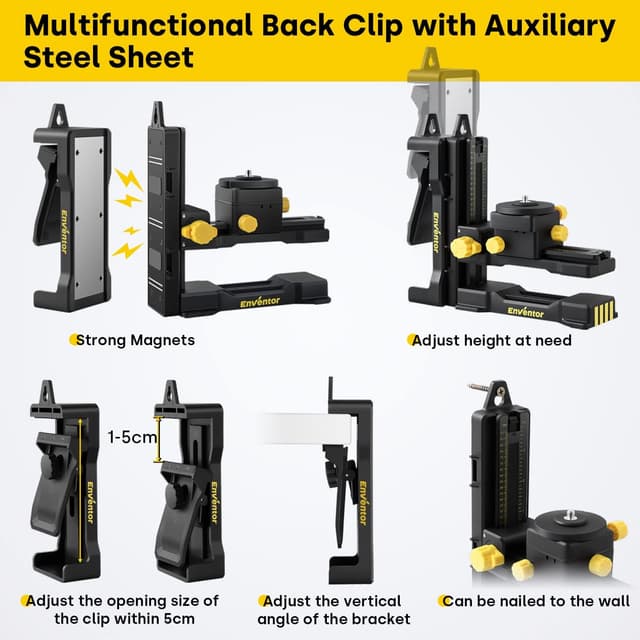

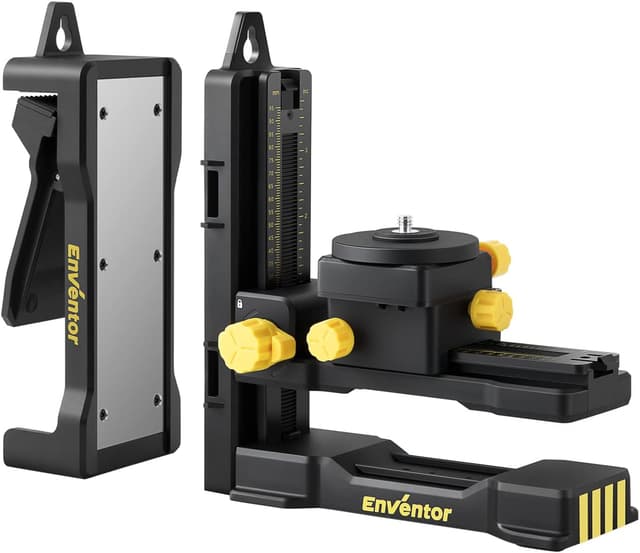

The rear clip is adjustable to mounting objects up to 5 cm thick, and the metal base plate at the back adds further stability when the L-shaped magnetic base is teamed with the magnetic mounting segment. This design makes it straightforward to adapt the unit to different job sites, from scaffolds to workshop benches. The package includes the magnetic L-shaped base, a rear auxiliary clip, a user manual and a one-year warranty, underscoring a practical approach to field use. If you encounter questions during operation, support is available to assist promptly. 🛠️

Overall, this Enventor accessory emphasises versatility and straightforward setup, helping operators align laser references quickly and maintain consistent accuracy across multiple axes.

Technical Specifications

• Name - Enventor L-Shape Magnetic Bracket Base for Laser Level
• Thread size - 1/4"-20 male
• Compatible with - laser levels that have 1/4" female thread
• Additional mounting options - 5/8"-11 threads and suction, hanging, cord tie
• Adjustment range (left/right) - 3 cm
• Adjustment range (front/back) - 5.5 cm
• Height adjustment - up to 9.5 cm
• Material features - steel plate base with magnetic mounting options
• Included accessories - rear auxiliary clip, user manual
• Warranty - 12 months

Usage Recommendations

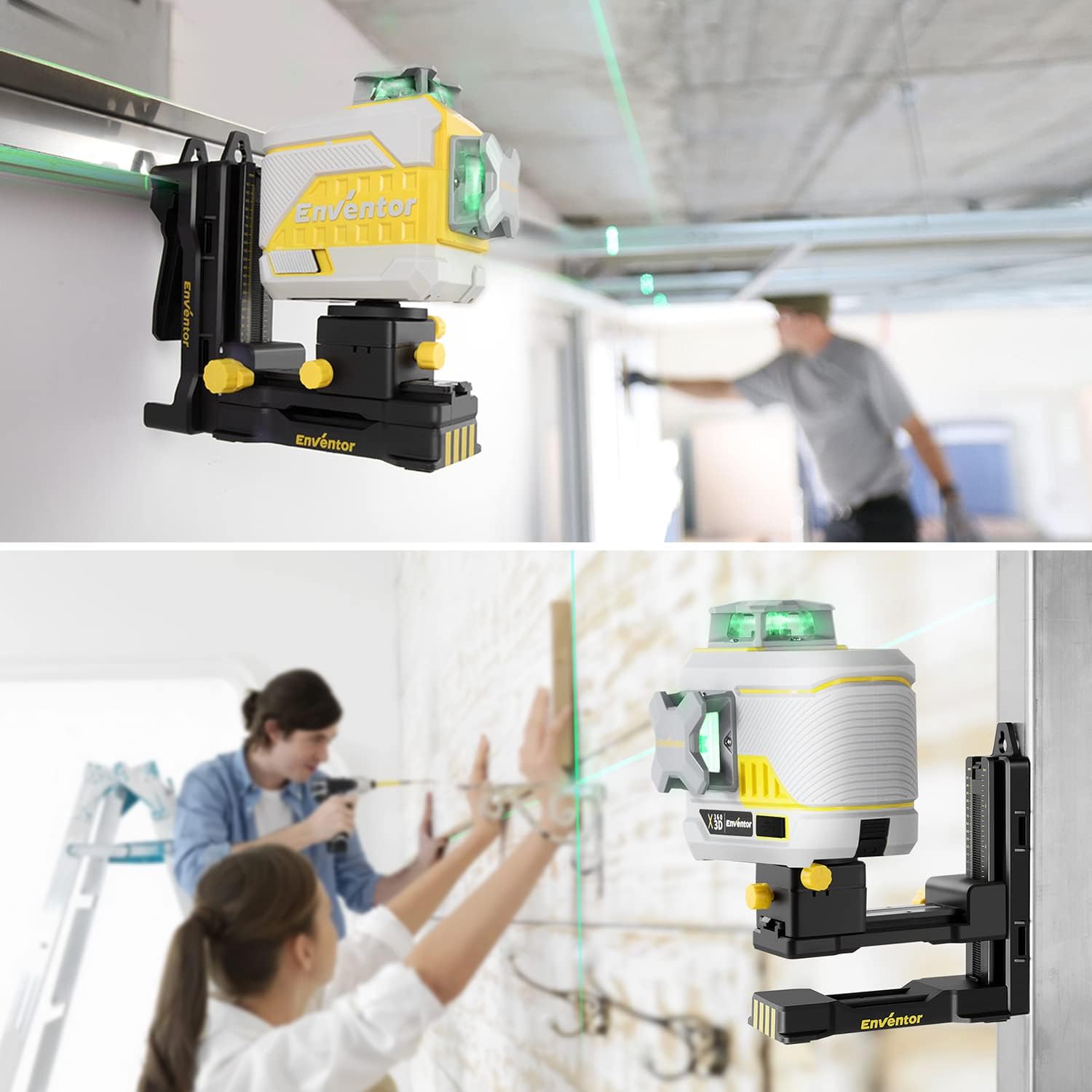

For best results, mount the base on a stable metal surface or secure it to a solid structure using the provided screws or clamps. Use the horizontal 360° rotation to align the laser line with the reference axis and then lock the height to prevent drift during operation. When transferring between sites, detach the rear clip and reattach on a different frame or wall, thanks to the modular design. If space is tight, rely on the suction or cord-tie methods to keep the setup tidy and reliable.
