DUSKTEC 24V 400W LED Driver Transformer – Slim, Non-Dimmable Power Supply for 24V LED Lighting
Product description
What it is
The DUSKTEC LED Driver is a compact, non-dimmable power supply designed to convert 240V AC to a steady 24V DC for low voltage LED lighting such as strips, cabinets, G4, MR11 and MR16 bulbs. On paper, it delivers up to 16.67A with a maximum load of 400W and is intended for use in ventilated, dry locations. The unit emphasises heat dissipation with a slim honeycomb construction and operates without a fan, meaning no audible noise.
How it works

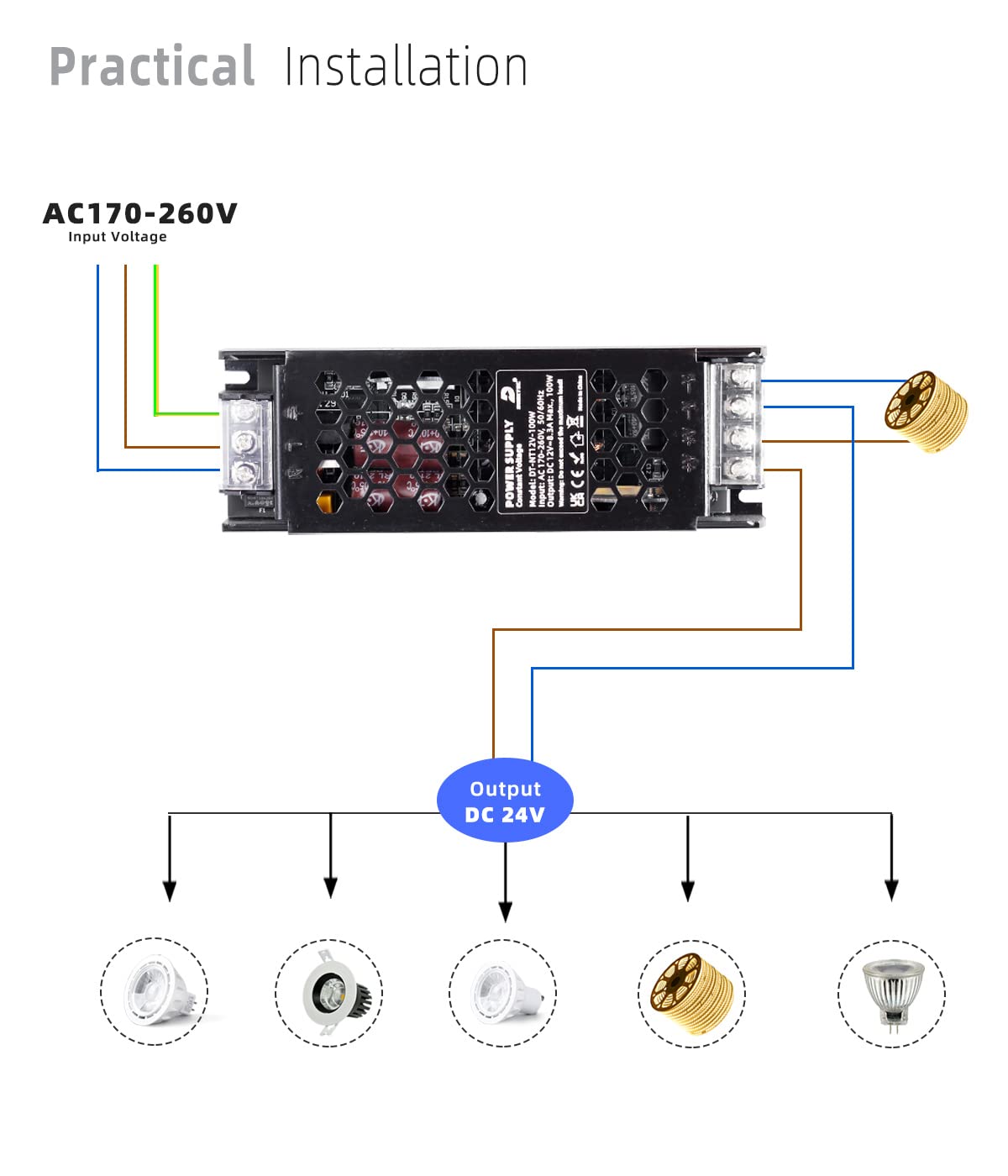

This device accepts AC input in the 170–260V range at 50/60Hz and provides a constant voltage output of 24V DC. The emphasis is on reliability and straightforward operation rather than dimming or complex control. The protective circuitry includes overvoltage, overheat, overcurrent and short circuit protection. Importantly, the total wattage of connected lights must not exceed 400W, and it’s commonly recommended to keep utilisation around 85% of capacity to extend lifespan.
Design and build

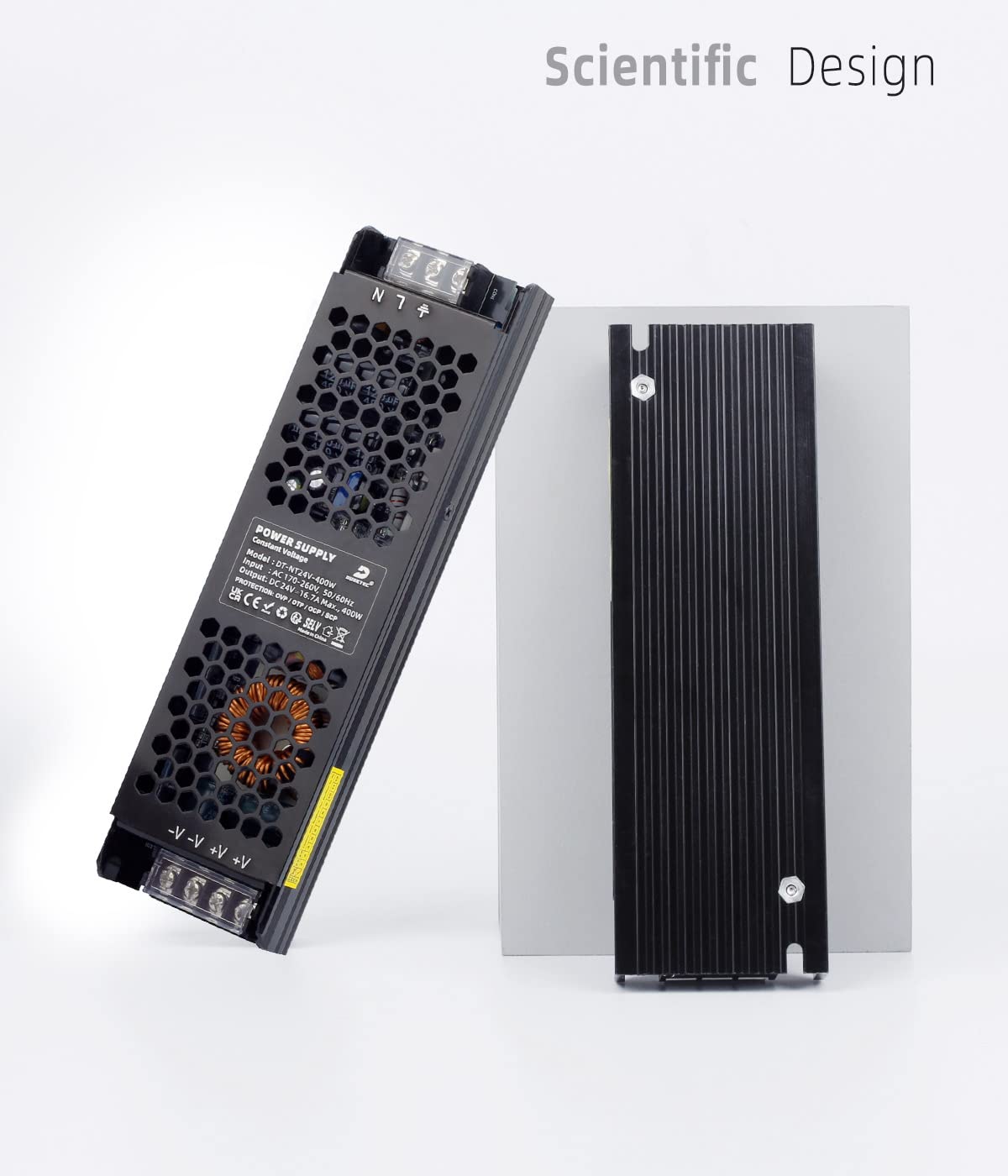

The block is engineered to stay cool due to its honeycomb thermal design and is described as fanless, which reduces failure points and noise. With IP20 protection, this transformer is suitable for indoor use where dust protection and moisture are not a primary concern. Dimensions are 227 × 63 × 30 mm, marking a slim footprint for easier fitting in tight spaces.
Key features
- 24V DC output at up to 16.67A (400W max)
- AC input 170–260V, 50/60Hz
- Non-dimmable, constant voltage supply
- Fanless for quiet operation
- Slim, honeycomb heat-dissipation design
- IP20 rated and for 24Vdc LED lights

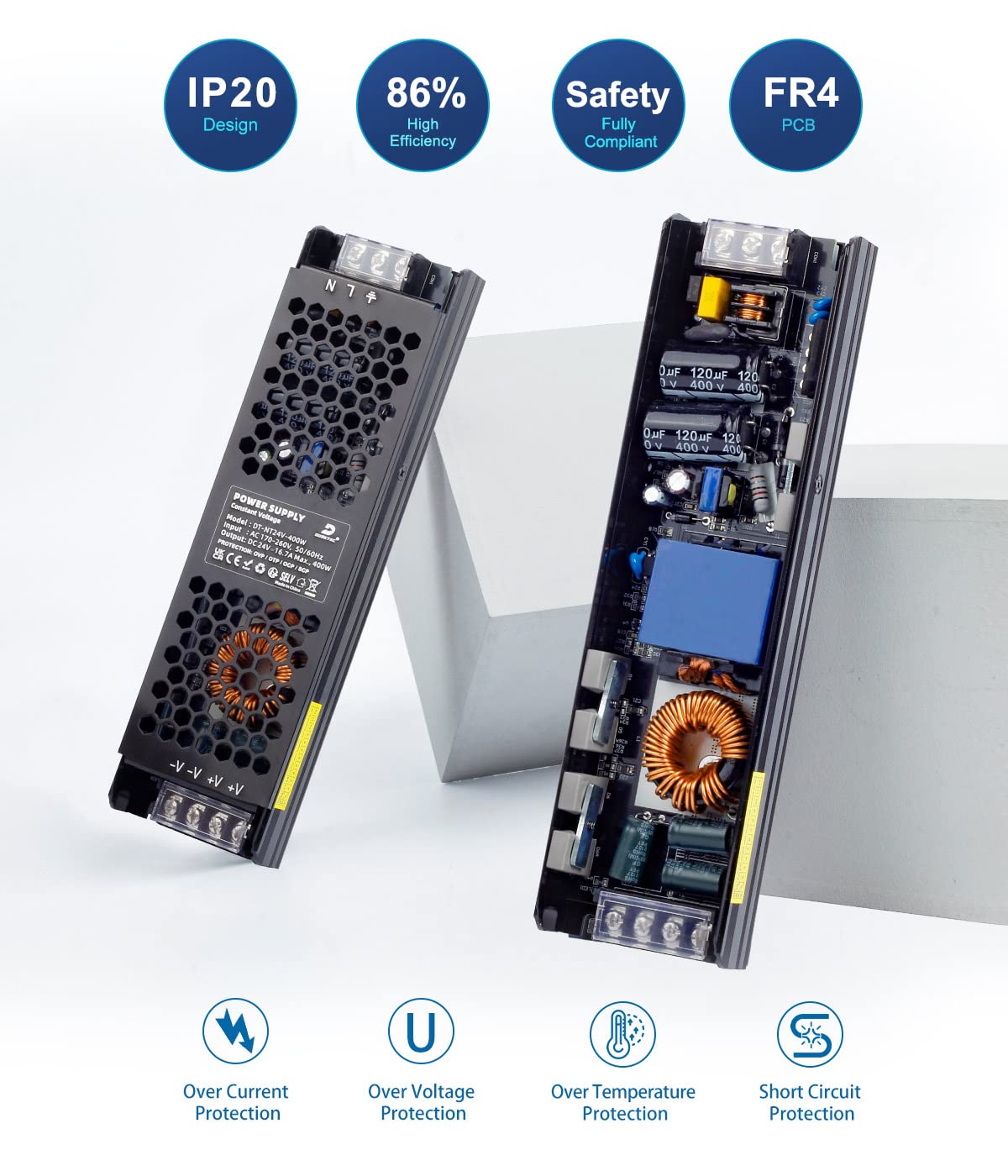

- Overvoltage, overheat, overcurrent and short circuit protection
- Installation in ventilated, dry locations, wall mounting possible
- 2-year customer service support
What stands out vs. limitations
On the plus side, the unit is small and quiet, with built-in protections and a straightforward, solid 24V supply for common LED fixtures. The lack of dimming may be a limitation if your project relies on adjustable brightness. It also requires attentive load management, you should not push the full 400W or run above roughly 85% of capacity to maximise longevity. Some users may want a dimmable option or a driver with broader protections or remote control features, which this model does not provide.
Who it’s for
This driver is a sensible pick if you need a simple, reliable 24V supply for LED strips, cabinets or low-voltage fixtures in a dry, ventilated indoor setting. It suits projects where you prioritise a compact, quiet, fixed-output power source with strong protection and a straightforward installation.
Who it isn’t for
If your setup requires dimming, dynamic control, or operation in damp environments, this model may not be the best fit. It’s also less ideal for high-humidity or outdoor-use scenarios where IP protection for wet or dusty conditions would be necessary.
When it makes sense to buy
- You want a slim, quiet, fixed‑voltage 24V supply for LED lighting in a dry indoor space.
- You prioritise robust protection mechanisms and a straightforward, no-fuss installation.
- You can design the load to stay within about 85% of the 400W rating to prolong life.
What to check before buying
- Confirm the total wattage of all connected lights stays under 400W and within recommended load.
- Ensure the installation location is ventilated and dry.
- Check that you do not require dimming or remote control features.
- Verify replacement availability or warranty terms beyond the included two-year service.
Practical use example
Imagine you’re lighting a shallow cabinet with LED strips and small MR16 fixtures. The DUSKTEC unit slips into a narrow cupboard recess, runs quietly at a fixed 24V, and keeps the fixtures running consistently without flicker or audible hum. It’s not the “flashy hero” of a lighting setup, but it does the job with stable output and protective safeguards.
FAQ (based on available data)
- Is it dimmable? No, this model is non-dimmable.
- What environments can it be used in? It’s designed for ventilated, dry indoor locations.
- What should I avoid? Do not exceed the 400W maximum load and avoid wet or dusty spaces where IP protection is insufficient.
Final decision
Final verdict
If you need a compact, reliable fixed-output 24V supply for indoor LED lighting with solid protection features and quiet operation, this DUSKTEC driver offers sensible value. It may not suit projects requiring dimming or outdoor use, but for straightforward LED installations in a dry, ventilated area, it’s a practical choice. Consider your load needs and space constraints, and plan for a load that doesn’t push the 400W limit.
