DARKGUARD LED Trailer Tail Lights 12V/24V – 7 Functions, IP65, 5-Pin Bayonet Connector

What this product is and what it solves

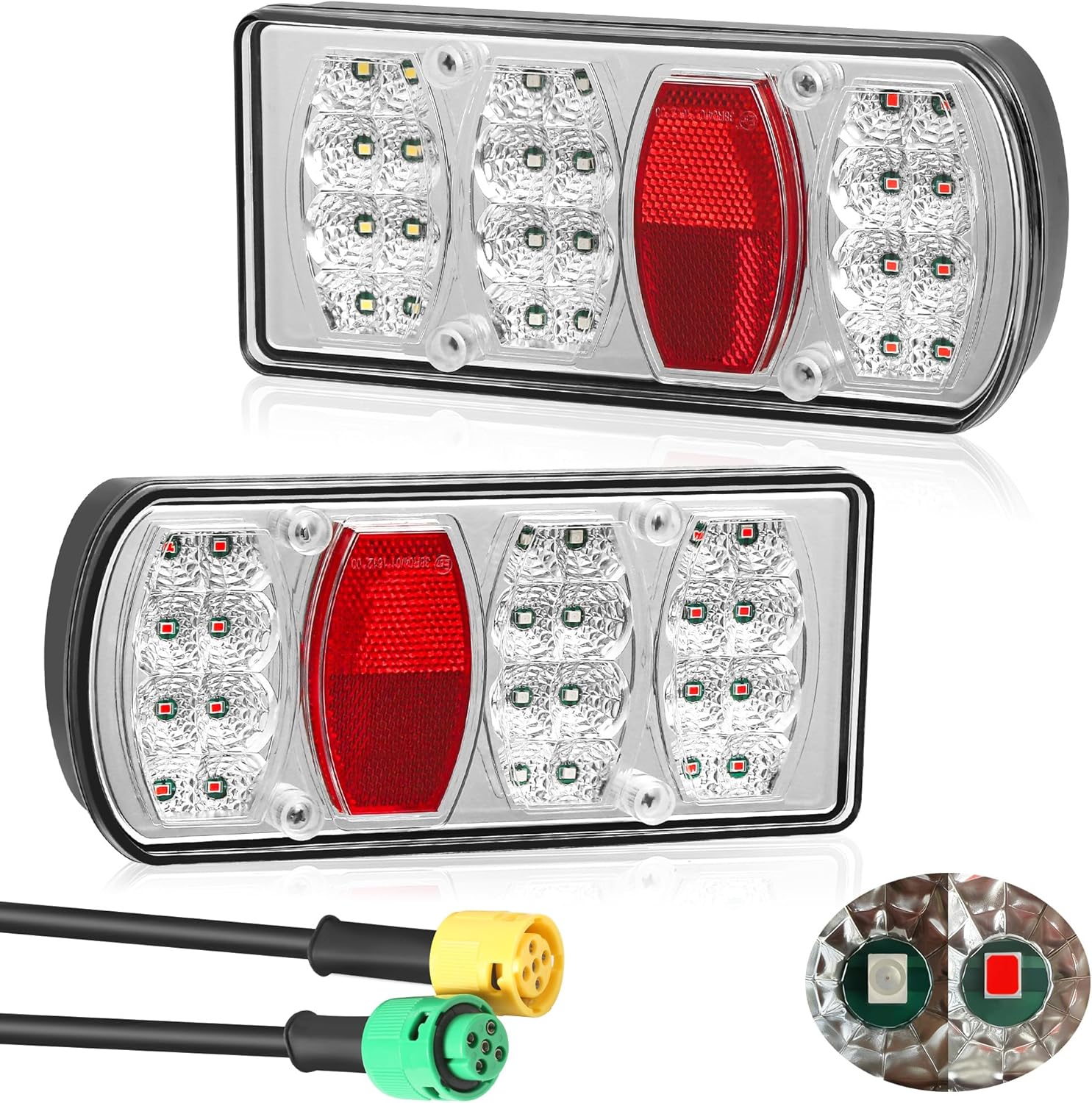

DARKGUARD LED Trailer Tail Lights are a pair of rear lighting units designed for a wide range of towed vehicles. Built to operate on 12V or 24V systems, they cover common trailer, truck, caravan and agricultural needs without requiring different units for each voltage. The kit includes two lights with a 5-core bayonet plug, making installation straightforward for someone with basic wiring skills. The combination of a PC lens, ABS body and a pure copper cable aims to deliver durability in challenging outdoor conditions and varying temperatures. If you’re looking to upgrade or replace worn-out trailer lights with a compact, multi‑function option, these offer a practical, no-nonsense route.

How the 7 functions map to everyday use

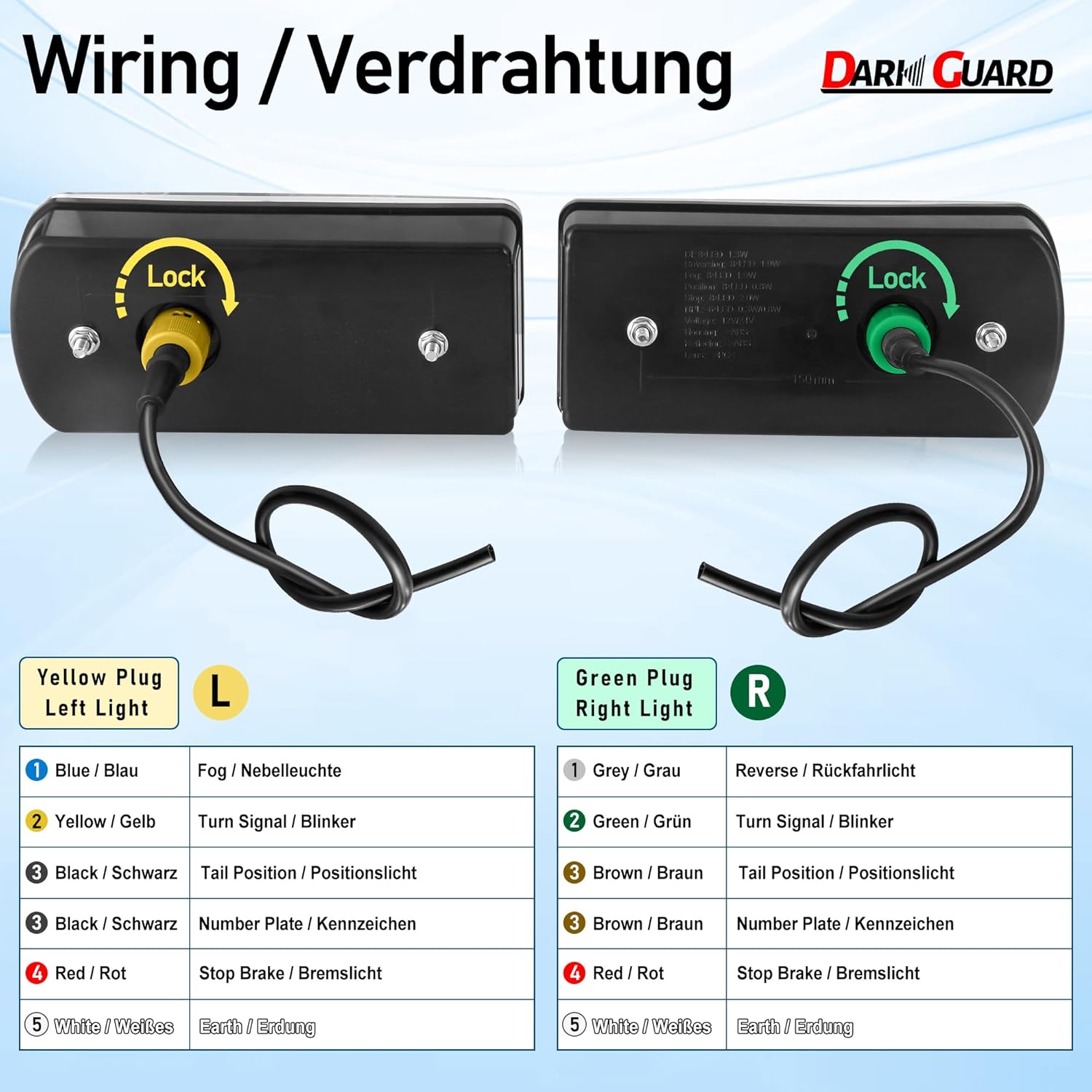

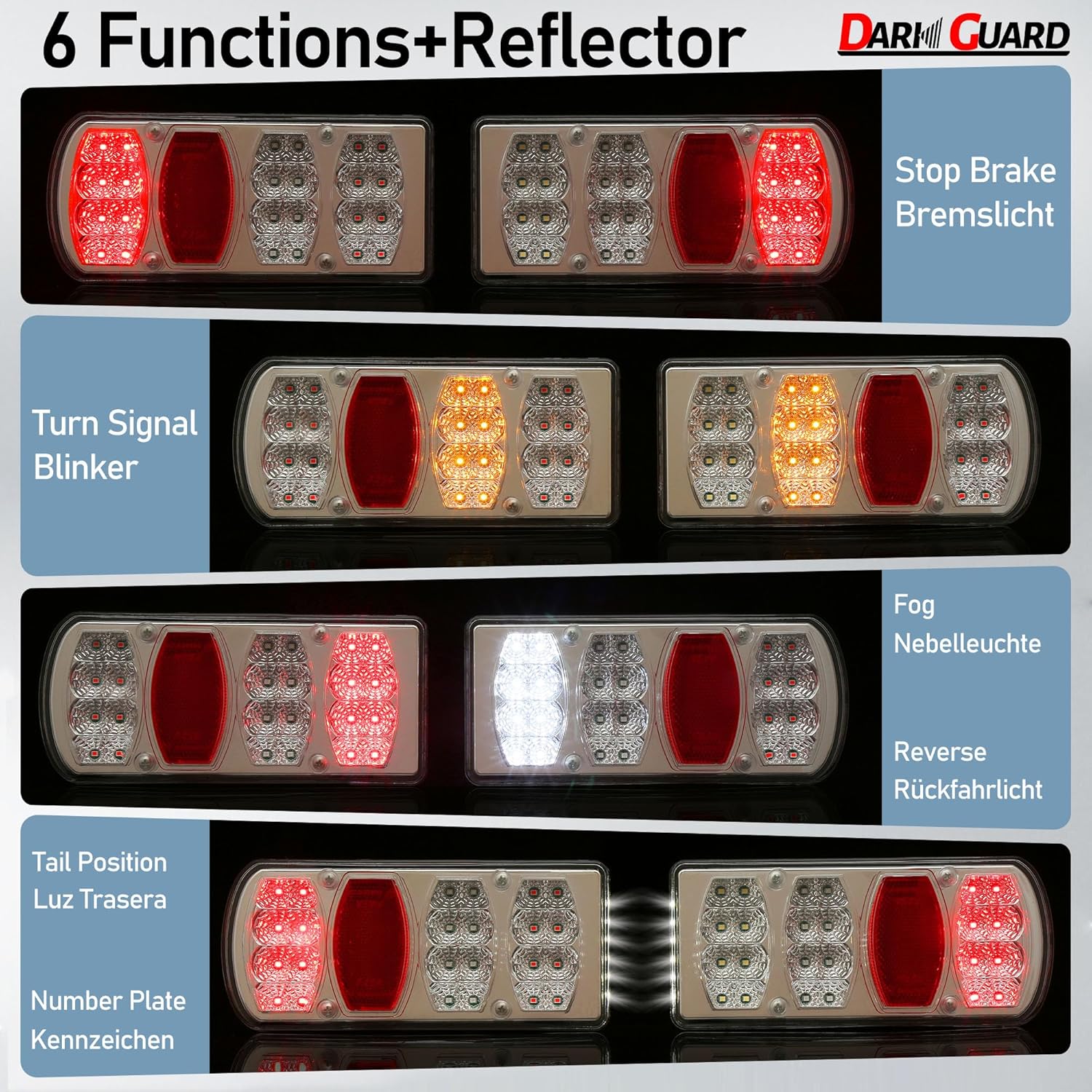

Across both lights you get seven functions: Turn Signal, Stop/Brake, Position/Tail, Left Fog, Right Reverse, Number Plate Illumination, and a grounding earth. In practice this means you can operate legally and clearly in most driving scenarios: signalling intentions on the road, braking visibility, and keeping the rear end lit for parked or reversing situations. The left and right channels use distinct colour coding (Yellow/Green for turn signals, Black/Brown for position lights, etc.), which helps with wiring clarity during installation.

Design and build: what stands out on paper

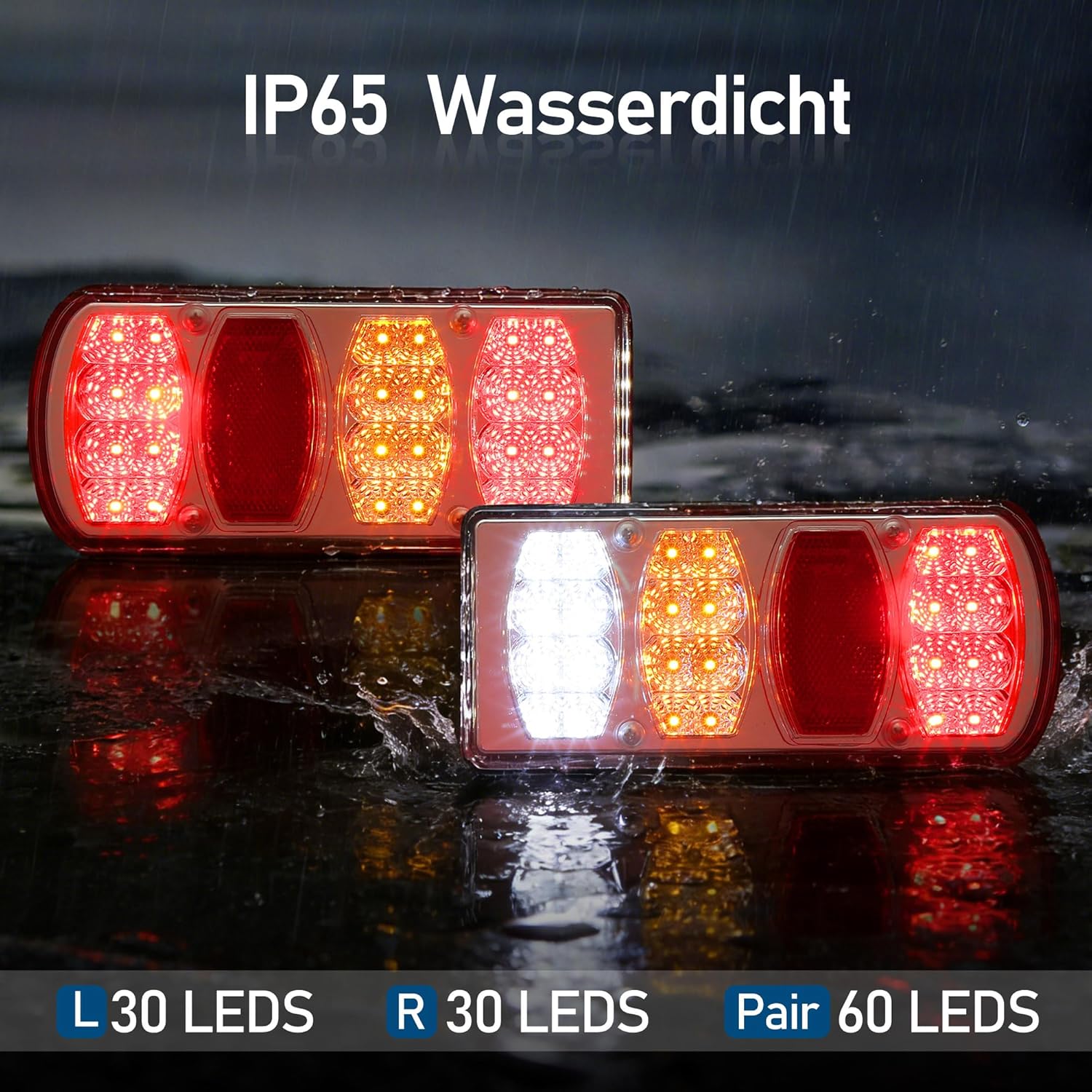

The lamps use a high‑impact PC lens paired with a durable ABS body and built‑in reflectors. They’re specified as weather and shock resistant with a working temperature range from -40°C to +65°C, which gives confidence for UK weather conditions and seasonal storage. Waterproofing is rated up to IP65, offering protection against jets of water and general damp exposure. The 30 cm, 5-core cable and 5‑pin bayonet connectors are designed to allow a quick plug‑and‑play setup, reducing loom complexity compared with some multi‑pin alternatives.

What’s included and compatibility notes

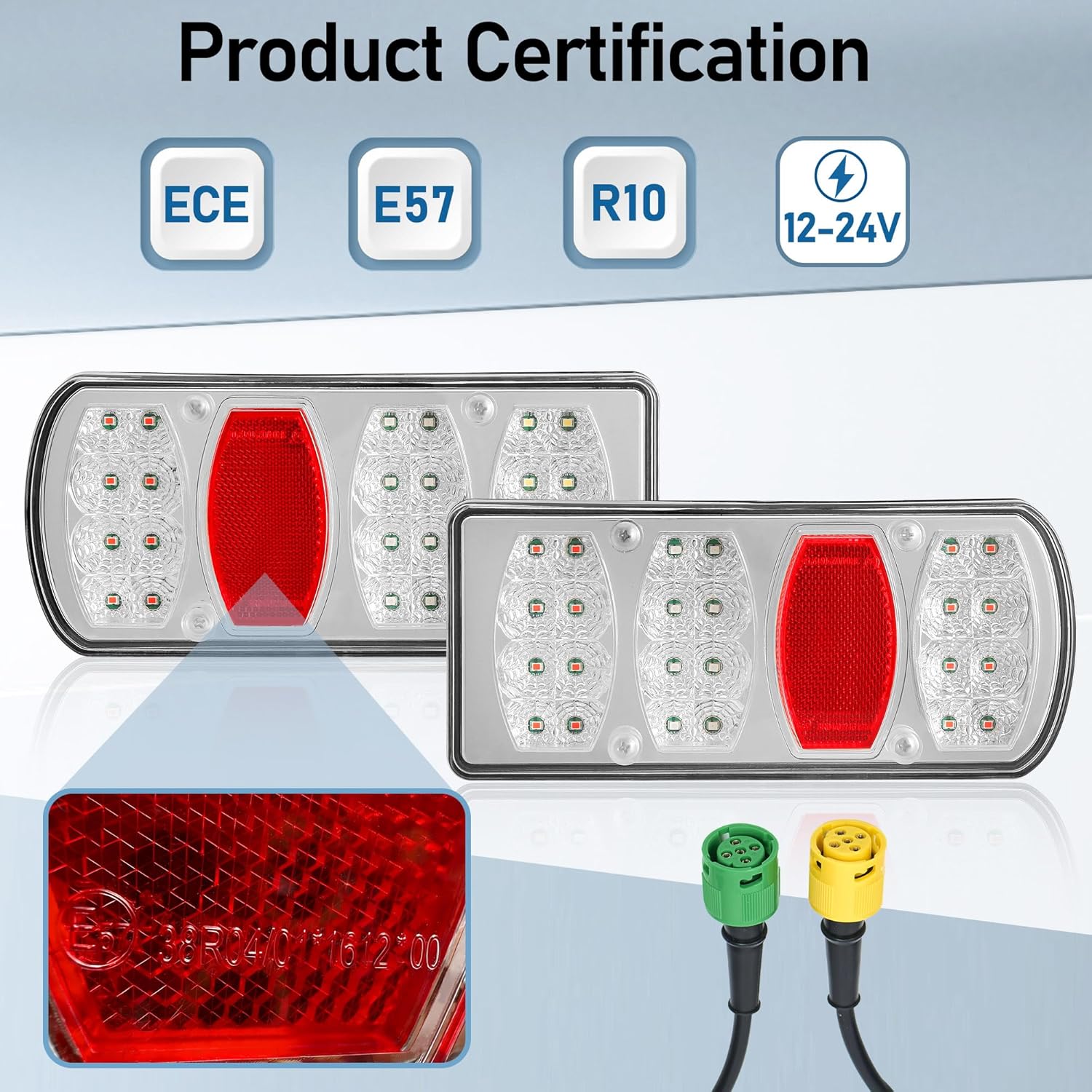

This is marketed as a standard trailer lights kit with left (Yellow bayonet) and right (Green bayonet) outputs. The 150 mm bolt distance aligns with many trailer frame standards, but you should measure your mounting points to ensure a proper fit. The kit mentions EU approval (ECE E57 EMC), which is relevant for road-legal compliance in many European contexts. It’s important to note that the description focuses on the light units and general compatibility, if your trailer uses a different connector or a non‑standard mounting, you’ll want to verify fit before purchasing.

Pros and potential drawbacks

On the plus side, the dual‑voltage capability (12V/24V) and seven‑function setup cover essential rear lighting needs without needing separate components for each function. The IP65 rating and temperature tolerance add reassurance for outdoor use and varying climates. On the downside, the specification notes a 30 cm cable and a 5‑pin bayonet connector, which means some users may need to confirm exact compatibility with their existing harness and mounting layout. For very simplistic or older wiring setups, the bayonet plug style may require adapters or additional cable work. If you prioritise extremely compact form factors or ultra‑low profile housings, these might feel bulkier in tight spaces.

Who this is for

If you’re outfitting a trailer, caravan or agricultural vehicle and you want a single, robust rear light solution that works across common vehicle voltages, these DARKGUARD lights are a sensible option. They suit DIY instalments, fleet maintenance crews or owners replacing ageing lights who prefer a straightforward, documented fit rather than a highly customised setup.

When it makes sense to buy

Consider these lights if you need compatible 12V or 24V operation, seven functional outputs for road‑legal signalling, and a kit that aims to be plug‑and‑play with a standard 5‑pin connector. They are most logical when your trailer or attachment sits within the standard bolt spacing and you’re happy to work with a 30 cm harness length. They’re less ideal if your vehicle demands a different connector type, a more compact unit, or if you require bespoke lumen output per function.

What to check before purchasing

• Confirm your voltage requirement (12V vs 24V) and ensure the trailer is wired for both if you plan to use across vehicles.

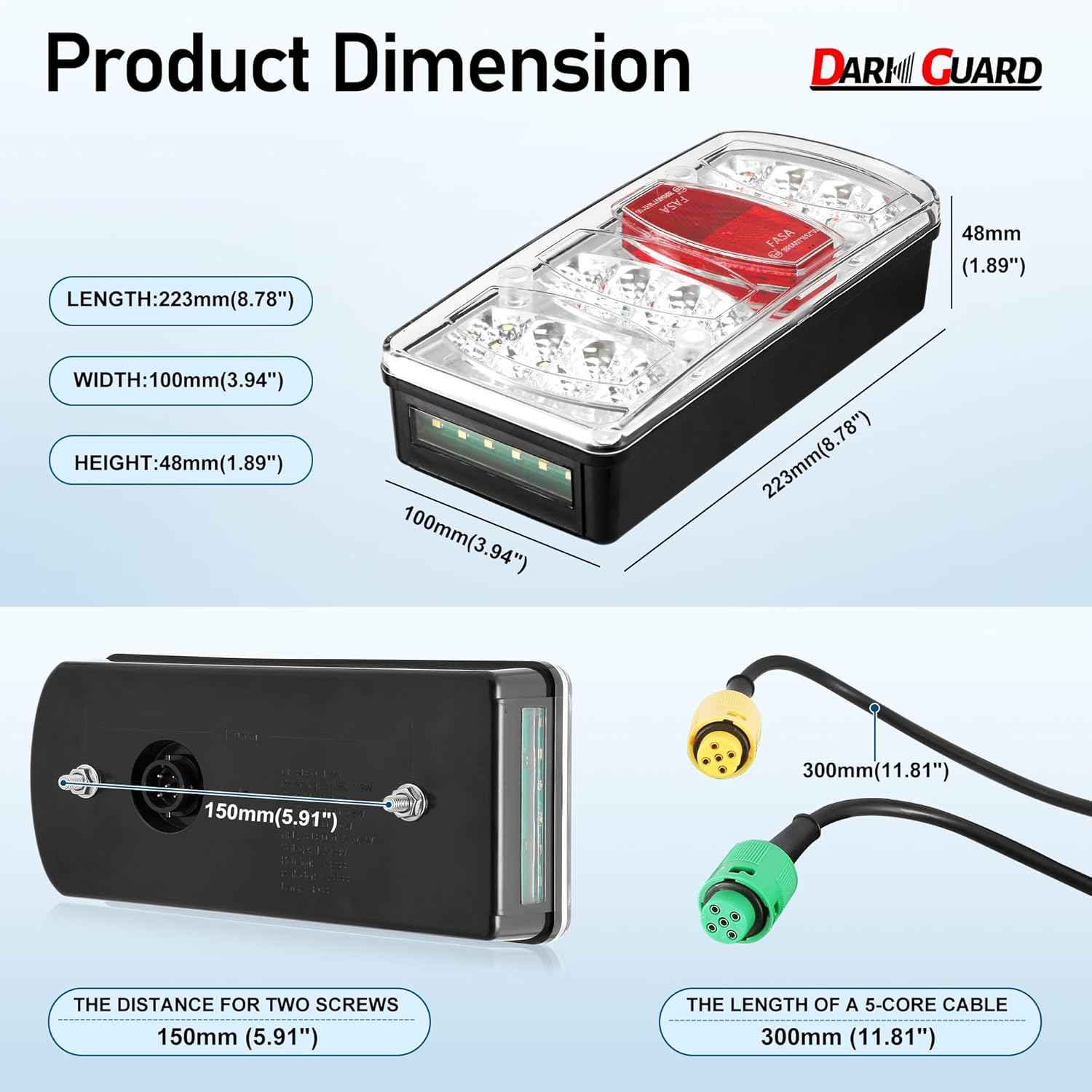

• Measure bolt distance and mounting space to ensure the 223x100x48 mm enclosure fits your trailer.
• Check connector compatibility with your existing harness (5-pin bayonet vs any adapters you may need).
• Ensure the mounting surface and weather exposure align with IP65 expectations and the temperature range in your operating environment.

How it compares to broader alternatives

If you’re choosing between a single, basic tail light and a multi‑function unit, this DARKGUARD option leans toward practical versatility rather than ultra‑compact form or high‑intensity outputs. For those who only need a basic stop/turn/tail function, a simpler unit might suffice, for applications requiring higher waterproofing or more custom lumen distribution, more premium or purpose‑built models could be preferable. In practice, these lights are well suited to standard trailers where a balance of durability, ease of installation and compliance is valued over boutique design.

FAQ (quick practical answers)

• Do these lights work on both 12V and 24V systems? Yes, they are specified for 12V and 24V operation.
• Is installation plug‑and‑play? The kit includes 5‑pin bayonet connectors and a 30 cm cable, intended for straightforward connection, though some layouts may require minor wiring adjustments.
• Are they suitable for harsh weather? They carry an IP65 rating and a wide operating temperature range, which helps in rain and cold conditions typical to UK use.

Final buying verdict

Should you buy it?

Worth considering if you need a two‑voltage, seven‑function rear light solution with a straightforward fit and EU approvals. It suits practical buyers who value durability and ease of installation over boutique styling or ultra‑compact design. If your setup uses a non‑standard connector, or you require a shorter harness, you may want to confirm compatibility before purchase.

Quick usage example

Imagine you're replacing worn trailer lights on a horse trailer ready for a cross‑country trip. With these DARKGUARD lights, you can wire up the left and right turn signals while keeping the brake, tail light, and number plate illumination managed in a single, weather‑resistant unit. The plug‑and‑play nature speeds up the job, and the IP65 protection gives peace of mind when moving between rain and sunshine on the road.
