K&F CONCEPT 90" / 230cm Horizontal Tripod with 360° Rotation, 120° Tilt Arm & Detachable Monopod
Product description
The essentials
If you like shooting from tricky angles, this K&F CONCEPT horizontal tripod is built around flexibility first: a 360° rotatable platform and a horizontal arm that can tilt from 0 to 120°. On paper, it’s aimed at people who want more than a standard “vertical” tripod setup—think panoramic sweeps, overhead-style compositions, and shots where keeping the camera at the right height and angle matters.
It also leans into a practical travel story for its class. The tripod uses a four-section leg design, collapses down to 54cm, and is listed at 2kg. That combination can be useful if you’re carrying gear around locations rather than leaving a tripod set up permanently.
What matters most in day-to-day use
The big selling point is the way this setup lets you keep the camera oriented horizontally while you rotate and tilt. With 360° horizontal rotation and a 360-degree scale on the base, it’s easier to line up panoramas or repeat compositions across shots.
The horizontal arm also tilts up to 120° (0–120° range), which can be handy for overhead or near-overhead framing—places where a traditional tripod might force you into awkward body angles or limited camera positions. There’s also a detachable monopod, which should help when you’re working in confined spaces where a full tripod footprint is simply too much.
Stability and movement feel
Stability is never just about the tripod’s height. This model uses an enlarged 28mm diameter centre column, and the description highlights that it’s intended to reduce vibrations during horizontal positioning. In real shooting terms, that’s the sort of thing that can make a difference when you’re trying to keep details crisp while the camera is pointed sideways.
The ball head is described as a 28mm ball head with oil-free damping. Oil-free damping generally points to smoother, more controlled movements without relying on an oily mechanism. That won’t magically remove all camera shake, but it’s the kind of design choice that matters when you’re fine-tuning composition.
A small limitation to keep in mind: this is a specialised horizontal/arm-style tripod. If your typical work is straightforward eye-level landscape framing or quick handheld-adjacent shots, you may find a standard tripod simpler and faster to set up.
Load capacity and compatibility considerations
The kit is specified with a 10kg load capacity and uses an Arca type QR plate. If you mount heavier camera setups, that 10kg figure is reassuring on paper for confidence during shooting.
That said, the description doesn’t spell out exact mounting specifics beyond the Arca type QR plate. Before buying, it’s worth checking that your ball head plate/camera mounting system matches the Arca QR approach you plan to use.
Where it shines (and where it can feel like overkill)
This tripod makes the most sense when you want controlled, repeatable angles rather than just “support”. Best use cases in the description’s spirit include: - Panoramic work where rotation consistency helps - Overhead or near-overhead compositions thanks to the 0–120° tilt range - Situations where the detachable monopod lets you adapt when the tripod legs won’t fit
It may not be the best match if your main goal is fast everyday travel with minimal fuss. The horizontal arm system is versatile, but versatility often comes with a bit more setup choreography compared with a simpler, more traditional tripod.

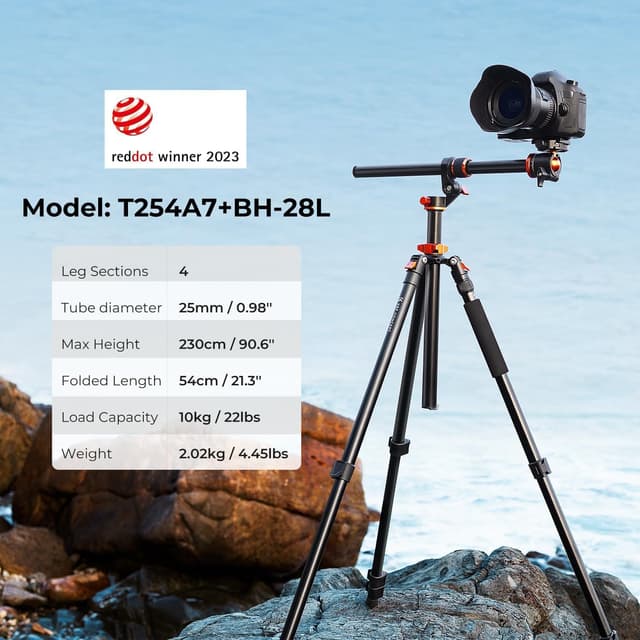

Tech specs
- Type: Horizontal tripod with 360° rotatable base and tilting horizontal arm
- Tilt range: 0–120°
- Rotation: 360° horizontal rotation
- Maximum height: 2.3m
- Legs: 4-section leg design
- Collapsed size: 54cm
- Weight: 2kg
- Centre column: 28mm diameter (as described)
- Ball head: 28mm ball head (as described)
- Load capacity: 10kg
- Damping: oil-free damping design (as described)
- QR plate type: Arca type QR plate
- Includes: detachable monopod (as described)
Buying verdict
It’s a solid pick if you’re regularly after horizontal compositions, panoramas, or overhead-style framing, and you want the tripod to handle rotation and tilt in a straightforward, repeatable way. The 360° rotation with a base scale, plus the 0–120° tilt arm, is the kind of feature set that can justify paying extra compared with basic tripods when your shots demand that extra control.
You may want to skip it if your shooting is mostly simple eye-level work, you often need a tripod to be “grab-and-go”, or you can’t be bothered with a more specialised setup. And before you commit, double-check the mounting approach around the Arca type QR plate so it fits your existing head and camera base.
Mini FAQ
Is this tripod designed for panoramas?
The description explicitly mentions a 360-degree horizontal scale and 360° rotation, which points to panorama-friendly framing where you want consistent rotation.
What’s the benefit of the detachable monopod?
It’s there for flexibility when space is limited. If you can’t comfortably use the full tripod footprint, the monopod should give you an alternative way to mount and shoot.
How portable is it?
It’s listed as collapsing to 54cm and weighing 2kg, which suggests it’s intended to be manageable for travel.
Does it support heavier camera setups?
On paper, yes: it’s specified with a 10kg load capacity and uses a described 28mm ball head.
What should I check before buying?
Check that your camera mounting system suits the Arca type QR plate, and consider whether a horizontal/arm-style tripod matches how you normally shoot.
