SiRUI AM-324 Carbon Fibre Travel Tripod (57 in) with No Centre Column Design
Product description
Key takeaways

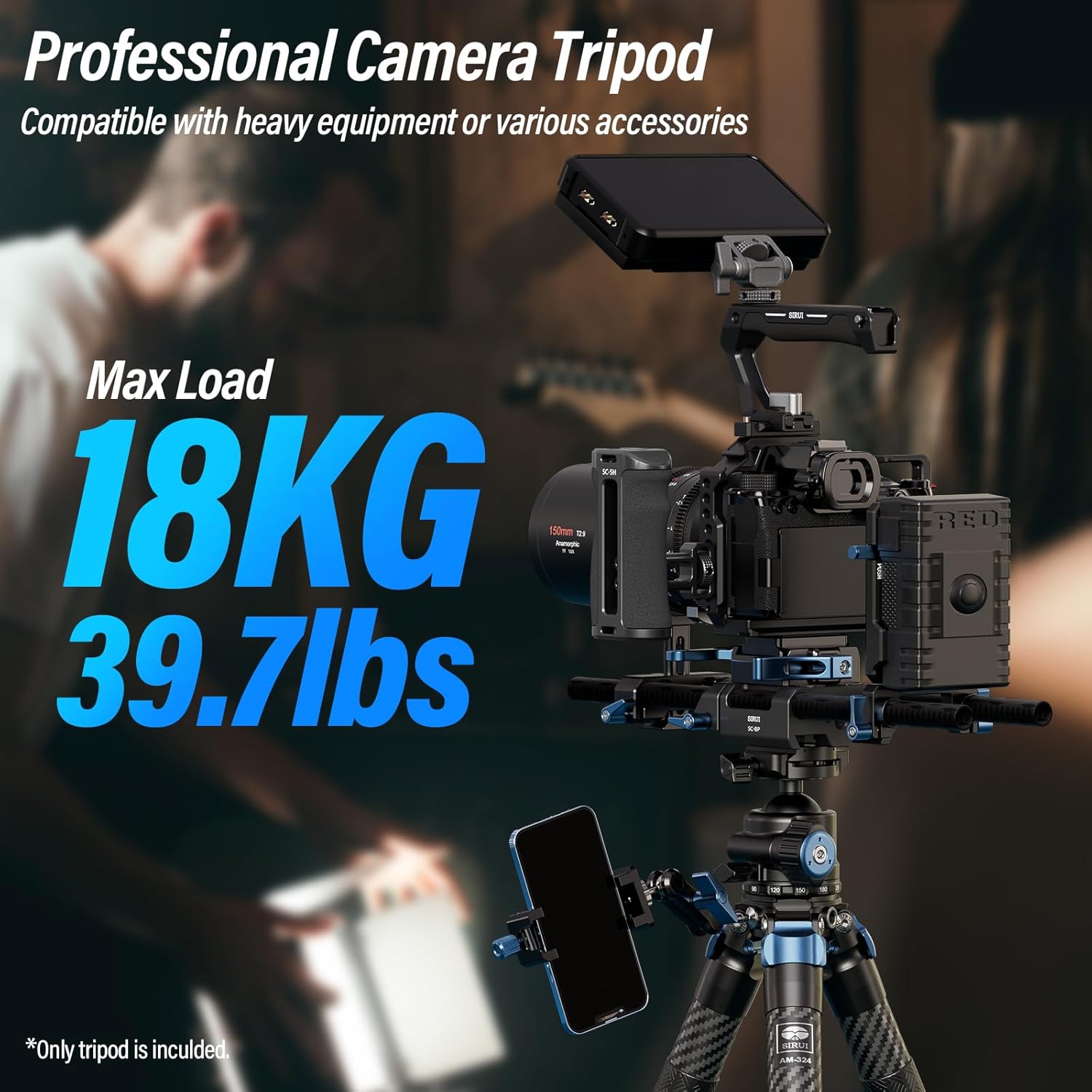

If you’re after a travel tripod that can actually handle heavier camera set-ups, the SiRUI AM-324 is worth a look. On paper it’s a compact, lightweight carbon fibre option (about 1.4kg) for its size, but it’s also specified with a fairly serious maximum load rating (up to around 18kg / 39.7lb). That combination—portability without feeling flimsy—is the main reason people consider this tripod.
That said, it’s not a one-size-fits-all buy. The AM-324 is designed with a no centre column approach, which improves portability and can help for low-angle work, but it also means you’ll be relying on leg height adjustment rather than gaining extra height from a central column. If your shooting style needs maximum height at any cost, this is something to think about before you commit.
The essentials

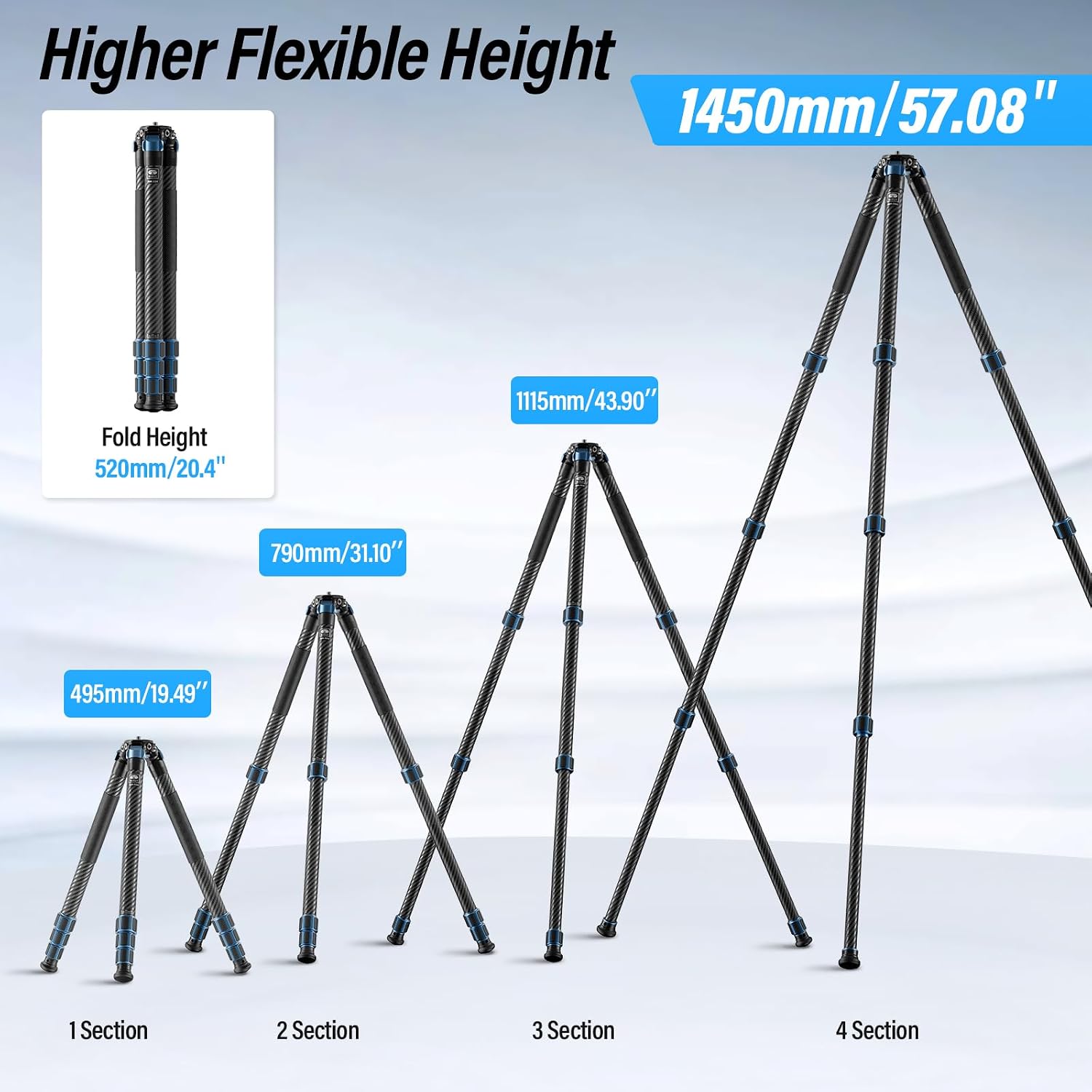

The AM-324 is a 4-section carbon fibre travel tripod with a maximum height of about 57.1 in / 1450mm and a minimum height around 3.1 in / 80mm. It retracts down to roughly 20.5 in / 520mm, so it should be easier to pack than full-size tripods, especially if you’re moving between locations.

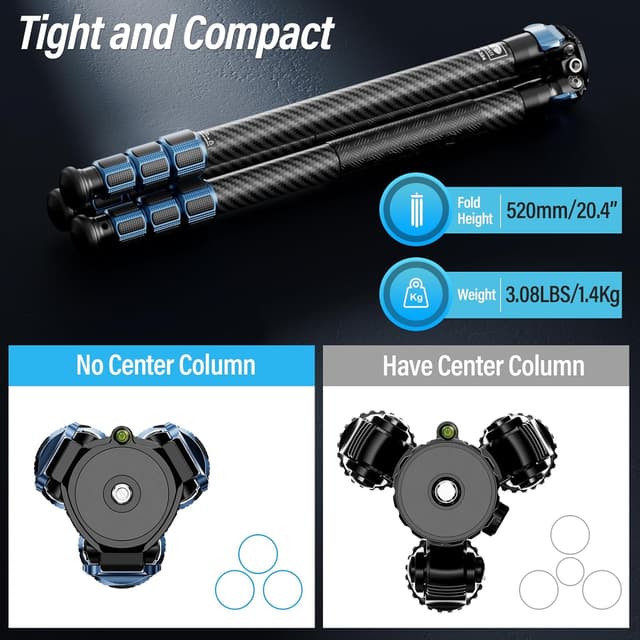

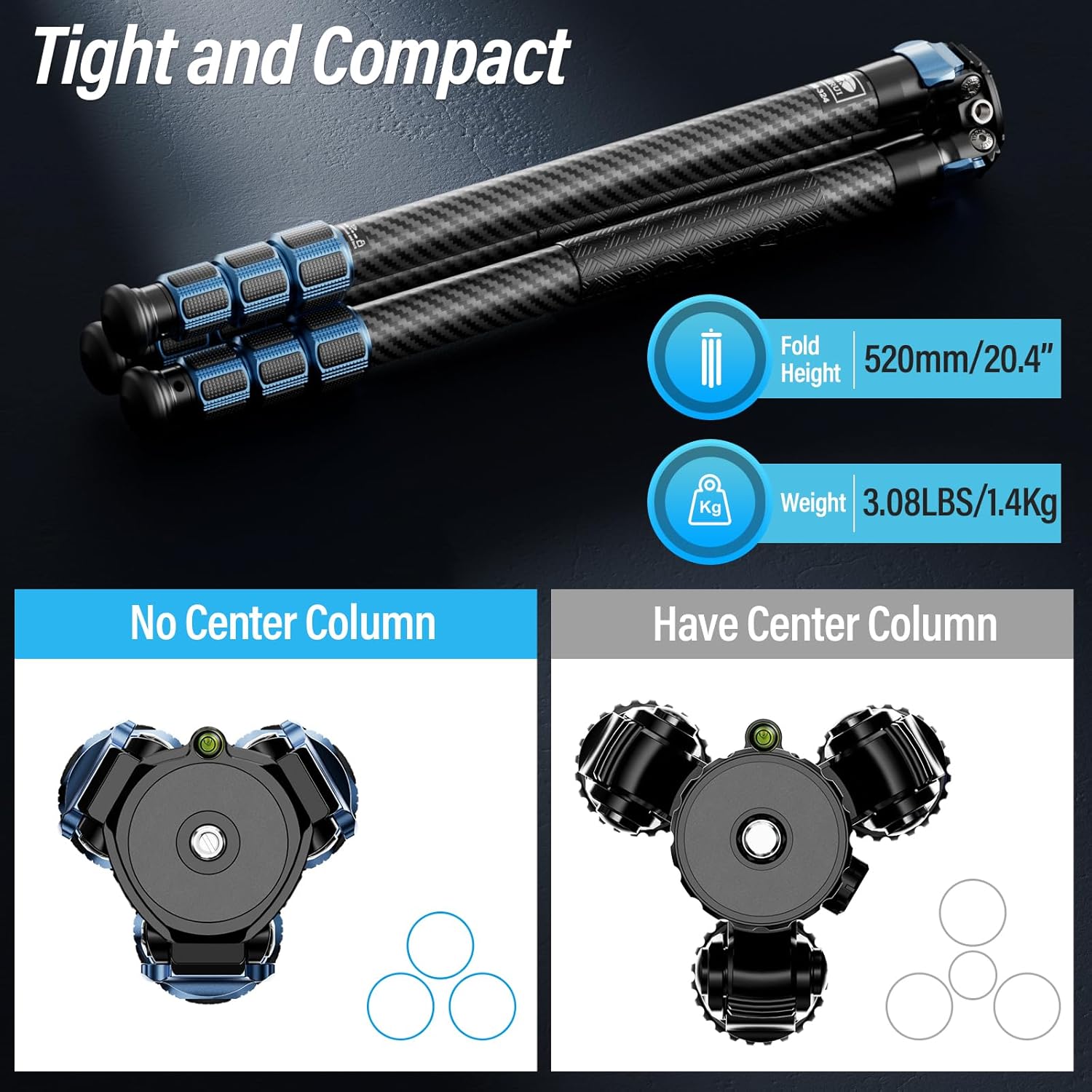

A big part of its “travel” logic is the no centre column design. In practical terms, that tends to keep the rig slimmer and more direct, and it can make ultra-low angles and macro-style shooting feel more achievable without adding complexity.
For mounting, it’s described as compatible with 1/4” and 3/8” self-adaptive threading, and it also includes 1/4”-20 and 3/8”-16 threaded holes for accessories. So if you use a head with those common thread standards, it’s set up to integrate without you having to overthink adapters.
What stands out in everyday use

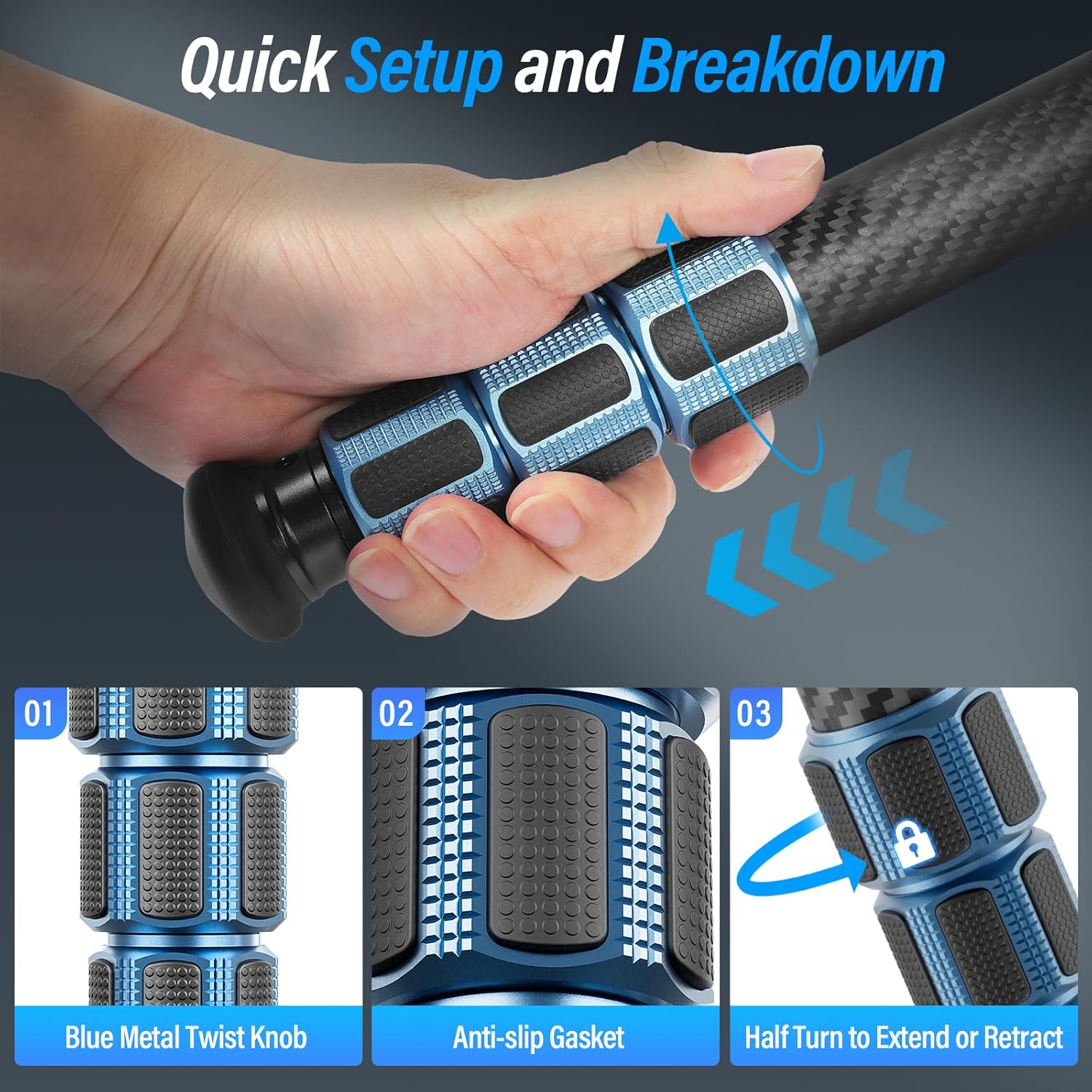

The leg system is where the AM-324 tries to make travel less of a faff. The description points to blue metal twist locks with anti-slip rubber pads and silica gel sleeves on some tubes. The setup is also described as quick—only a half turn to set up—plus there are ergonomic touches that should help when you’re changing height on the go.

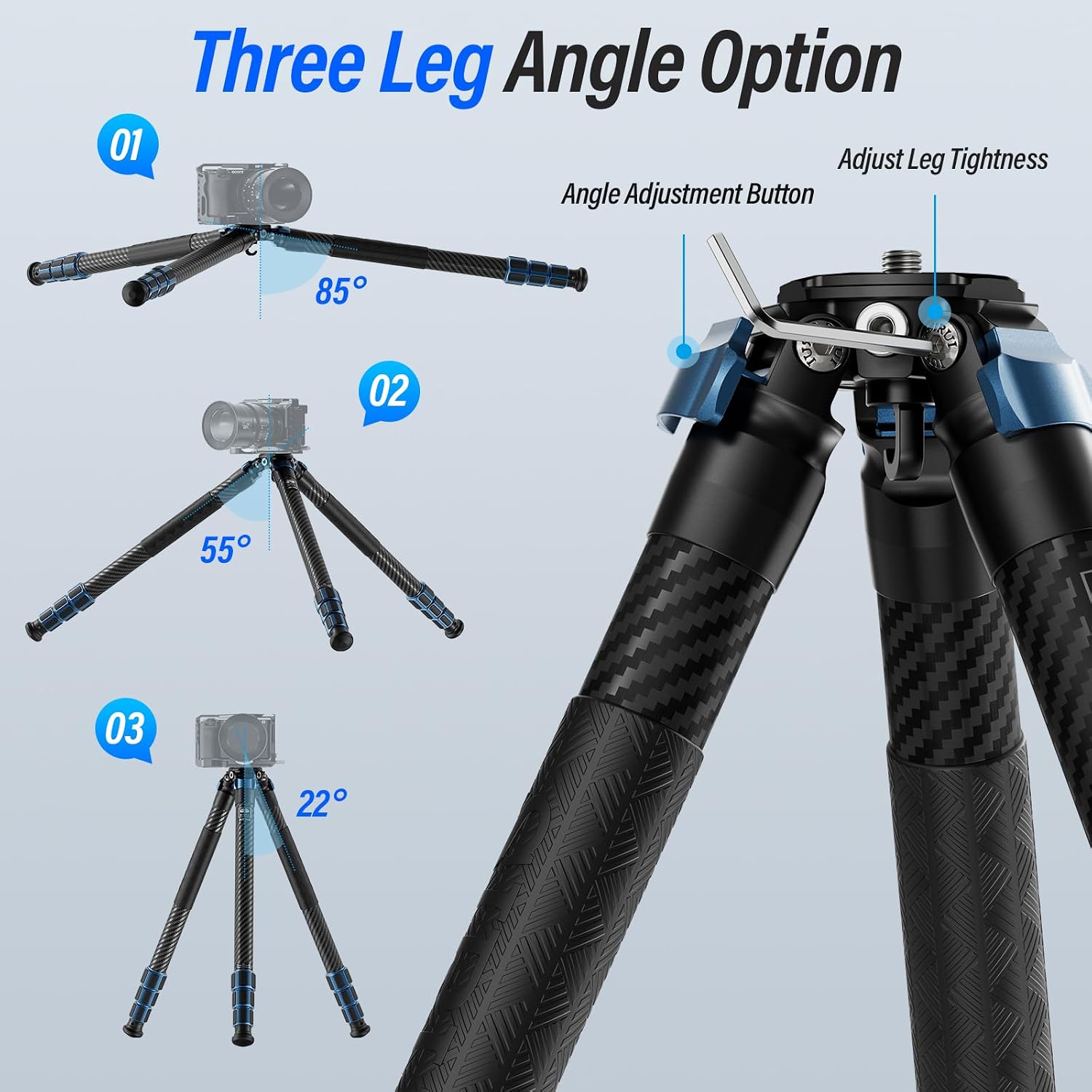

Angle adjustment is also catered for: semi-automatic flip locks with three leg angle options (22°, 55°, 85°). For uneven ground, that range can help you level up without immediately hunting for improvised height solutions.
There’s also a note about fine adjustment using an Allen key to fine tune leg tightness. If you’re the sort of shooter who likes consistency between sessions, that’s a useful detail (even if most people won’t use it every time).
Tech specs
- Model: AM-324
- Material: Carbon Fibre
- Type: 4-section travel tripod with no centre column design

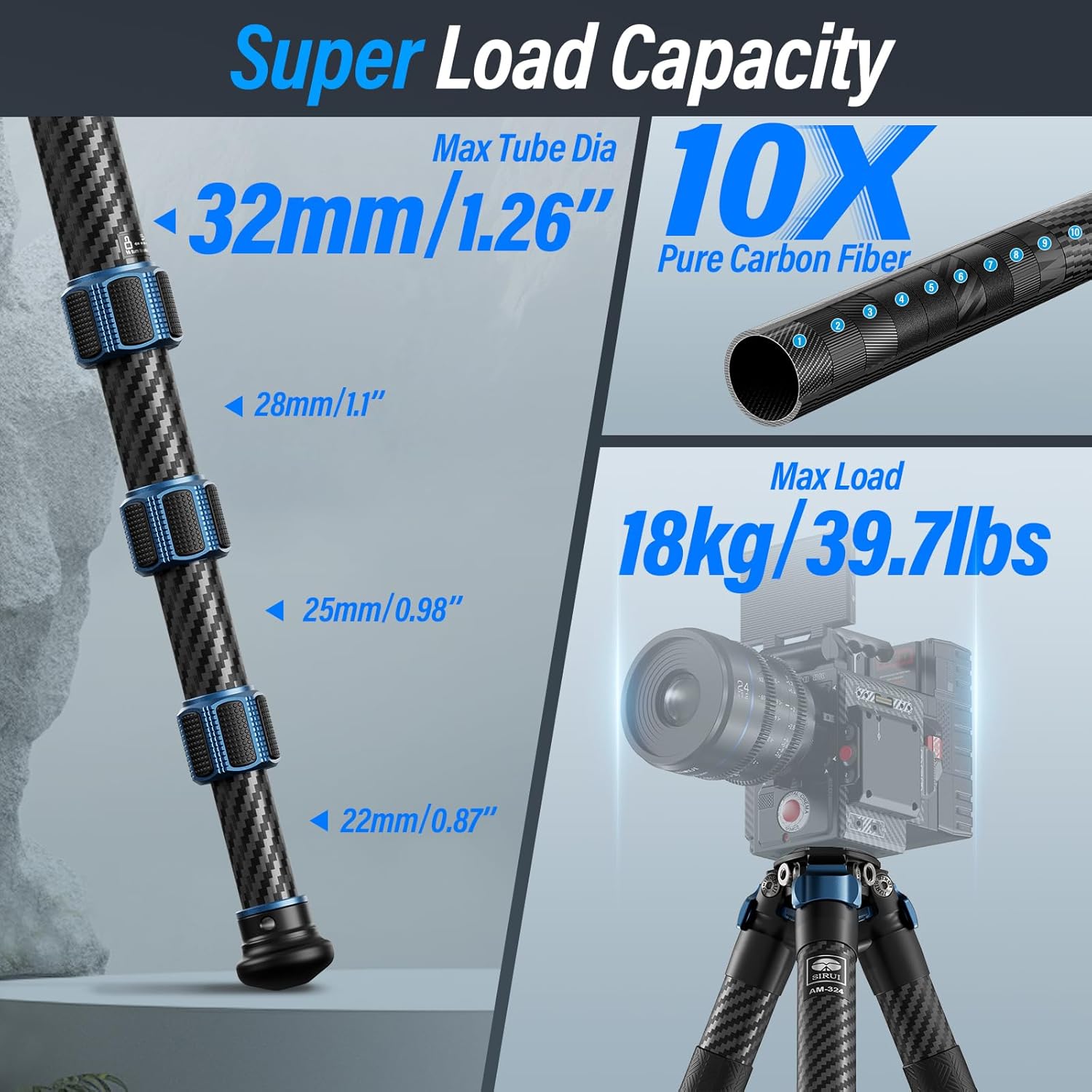

- Tube diameter: 22mm to 32mm (1.3”/32mm max)
- Sections: 4
- Min height: 80mm (3.1”)
- Max height: 1450mm (57.1”)
- Retracted height: 520mm (20.5”)
- Weight: 1.4kg (3.1lbs)
- Max load: 18kg (39.7lbs)
- Leg angle options: 22°, 55°, 85°
- Lock system: twist locks and semi-automatic flip locks (as described)
Pros and where it might fall short
Where it shines: - A travel-sized carbon fibre build paired with a stated high load rating. If you routinely carry a heavier camera or add-on accessories, that’s the headline selling point. - No centre column design, which should help with portability and low-angle/macro-style setups. - Common mounting options (1/4” and 3/8”) plus additional threaded holes for accessories. - Quick leg setup (half-turn locking) and adjustable leg angles for irregular ground.
Worth noting / limitations: - The max height is defined by the legs because there’s no centre column, so taller height demands might feel more constrained than column-based designs. - Maximum load is listed, but how “comfortable” it feels at the top end depends heavily on your tripod head, how you balance the rig, and your shooting conditions. If you often shoot handheld-style action on a tripod, you may still prefer a more conservative load approach.
It may not be the best choice if your top priority is absolute maximum height with minimal leg extension, but it makes more sense if you value packability, low working angles, and a sturdier feel for heavier gear.
Compatibility & requirements
This tripod is described as mounting via 1/4” and 3/8” self-adaptive thread, and it also has 1/4”-20 and 3/8”-16 threaded holes for accessories. That means it should suit many standard camera tripods and accessory setups, but you’ll still want to check your tripod head’s thread type and any accessory mounts you plan to use.
Also, because it’s a carbon fibre travel tripod with a no centre column design, your workflow matters. If you regularly shoot subjects that require frequent height changes, the leg angle and height range are a good match—just confirm it meets your usual eye-line and shooting height needs.
Is it worth it?
Buy the SiRUI AM-324 if you want a travel tripod that’s genuinely designed for a heavier camera setup than “basic” lightweight models, while still keeping the folded size and weight sensible for carrying around. The no centre column design is a strong fit if you care about low-angle or macro-like work, and the leg lock approach suggests it’s meant to be set up quickly in the field.
Skip it (or at least compare more) if you’re chasing maximum reach through a centre column, or if your shooting style demands a lot of height without extending the legs. And take a moment to verify mounting thread compatibility with your head and accessories before you buy—specs like 1/4” and 3/8” are common, but mixing the wrong thread standard is an easy way to end up frustrated.
Mini FAQ
1) What is the main advantage of the no centre column design?
It’s intended to keep the tripod more compact and support ultra-low or macro-style shooting without relying on a centre column for height.
2) How tall does it go and how low can it work?
It’s specified from around 80mm minimum to about 1450mm maximum, with a retracted length of about 520mm.
3) Is it suitable for heavier camera equipment?
The AM-324 is stated with a maximum load rating of about 18kg. While real-world feel depends on your head and conditions, the design intent is clearly aimed at heavier setups.
4) How does it adjust on uneven ground?
You get three leg angle options (22°, 55°, 85°), plus an Allen key for fine adjustment of leg tightness as described.
5) What thread sizes does it support?
It’s described as compatible with 1/4” and 3/8” self-adaptive threads, and it also includes 1/4”-20 and 3/8”-16 threaded holes for accessory connections.
