BINTA Digital Multimeter 4000-count auto-ranging 📟

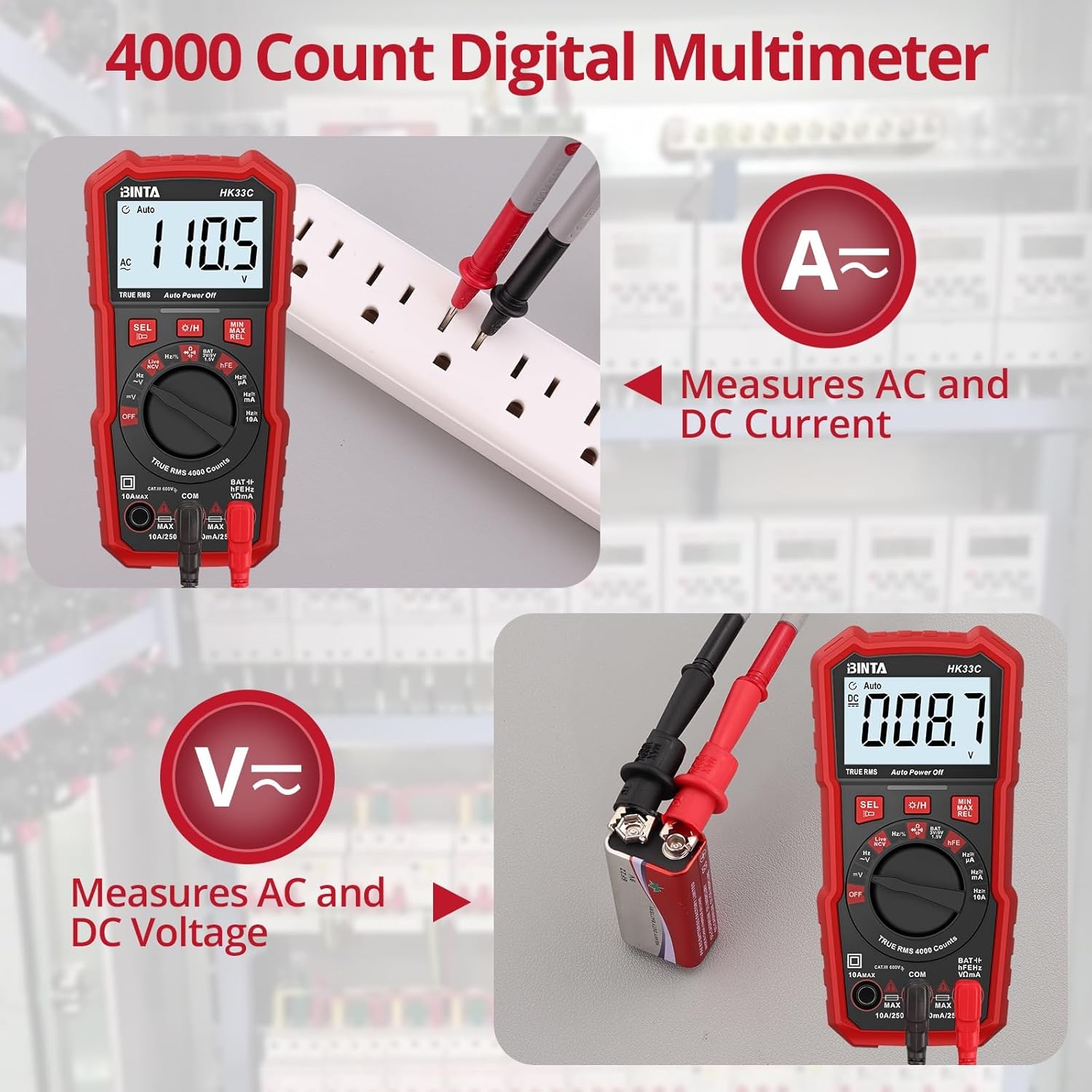

This compact multimeter combines a wide set of measurement functions with a portable format suitable for home, automotive and light industrial use. The digital multimeter 4000 counts offers auto-ranging measurement of AC and DC voltage and current, making it straightforward to test live circuits and components with one handheld instrument.

Key Points

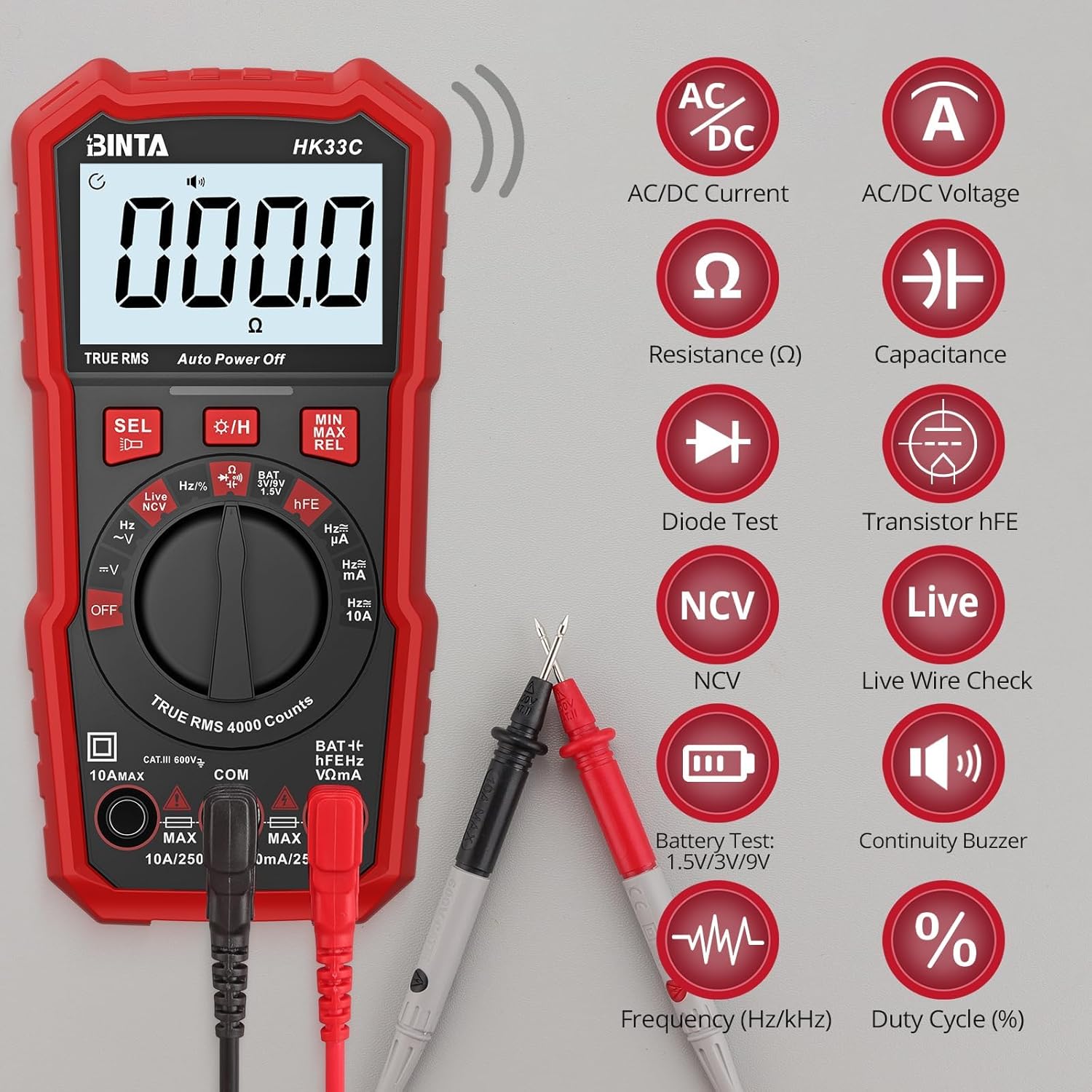

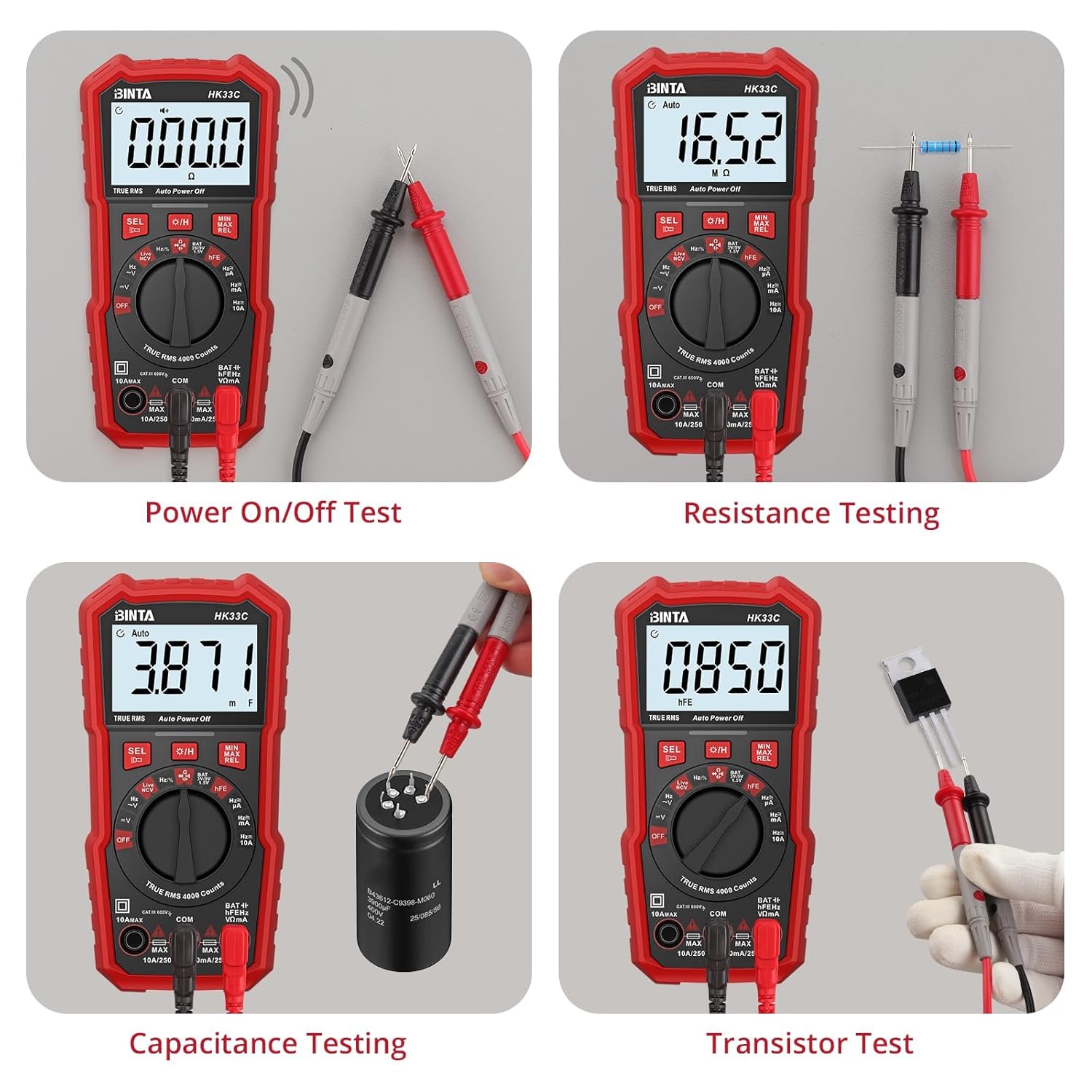

The meter supports AC/DC voltage, current and resistance readings, plus capacitance, frequency and duty cycle testing, which helps when diagnosing electrical faults and checking component values. It also includes NCV live detection and battery test modes for 1.5V, 3V and 9V cells, useful for quick checks on household batteries and vehicle sensors. 🔋

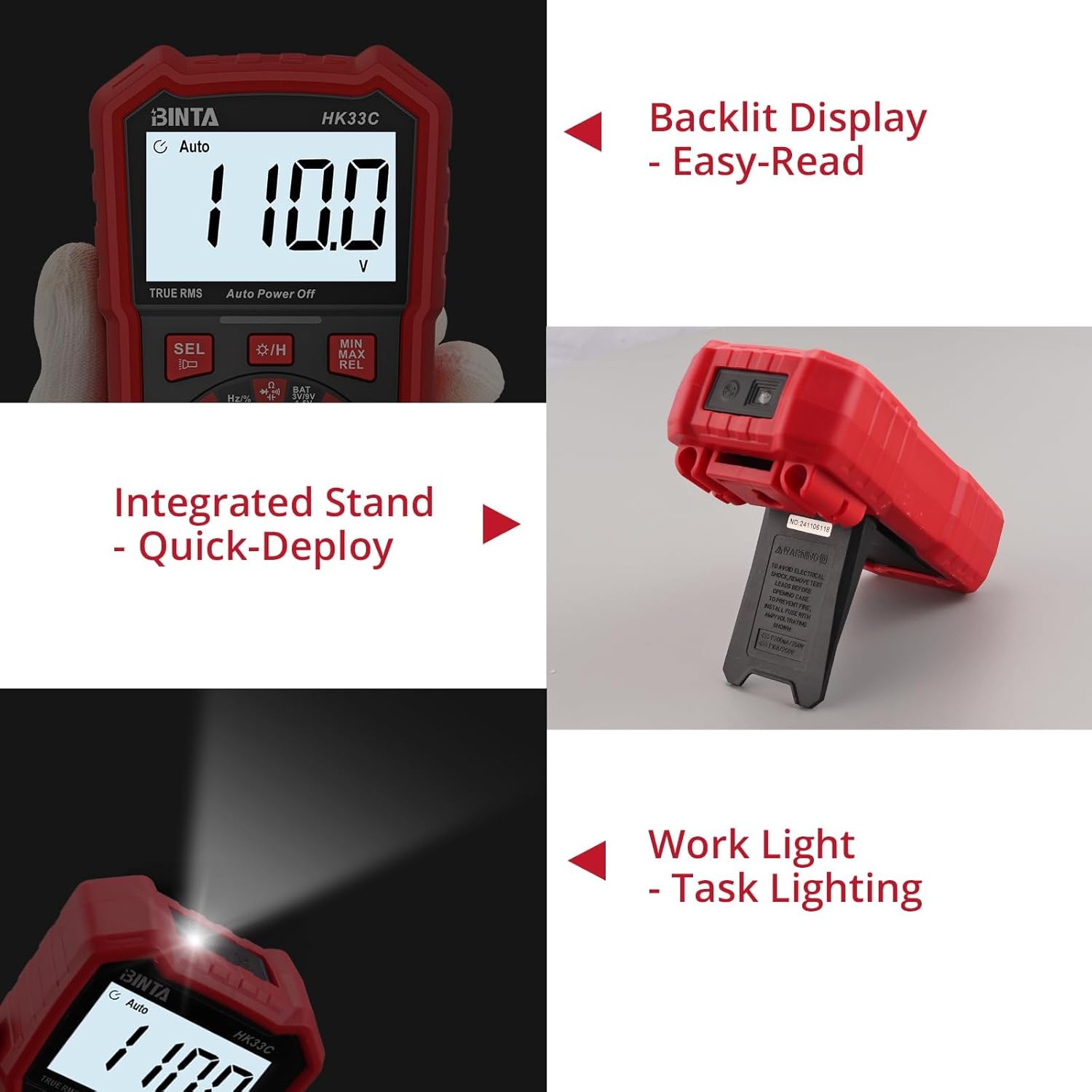

Visibility and convenience are improved by a backlight and a small flashlight, and the unit can hold readings with the data hold function while you move probes. The device includes max and min capture and an auto-shutoff after 15 minutes to conserve battery. Consider that the backlight times out after 15 seconds according to the manufacturer, so in prolonged low-light work you may need to reactivate it. 🔌

Safety features are designed into the product, including overload protection with built-in fuses and a certification of CAT III 600V which is relevant for many fixed installations and distribution circuits. The meter is compact enough to fit in a tool bag and comes with leads, a clip, a screwdriver and batteries for immediate use. 📏

Technical Specifications

• Name: BINTA Digital Multimeter 4000 Counts
• Counts: - 4000
• Safety rating: - CAT III 600V
• Dimensions: - 150 mm x 75 mm x 47 mm
• Power and batteries: - supports 1.5V, 3V and 9V battery testing; batteries included as per package contents
• Auto features: - auto-ranging, automatic polarity and overrange alerts

Usage Recommendations

For straightforward voltage and continuity checks, probe contact and lead condition make a big difference, so ensure good probe seating before recording values. For capacitance or frequency readings it helps to remove power from circuits first where possible; the NCV function is handy for detecting live conductors without contact. The meter performs well for general DIY and workshop chores, and the compact form factor suits on-site inspections where portability matters.

Consider that while the meter covers many functions it may not replace specialised equipment for high-precision laboratory or high-current industrial measurements according to the manufacturer.
