AOLISHENG drawer runners 190kg, 36 inch
Product description
Heavy duty drawer runners from AOLISHENG are made for demanding drawers where smooth travel and dependable support matter. With a 190kg load capacity and full extension travel, these side mount slides can help you reach stored items with less effort, which is useful in busy workshops and storage builds. 🛠️ The non locking, non removable design also keeps them straightforward to fit into common drawer and storage setups.
If you are upgrading old hardware or building something from scratch, these heavy duty drawer slides are built around long service life and quiet operation, according to the manufacturer’s testing. They are also designed with corrosion resistance in mind, using a blue passivated galvanized coating over thick steel. That combination is especially relevant when the drawer sits in environments where air and moisture can be around for long periods.
Key features

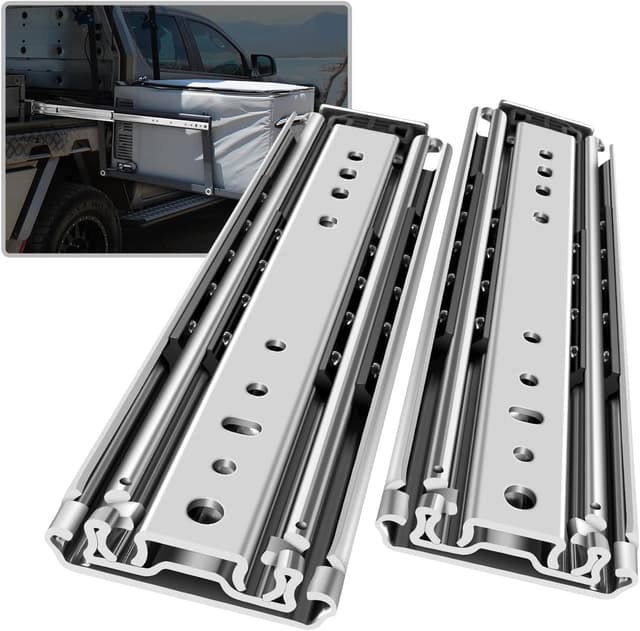

These drawer runners are engineered for full extension, so the drawer can open fully and you do not have to reach past the back of the storage space. The slides are described as smooth and silent in everyday use, helped by double rows of solid carbon steel balls. The balls are polished and rust treated, with different diameters for the outer rail and middle rail, which supports consistent rolling.
The build uses thick, cold rolled steel and a blue passivated galvanized coating intended to create a robust barrier against corrosion. The manufacturer also states that the service life can be extended by 3 to 5 times compared with standard alternatives, based on their testing approach. Tenon like reliability is what you want from drawer hardware, because drawers take constant daily use.
Another practical point is that these slides use a side mount arrangement and come as a pair, which simplifies matching the left and right rails for a single drawer. Because the design is non locking and non removable, the rails are intended to stay in place once installed, while still offering full travel.
Tech specs
- Type: Drawer runners, side mount slides
- Load capacity: 190kg
- Size: 36 inch, 900mm
- Width: 76mm
- Steel construction: 2.5mm thick cold rolled steel
- Coating: blue passivated galvanized coating
- Installation clearance: 19.2mm to 19.7mm per side
What matters most

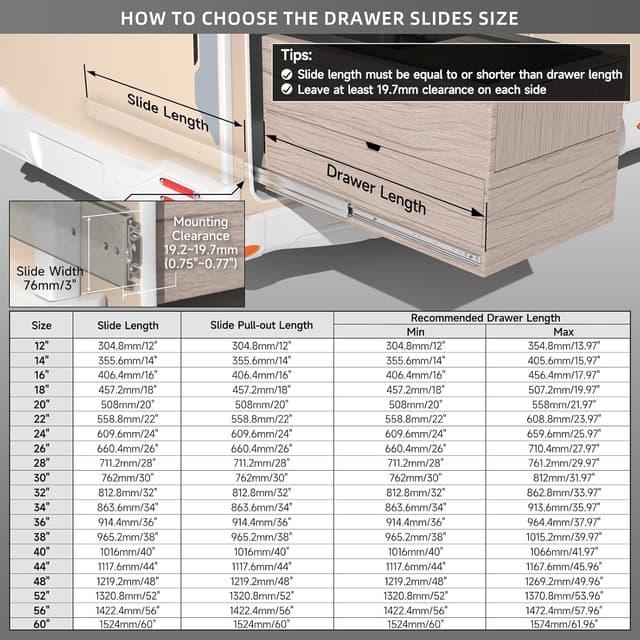

When choosing heavy duty drawer slides, the load rating and the way the drawer opens are usually the first two checks. These runners are specified for 190kg load capacity and full extension travel, so the drawer should reach more of the contents rather than limiting access part way. Worth keeping in mind that the slide length should be no longer than the drawer length, as stated in the installation requirements.
It also helps to plan the installation clearance carefully. The manufacturer specifies 19.2mm to 19.7mm clearance for each side, and correct spacing is important for smooth operation. 🔧 If you are working to tighter tolerances in a workshop build, taking time on measurement helps prevent rubbing and uneven movement.
The ball bearing design is a key differentiator for daily use, with double rows of carbon steel balls designed to keep the glide consistent. For corrosion resistance, the thick steel and the passivated galvanized coating are intended to protect against air and moisture, which supports longer term durability. If you are fitting slides into shelves, industrial drawers, toolboxes, RV storage, or truck drawers, this type of protection can be especially useful.
Who it’s for
It’s a good fit if you are building or upgrading a heavy drawer where you want full extension access and a smooth, quiet glide. It makes sense if you need side mount drawer runners with a high load capacity rating for storage that gets opened frequently. 🧰 You may like these runners if your projects include toolboxes, workshop drawers, RV storage drawers, or truck related storage.
You may want to skip these if your drawer opening design needs a locking feature or a removable rail setup, as this model is described as non locking and non removable. It might not be a great match if you cannot meet the stated installation clearance or if the drawer length is shorter than the slide length you plan to use. In that case, matching the runner size to the drawer depth and length, as the manufacturer advises, is the safest way to keep performance consistent.
