AOLISHENG Bottom Mount Heavy Duty Drawer Runners (Black) – Full Extension Hidden Rails, 1 Pair
Product description
If you’re fitting a heavy-duty under-stairs or bottom drawer, you’ll usually want runners that feel sturdy and keep moving smoothly for years. These AOLISHENG bottom mount drawer runners are built for demanding use, with a stated 120kg load capacity per pair and a long-life test figure (over 60,000 open-close cycles) on paper.
They’re also the sort of hardware that can make or break the day-to-day experience: when runners run cleanly and don’t jam, drawers feel effortless. When they don’t, you notice it immediately—especially with heavier contents.
The essentials
These are undermount drawer slides designed to sit hidden, using a bottom mount fit. The package is sold as 1 pair, with runners made from 2.0mm thick cold rolled steel and a black electrophoretic finish. On the movement side, the rails use dual rows of solid steel balls, which is aimed at smooth, quiet operation as you pull the drawer in and out.
The “full extension hidden rails” angle matters if you want access to the whole drawer, rather than reaching into the back. For under-stairs layouts and bottom drawers where space can be awkward, full extension can be a practical upgrade.
What stands out (and what to watch)
On paper, the strongest selling points here are durability and smoothness under load. There are also integrated rubber bumpers at the ends of the rails to absorb impact, which helps protect both the drawer and the cabinet during normal use.

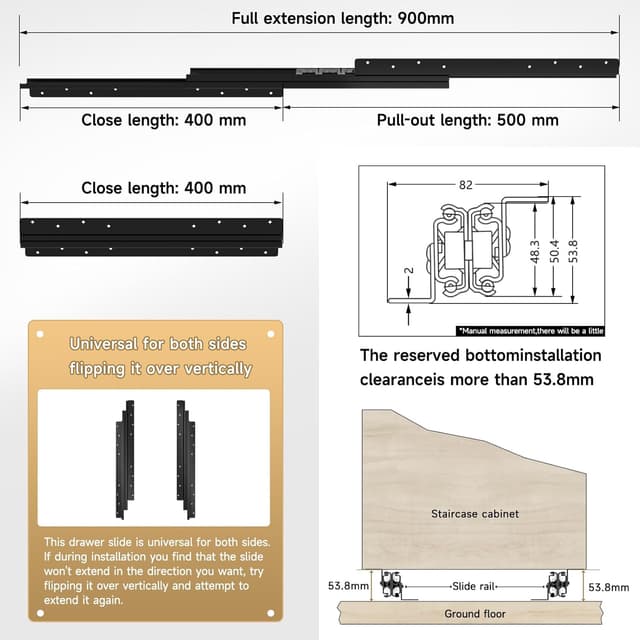

There is a limitation worth planning for: because these are bottom mount runners, you’ll need enough cabinet clearance. The reserved height (cabinet clearance) required is 53.8mm. If your carcass doesn’t have that space, you may struggle to install without redesigning the draw system.
Key specifications
- Type: Bottom mount undermount drawer runners with full extension hidden rails
- Load capacity: Up to 120kg
- Tested cycles: Over 60,000 open-close cycles
- Material: 2.0mm thick cold rolled steel
- Finish: Black electrophoretic finish
- Installation clearance (reserved height): 53.8mm
- Slide closure length: 400mm
- Extension length: 500mm
- Total length: 900mm
- Pack size: 1 pair
- Colour: Black
Installation planning: measure first
Before you buy into any undermount runner system, it’s smart to do a quick checklist against your cabinet opening. These runners are explicitly for bottom mount installation and come with a defined clearance requirement (53.8mm reserved height). Measure the cabinet structure and consider whether you’ll have room for the hardware and for the drawer box.
A practical micro-check before committing: dry-measure the space where the runner will sit, then compare it to the required clearance. If you’re working with under-stairs units, it’s common for the cabinet space to be slightly irregular, this is where that clearance figure becomes the difference between “fits nicely” and “it’s close, but not quite”.
Where they fit best
These heavy duty drawer runners are aimed at demanding drawer setups—places where weight and frequent use are realistic. The listed use cases include heavy load drawers, bottom drawers, wardrobes, wine cabinets, staircase cabinets, and under-stairs drawer applications, across both commercial and residential furniture.
It’s the sort of hardware that makes sense if you want a drawer that feels reassuring when loaded: kitchen storage, utility storage, or a wine cabinet where you don’t want the drawer to feel delicate.
¿Merece la pena?
MerecE la pena if your priority is a heavy-duty undermount runner that promises smooth operation and long service life under frequent opening and closing—especially if you’re building around an under-stairs or bottom drawer design.
It may not be the best match if your cabinet clearance can’t meet the 53.8mm reserved height requirement, or if you’re after a simpler, more lightweight setup where heavy-duty load capacity isn’t necessary. In those situations, the hardware might be overkill, and the install constraints could become more hassle than benefit.
Mini FAQ
How many runners come in the pack?
It’s sold as 1 pair.
Do I need a special cabinet clearance?
Yes. The required reserved height (cabinet clearance) is listed as 53.8mm for bottom mount installation.
Are these suitable for heavy drawers?
They’re stated to support up to 120kg load capacity and are intended for heavy load drawer applications.
Are they visible when installed?
They’re described as hidden rails with undermount bottom-mount styling.
What makes the movement smooth?
They use dual rows of solid steel balls, plus rubber bumpers at the rail ends to reduce impact during use.
