20AWG 5 core extension wire 20 m
Product description
If you need a reliable low voltage lead for outdoor lighting or automotive style wiring runs, this 20AWG 5 core extension cable is a practical choice. Built with tinned stranded copper conductors and a durable black PVC jacket, it is made to support a range of low voltage applications, including options up to higher rated settings according to the manufacturer specification. It is also described as waterproof and weather resistant, which helps when cables are exposed to damp conditions and day to day wear.

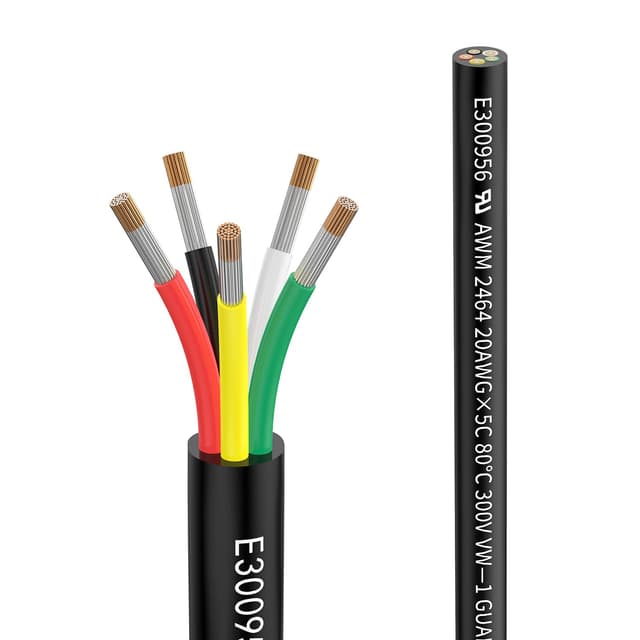

With 5 separate conductors in a single cable, the layout is useful when you want multiple connections while keeping routing tidy. The 20awg 5×0.5mm² 20M Electrical wire 5 conductor extension cable uses five colour coded cores, black, red, yellow, white and green, so you can organise runs more easily at installation time. The jacket is listed as flame retardant with VW-1 and FT1 ratings, and the cable is rated for direct burial, which can matter for some outdoor projects. 🧰
The essentials

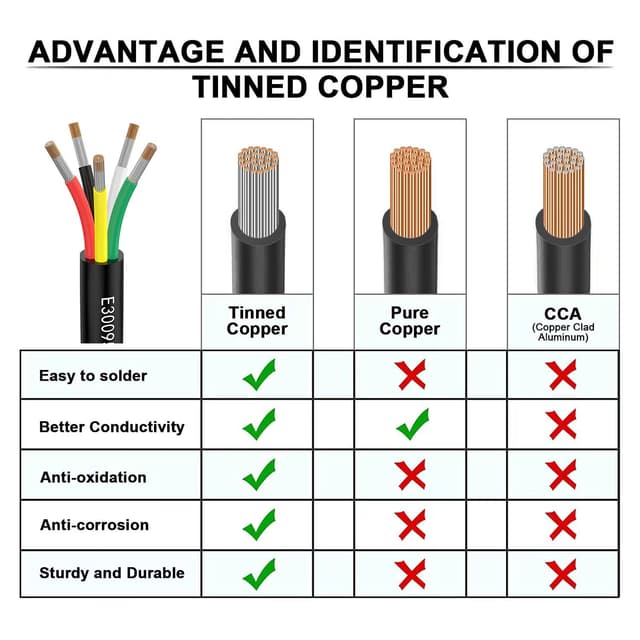

This extension cable is supplied as a 20 m length with five cores, each conductor described as 20 AWG with 0.5 mm² cross section. The manufacturer notes that each conductor is oxygen free stranded copper with tin plated strands, compared against CCA and pure copper materials. In practical terms, that focus on stranded, tinned copper is aimed at improving conductivity and reducing resistance for a more efficient connection.
The cable jacket is described in terms of everyday durability, with anti aging performance, corrosion resistance and weather tolerance. It is also stated to be waterproof and dust and dirt resistant, which makes it more suitable for outdoor runs where moisture and grime can be an issue. The temperature range is listed as -20℃ to 80℃, so it can be used in a wider variety of environments than cables limited to indoor conditions. 🌦️
If you are wiring low voltage accent lighting, path lights, spotlights, garden accessories or outdoor LED setups, the multi core design can reduce cable clutter. The same cable type is also listed as suitable for things like car and battery wiring, lamps, household appliances and inverter wiring. That breadth of listed uses is helpful when you want one cable specification for multiple job types.
Key features

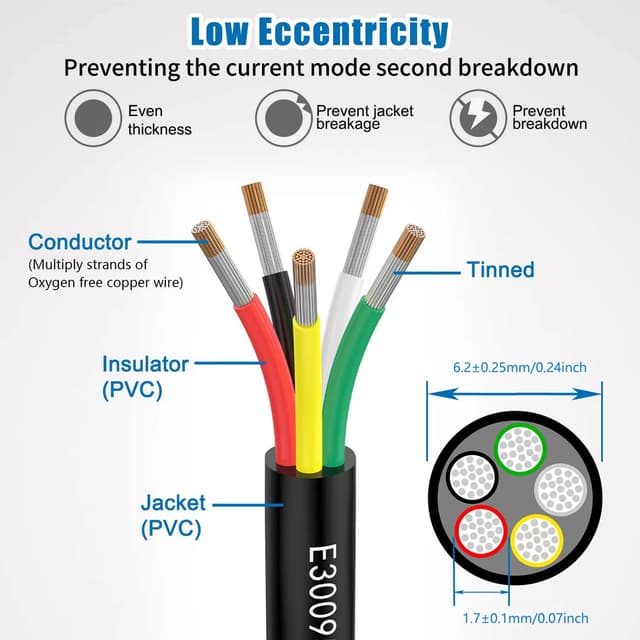

A standout point is the conductor construction. The cable includes 20 strands of 0.18 mm tinned copper wire inside each conductor, designed for efficient electrical connection with low impedance. The tinned strands are intended to protect against corrosion and make soldering easier when you are fitting connectors. 🔧
The cable jacket is described as high quality PVC with flame retardant properties, listed with VW-1 and FT1. For safety conscious installations, those ratings give you something concrete to check against your requirements. The cable is also described as rated for direct burial and able to withstand prolonged sun exposure, which can be relevant for outdoor landscape and path runs.
On electrical performance, the maximum voltage is stated as 300V, with the note that it can be used for 5V 12V DC 24V DC up to 300V DC according to the manufacturer specification. The maximum current is listed as 3.5A. If your project is strictly low voltage, you can still use this as the same wiring choice while staying within the stated voltage and current figures.
There is also a practical installation benefit to the coloured five core layout. Instead of running separate cables, you can route a single 5 core cable and identify each conductor by the colour coding. That can speed up setup for multi connection tasks, and it helps reduce mix ups when making terminations later.

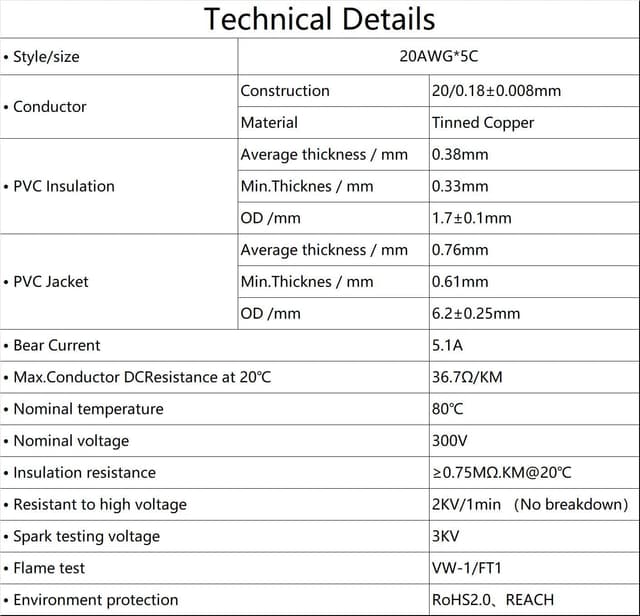

Tech specs
- Name: 20AWG 5×0.5mm² 5 Core Extension Cable UL2464 DC rated
- Type: Low voltage 5 conductor cable
- Format: Tinned copper stranded conductors
- Size: 20 AWG, 0.5 mm² per core
- Length: 20 m
- Max voltage: 300 V
- Max current: 3.5 A
What matters most for everyday use
It makes sense if you are planning outdoor low voltage wiring where waterproofing and weather resistance are part of your requirements. It suits you if you value a tidy five core cable for accent lights, path lights, spotlights, garden accessories or outdoor speakers, where multiple connections may be needed. You will also likely get more confidence from the listed temperature range of -20℃ to 80℃, especially for installations in changeable weather.
It may not suit you if you specifically need a different conductor size, a different number of cores, or cable length other than 20 m for your wiring plan. Also check that the rated voltage and current match the way you intend to power your lighting or equipment. For comparison, the manufacturer description mentions CCA versus copper and highlights the use of oxygen free stranded copper with tin plating, so it is worth confirming that this is the materials approach you want for your project. ✅
