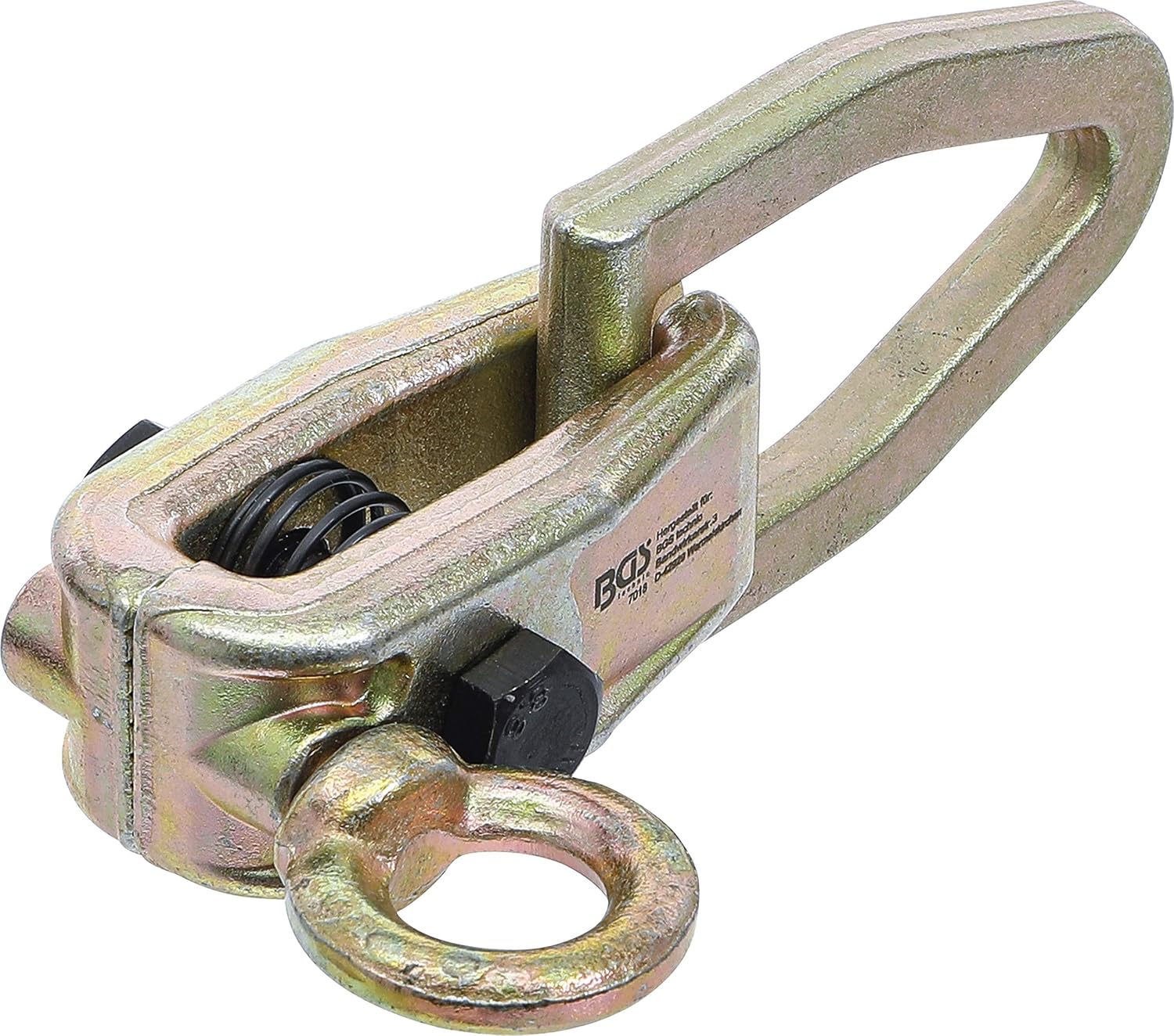

BGS 7018 Body Directional Clamp, 90°, Two Pull Directions, Max. 3 t
Product description
Made from special tool steel, the BGS 7018 is a body directional clamp designed for car body repairs. Its 380 mm claw width gives you a defined working span for positioning the tool on the repair area.
The 90° design provides two pulling directions, so you can choose the direction that suits the repair task rather than relying on a single pulling direction.
A side eyelet is firmly mounted on one side. With a maximum capacity of 3 t, this clamp is a dedicated addition to a body-repair tool set.
Size & fit
The claw width is 380 mm and the pull eyelet opening is 120 mm. Clamping depth is 1.7–2.5 mm, with an M12 x 1.75 fixing bolt. These measurements help you assess the clamp’s fit against the repair setup before use. The 90° arrangement and two pulling directions are useful when the required pull needs to be approached from different directions.
Why it makes sense
For car body repairs, the direction of pull is an important part of choosing the right clamp. The BGS 7018 offers two pulling directions in one tool, giving you a practical alternative to a clamp designed around a single direction. Its side eyelet is firmly fixed on one side, while the stated maximum capacity is 3 t.
For example, when preparing a body repair where the pull needs to follow a particular line, the two-direction design lets you select the relevant pulling direction for the task. It is intended for versatile use in car body repairs, making it a focused choice for workshops and repairers who need a dedicated body clamp rather than a general-purpose clamp.
Technical details
- Type: Body directional clamp
- Material: Special tool steel
- Design: 90°, two pulling directions
- Maximum capacity: 3 t
- Claw width: 380 mm
- Pull eyelet opening: 120 mm
- Clamping depth: 1.7–2.5 mm
- Fixing bolt: M12 x 1.75
- Colour: Silver
- Weight: 1.14 kg
Questions before you buy
What is the BGS 7018 designed for? It is suitable for car body repairs and is described as versatile for that work.
Can it pull in more than one direction? Yes. The clamp has two pulling directions, with a side eyelet firmly mounted on one side.
What fixing bolt does it use? The stated fixing bolt is M12 x 1.75. Its 120 mm pull eyelet opening and 1.7–2.5 mm clamping depth are also useful measurements when planning the setup.
Buying verdict
Choose the BGS 7018 for car body repair work where a 90° body clamp with two pulling directions is useful. Its special tool steel construction, firmly mounted side eyelet and maximum 3 t capacity make it a clearly specified, task-focused addition to a body-repair toolkit.
