BGS Do it yourself 7775 Hydraulic Drive Shaft Puller Set, 98–125 mm, 10 t

A drive shaft that comes free readily calls for a different approach from one that is glued or rusted into the wheel hub. The BGS Do it yourself 7775 is a hydraulic puller set designed for that extraction job, with a 10 t hydraulic spindle and a manual extraction spindle for controlled, hub-mounted use.

Its adjustable fit covers 4- and 5-hole hubs with a hole circle diameter of 98 to 125 mm, and wheel bolts up to M14. That makes it a practical workshop tool when the hub pattern and fastener size match.

Best use cases

Use the set to extract drive shafts from wheel hubs, particularly when a shaft is glued or rusted in place. The puller feet attach at the hub’s fixing points, allowing the hydraulic spindle to apply extraction force through the fitted assembly. For a job involving a compatible 4- or 5-hole hub, the 98–125 mm range gives a clear fit criterion before work begins.

The listed vehicle applications include VW, Audi, Seat, Skoda, Opel/Vauxhall, Volvo, Fiat, Renault, Peugeot and Citroën. These names indicate intended applications, the practical fit still depends on the hub’s hole circle diameter and wheel bolt size.

Strengths

The main benefit is the combination of a hydraulic spindle rated at 10 t and a manual extraction spindle in one set. This gives the tool a dedicated setup for stubborn drive-shaft removal, rather than relying on a puller intended for a different task. Its hub fit range also helps narrow the choice for workshop jobs where the fixing pattern is known.

For a mechanic or capable home workshop, the useful distinction is between choosing a general puller and choosing equipment built specifically to extract drive shafts from wheel hubs. The BGS set is the more targeted approach when the hub dimensions match and the shaft needs a firm extraction force. It can be positioned around the job using the hub’s existing 4- or 5-hole fixing points.

Key features

• Type: Hydraulic drive shaft puller set
• Hub fit: 4- and 5-hole hubs, 98 to 125 mm hole circle diameter
• Wheel bolt size: Up to M14
• Hydraulic spindle capacity: 10 t

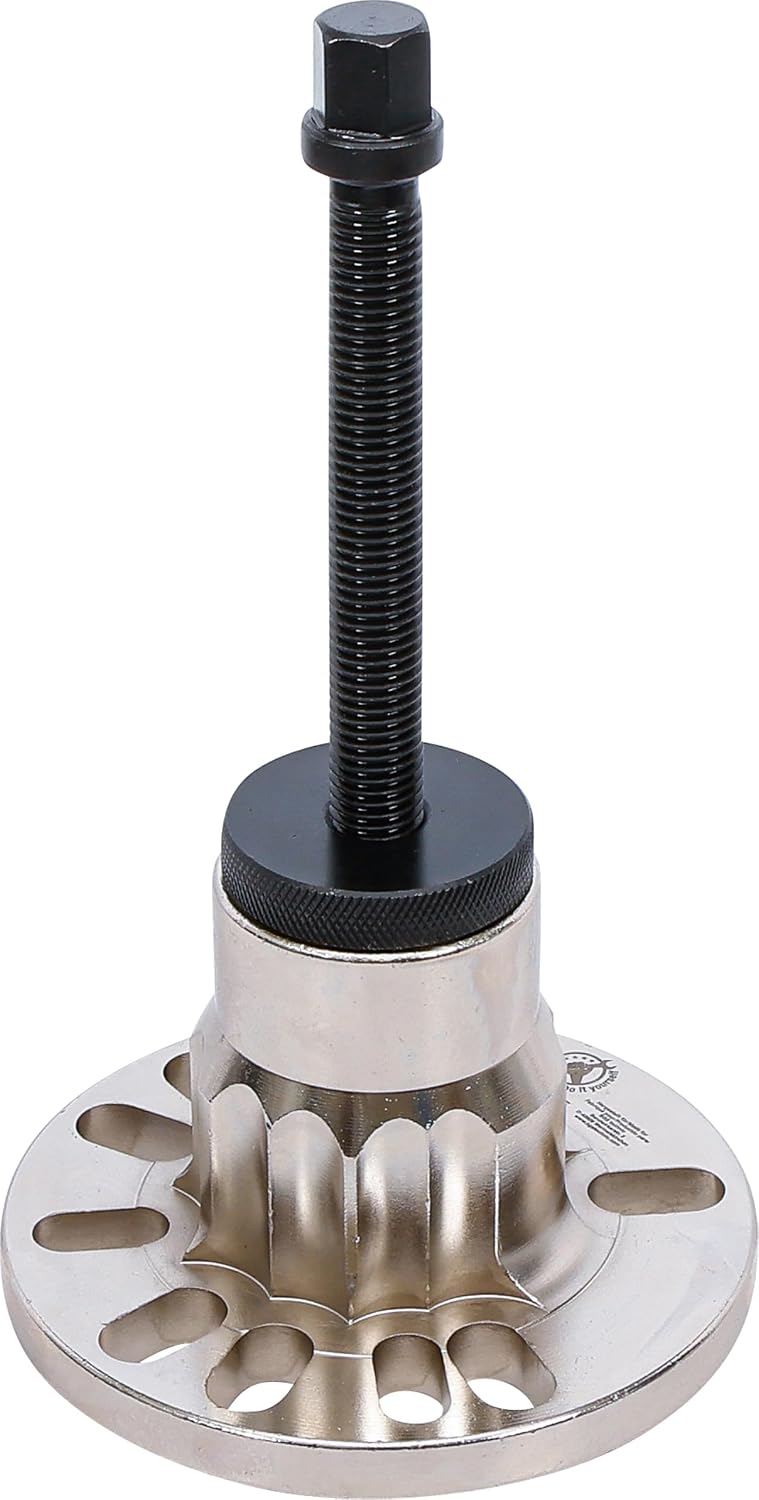

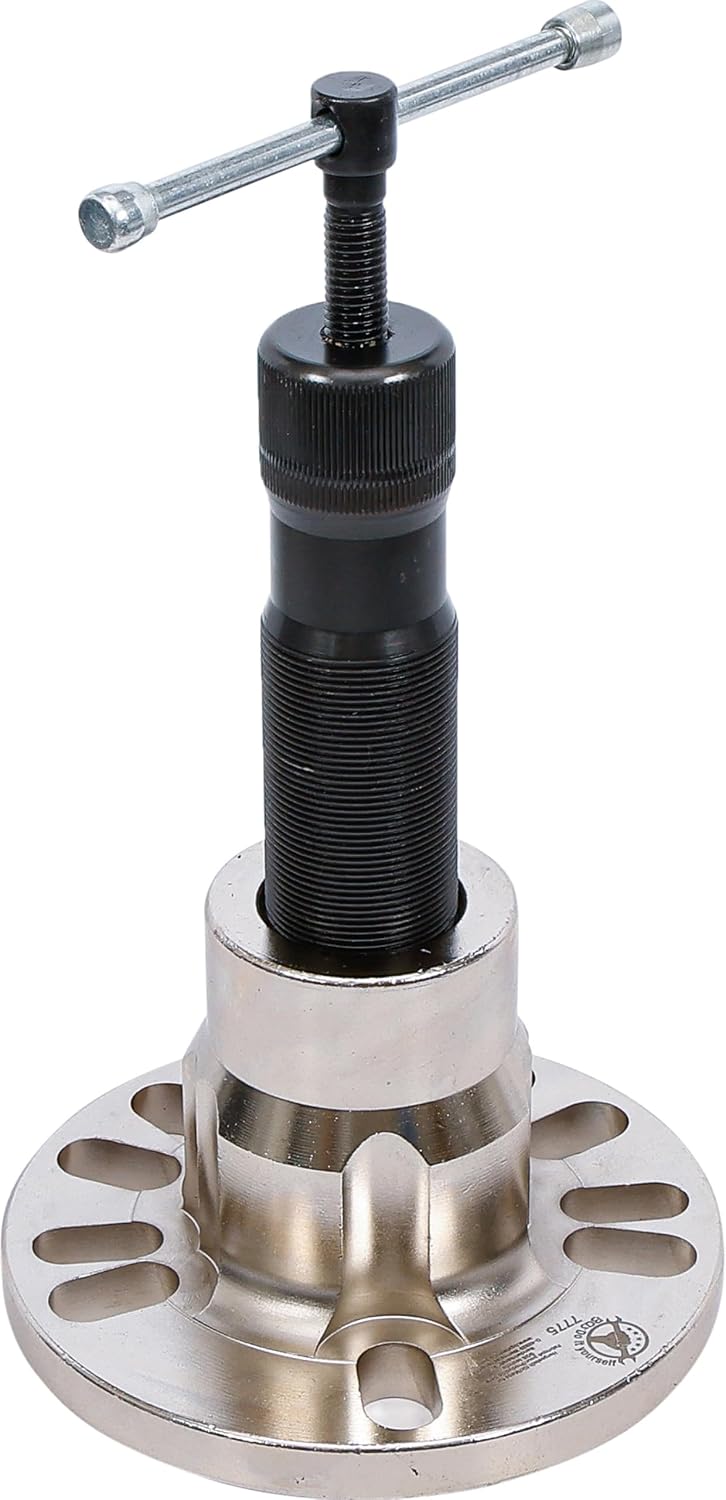

• Spindles: Hydraulic spindle and manual extraction spindle

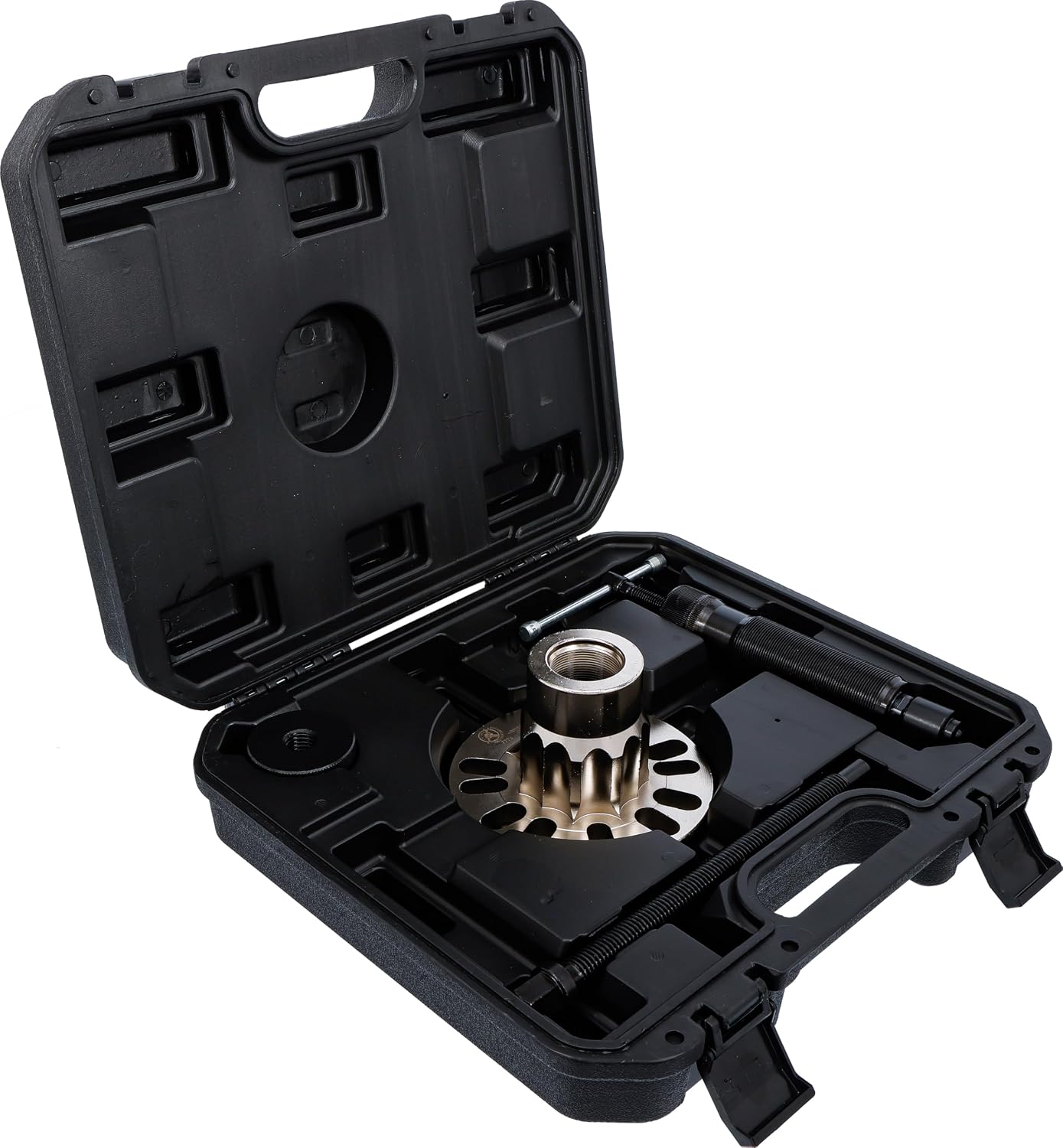

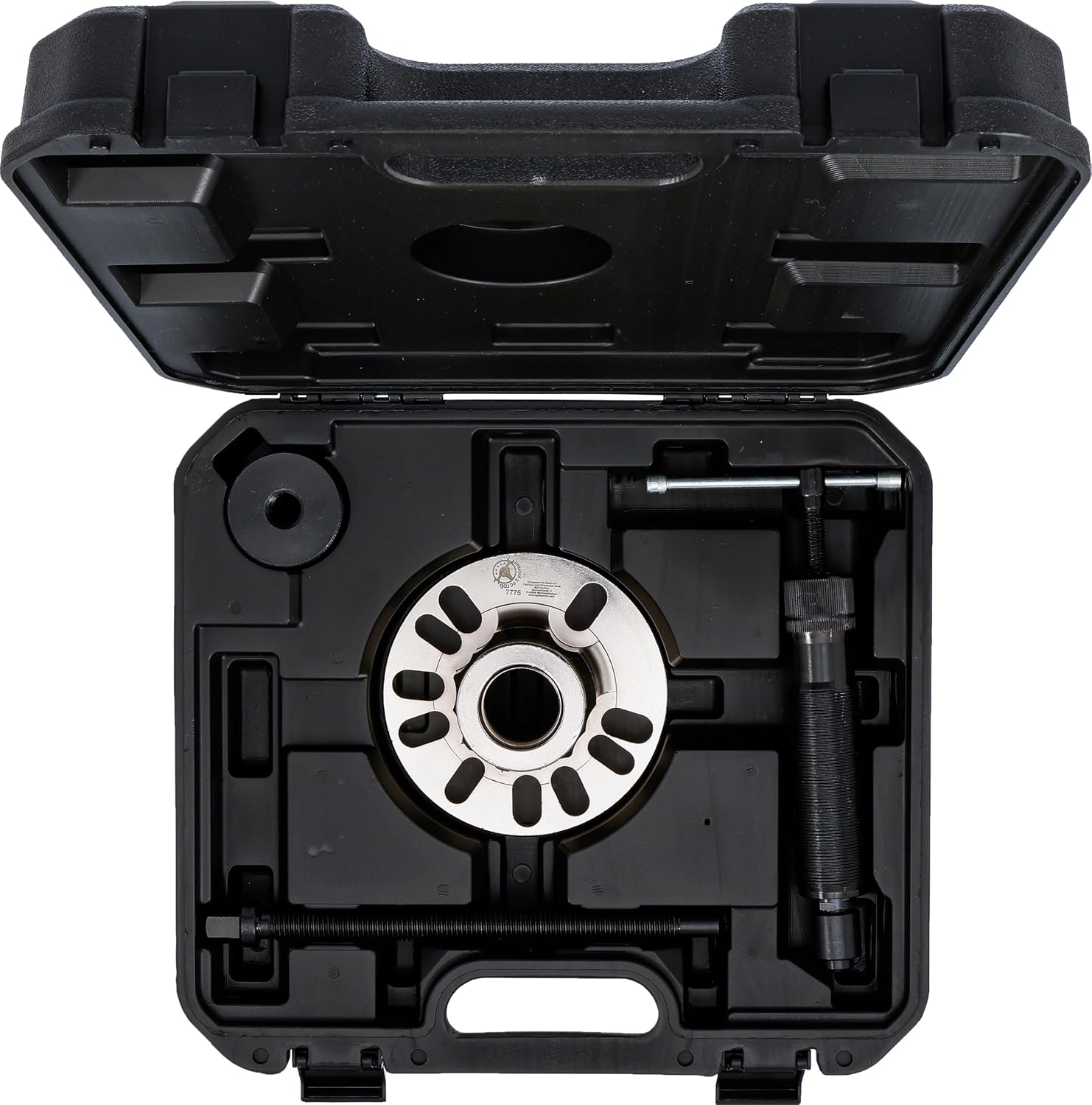

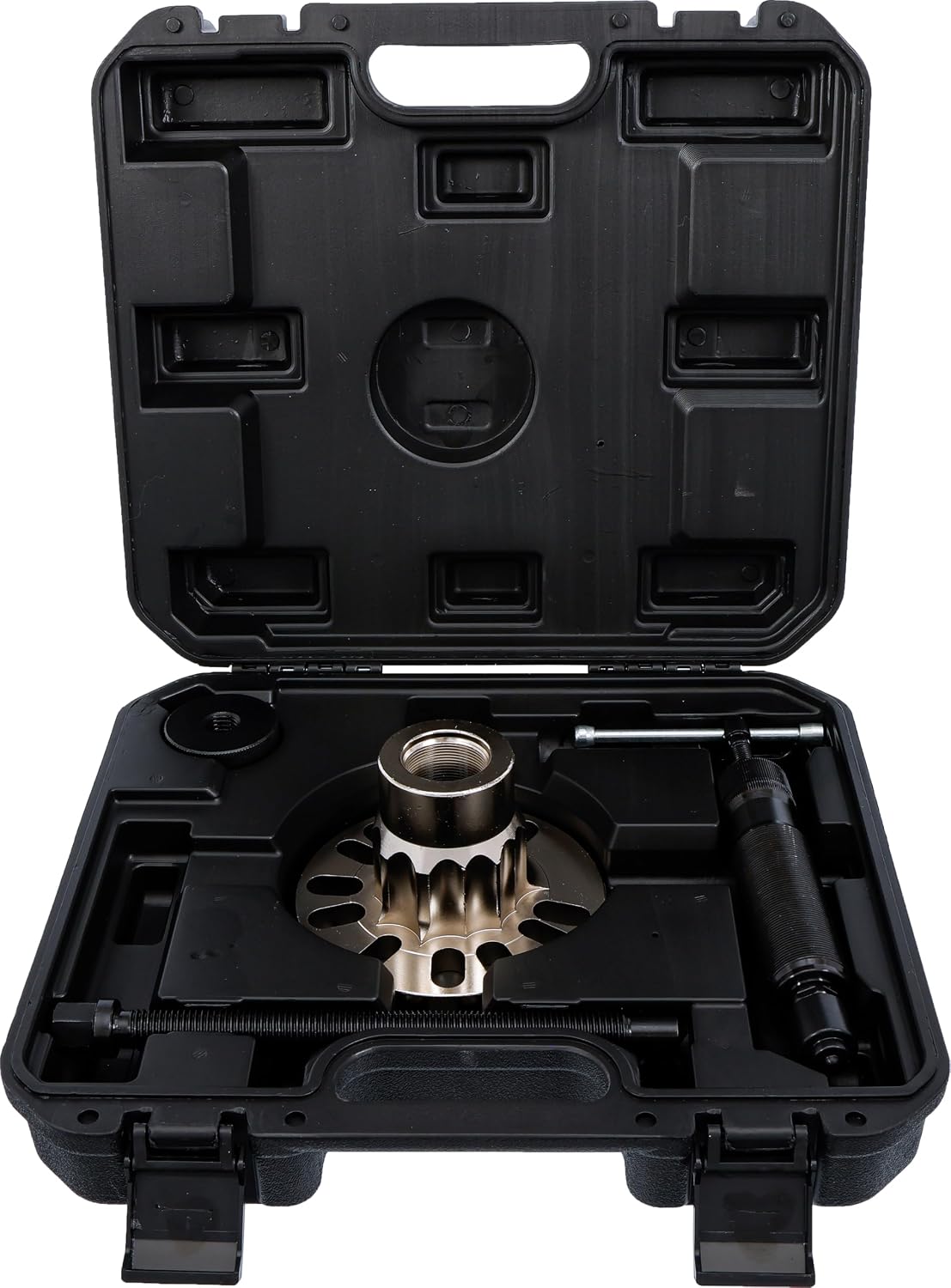

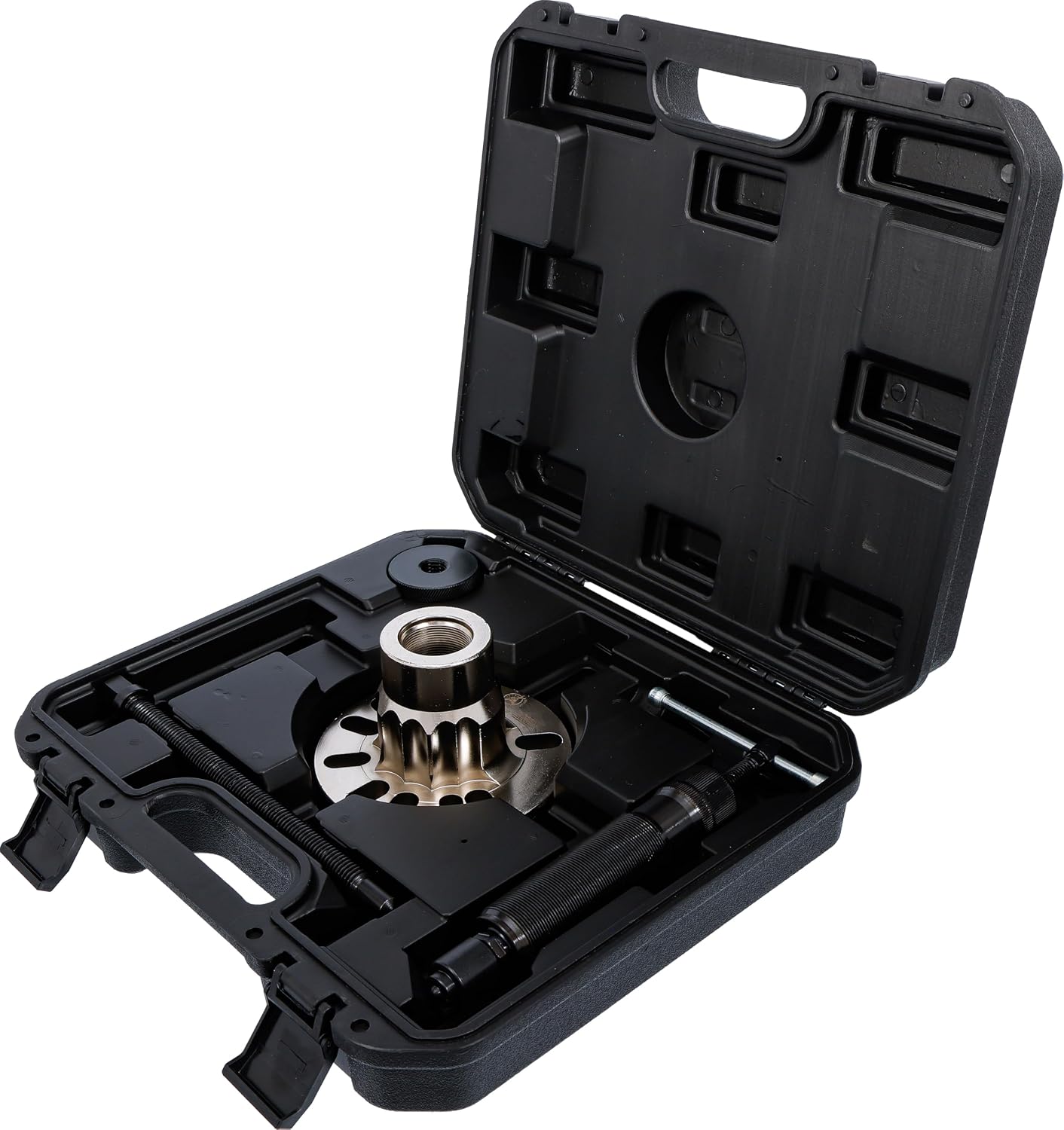

• Included components: Puller feet, hydraulic spindle, manual extraction spindle and thread reducer
• Thread details: Puller feet and hydraulic spindle have 1-1/2" x 16-UN internal thread, the manual spindle has 11/16" x 10-UN internal thread

Before you decide

What is the BGS 7775 designed to remove? It is designed to extract drive shafts from wheel hubs, with particular relevance to shafts that are glued or rusted in place.

Which hubs does the set fit? It is intended for 4- and 5-hole hubs with a hole circle diameter between 98 and 125 mm.

What wheel bolt size can it accommodate? The stated range is up to M14. Match this and the hub dimensions to the vehicle’s fixing pattern when selecting the tool for a job.

Final verdict

The BGS Do it yourself 7775 suits workshop users who need a dedicated drive-shaft puller for matching 4- or 5-hole hubs. Its 98–125 mm fit range, M14 maximum wheel bolt size and 10 t hydraulic spindle make it a specific choice for extracting shafts from hubs, including stubborn glued or rusted examples.
