Yosawa heat-shrink spade connectors, 120-piece kit

For DIYers handling vehicle, boat or household wiring, the Yosawa heat-shrink spade connector kit brings male and female terminals together in one package. The appeal is the combination of a crimp connection and a heat-shrink sleeve, rather than a basic insulated spade terminal on its own. It could suit small repair jobs where the wire gauge matches the supplied terminals.

The pack contains 120 pieces, but the listing doesn’t break down how many of each colour or connector type are included. That matters if you’re planning a specific job and need a particular terminal count.

How to use it

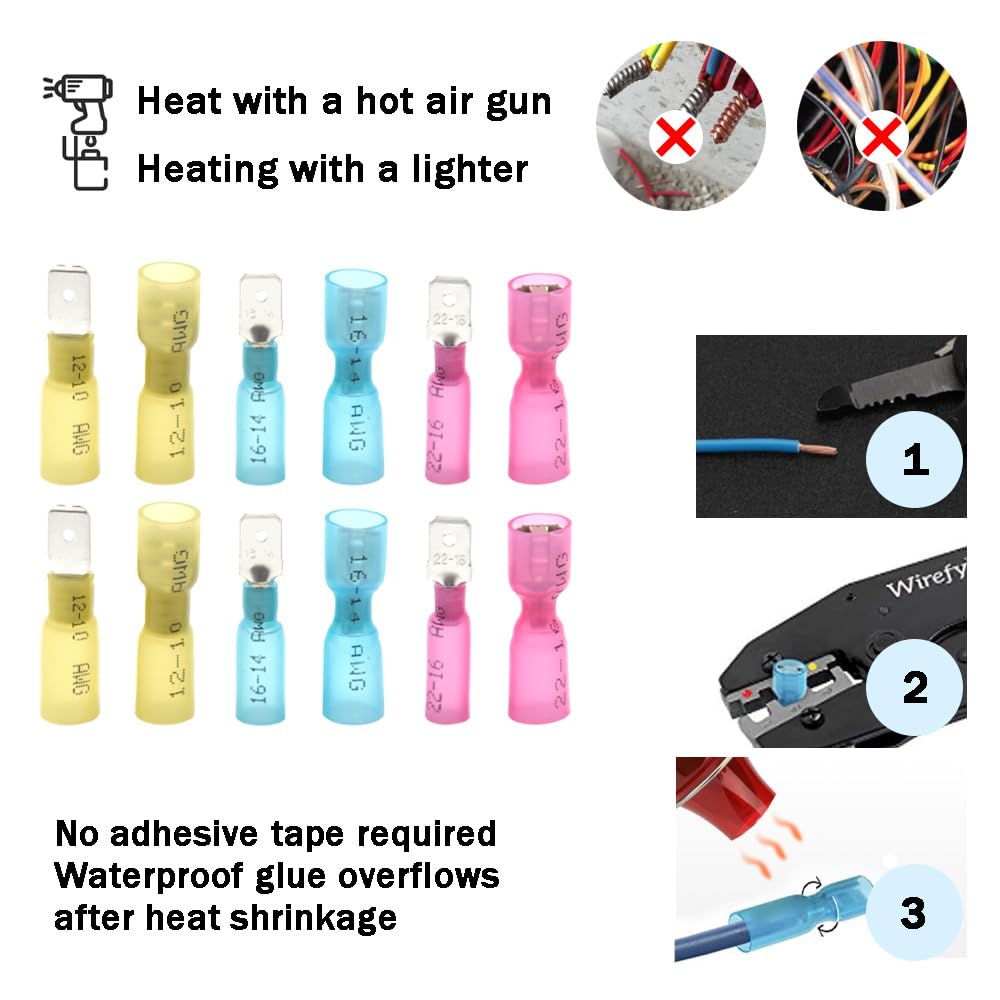

Start by matching the wire to the terminal’s listed colour range, then crimp the wire into the connector. Heat the sleeve so it shrinks around the connection. For example, while repairing a suitable wiring connection on a vehicle, you’d choose the terminal by wire gauge, make the crimp, then apply heat before moving on to the next connection. The sequence is straightforward, though you’ll need the appropriate crimping tool and a heat source, the product details don’t say these are included.

The listing describes the terminals as insulated and waterproof, and says they’re suitable for boats, vehicles, home projects and DIY wiring. That can make the kit relevant where a connection needs more than an uncovered crimp, but the description doesn’t specify a water-resistance rating or conditions. Are you choosing terminals for a one-off repair or stocking up for several jobs? The answer affects whether a mixed pack is useful, especially when its per-colour quantities aren’t given.

Pros

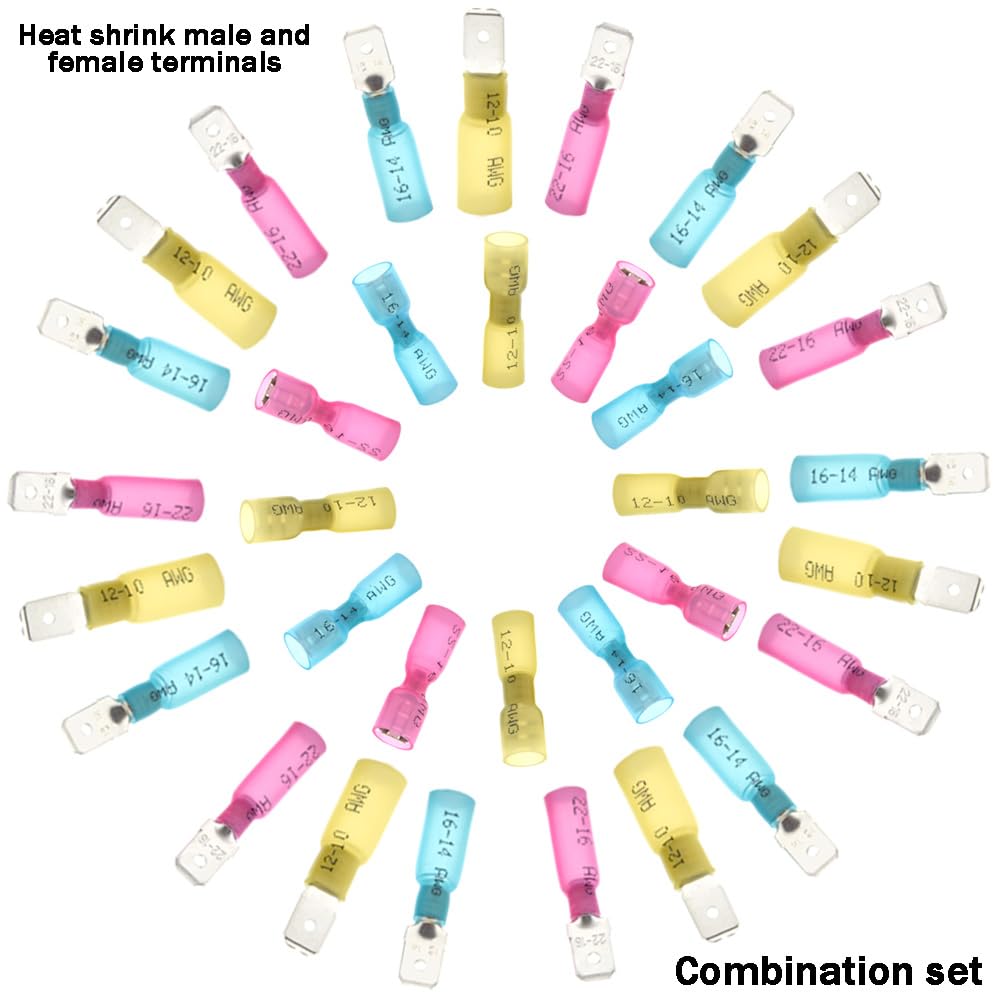

The main practical advantage is having red, blue and yellow terminals for different wire ranges, plus both female and male spade connectors. The material is listed as copper with tin plating and hot-melt adhesive. Compared with buying basic, non-heat-shrink spade terminals, this design adds a sleeve that shrinks around the crimp when heated. That extra step may suit wiring projects where an insulated finish is important, while a simple terminal may be enough for a less demanding connection.

It suits you if your project uses the listed wire gauges and you want a selection of heat-shrink spade terminals for repairs or DIY connections. It isn’t for you if you need a confirmed quantity of each connector, a specific waterproof rating, or terminals for a wire size outside the ranges below. The connector kit is the focus here, the listing doesn’t establish that any tools or other wiring supplies come with it.

Spec sheet

• Type: Heat-shrink, insulated male and female spade connectors
• Capacity: 120 pieces

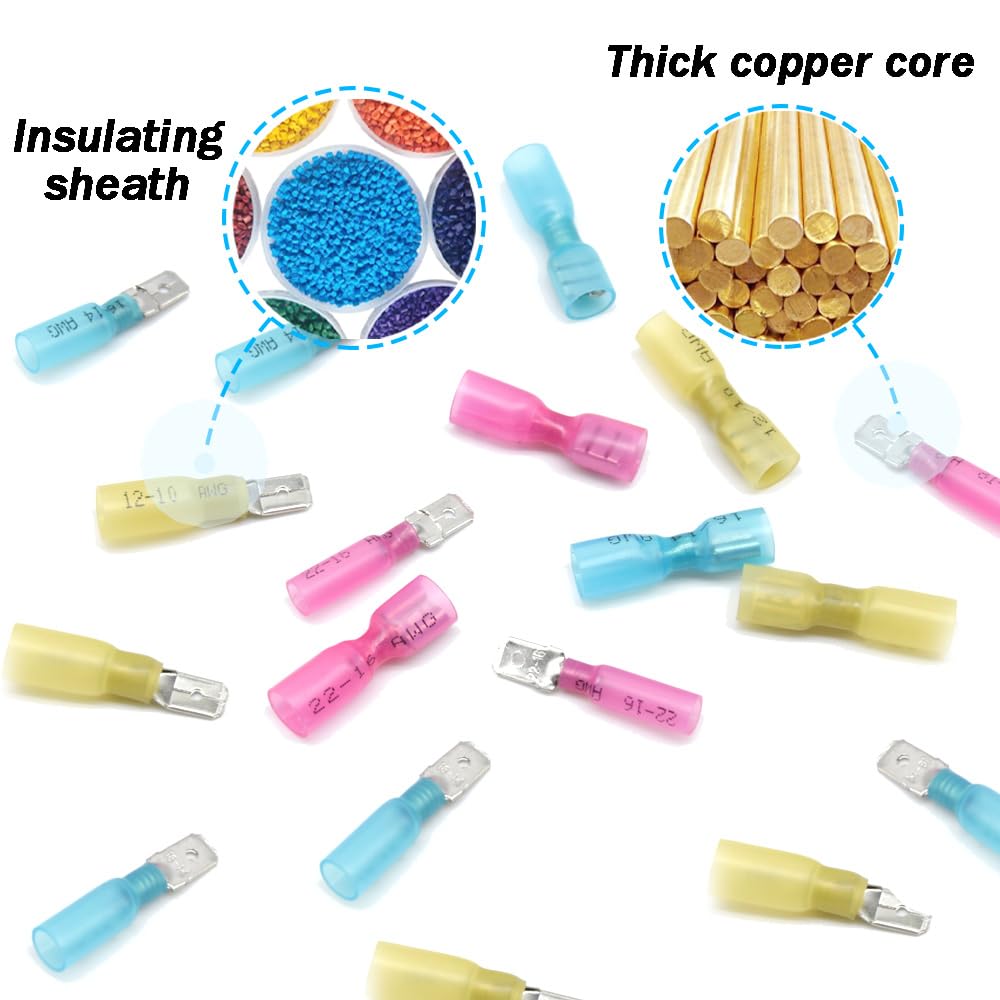

• Material: Copper, tin plating and hot-melt adhesive

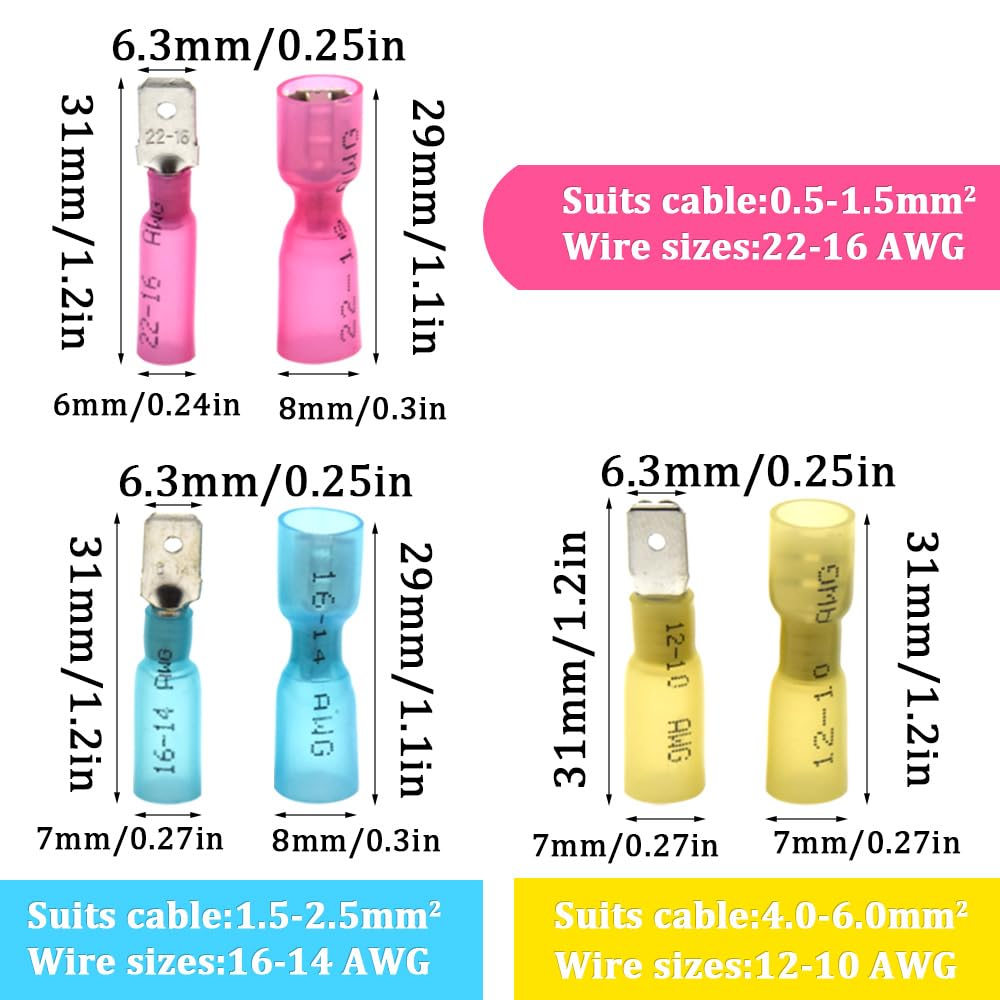

• Red: 22–16 AWG
• Blue: 16–14 AWG
• Yellow: 12–10 AWG
• Model: CRSGM

The wire ranges are the most useful detail to check before choosing a terminal. The red and blue ranges both include 16 AWG, so use the marking and fit of the connector rather than assuming colours alone settle every choice. The listing also describes the kit as waterproof, according to the manufacturer, but gives no rating to compare with the demands of a particular installation.

What I’d decide

This kit makes the most sense when you have several small wiring jobs in mind, use compatible wire gauges and can supply the crimping and heating tools yourself. The mix of colours and male/female terminals offers more flexibility than buying a single style of basic connector, but the undisclosed breakdown of the 120 pieces makes it harder to plan a job that needs exact counts. For a critical or persistently wet installation, the lack of a stated water-resistance rating is a reason to look for more specific product documentation before relying on the waterproof claim.
